Open Floor Plan Three Bedroom Design

Plan 59510ND

  • 1,596

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • An impressive front entrance is achieved by the interesting gable roof line on this three bedroom home plan. Once inside, you'll enjoy an open floor plan with access to the kitchen, which allow entertaining friends very rewarding.
  • Or spend the evenings alone with your family outside on the rear grilling porch.
  • In the evening, you'll find enjoyment as you retreat to your master bath, relaxing in the whirlpool tub.
  • Unexpected guests can be easily accommodated by the optional bedroom downstairs, or convert it to a family game room.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

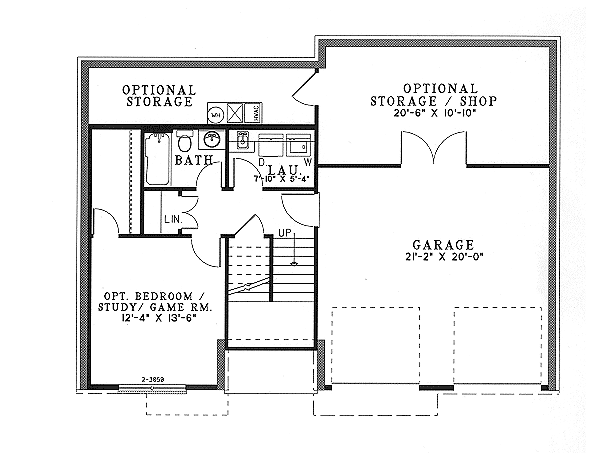

Open Floor Plan Three Bedroom Design - 59510ND floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

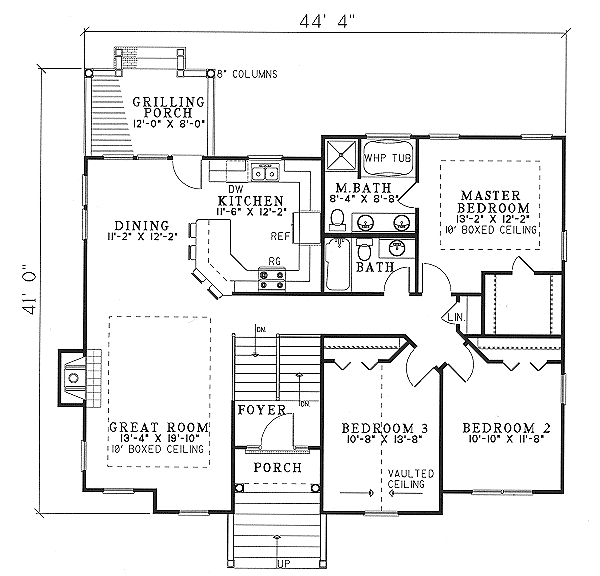

Open Floor Plan Three Bedroom Design - 59510ND floor plan - Main Level

Open Floor Plan Three Bedroom Design

  • 1,596

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,596 sq. ft.
  • Lower Level: 171 sq. ft.
  • 1st Floor: 1,425 sq. ft.

Dimensions

  • Width: 44' 4"
  • Depth: 41' 0"
  • Max ridge height: 26' 2"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 423 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
