Open Living

Plan 5933ND

  • 2,405

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

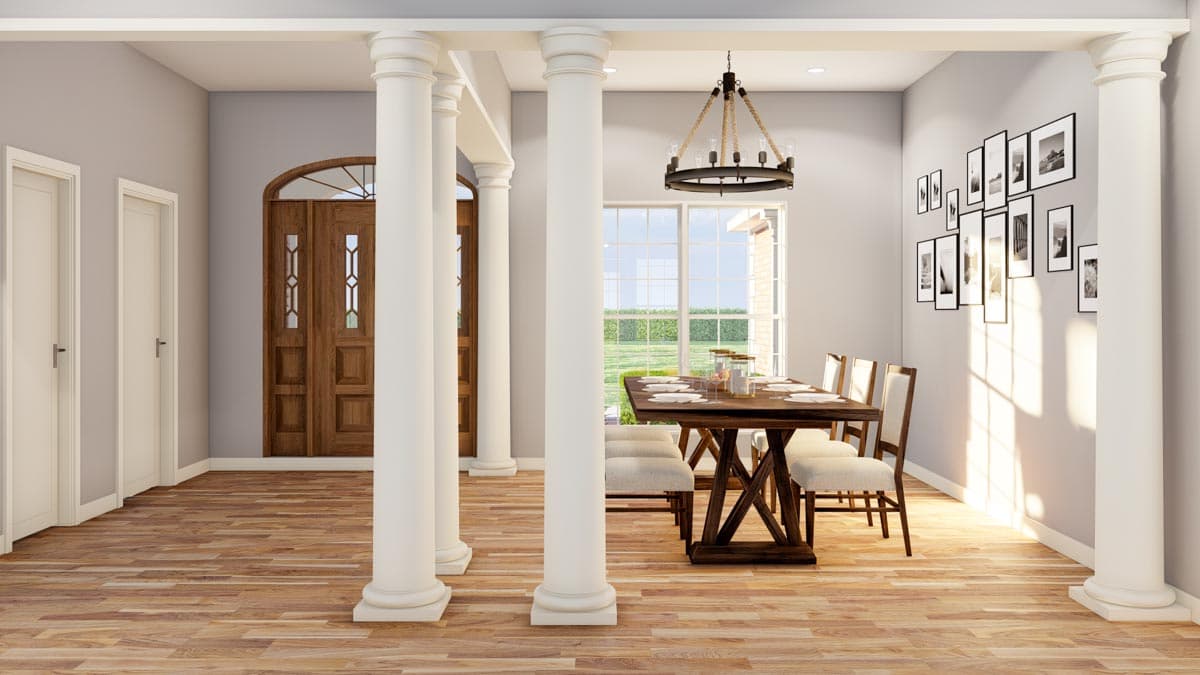

  • The foyer, dining room and great room of this elegant open design are united by a 10' ceiling.

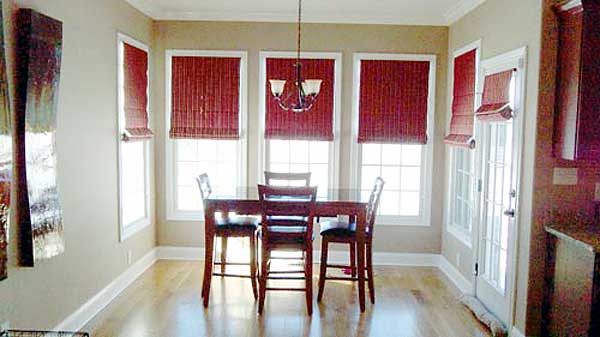

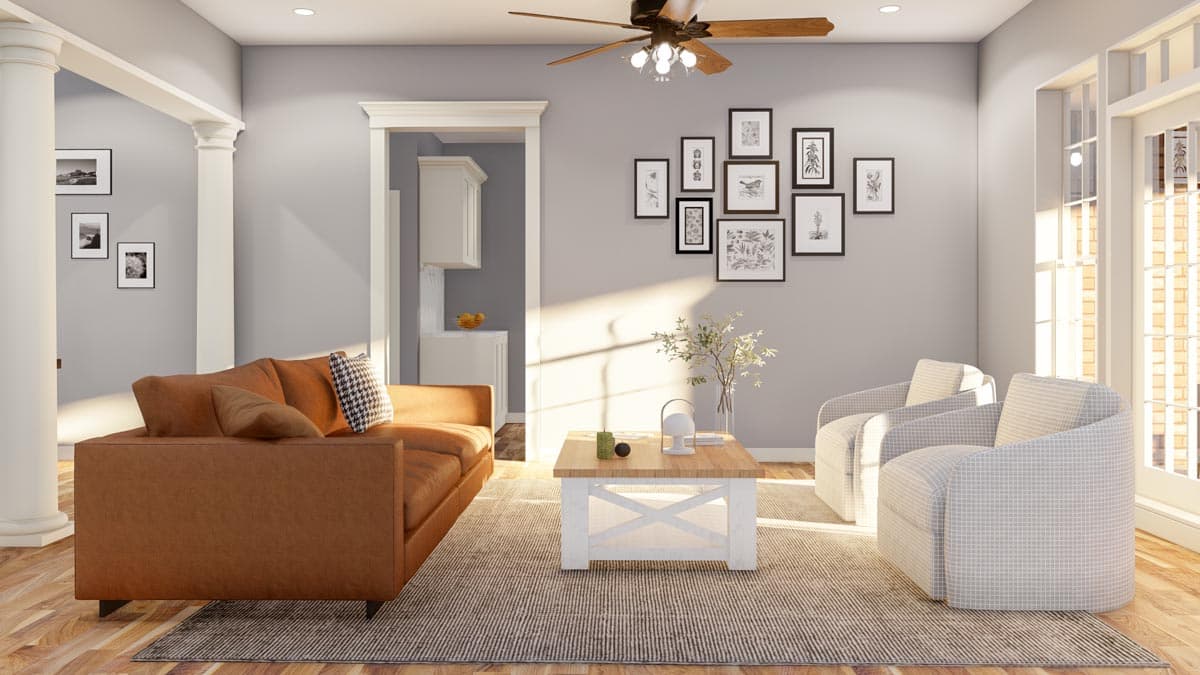

  • A wood-burning fireplace in the great room complements the gas fireplace in the hearth room, which forms a family area with the kitchen and the breakfast room. A computer center, laundry room and walk-in pantry are special features.
  • Bedroom two, which has its own bath, could easily become a study with an optional door to the foyer. Another full bath serves the other bedrooms and the rest of the house.
  • The spacious master bath is filled with luxury. In the master bedroom, the bayed sitting area offers an invitation to curl up with a book.
  • The upstairs bonus room can serve any number of purposes.
  • Related Plans: See these related house plans: 59712ND with in-law suite and Jack-and-Jill bath configuration and 59679ND with an in-law suite.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

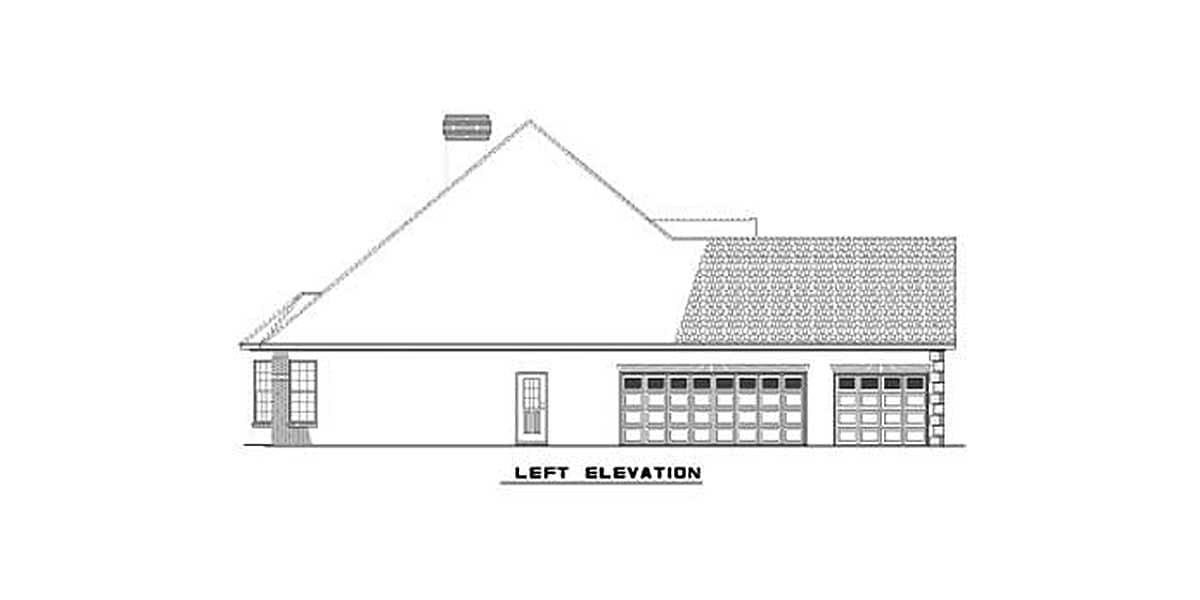

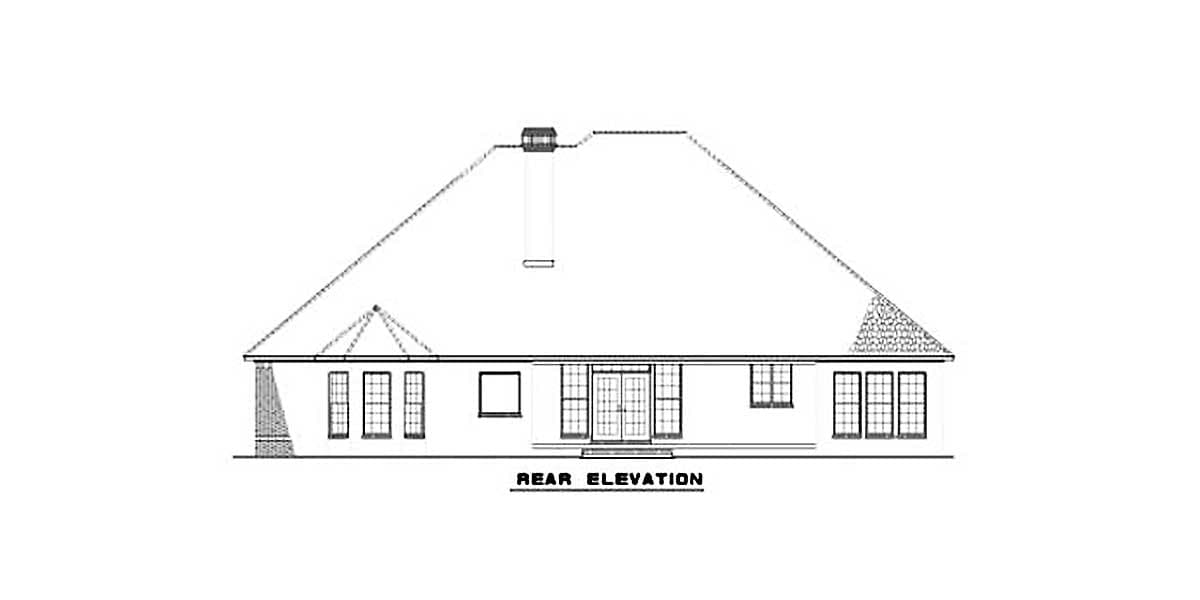

  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Plan details



Open Living

  • 2,405

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,200
  • 5 Sets $1,300
  • CAD $2,400
  • View all purchase option online

About This Plan

  • The foyer, dining room and great room of this elegant open design are united by a 10' ceiling.
  • A wood-burning fireplace in the great room complements the gas fireplace in the hearth room, which forms a family area with the kitchen and the breakfast room. A computer center, laundry room and walk-in pantry are special features.
  • Bedroom two, which has its own bath, could easily become a study with an optional door to the foyer. Another full bath serves the other bedrooms and the rest of the house.
  • The spacious master bath is filled with luxury. In the master bedroom, the bayed sitting area offers an invitation to curl up with a book.
  • The upstairs bonus room can serve any number of purposes.
  • Related Plans: See these related house plans: 59712ND with in-law suite and Jack-and-Jill bath configuration and 59679ND with an in-law suite.

Floor Plans

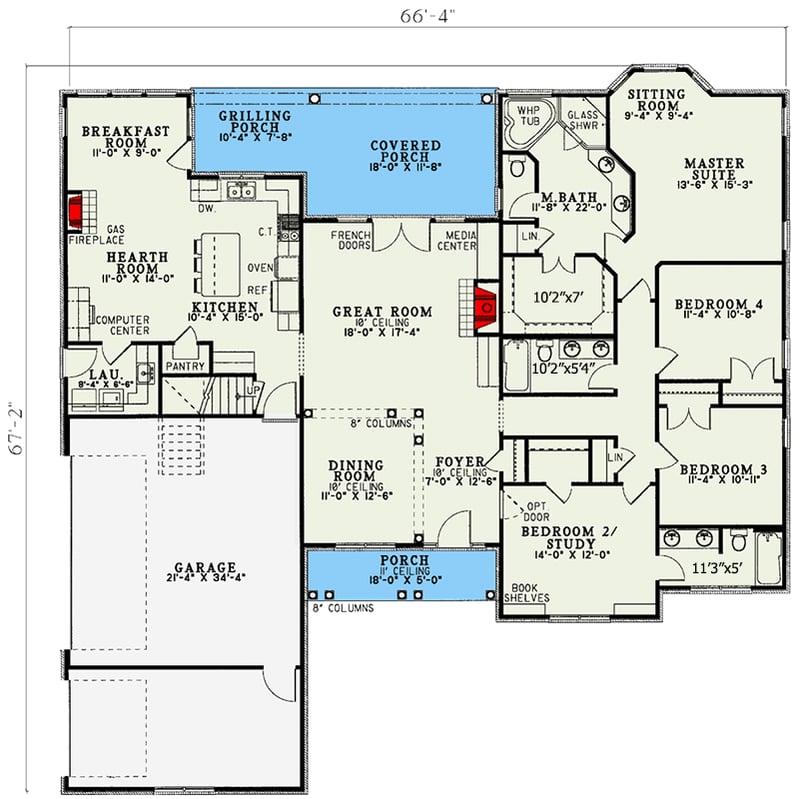

  • Main Level

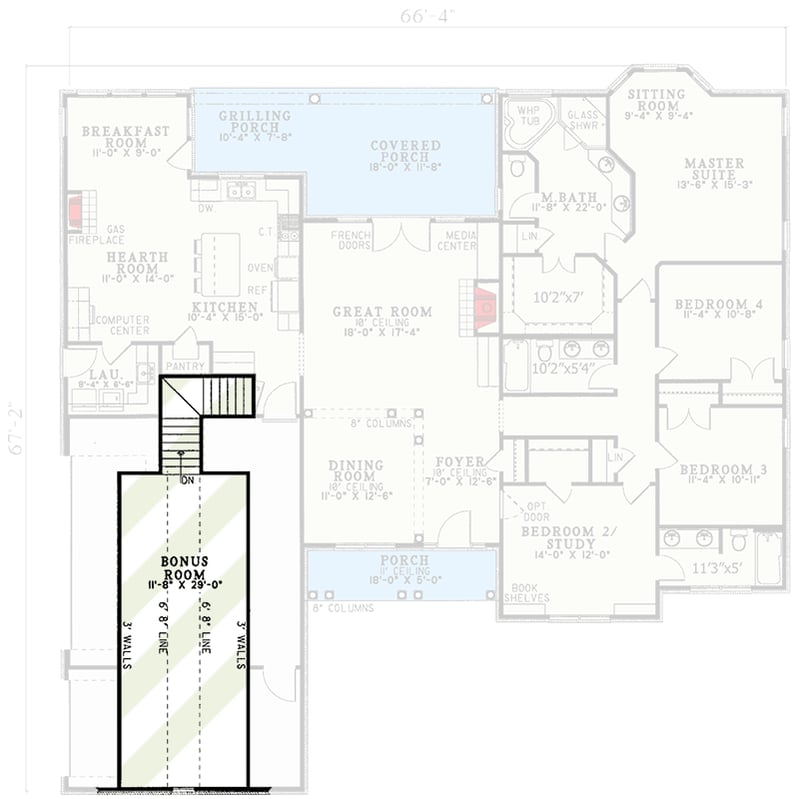

  • Bonus

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,405 sq. ft.
  • 1st Floor: 2,405 sq. ft.
  • Bonus: 358 sq. ft.
  • Porch, Front: 108 sq. ft.

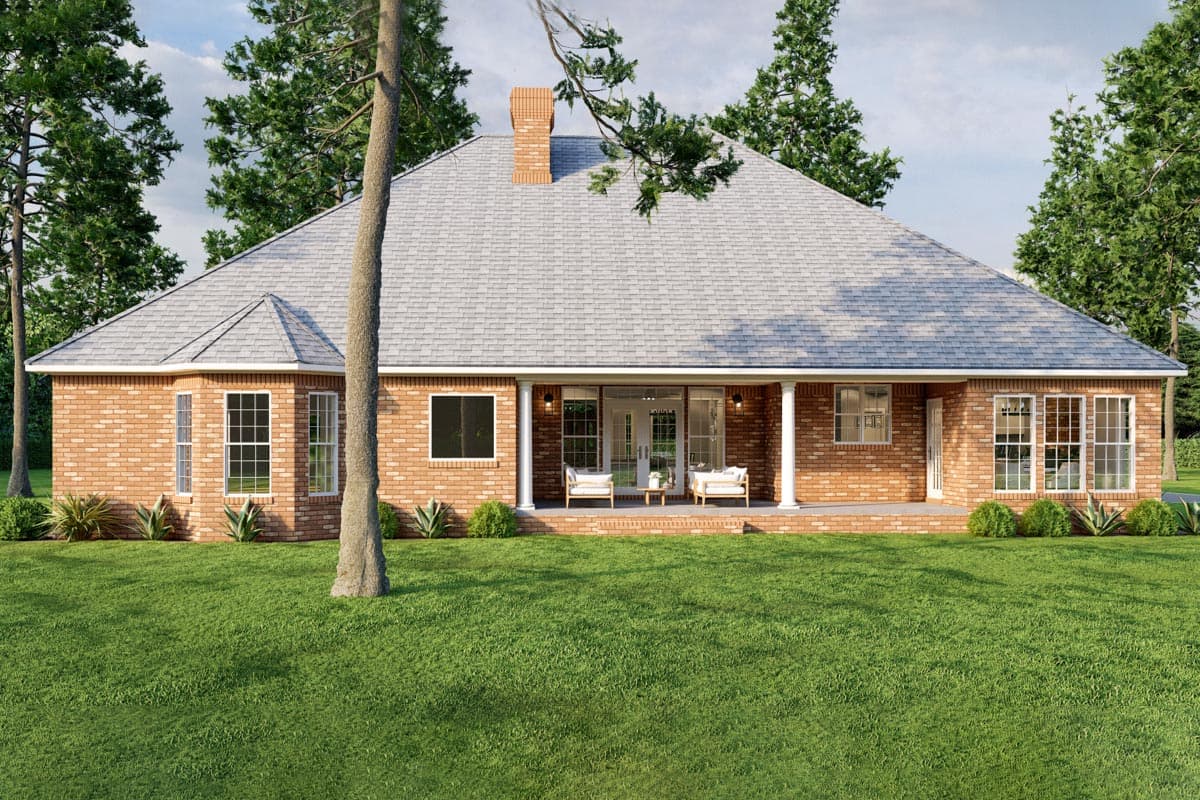

  • Porch, Rear: 285 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 4"
  • Depth: 67' 2"
  • Max ridge height: 30' 0"

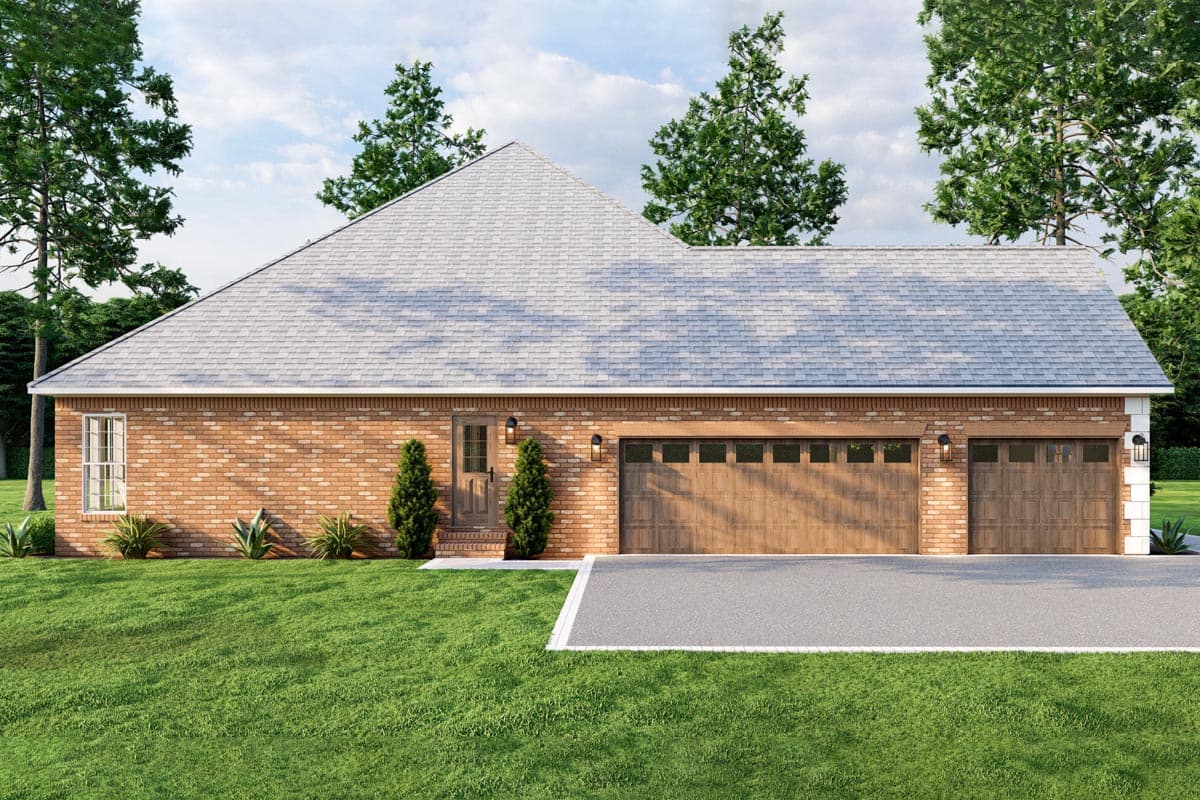

Garage

  • Type: Attached
  • Area: 762 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
