Plan: 59679ND

Open Living with In-Law Suite

2,880 4-5 4 1-2 3
Pageloader

Open Living with In-Law Suite

Plan 59679ND

  • 2,880

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • The foyer, dining room and great room of this elegant open design are united by a 10' ceiling.
  • A wood-burning fireplace in the great room complements the gas fireplace in the hearth room, which forms a family area with the kitchen and the breakfast room. A computer center, laundry room and walk-in pantry are special features.
  • Bedroom two, with its own bath, can be turned into a den and can be used as an extra guest room. Bedrooms three and four share the house bath.
  • An in-law suite has its own entry and bath for added privacy.
  • The spacious master bath is filled with luxury and features a massive walk-in closet. In the master bedroom, the bayed sitting area offers an invitation to curl up with a book.
  • The upstairs bonus room can serve any number of purposes.
  • Related Plans: See these related house plans: 5933ND without the in-law suite and 59712ND with in-law suite and Jack-and-Jill bath configuration.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Plan details



Open Living with In-Law Suite

  • 2,880

    Heated s.f.

  • 4 - 5

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $640
  • 5 Sets $730
  • 8 Sets $870
  • Reproducible Set $1,340
  • PDF - single-use $1,340
  • CAD $2,065
  • View all purchase option online

About This Plan

  • The foyer, dining room and great room of this elegant open design are united by a 10' ceiling.
  • A wood-burning fireplace in the great room complements the gas fireplace in the hearth room, which forms a family area with the kitchen and the breakfast room. A computer center, laundry room and walk-in pantry are special features.
  • Bedroom two, with its own bath, can be turned into a den and can be used as an extra guest room. Bedrooms three and four share the house bath.
  • An in-law suite has its own entry and bath for added privacy.
  • The spacious master bath is filled with luxury and features a massive walk-in closet. In the master bedroom, the bayed sitting area offers an invitation to curl up with a book.
  • The upstairs bonus room can serve any number of purposes.
  • Related Plans: See these related house plans: 5933ND without the in-law suite and 59712ND with in-law suite and Jack-and-Jill bath configuration.

Floor Plans

  • Main Level

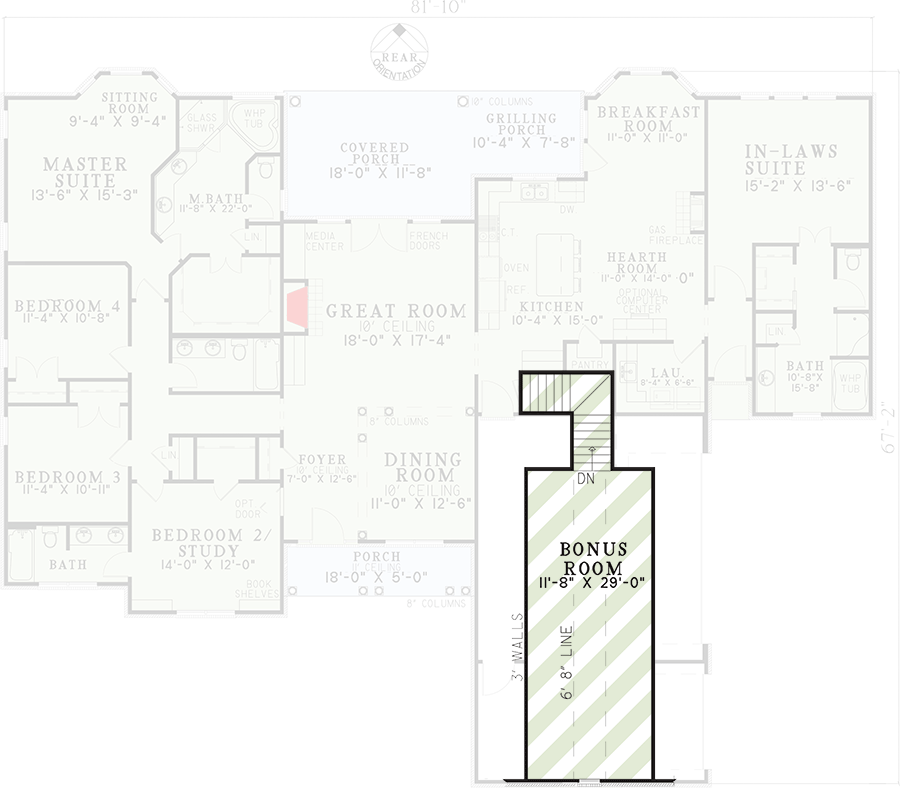

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,880 sq. ft.
  • 1st Floor: 2,880 sq. ft.
  • Bonus: 358 sq. ft.
  • Porch, Combined: 408 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 81' 10"
  • Depth: 67' 2"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 762 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • In-Law Suite
  • MBR Sitting Area
  • PDF
