Plan 39092ST
Open Plan with Exciting Ceiling Treatments
Heated S.F.
1,751
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Exciting ceiling treatments and an open floor plan with formal and informal dining and multiple windows across the rear create a home plan that will feel open and spacious.
  • The overall ceiling height is 8' with the foyer, dining room, and master bedroom enjoying a 9' high ceiling and the great room ceiling slopes to 12'.
  • A covered porch greets approaching guests and a second covered porch off the breakfast area enhances outdoor enjoyment.
  • The master bedroom suite offers comfort and luxury to the homeowner, with a whirlpool tub, shower and double bowl vanity.
  • A full basement is included with this house plan which can provide additional square footage if you decide to finish it off.
What's Included
  • General notes and specifications

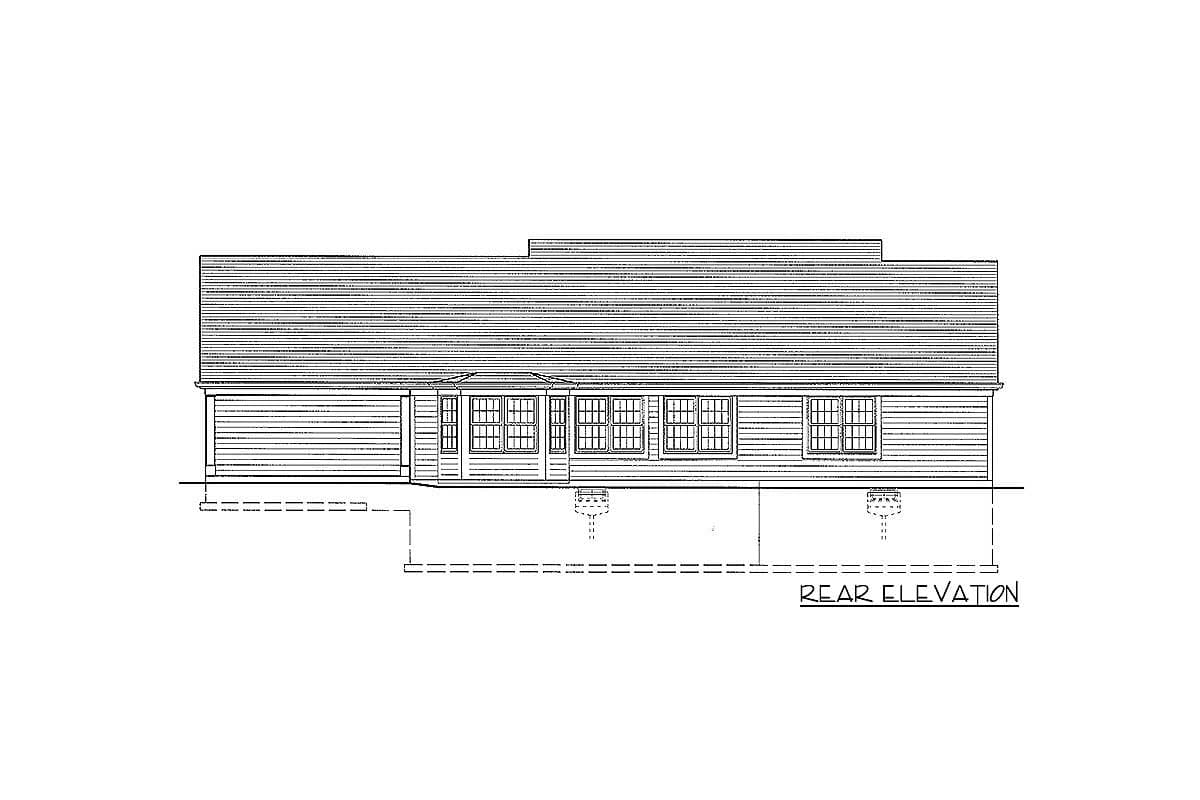

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Plan with Exciting Ceiling Treatments

  • 1,751

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

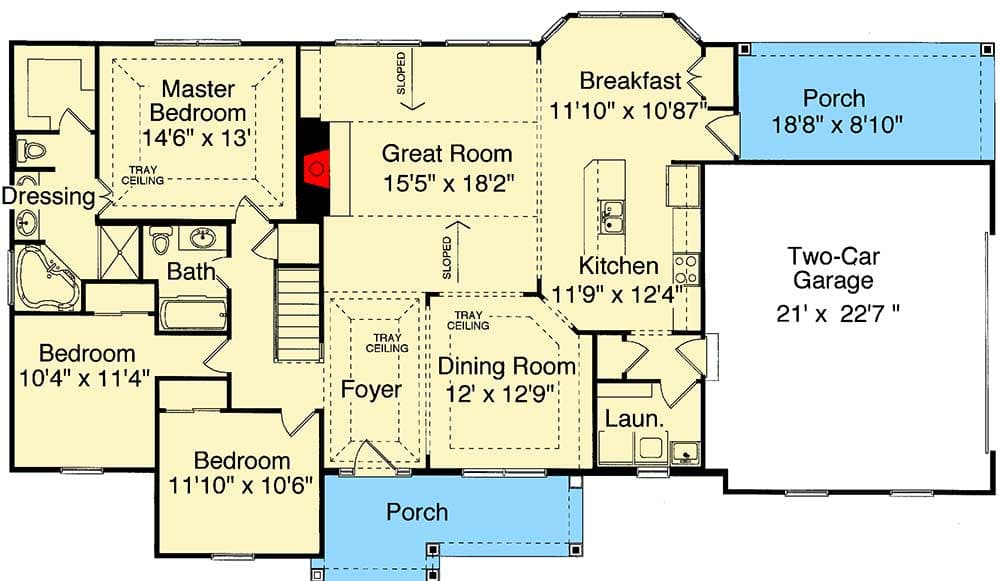

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,751 sq. ft.
  • 1st Floor: 1,751 sq. ft.

Dimensions

  • Width: 72' 6"
  • Depth: 42' 3"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 500 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
