Plan 39175ST
Open Spaces
Heated S.F.
2,134
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Designed to provide the most efficient use of square footage, this home offers optional space in the library/dining room and open spaces in the great room and informal dining area.
  • The kitchen enjoys a corner sink, counter with seating and pantry.
  • U-shaped stairs lead to a second floor where you will find the convenience of a large laundry room, the master bedroom with compartmented bath, double bowl vanity, a large walk-in closet and view to the rear yard.
  • Three additional bedrooms and a bath complete this charming home plan.
  • Related Plan: For a 3 bedroom version, see house plan 39119ST.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Spaces

  • 2,134

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

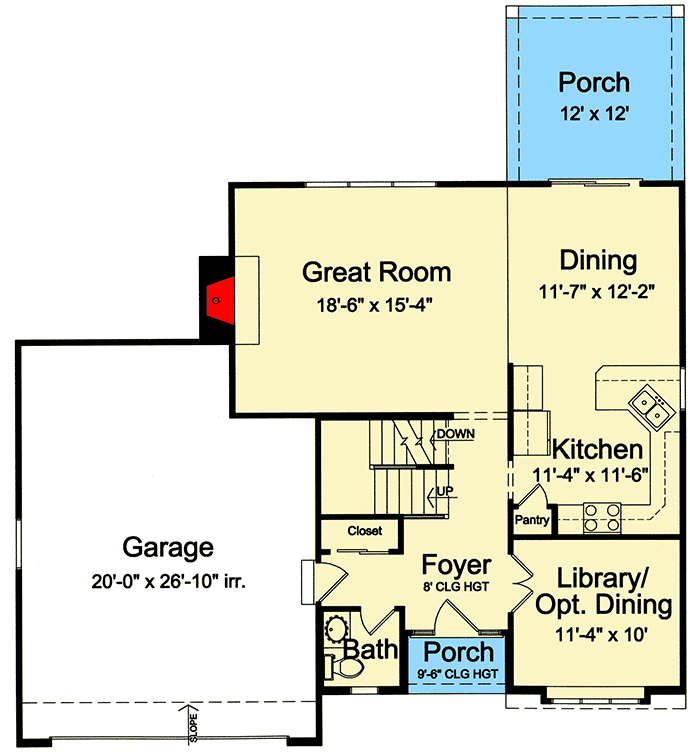

  • Main Level

  • Second Level

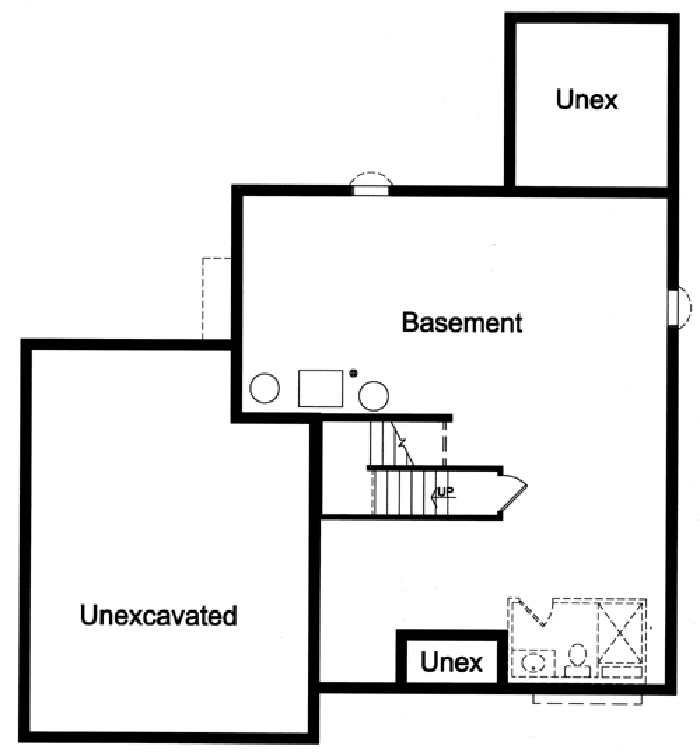

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,134 sq. ft.
  • 1st Floor: 933 sq. ft.
  • 2nd Floor: 1,201 sq. ft.

Dimensions

  • Width: 45' 4"
  • Depth: 50' 4"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 501 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss
