Option-filled New American House Plan Under 2600 Square Feet

Plan 654016KNA

  • 2,599

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This New American house plan's flexibility allows each homeowner to customize the design to their needs and totals 2,599 square feet of living space.
  • A 42'-wide front porch welcomes you into a spacious foyer where a formal dining room with builtins can be found to the right.
  • The open-concept layout flows easily onto the rear porch for outdoor living and the generous service areas help you to remain organized.
  • The main-level master bedroom considers the homeowner's future needs and conveniently neighbors the laundry room.
  • Upstairs, two of the bedrooms share a Jack-and-Jill bathroom and the bonus room can be sectioned off to include a fifth bedroom.
  • Related Plans: Get alternate versions with house plans 654014KNA and 654015KNA.

  • Cover Sheet
  • Foundation Plan
  • Floor plans
  • Exterior elevations
  • Details
  • Building sections
  • Roof plans drawn at 1/4" scale
  • Suggested electrical layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

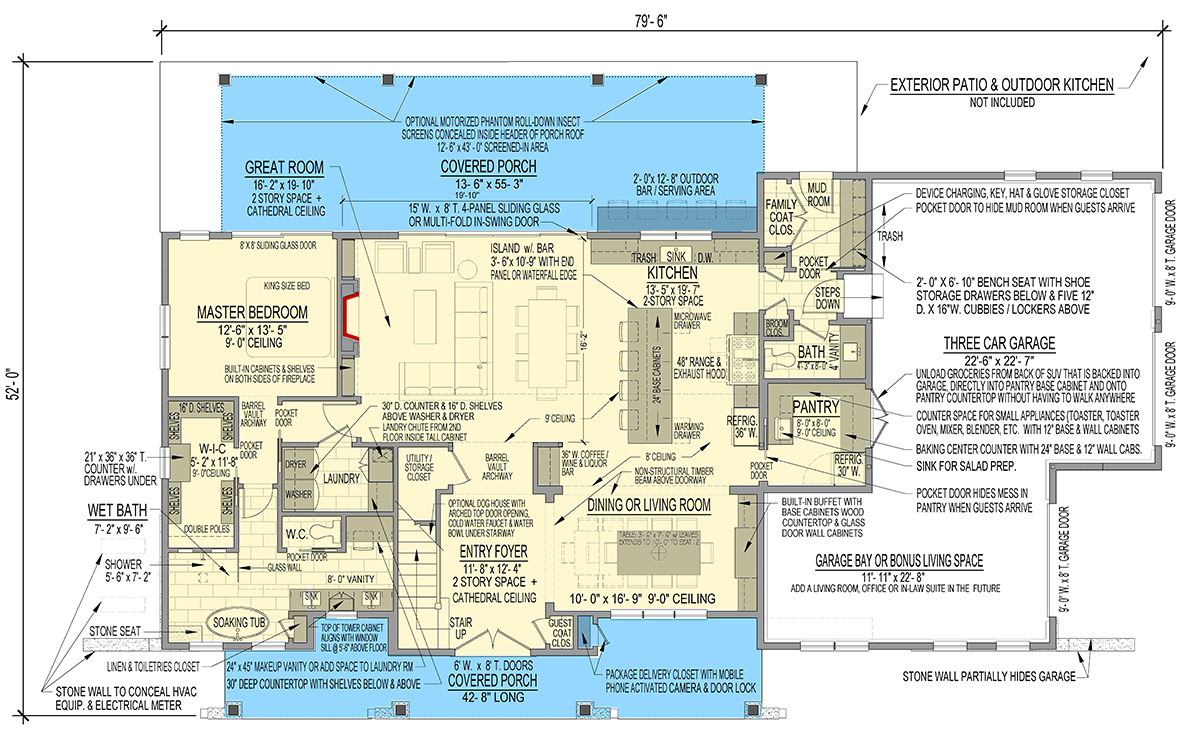

Option-filled New American House Plan Under 2600 Square Feet - 654016KNA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Option-filled New American House Plan Under 2600 Square Feet - 654016KNA floor plan - 2nd Floor

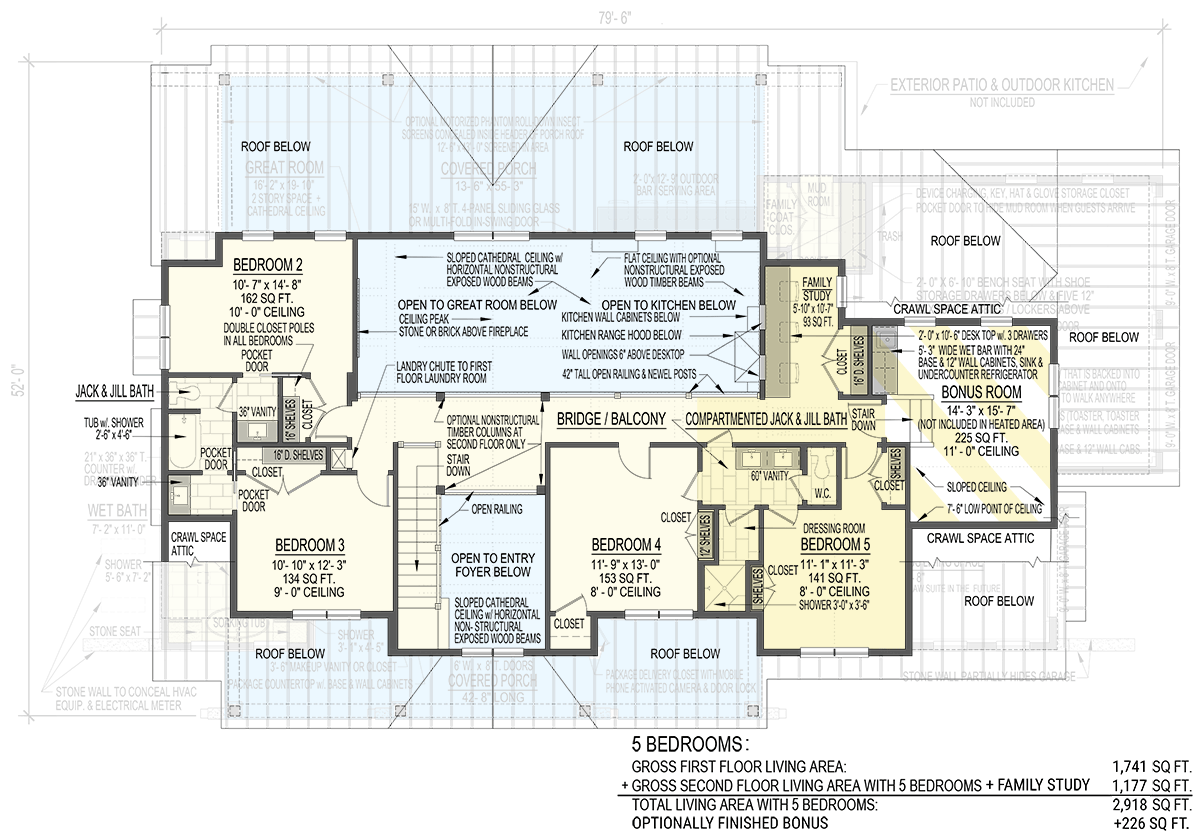

Second Floor: 5 Bedroom Option (included)
