Optional Finished Lower Level

Plan 77612FB

  • 2,687

    Heated s.f.

  • 4-5

    Beds

  • 4 - 5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Designed for a sloping lot, this good-looking Craftsman house plan can be expanded to add an extra bedroom, bathroom and game room on the optional lower level.
  • The main floor is perfect for retirees who don't want to climb stairs.
  • With it's open layout, the living area feels huge, even more so with the vaulted living room.
  • Outdoor space includes a screened porch and an open deck.
  • The kitchen holds lots of counter space and an island with an unusual shape.
  • Let the kids or grandkids relax in the second floor loft area near two large bedrooms.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan

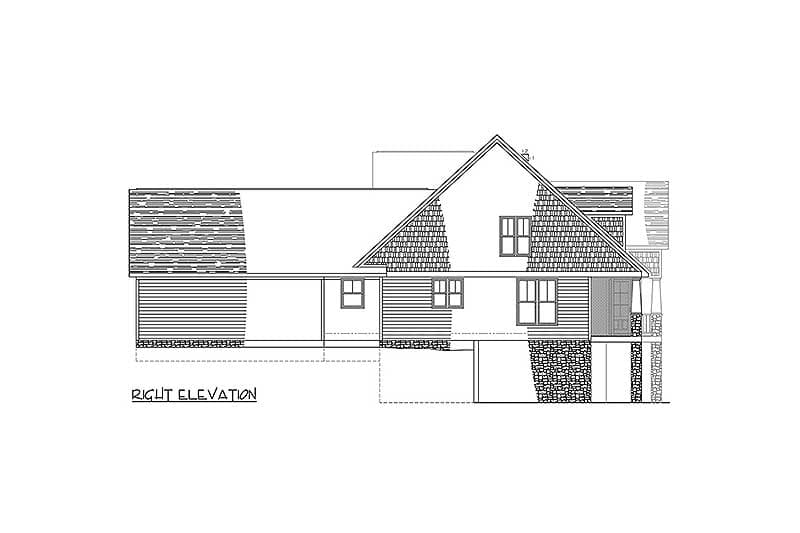

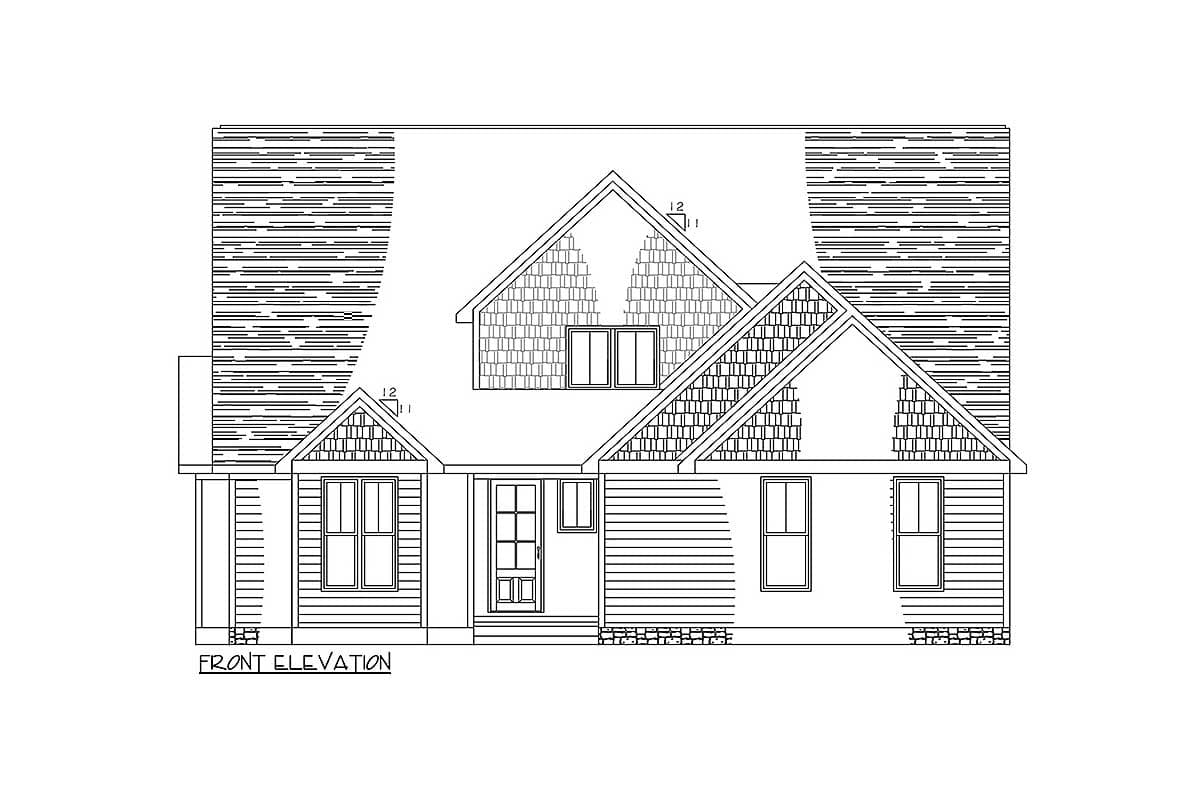

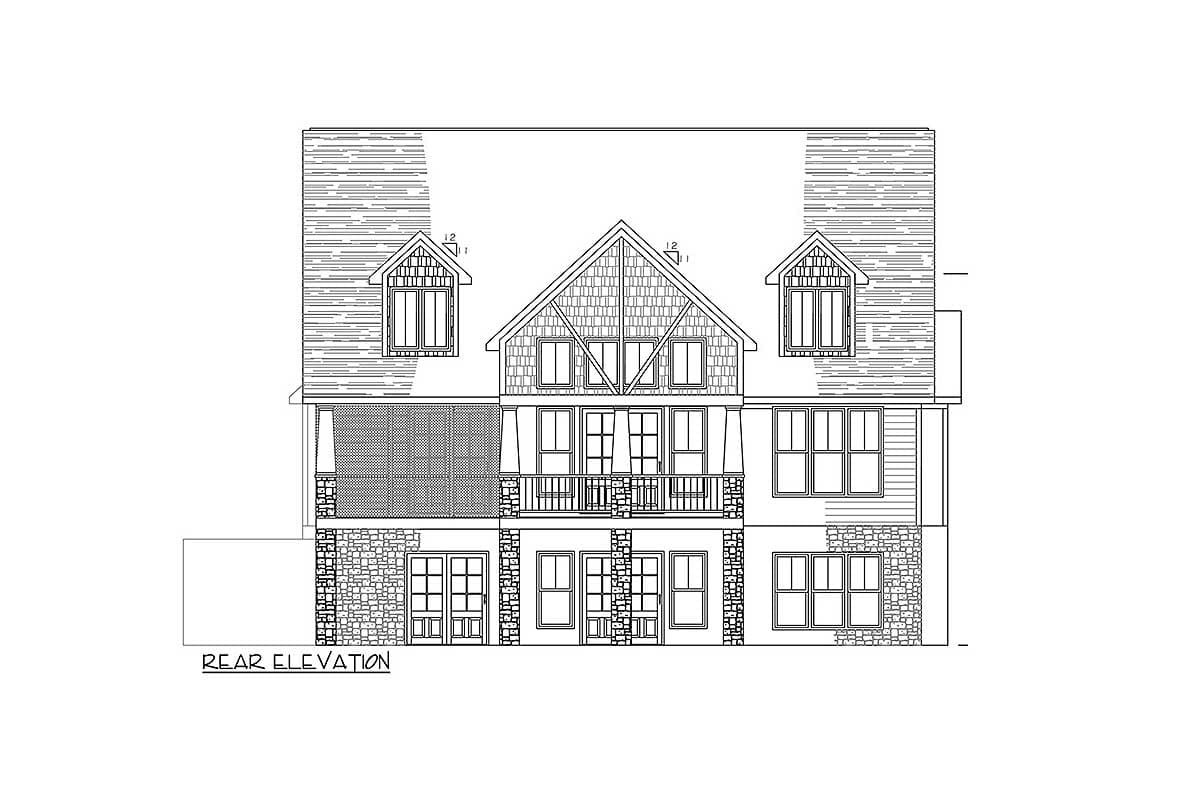

  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

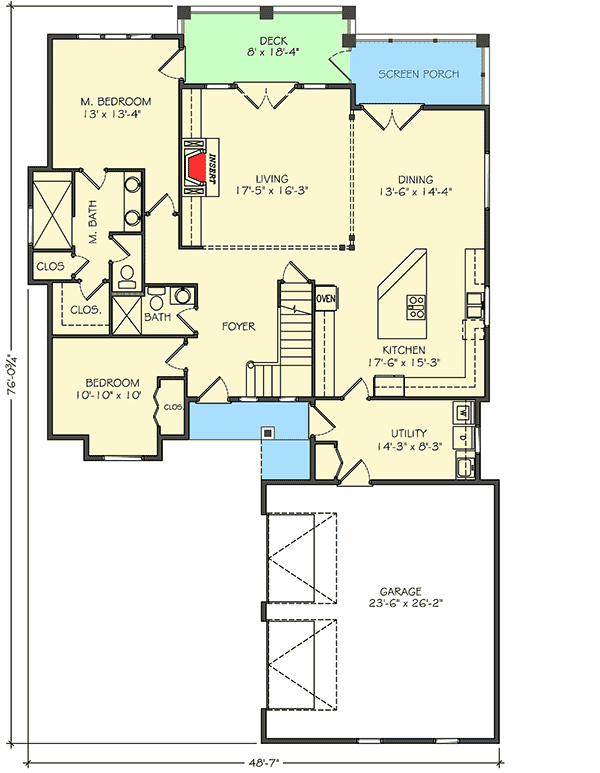

Optional Finished Lower Level - 77612FB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

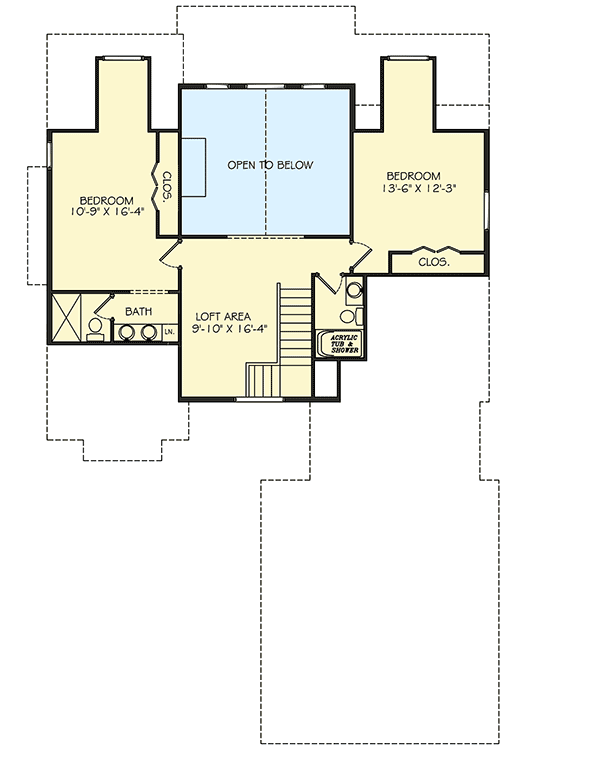

Optional Finished Lower Level - 77612FB floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

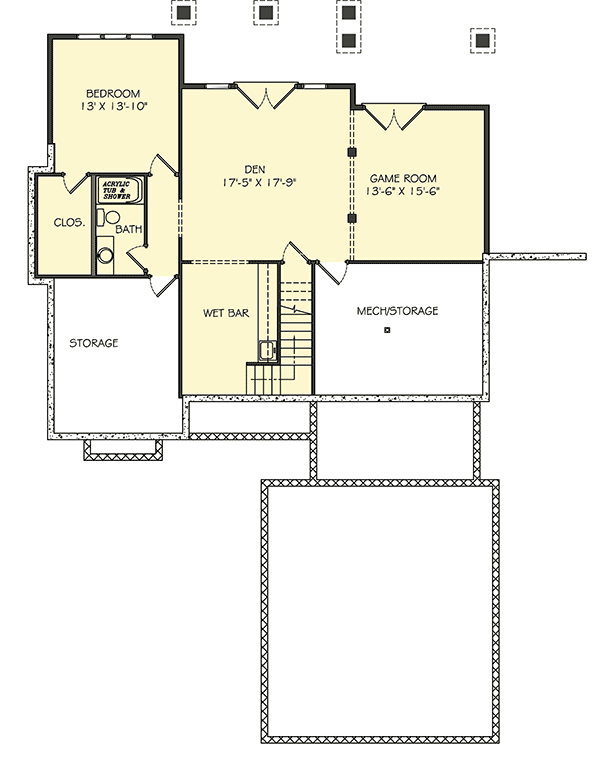

Optional Finished Lower Level - 77612FB floor plan - Lower Level

Architectural Style

Plan Collections

Optional Finished Lower Level

  • 2,687

    Heated s.f.

  • 4-5

    Beds

  • 4 - 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,687 sq. ft.
  • 1st Floor: 1,777 sq. ft.
  • 2nd Floor: 910 sq. ft.

Dimensions

  • Width: 48' 7"
  • Depth: 76' 0"
  • Max ridge height: 30' 9"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4 or 5

Garage

  • Type: Attached
  • Area: 667 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 11 on 12
  • Framing Type: Stick And Truss
