Ornate Tudor Luxury Home Plan

Plan 17507LV

  • 4,123

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Beautiful stone and brick gables and other European features give this luxury home plan charming curb appeal both front and rear.
  • Function and livability are key in the interior spaces.
  • The master suite opens to the rear veranda where an outdoor living room with fireplace make for a fantastic spot to relax in.
  • Upstairs, you'll find a large rec room and three suites with individual baths.
  • Other features to be enjoyed include a home organization center, flexible space for a home office, large butler's pantry, and additional golf cart storage in the garage are
  • NoteThis house plan is not for sale in North Carolina.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

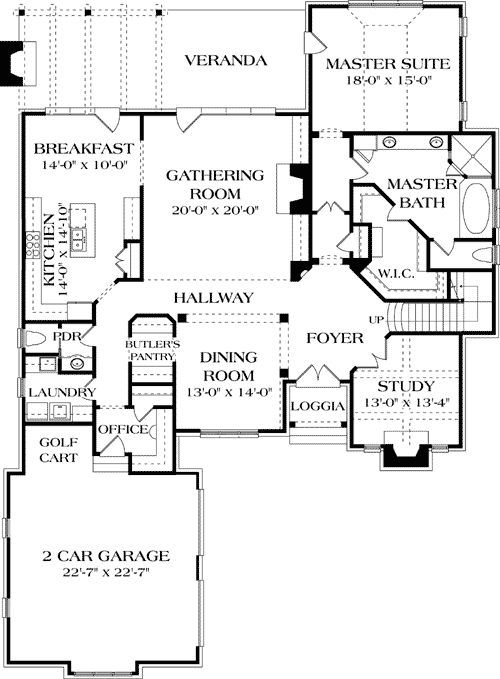

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Ornate Tudor Luxury Home Plan - 17507LV floor plan - Main Level

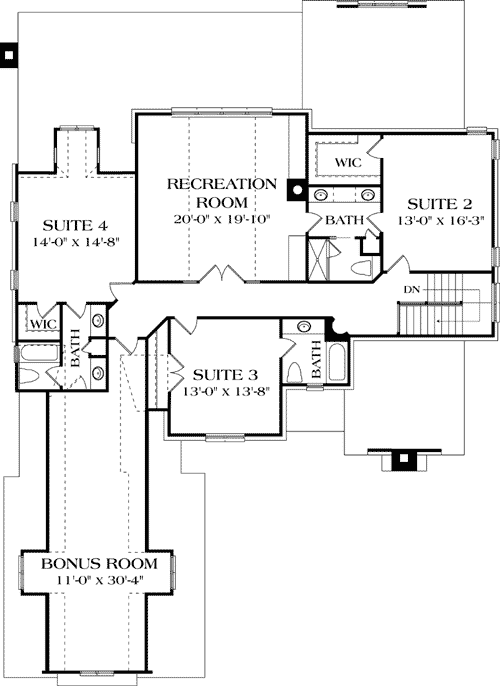

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Ornate Tudor Luxury Home Plan - 17507LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,123 sq. ft.
  • 1st Floor: 2,405 sq. ft.
  • 2nd Floor: 1,718 sq. ft.
  • Bonus: 469 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 10"
  • Depth: 81' 11"

Garage

  • Type: Attached
  • Area: 604 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Ornate Tudor Luxury Home Plan

  • 4,123

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,800
  • CAD - Single-Build $3,600
  • View all purchase option online

About This Plan

  • Beautiful stone and brick gables and other European features give this luxury home plan charming curb appeal both front and rear.
  • Function and livability are key in the interior spaces.
  • The master suite opens to the rear veranda where an outdoor living room with fireplace make for a fantastic spot to relax in.
  • Upstairs, you'll find a large rec room and three suites with individual baths.
  • Other features to be enjoyed include a home organization center, flexible space for a home office, large butler's pantry, and additional golf cart storage in the garage are
  • NoteThis house plan is not for sale in North Carolina.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,123 sq. ft.
  • 1st Floor: 2,405 sq. ft.
  • 2nd Floor: 1,718 sq. ft.
  • Bonus: 469 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 10"
  • Depth: 81' 11"

Garage

  • Type: Attached
  • Area: 604 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
