Plan 267019SPK Over 2,000 Square Foot Modern Farmhouse Plan with Flex Room

2,054 3 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Over 2,000 Square Foot Modern Farmhouse Plan with Flex Room

Plan 267019SPK

  • 2,054

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • Board and batten siding rises to meet gabled peaks on the front elevation of this Modern Farmhouse plan that is exclusive to Architectural Designs.
  • A front porch guides you inside where you'll find an open concept living space with a vaulted ceiling centered above the fireplace. French doors along the rear wall lead to a 19'6" by 10' patio.
  • The island kitchen includes a prep sink and a forward-facing window above the double-bowl sink. Discover the mud / laundry room nearby with exterior access.
  • Three bedrooms and a flex room are clustered along the left side of the home. The master bedroom is filled with natural light and includes a 5-fixture bathroom and walk-in closet.
  • The two family bedrooms are identical in size with charming window seats and built-in vanities.

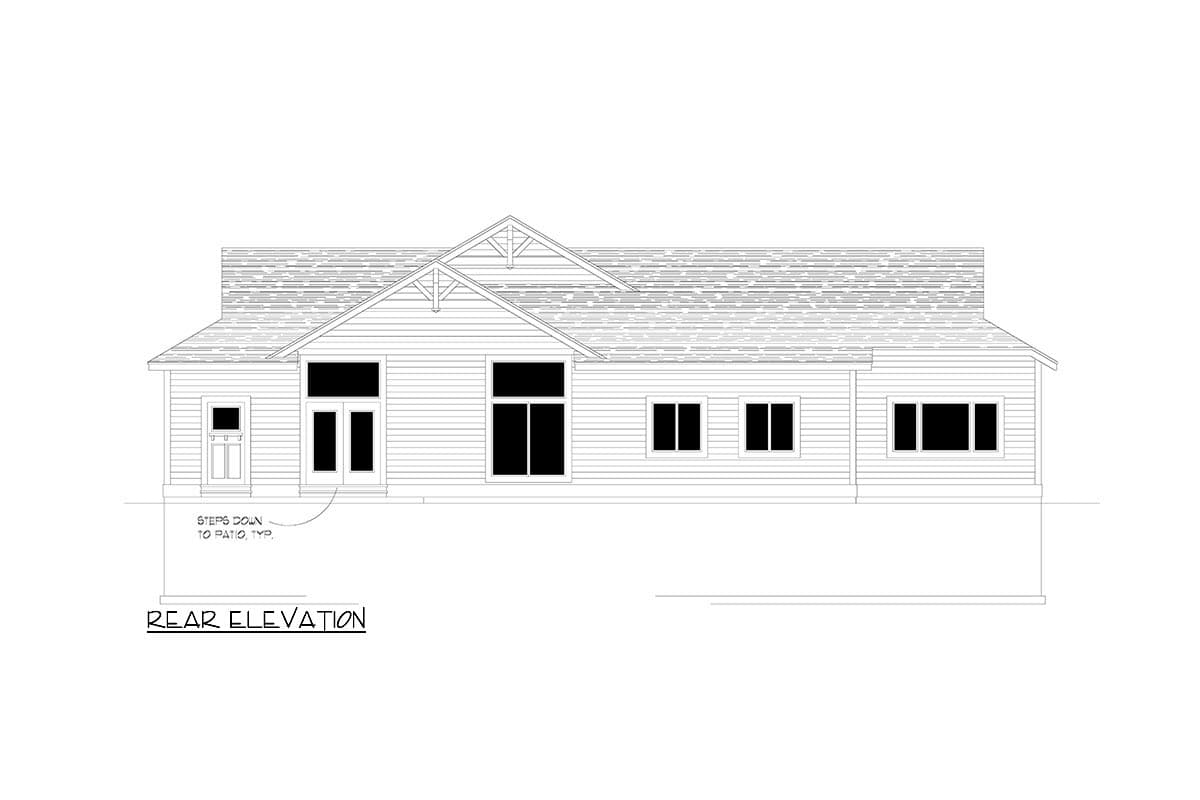

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
The following details are NOT included in the plans:
  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

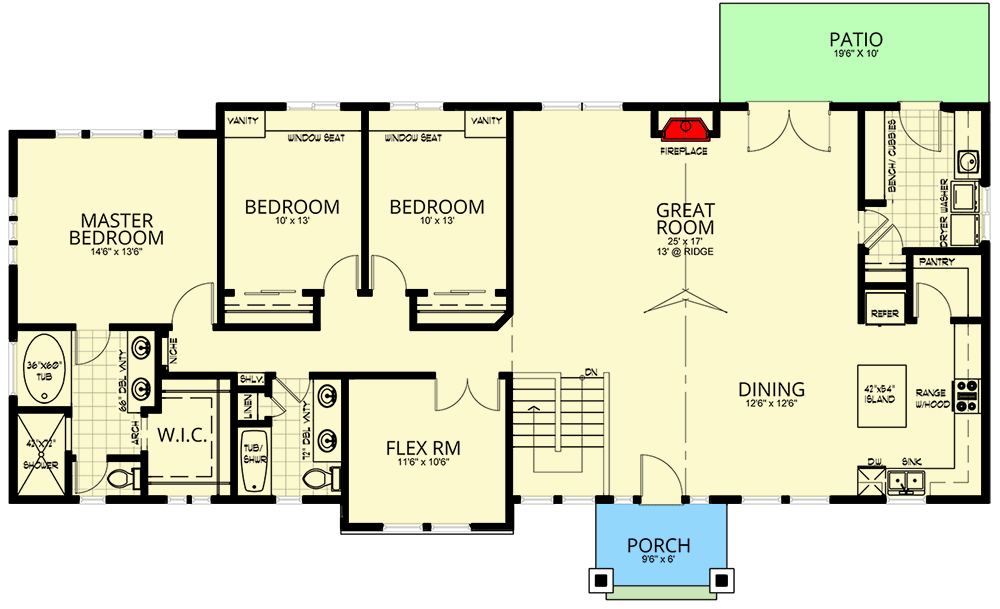

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Over 2,000 Square Foot Modern Farmhouse Plan with Flex Room - 267019SPK floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,054 sq. ft.
  • 1st Floor: 2,054 sq. ft.
  • Porch, Rear: 195 sq. ft.
  • Porch, Front: 57 sq. ft.
  • Basement Unfinished: 1,917 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 0"
  • Depth: 35' 0"
  • Max ridge height: 21' 9"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Over 2,000 Square Foot Modern Farmhouse Plan with Flex Room

  • 2,054

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,650
  • PDF - Unlimited Build $2,150
  • 5 Sets + PDF $2,350
  • CAD - Unlimited Build $2,995
  • CAD - Single-Build $3,150
  • View all purchase option online

About This Plan

  • Board and batten siding rises to meet gabled peaks on the front elevation of this Modern Farmhouse plan that is exclusive to Architectural Designs.
  • A front porch guides you inside where you'll find an open concept living space with a vaulted ceiling centered above the fireplace. French doors along the rear wall lead to a 19'6" by 10' patio.
  • The island kitchen includes a prep sink and a forward-facing window above the double-bowl sink. Discover the mud / laundry room nearby with exterior access.
  • Three bedrooms and a flex room are clustered along the left side of the home. The master bedroom is filled with natural light and includes a 5-fixture bathroom and walk-in closet.
  • The two family bedrooms are identical in size with charming window seats and built-in vanities.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,054 sq. ft.
  • 1st Floor: 2,054 sq. ft.
  • Porch, Rear: 195 sq. ft.
  • Porch, Front: 57 sq. ft.
  • Basement Unfinished: 1,917 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 0"
  • Depth: 35' 0"
  • Max ridge height: 21' 9"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
