Over 3,000 Square Foot Barndominium with Wraparound Porch

Plan 777063MTL

  • 3,048

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Classic architectural features add to the country charm and curb appeal of this Barndominium which boasts a 1,500 square foot garage (with a loft), 3,000 square foot living space, and 1,035 square foot covered porch.
  • An expansive great room with fireplace freely flows into the square-shaped kitchen, while the master bedroom and a secondary bedroom reside down the hall. The laundry room doubles as a mudroom on your way to the garage.
  • Bedrooms 3 and 4 share a Jack-and-Jill bathroom upstairs, next to a versatile loft and study / office.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof plan
  • Elevations with necessary sections
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

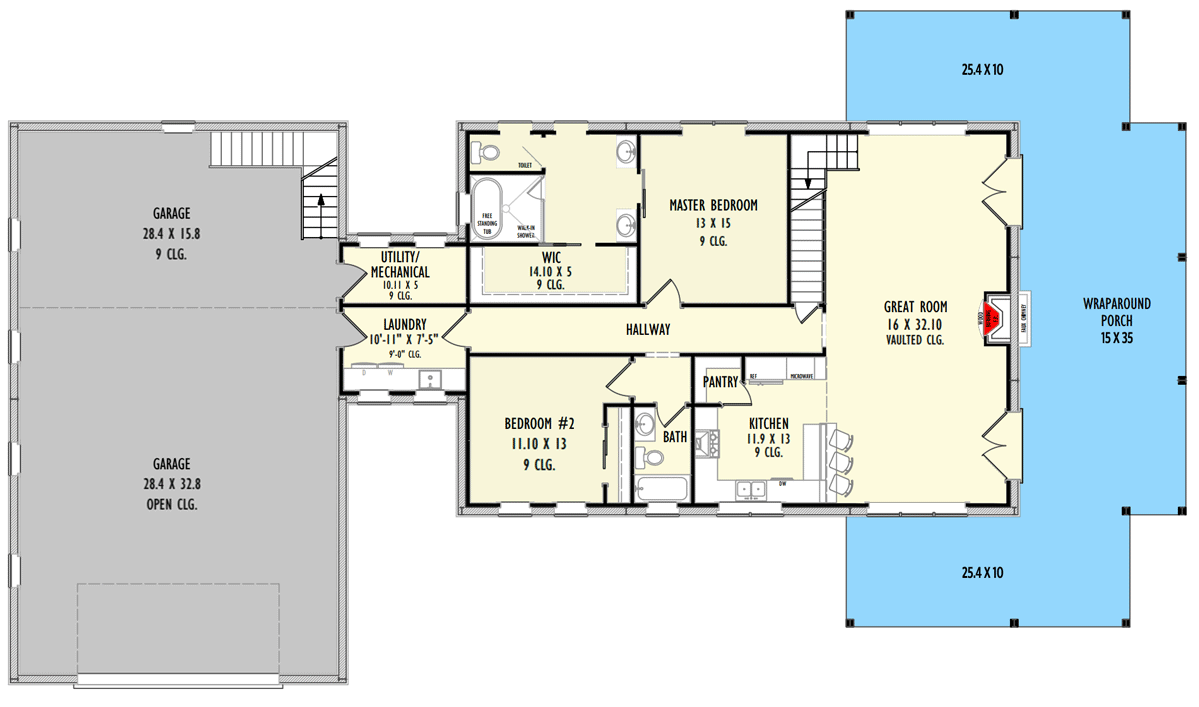

Over 3,000 Square Foot Barndominium with Wraparound Porch - 777063MTL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

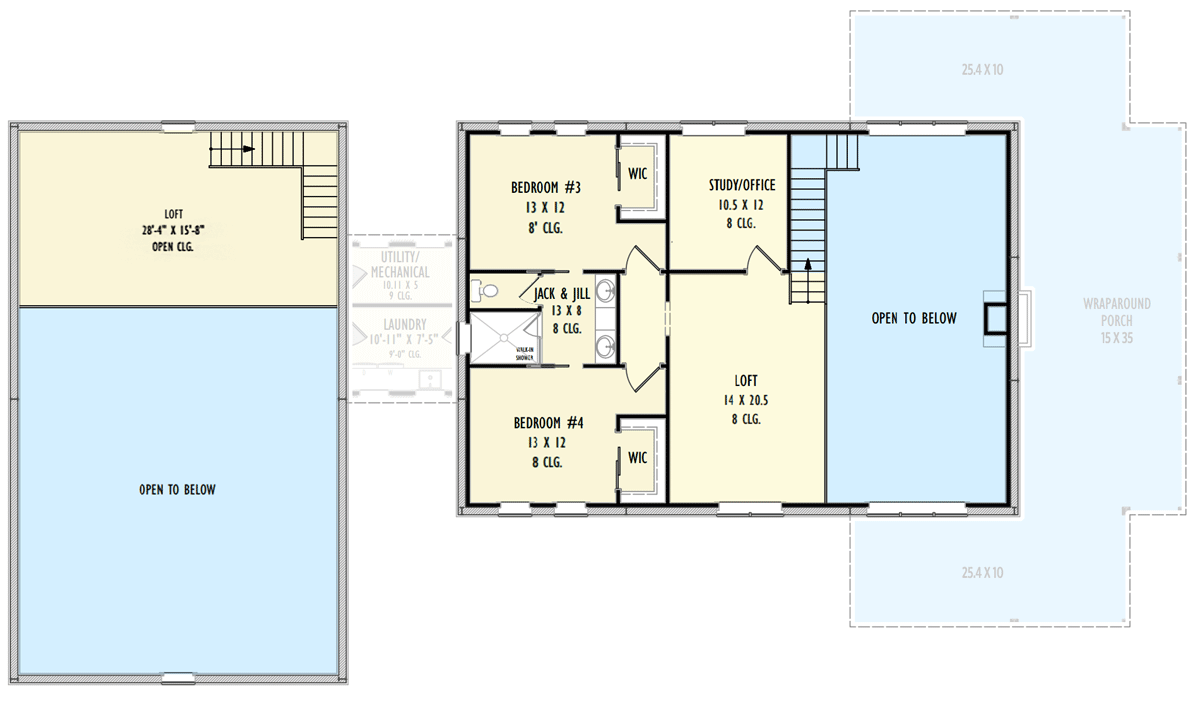

Over 3,000 Square Foot Barndominium with Wraparound Porch - 777063MTL floor plan - 2nd Floor

Wall Framing Section

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Over 3,000 Square Foot Barndominium with Wraparound Porch - 777063MTL floor plan - Wall Framing Section

Over 3,000 Square Foot Barndominium with Wraparound Porch

  • 3,048

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Wall Framing Section

Plan Details

Square Footage Breakdown

  • Total: 3,048 sq. ft.
  • 1st Floor: 1,896 sq. ft.
  • 2nd Floor: 1,152 sq. ft.

Dimensions

  • Width: 105' 0"
  • Depth: 60' 0"
  • Max ridge height: 27' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 1500 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: PEMB and Stick
