Plan 4204MJ
Overflowing Elegance
Heated S.F.
3,839
Beds
3
Baths
3.5 - 4.5
Stories
1-2
Cars
3
What's Included
Plan Details
  • Turrets, and a circular rotunda in the foyer is just the beginning of the excitement in this strikingly classical Mediterranean house plan.
  • Columns define spaces in the formal living/dining areas both with walls of floor to ceiling glass.
  • Thickened arched openings and 12? ceilings in much of the house reinforces the feeling of solid hominess, with large secondary bedrooms with private baths for each.
  • The master suite bay window wall adds spaciousness, and the master bath has large his and her closets. It comes designed with a light well above the separate vanities with high windows.
  • The island kitchen overlooks the breakfast nook and family room out to the pool in the back yard with its own bathroom.
  • The second floor bonus room has spectacular views, and a large HVAC storage room has always been a popular addition.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)

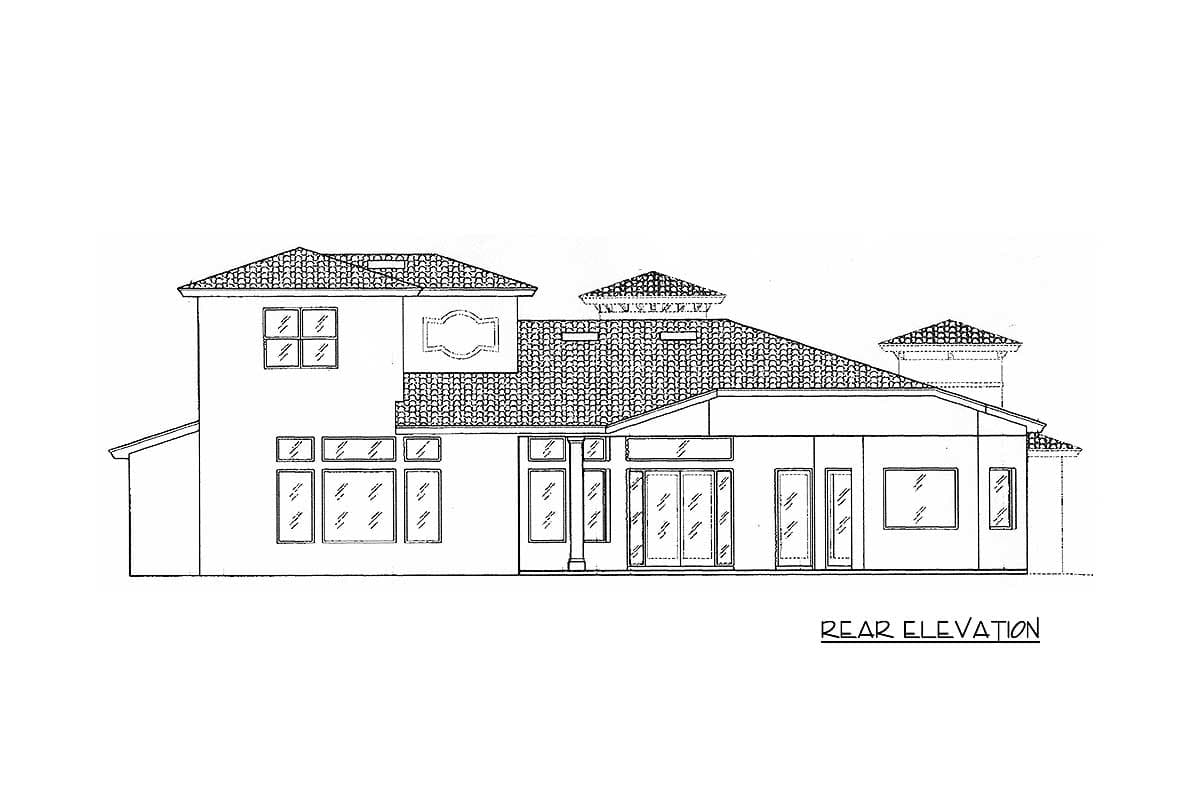

  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Overflowing Elegance

  • 3,839

    Heated s.f.

  • 3

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

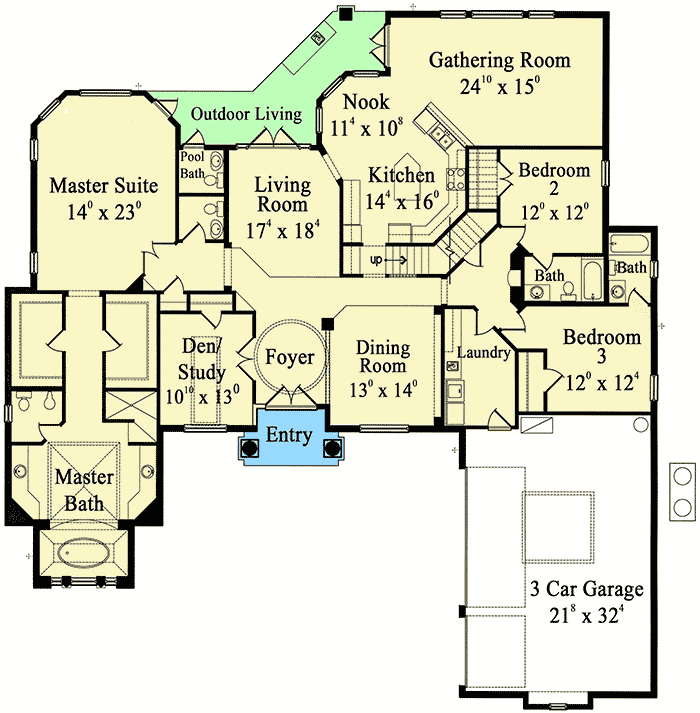

  • Main Level

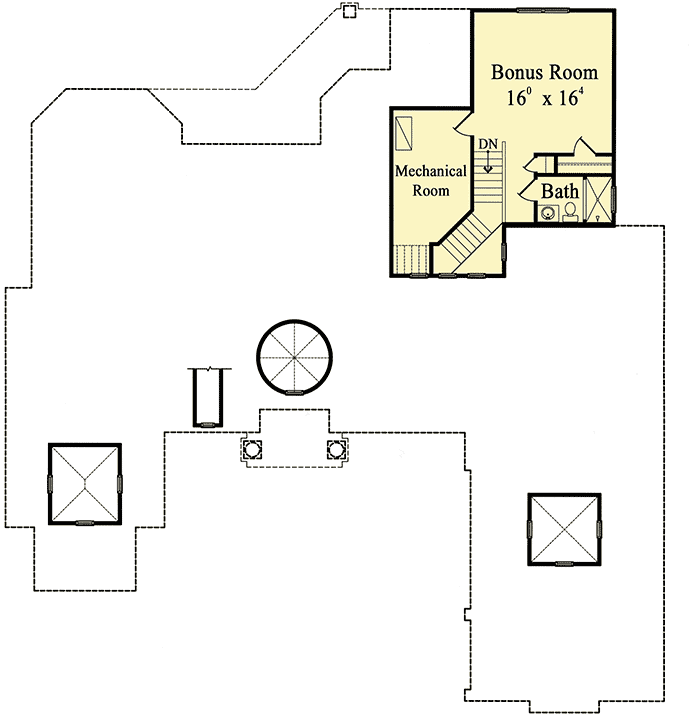

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,839 sq. ft.
  • 1st Floor: 3,218 sq. ft.
  • 2nd Floor: 621 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 79' 8"
  • Max ridge height: 28' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 747 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
