Oversized Garage a Plus

Plan 21632DR

This plan plants 3 trees

4,177
Heated s.f.
4
Beds
4.5
Baths
2
Stories
3
Cars

This house plan delivers a 3-car garage with three 10' by 9' doors giving you great access for SUVs and other larger vehicles.
Inside, you'll get 11' ceilings on the main floor and 9' on the second floor with ceiling drops in the kitchen and dining rooms.
The family room is spacious and is sunken 15 inches. It has a fireplace, built-in furniture and access to the rear screened-in covered porch, kitchen with island/lunch counter.
The large home office can easily fit two people working at the same time making it great for a small home business.
The master suite is roomy and features its own fireplace. The walk-in closet provides separation from the roomy bath.
Three large bedrooms on the second floor with each with its own private bathroom plus the mezzanine overlooking the family room complete this home plan.
Related Plans: Get a 2-car garage and wrapping porches with house plan 2171DR and a more modern exterior with house plan 22543DR.

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

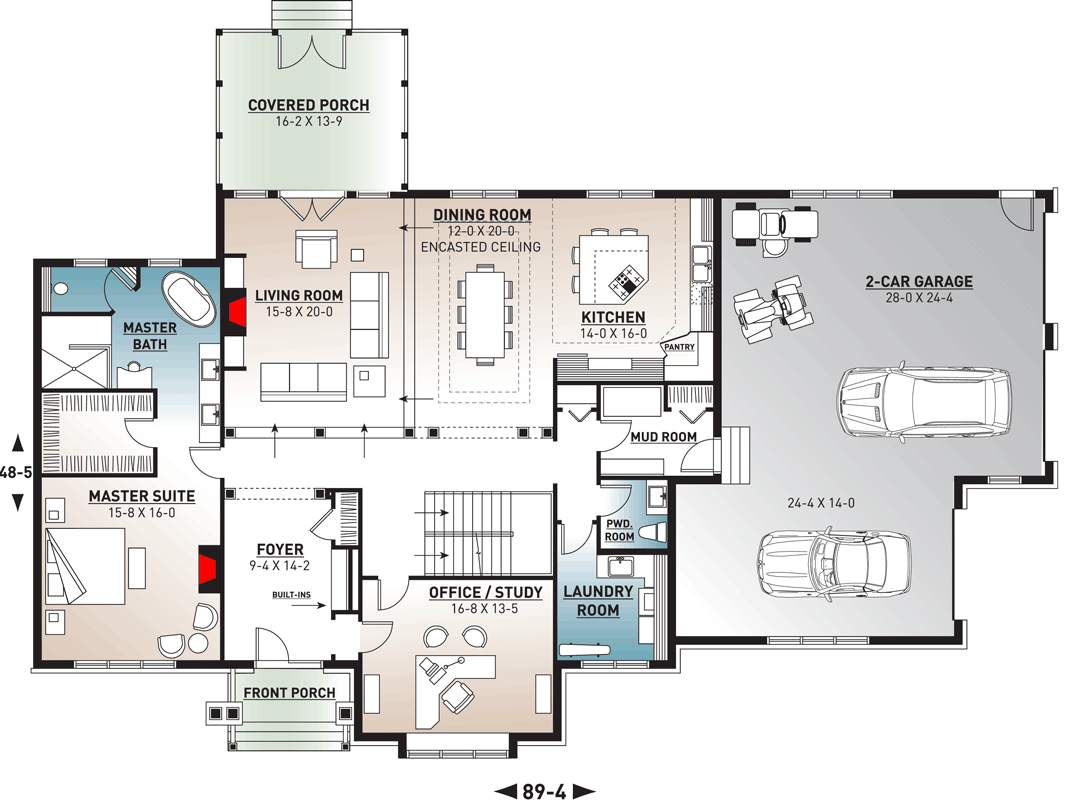

Oversized Garage a Plus - 21632DR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

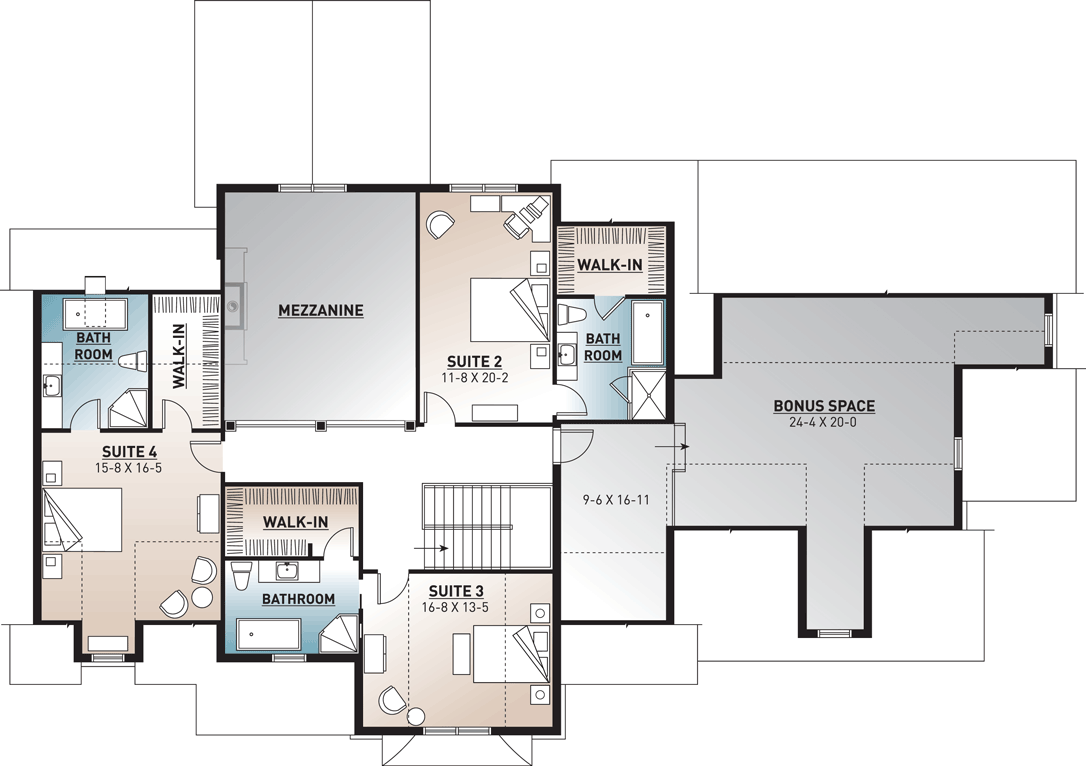

Oversized Garage a Plus - 21632DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,177 sq. ft.
1st Floor: 2,483 sq. ft.
2nd Floor: 1,694 sq. ft.

Bonus: 779 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Crawl, Walkout, Daylight

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 89' 4"
Depth: 62' 5"
Max ridge height: 38' 10"

Garage

Type: Attached
Area: 1119 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
