Plan 871023JEN

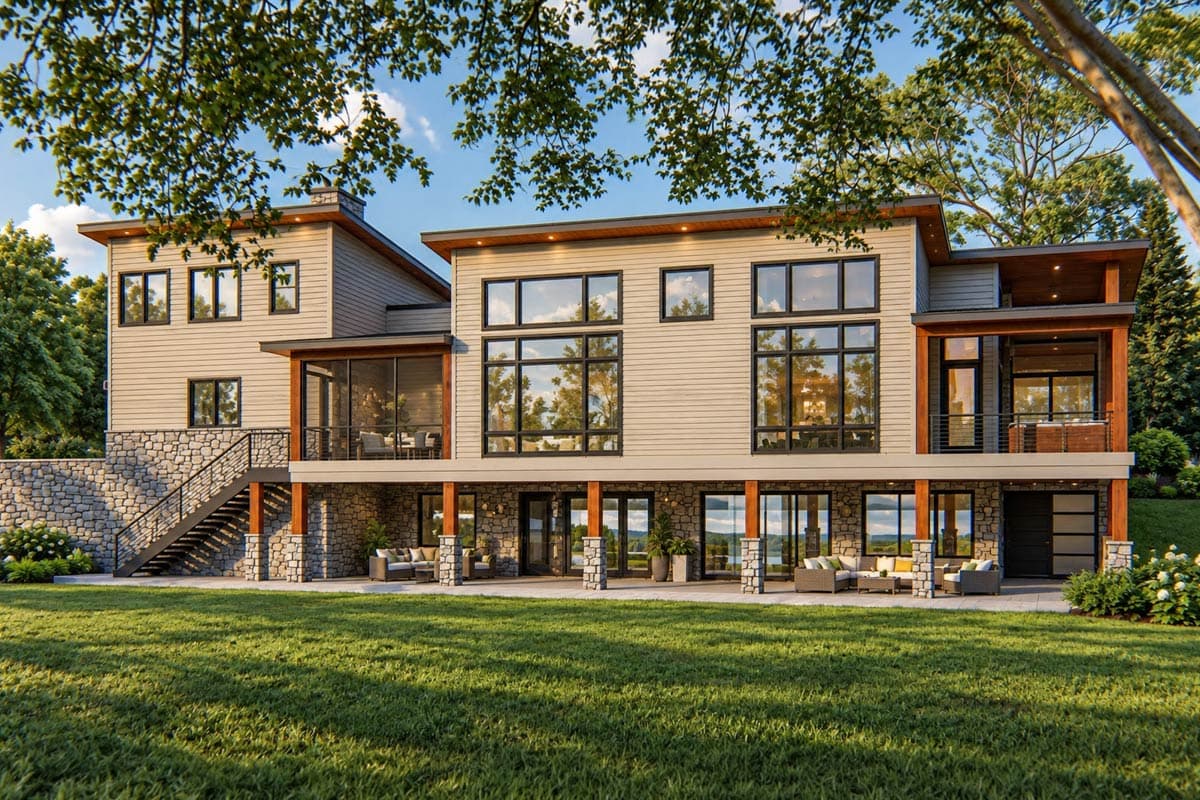

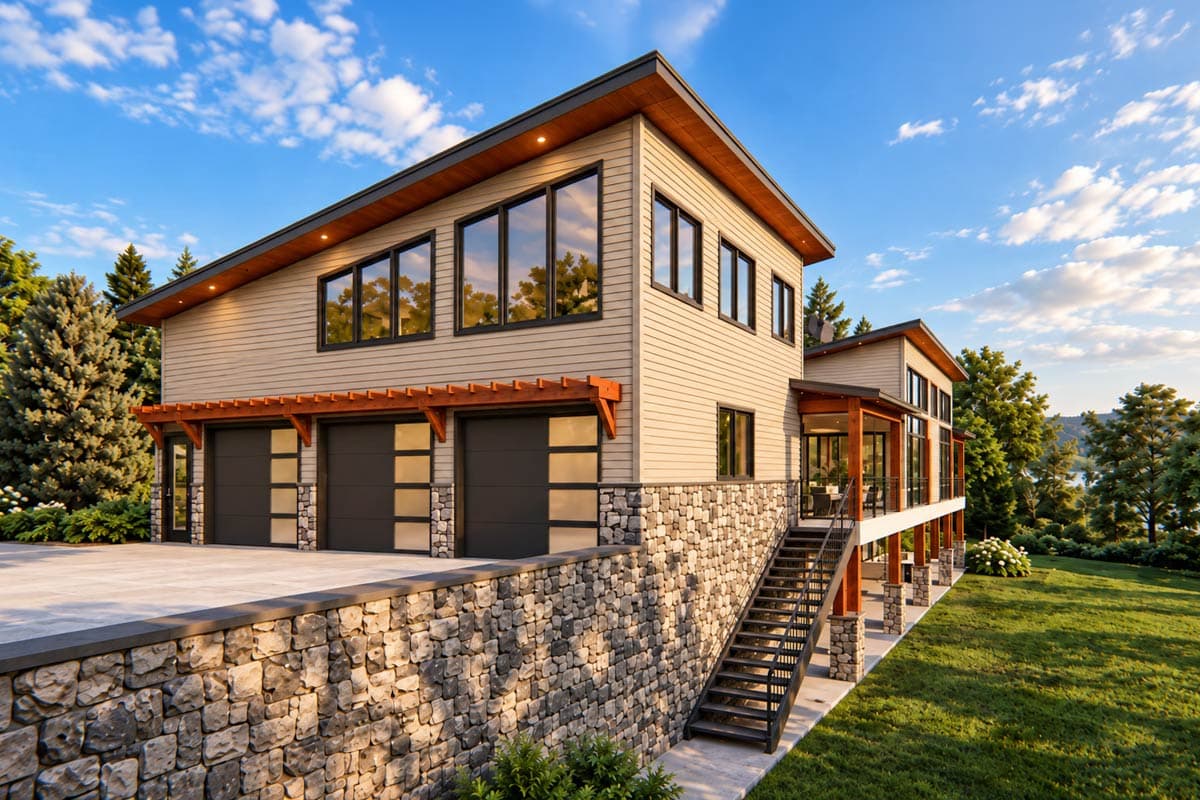

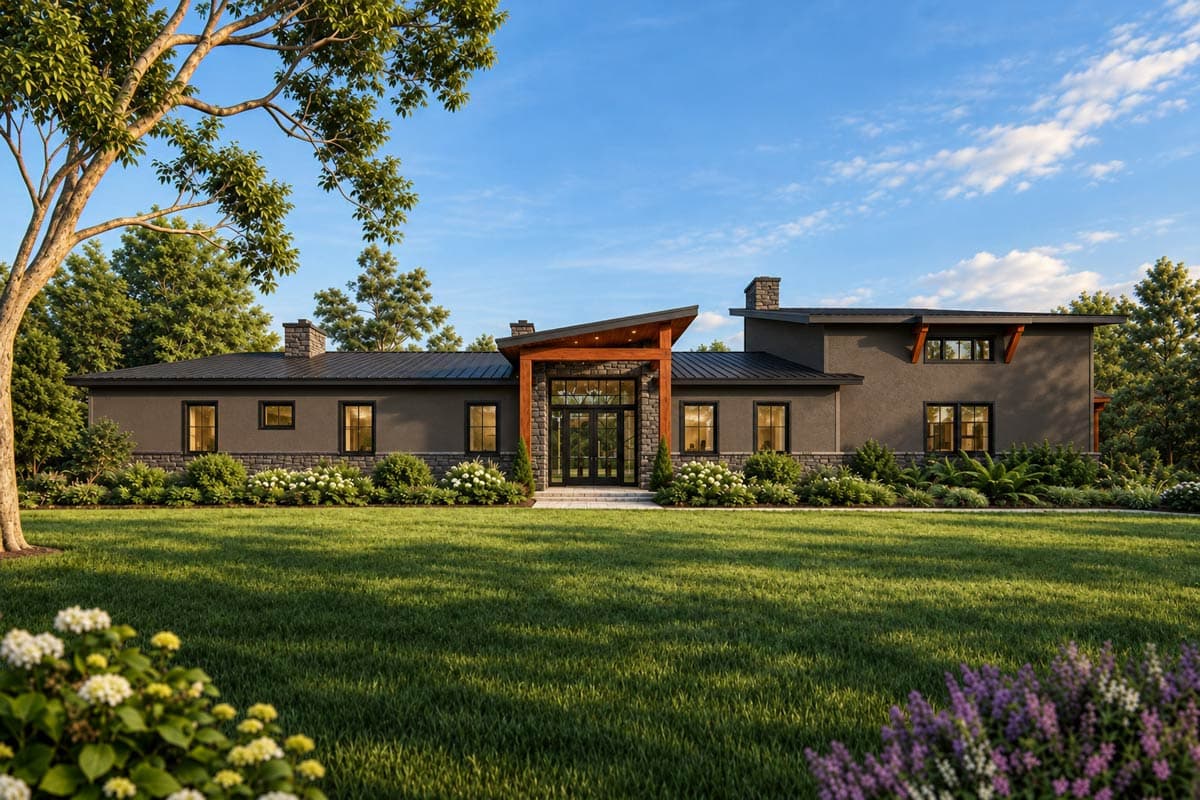

Pacific Northwest Contemporary-style home with 2 Master Suites and an Elevator
Heated S.F.
5,496
Beds
4
Baths
5.5
Stories
3
Cars
3
Flyer
Videos
What's Included
Plan Details

  • The master suite wing accounts for half of the main level and delivers two master suites each with its own master bath, walk-in closet, private desk area and outdoor access. The bedrooms are separated by a private sitting area with coffee bar and see-through fireplace that looks out to a covered porch with hot tub, accessible only through the private master suite wing.
  • The other half of the first-floor gives you an open floorplan kitchen, dining, great room and drop zone with entry through the 3-car garage. Expansive floor-to-ceiling windows give you great views from all the main living areas within the home.  A screened porch extension from the kitchen has a bi-folding passthrough window that open up to a 4 seated bar.
  • The walkout basement level has 2 separate bunkrooms capable of sleeping 4 people each. The bunkrooms can easily be converted to regular bedrooms for full-time use. The lower level also shares a rec room and exercise room, both with direct access to the deep wrap around covered patio. One of the two full bathrooms on the lower level is accessible from the outside.
  • This home boasts copious amounts of storage with an unfinished lake storage area and two additional storage areas on the lower level, and a massive open storage area on the upper level.
  • The upper level consists of a man cave retreat with its own steam shower bathroom. An elevator makes accessing all three levels a breeze.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

What's Included
  • Foundation plan
  • Detailed floor plans
  • Roof plan
  • Elevations (all four sides)
  • Sections
  • 3D model views
  • Electrical plans
  • Framing details
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Pacific Northwest Contemporary-style home with 2 Master Suites and an Elevator

  • 5,496

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 3

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,496 sq. ft.
  • Lower Level: 1,656 sq. ft.
  • 1st Floor: 2,803 sq. ft.
  • 2nd Floor: 1,036 sq. ft.

Dimensions

  • Width: 98' 5"
  • Depth: 54' 2"
  • Max ridge height: 24' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1122 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
