Plan 871023JEN

Pacific Northwest Contemporary-style home with 2 Master Suites and an Elevator

Name: Plan 871023JEN: Pacific Northwest Contemporary-style home with 2 Master Suites and an Elevator
Brand: Architectural Designs
SKU: 871023JEN
Price: 3060.00 USD
Availability: InStock

Heated S.F.

5,496

Beds

Baths

5.5

Stories

Cars

Floor Plan

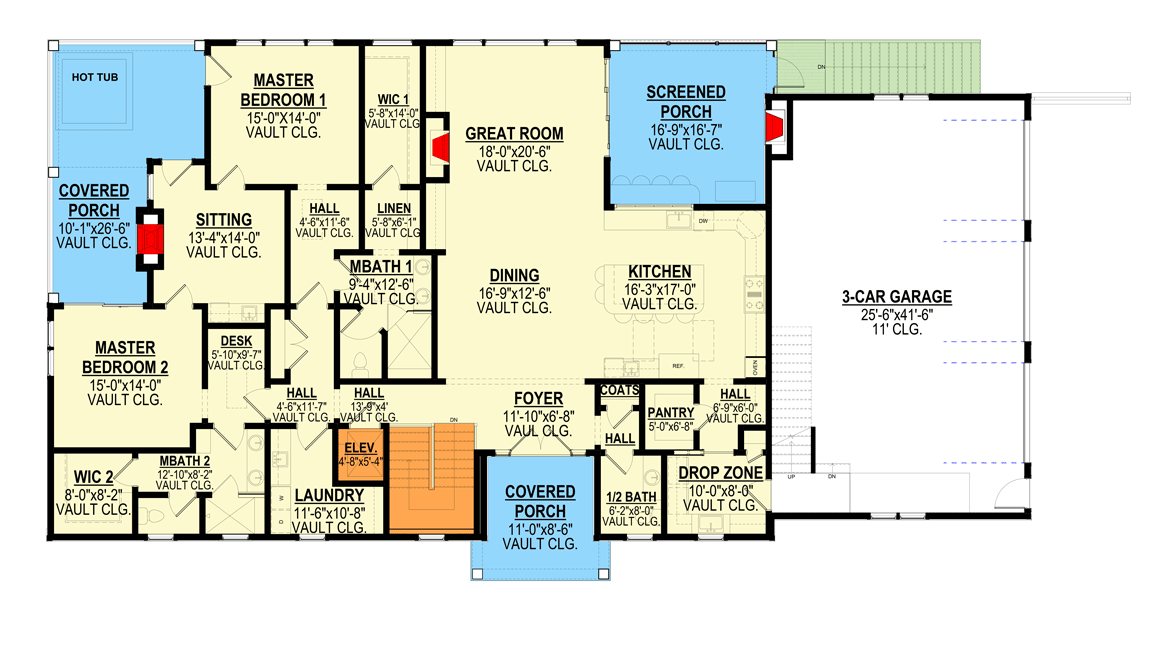

Main Level

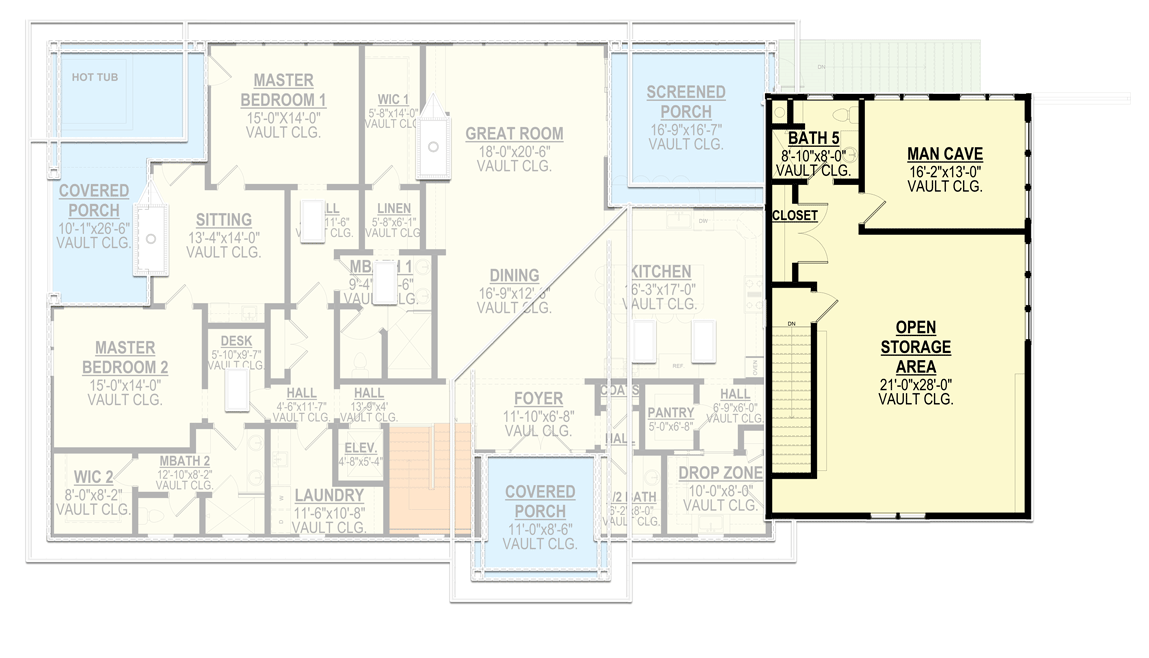

2nd Floor

Lower Level

Plan Details

The master suite wing accounts for half of the main level and delivers two master suites each with its own master bath, walk-in closet, private desk area and outdoor access. The bedrooms are separated by a private sitting area with coffee bar and see-through fireplace that looks out to a covered porch with hot tub, accessible only through the private master suite wing.

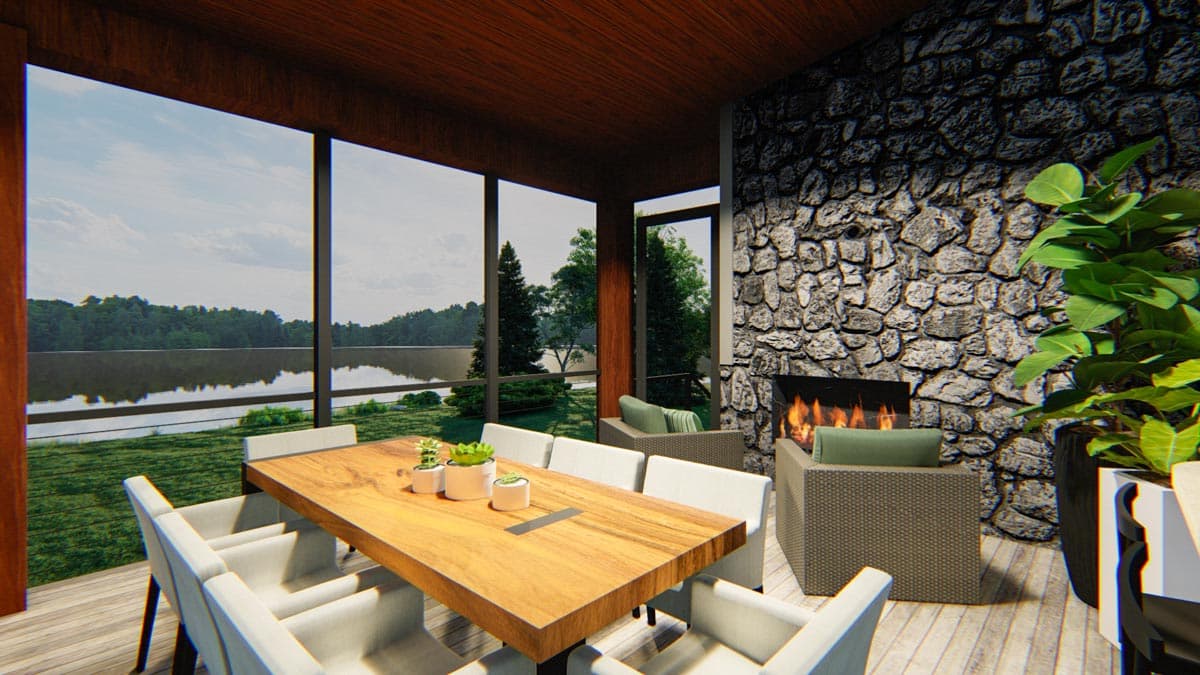

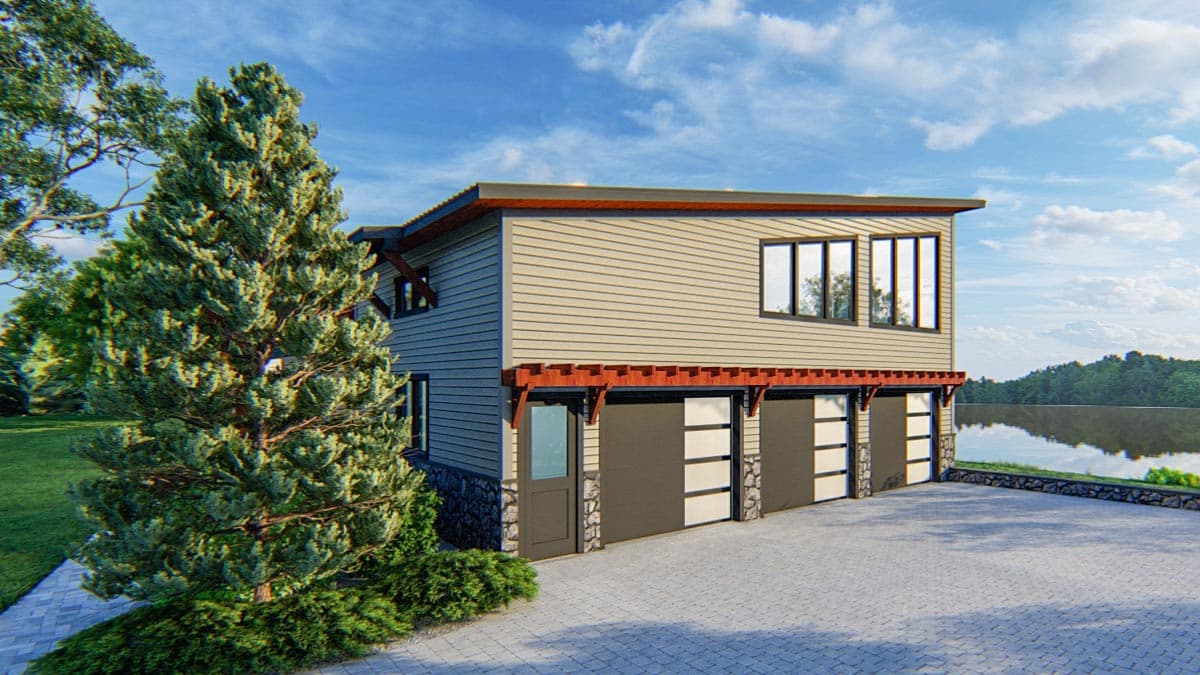

The other half of the first-floor gives you an open floorplan kitchen, dining, great room and drop zone with entry through the 3-car garage. Expansive floor-to-ceiling windows give you great views from all the main living areas within the home. A screened porch extension from the kitchen has a bi-folding passthrough window that open up to a 4 seated bar.

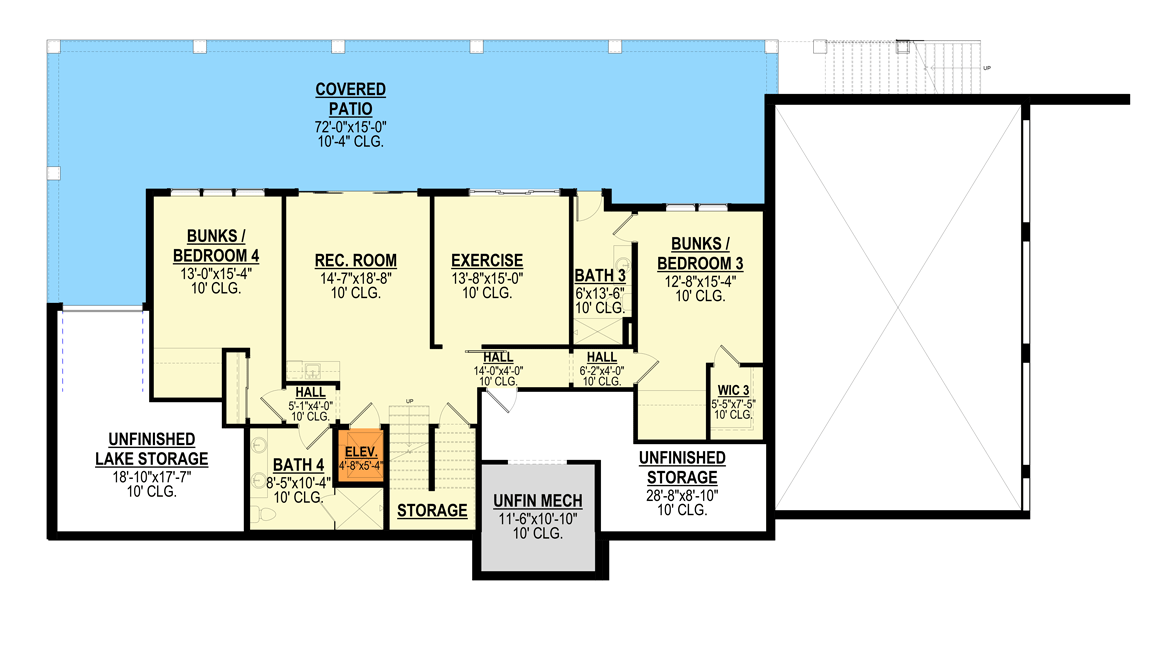

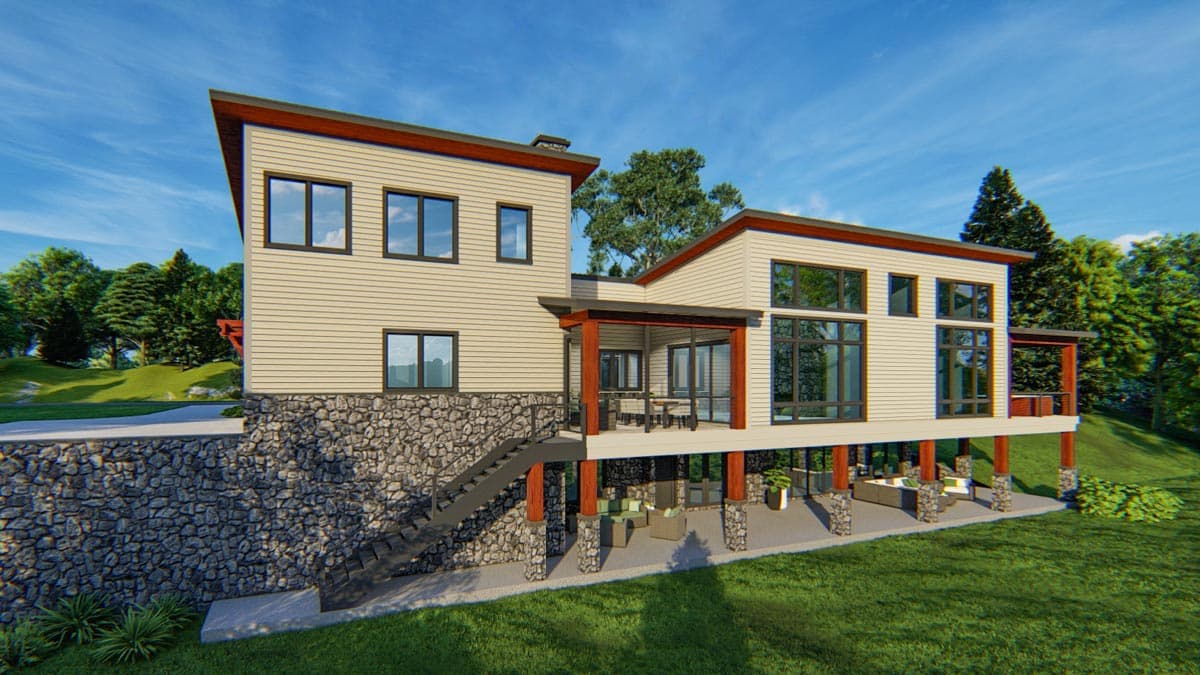

The walkout basement level has 2 separate bunkrooms capable of sleeping 4 people each. The bunkrooms can easily be converted to regular bedrooms for full-time use. The lower level also shares a rec room and exercise room, both with direct access to the deep wrap around covered patio. One of the two full bathrooms on the lower level is accessible from the outside.
This home boasts copious amounts of storage with an unfinished lake storage area and two additional storage areas on the lower level, and a massive open storage area on the upper level.
The upper level consists of a man cave retreat with its own steam shower bathroom. An elevator makes accessing all three levels a breeze.
BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

What's Included

Foundation plan
Detailed floor plans
Roof plan

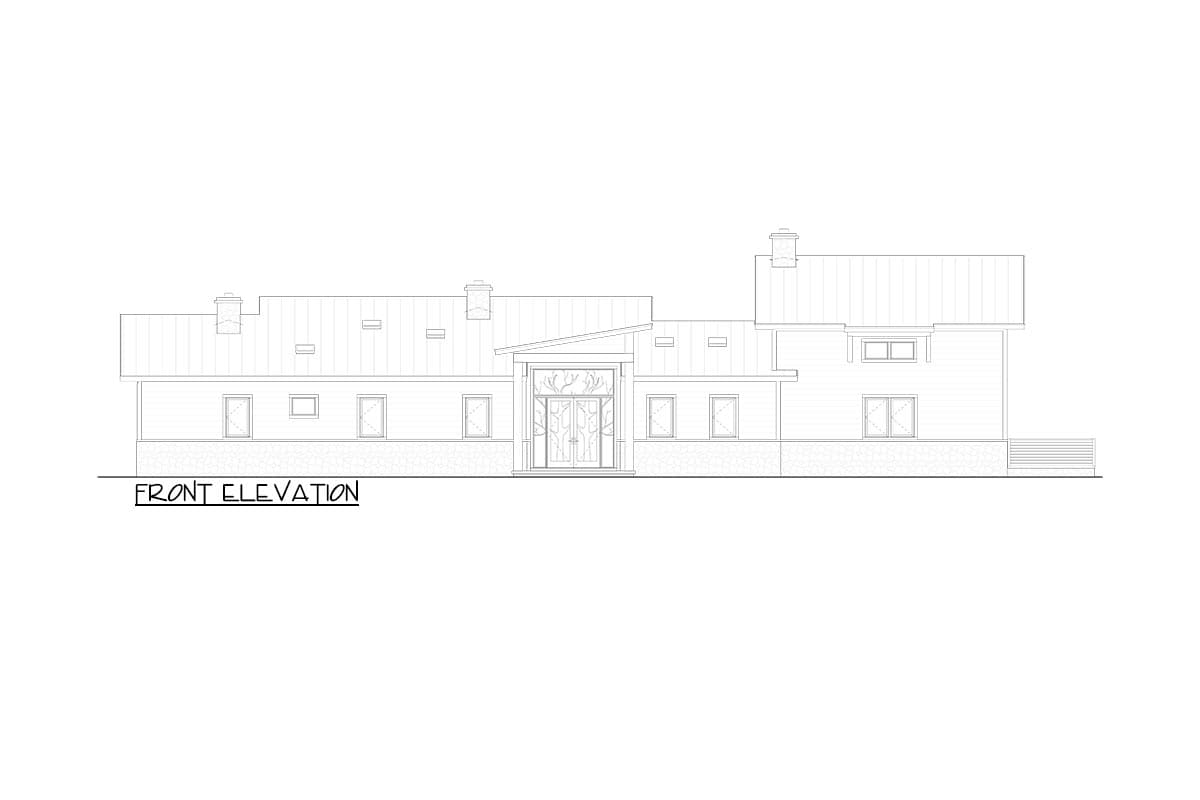

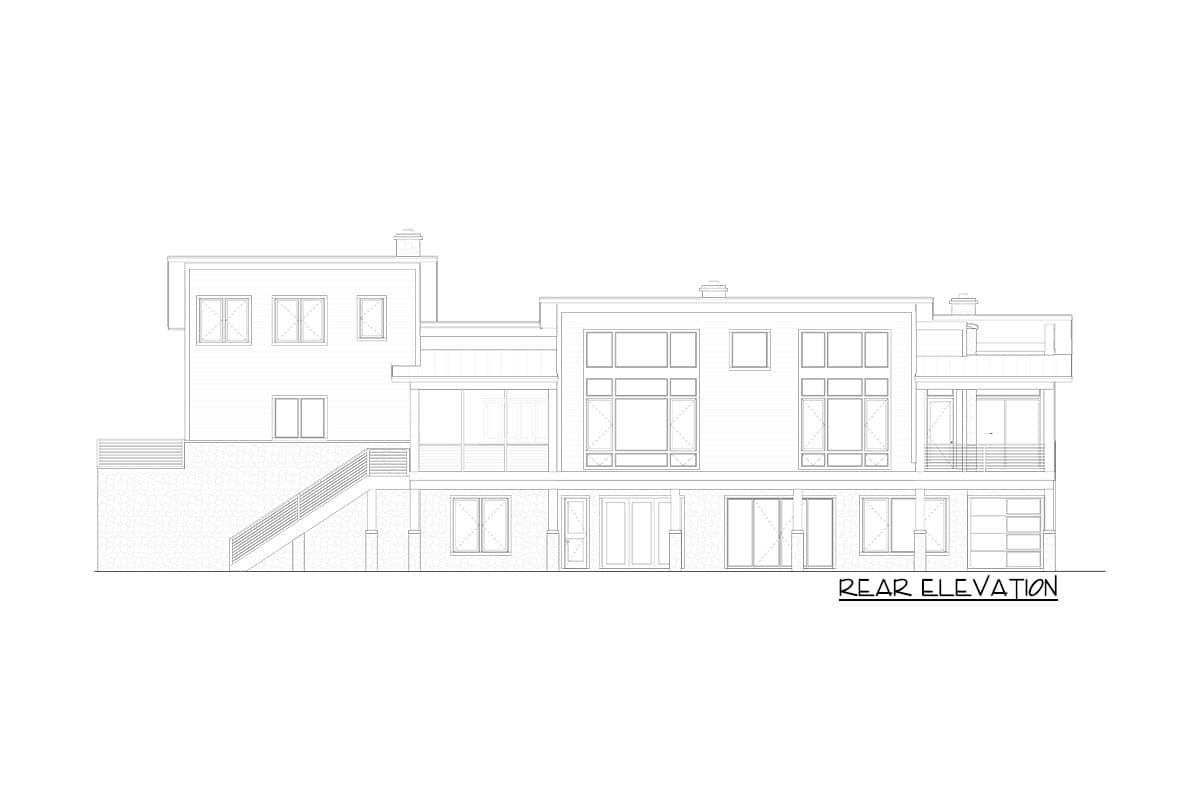

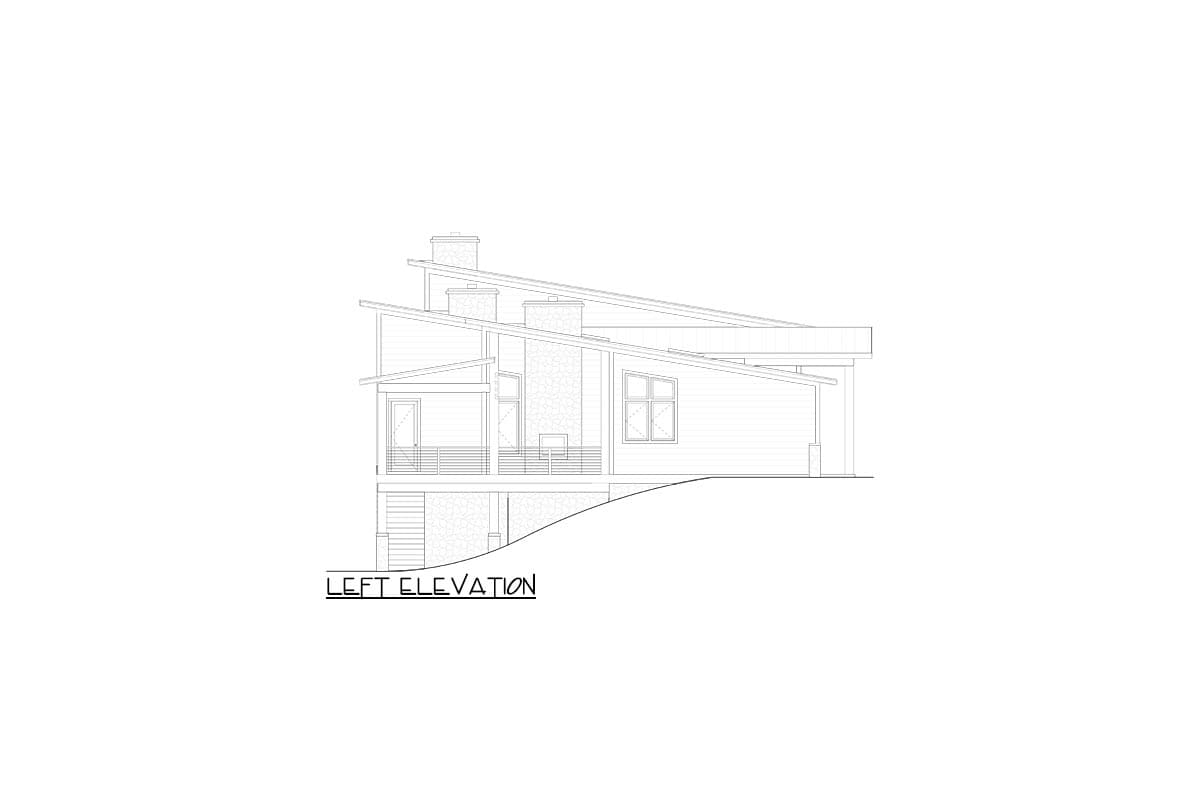

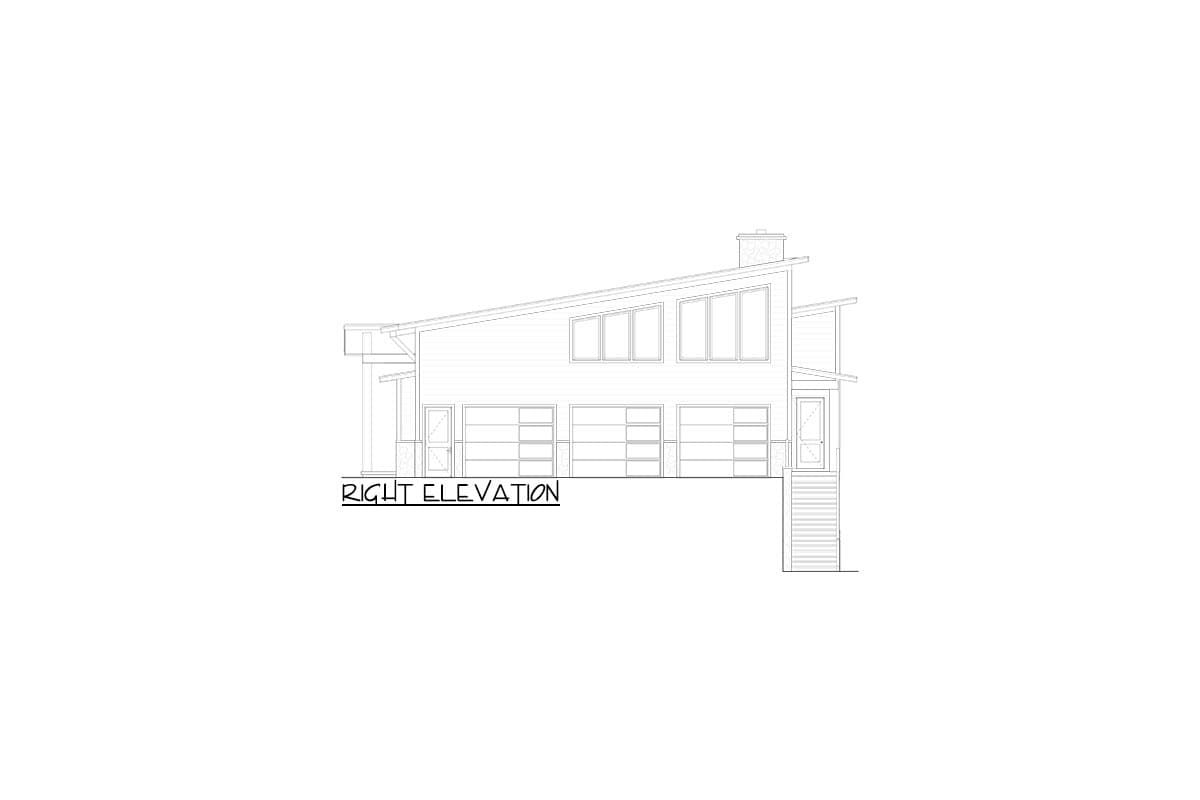

Elevations (all four sides)
Sections

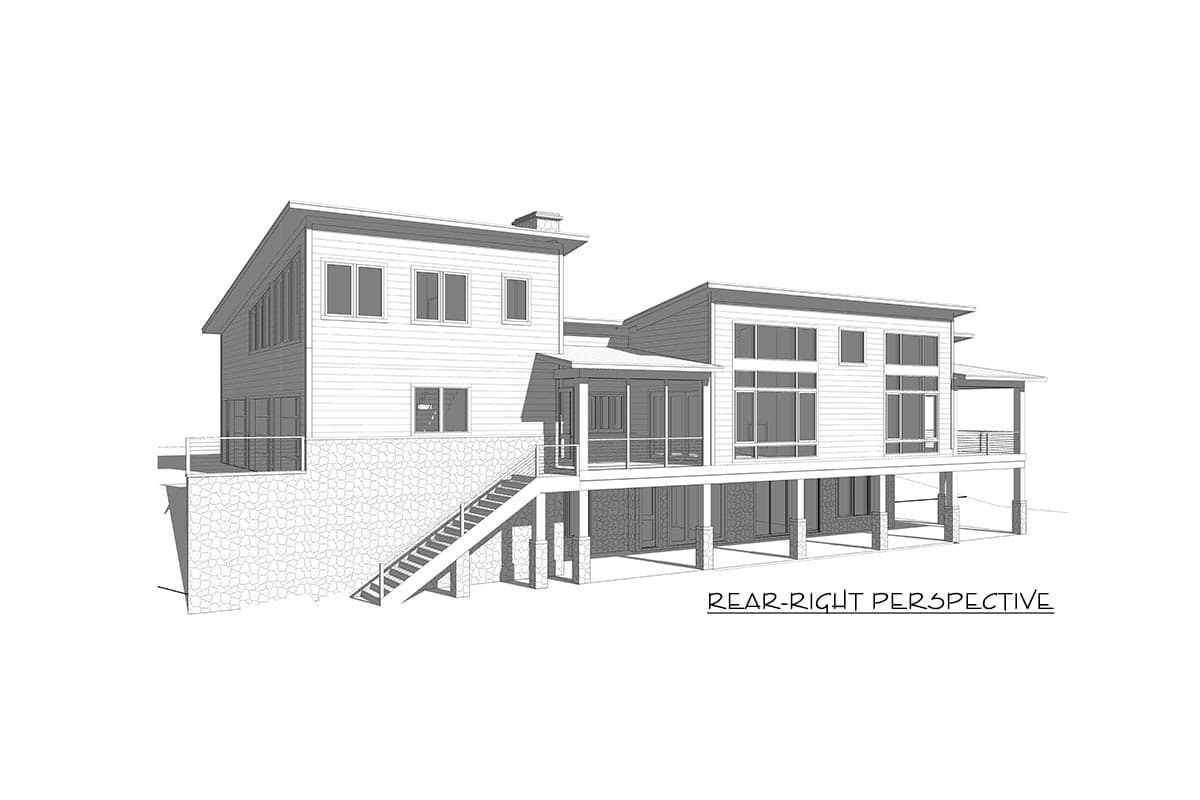

3D model views
Electrical plans
Framing details

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
