Plan 36174TX

Palatial Living

7,924 4 6 2 3
Pageloader

Palatial Living

Plan 36174TX

  • 7,924

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Stories

  • 3

    Cars

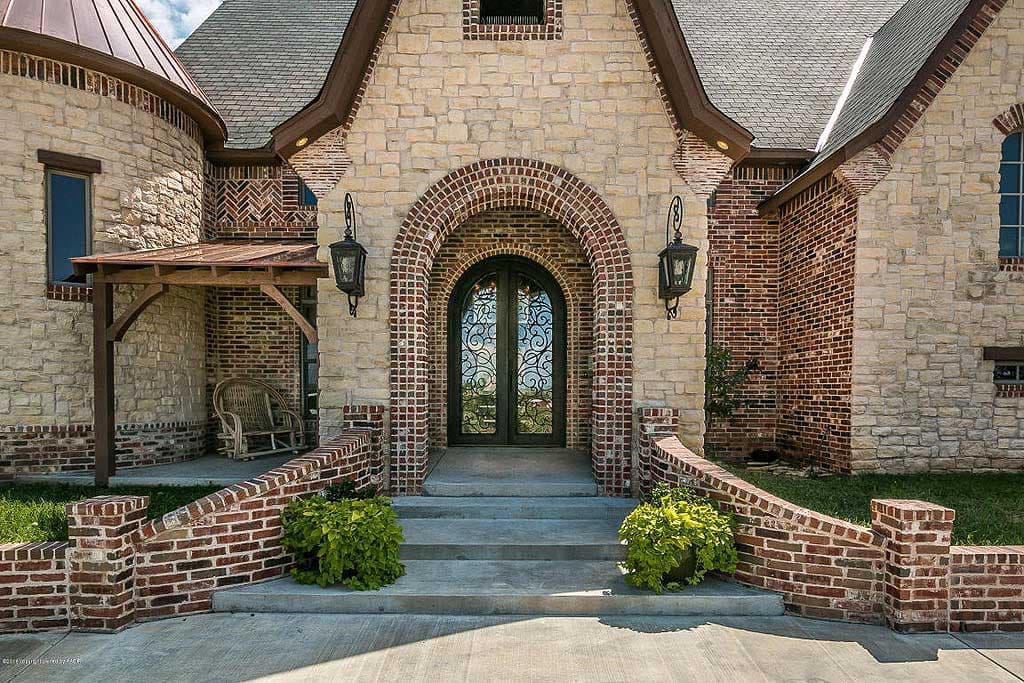

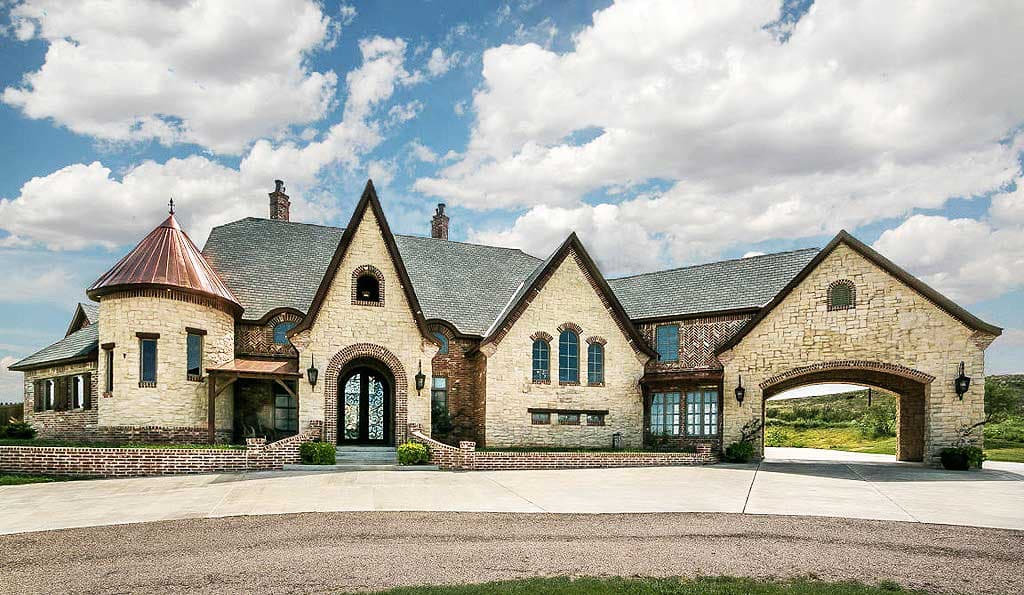

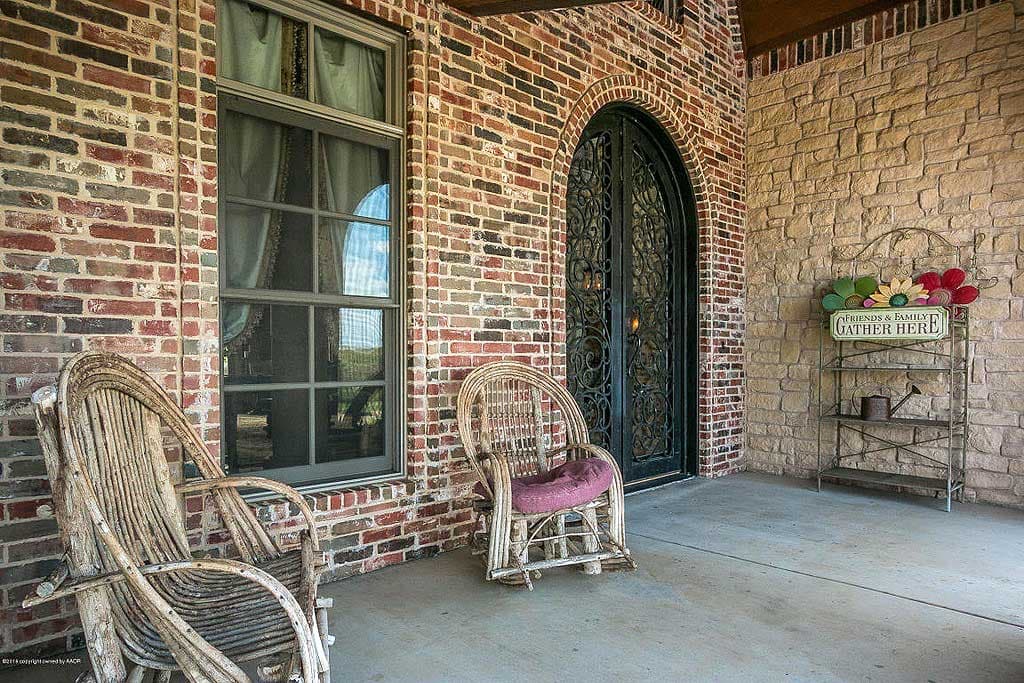

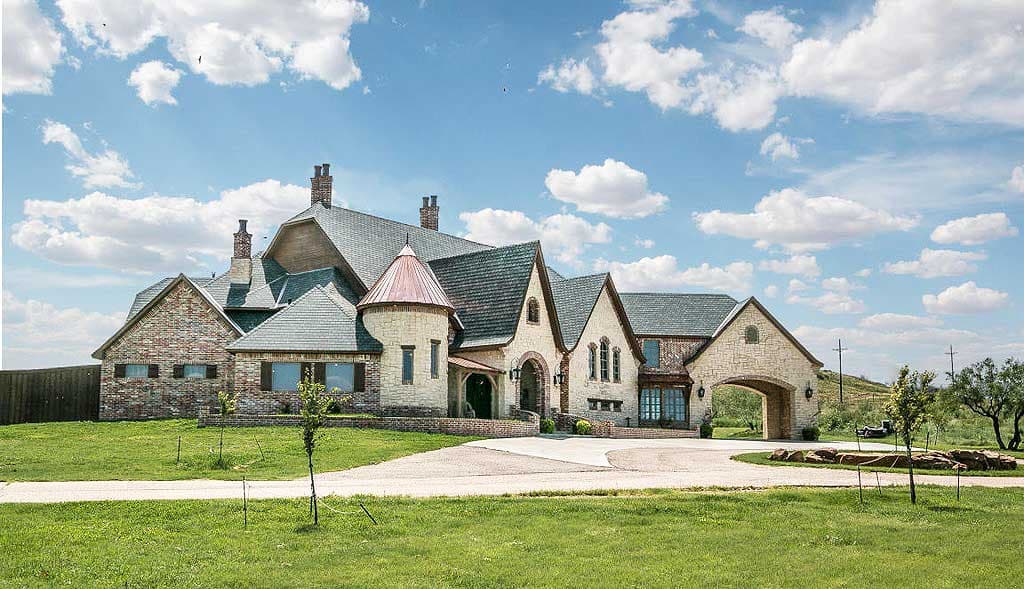

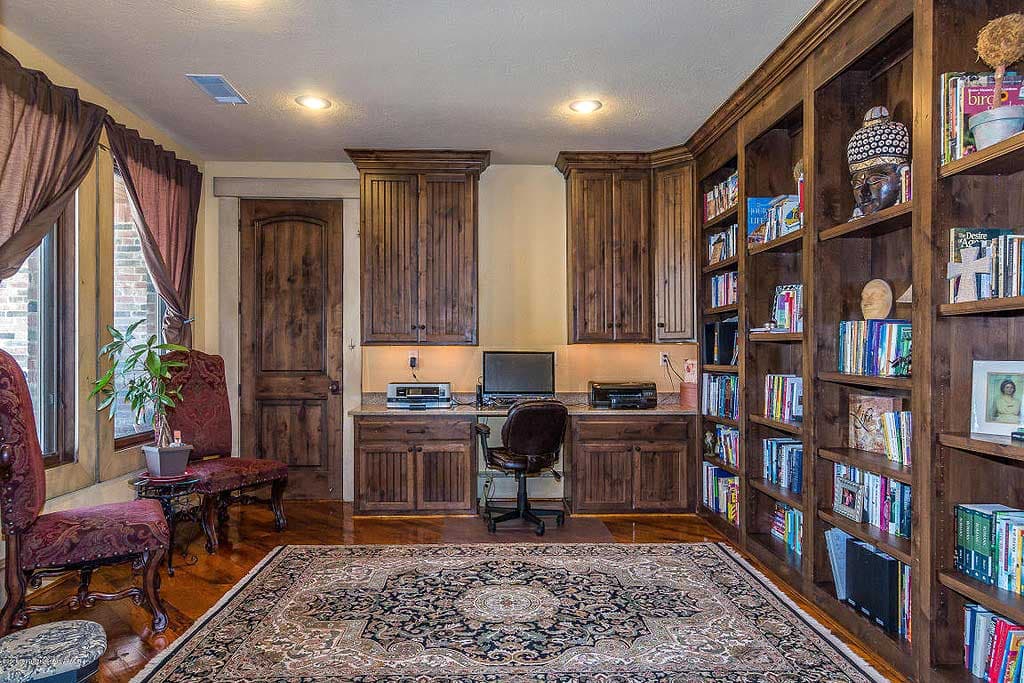

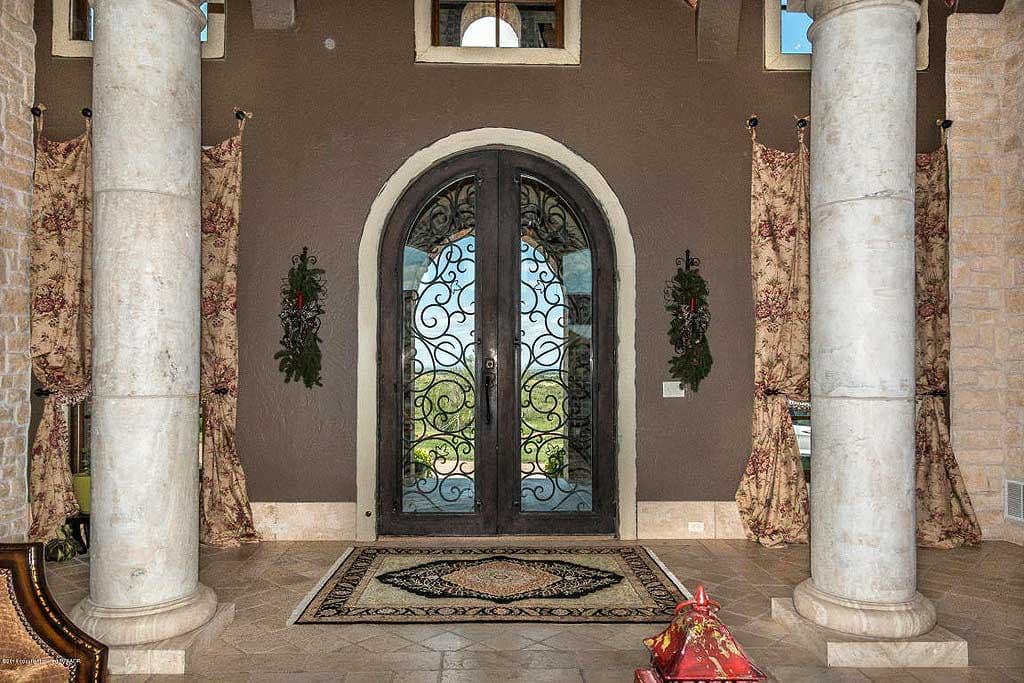

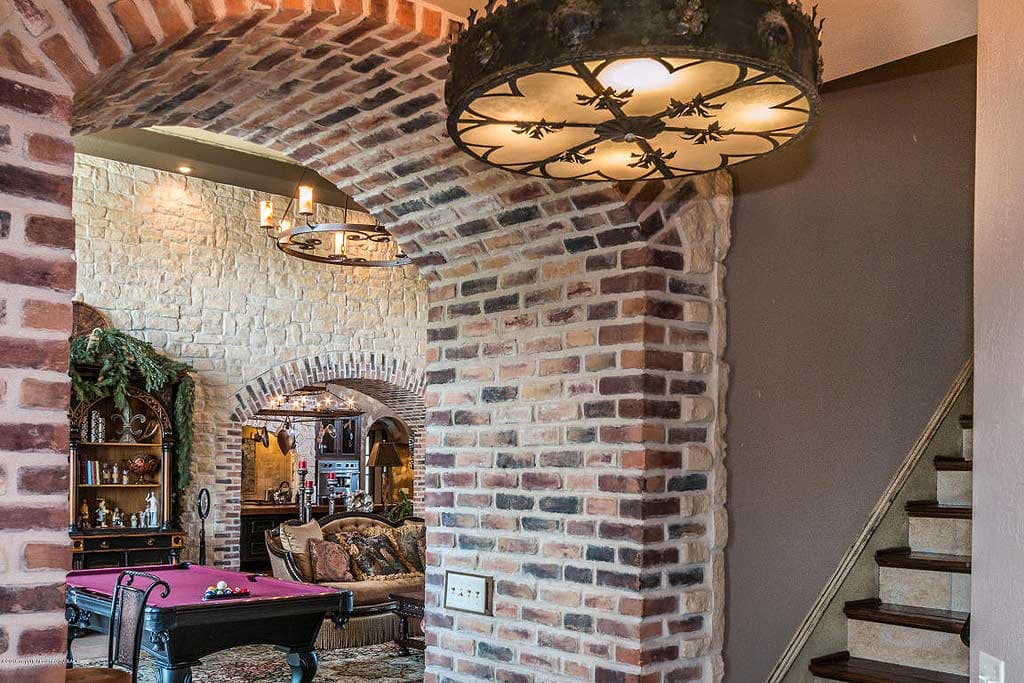

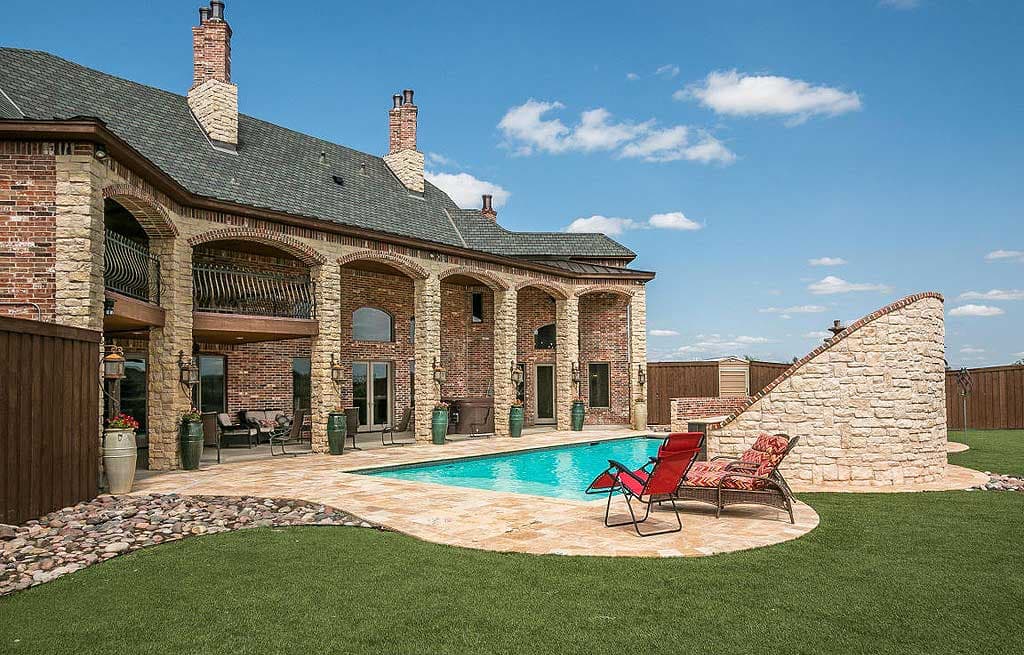

  • An oversized front entry beckons your attention to the wonderful amenities inside this home: A column framed foyer with a circular stair, a formal study and family room with views of the patio are a few of the many qualities this home has to offer.

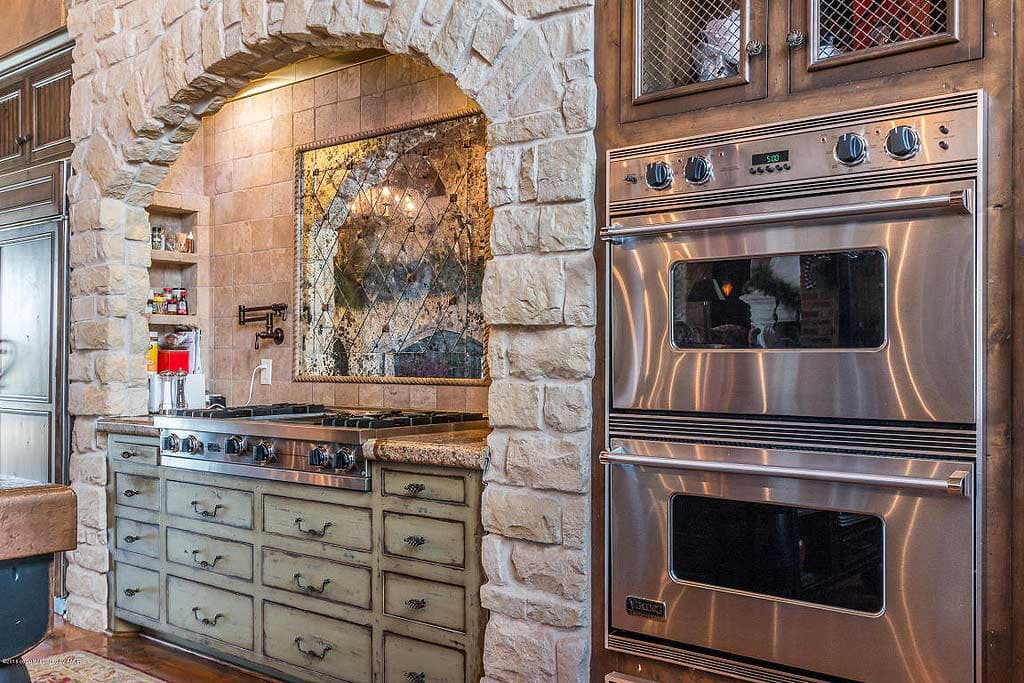

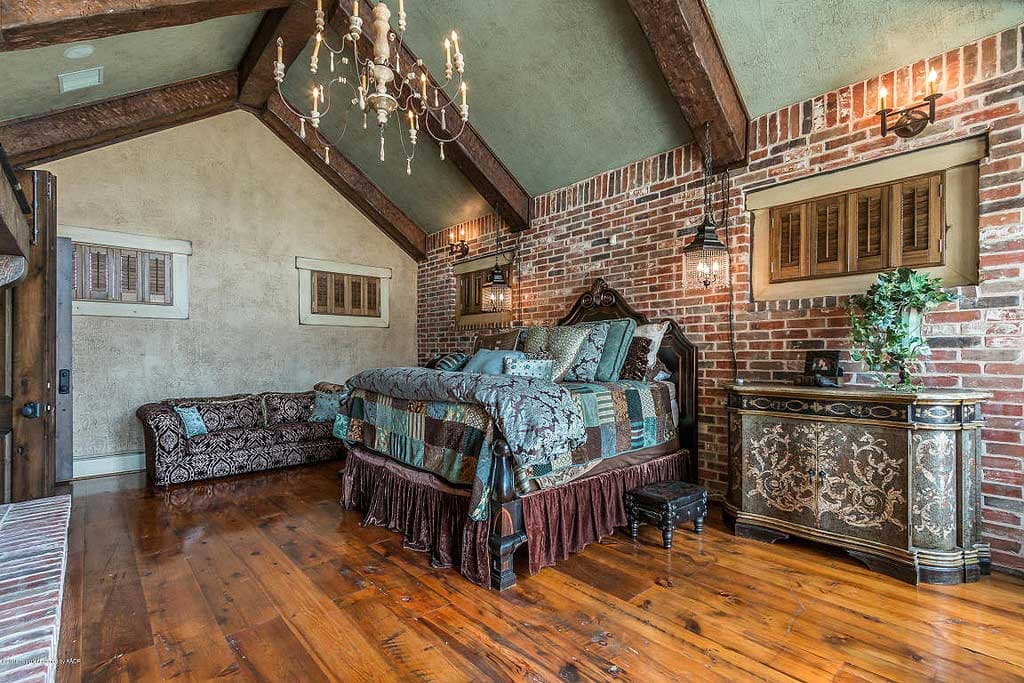

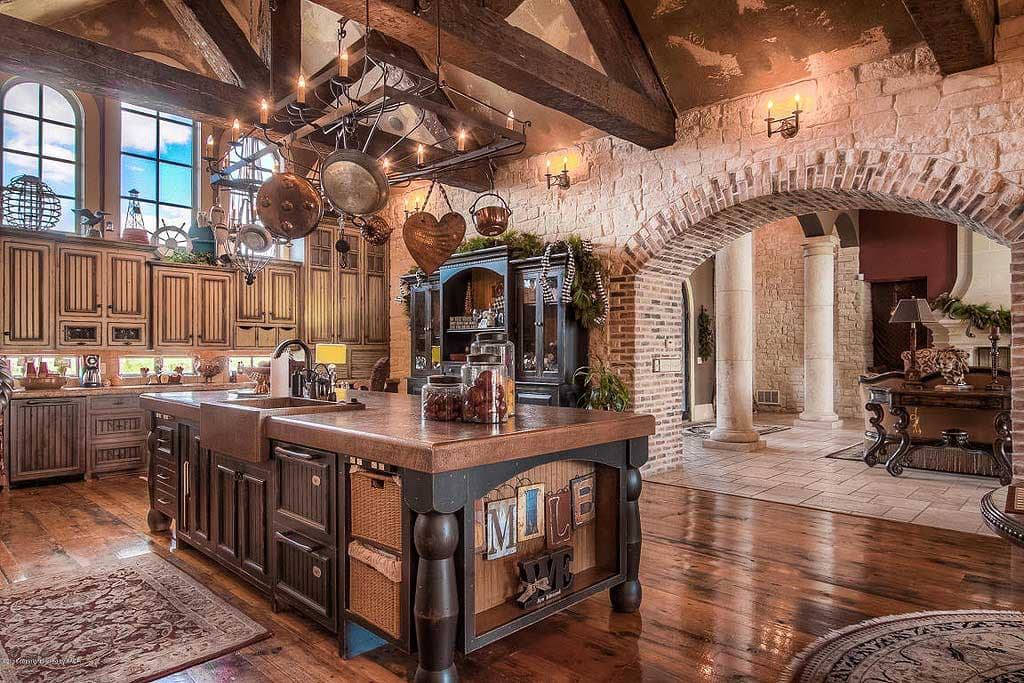

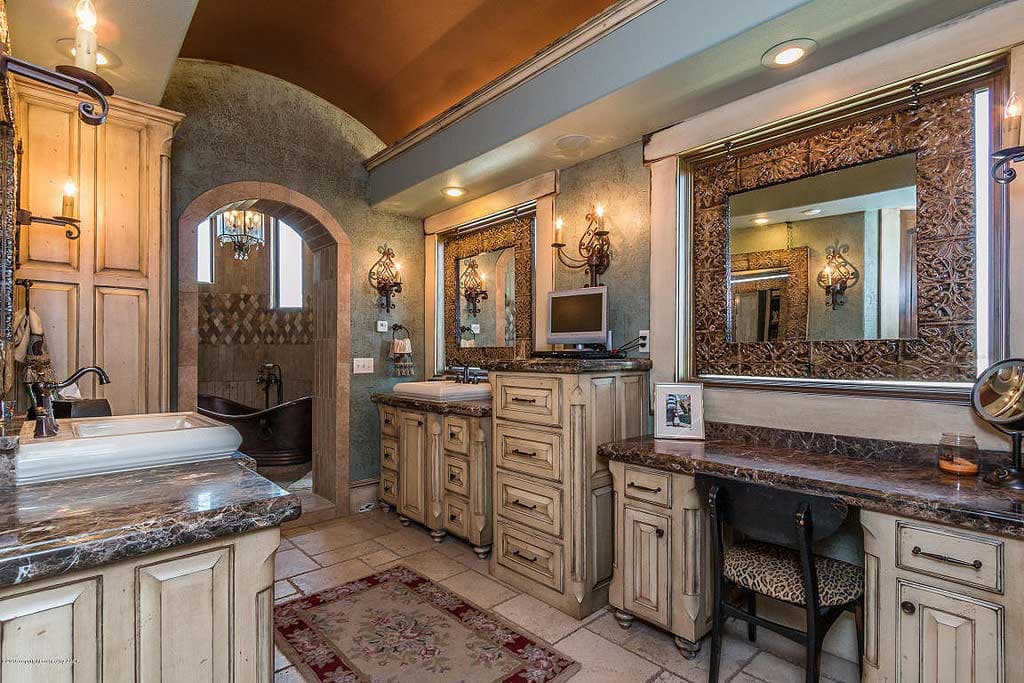

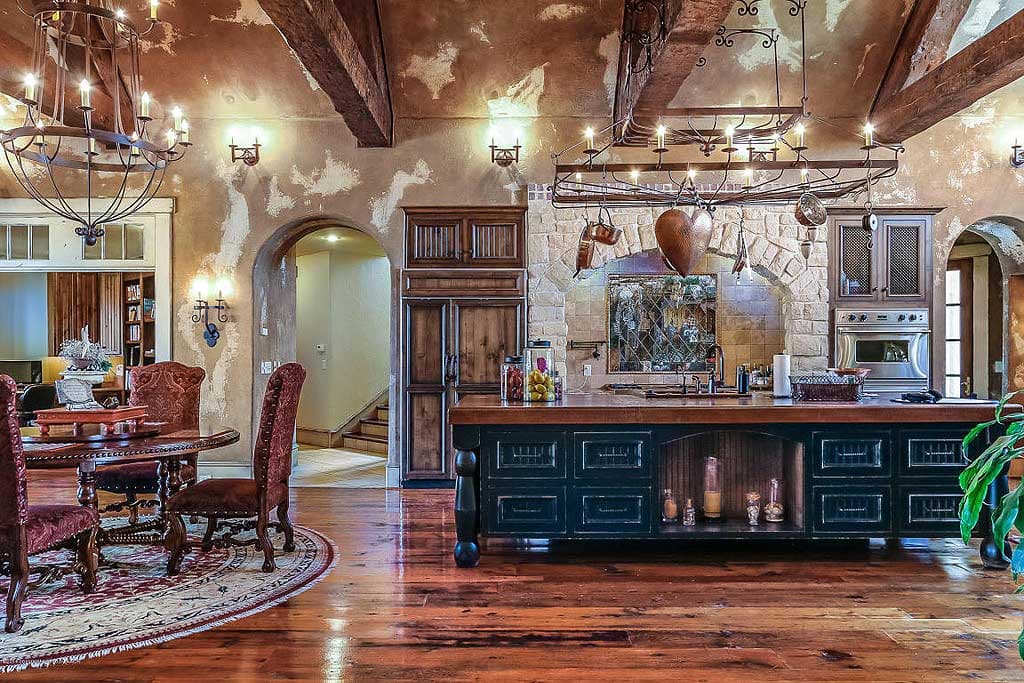

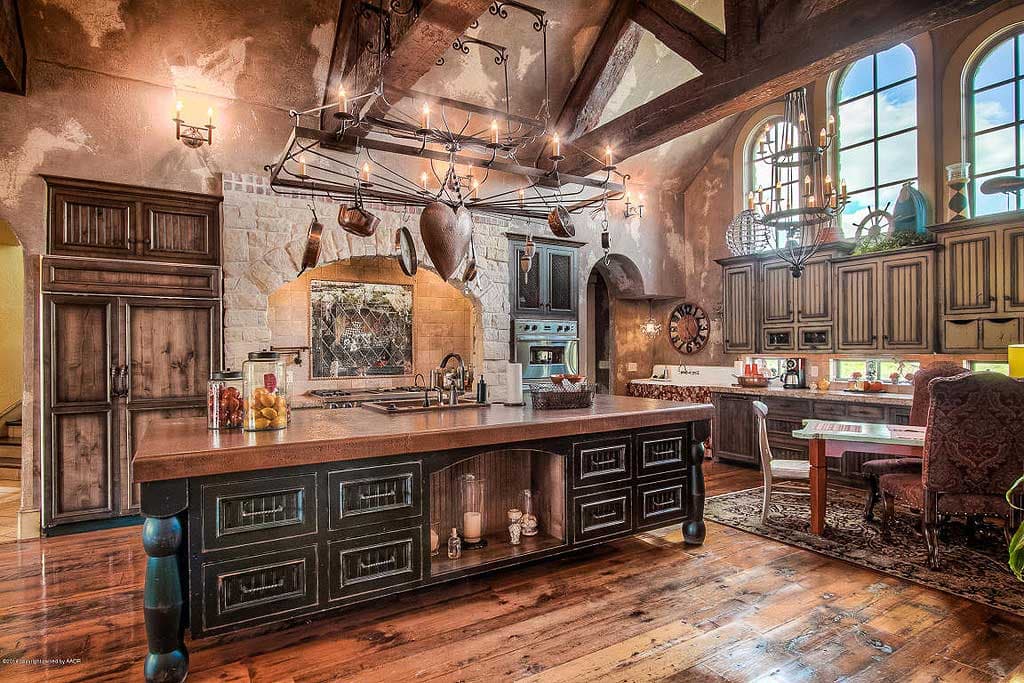

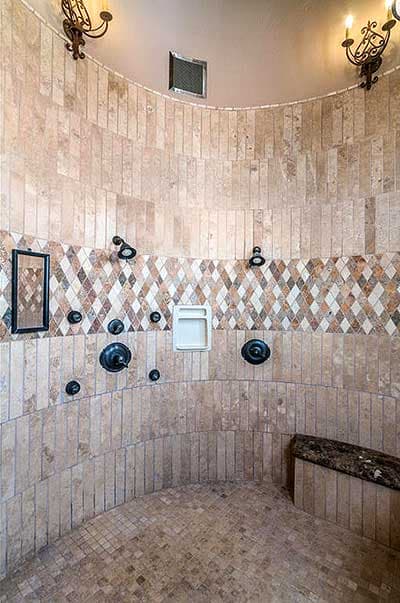

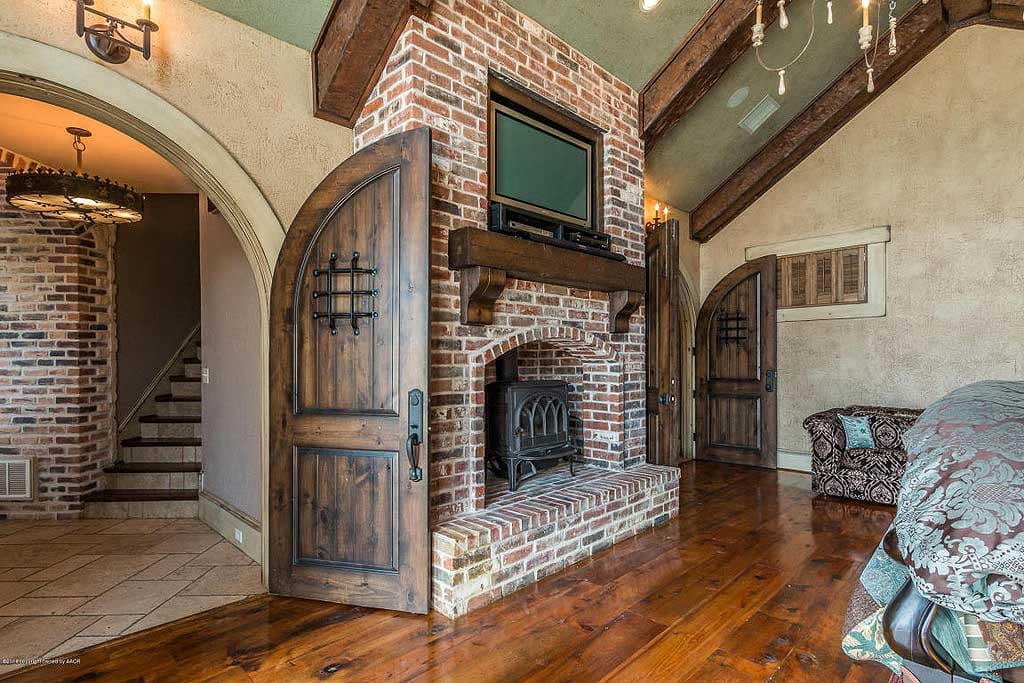

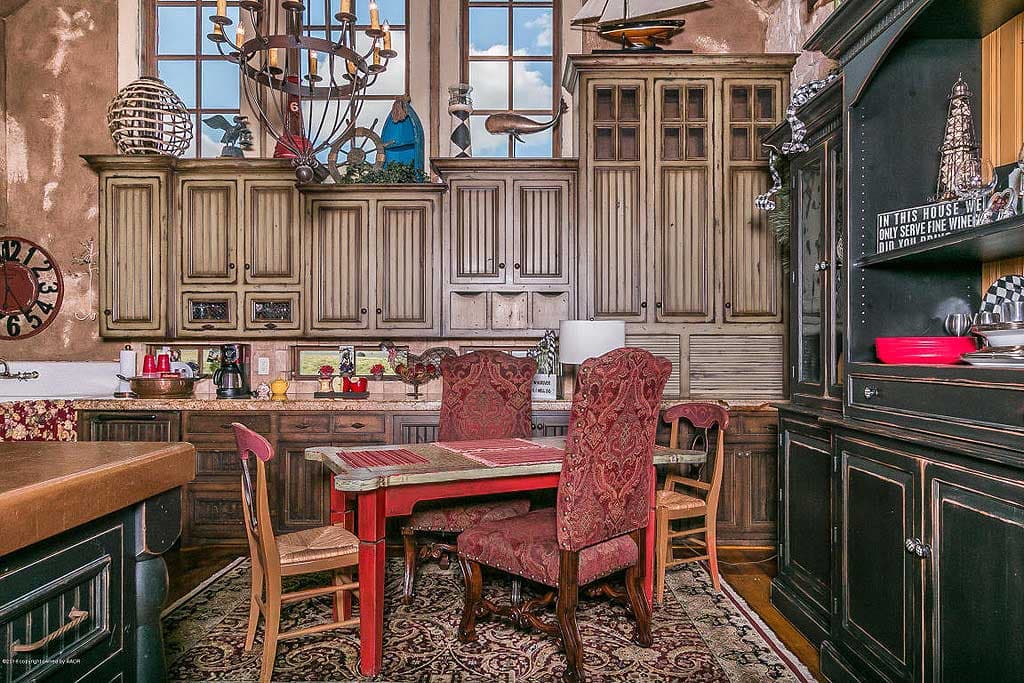

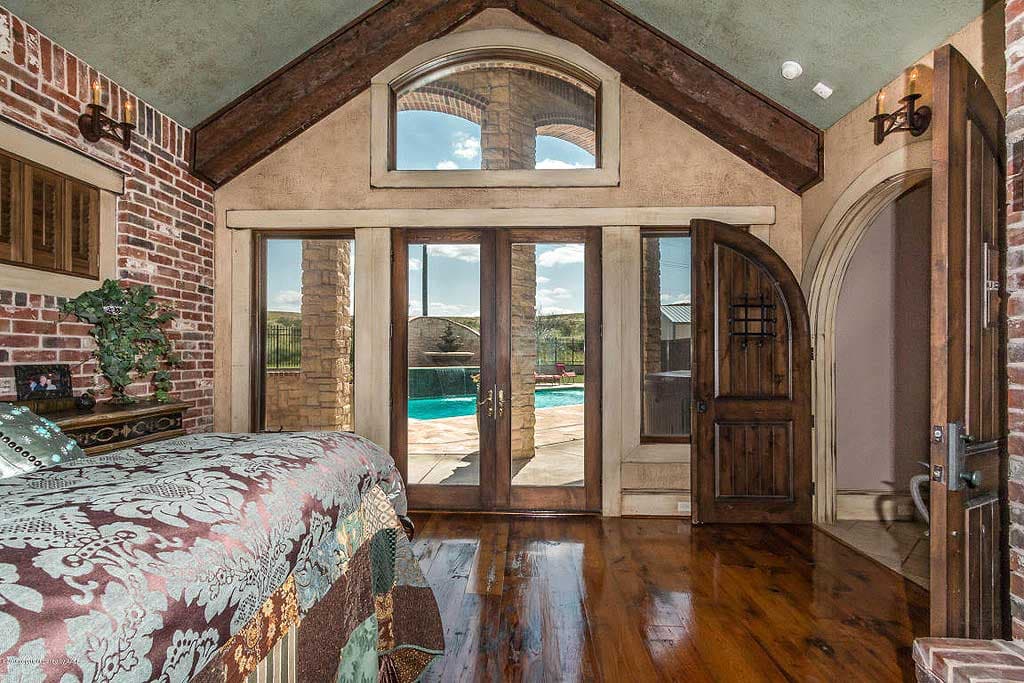

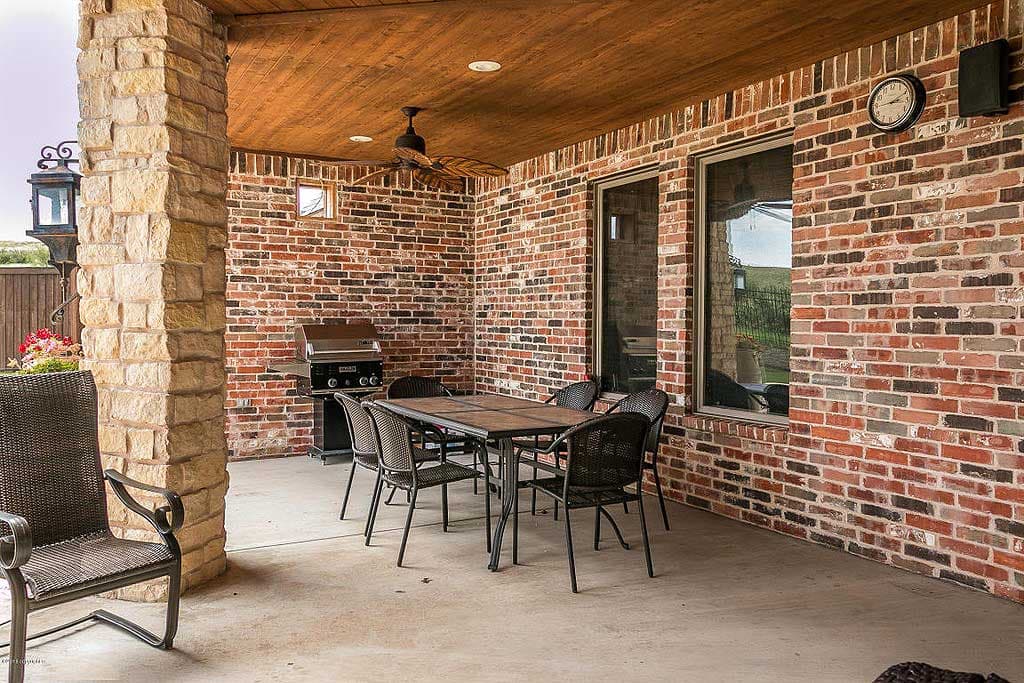

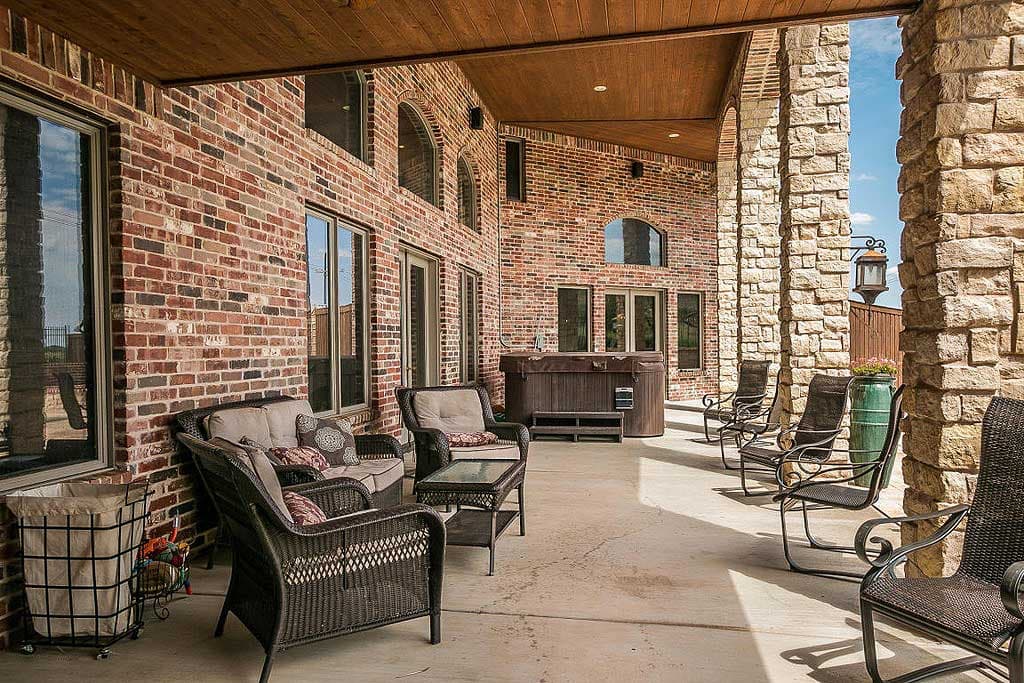

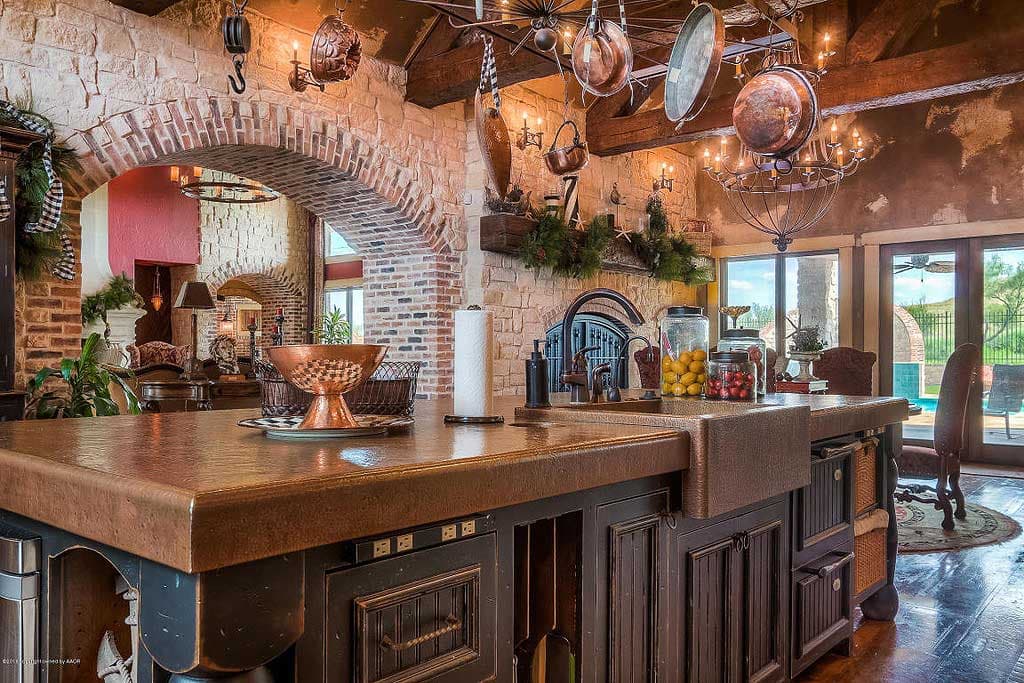

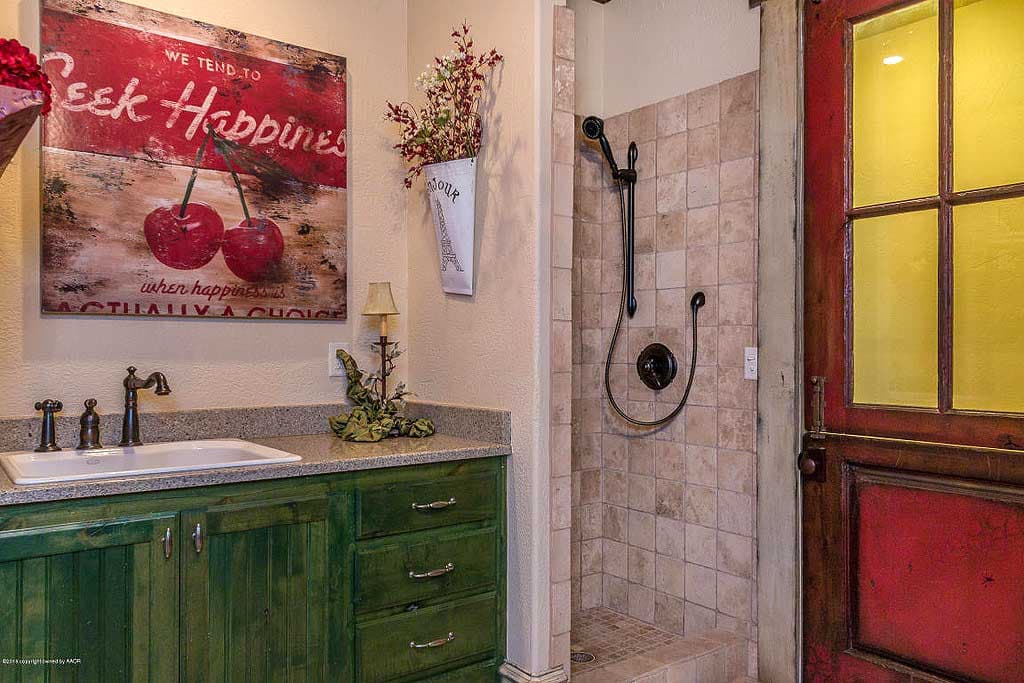

  • The dining room is open to the kitchen and connected to the screened porch. The master bedroom is embellished with a master bath featuring an exclusive shower and fireplace.
  • This home plan's unique split second level is a sight to see. This design displays offers both privacy and an entertainment area.

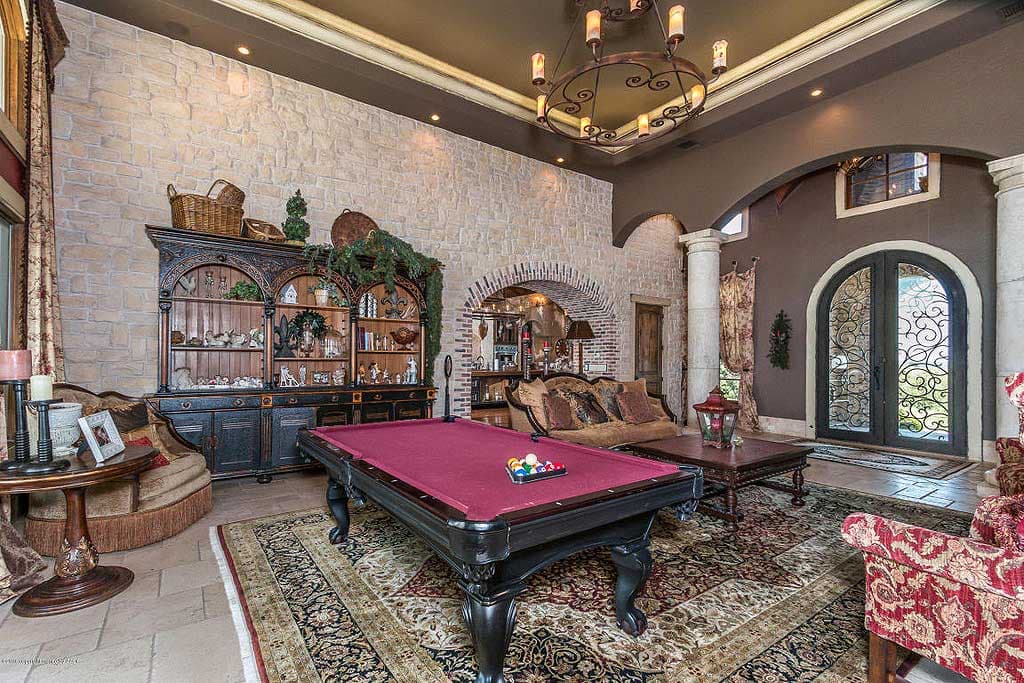

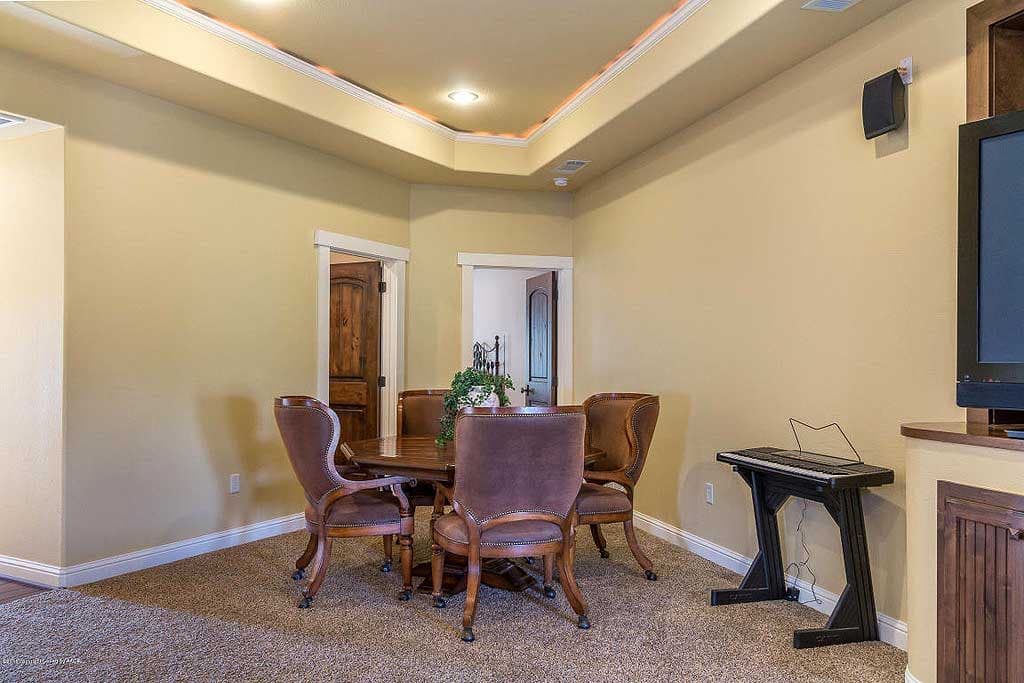

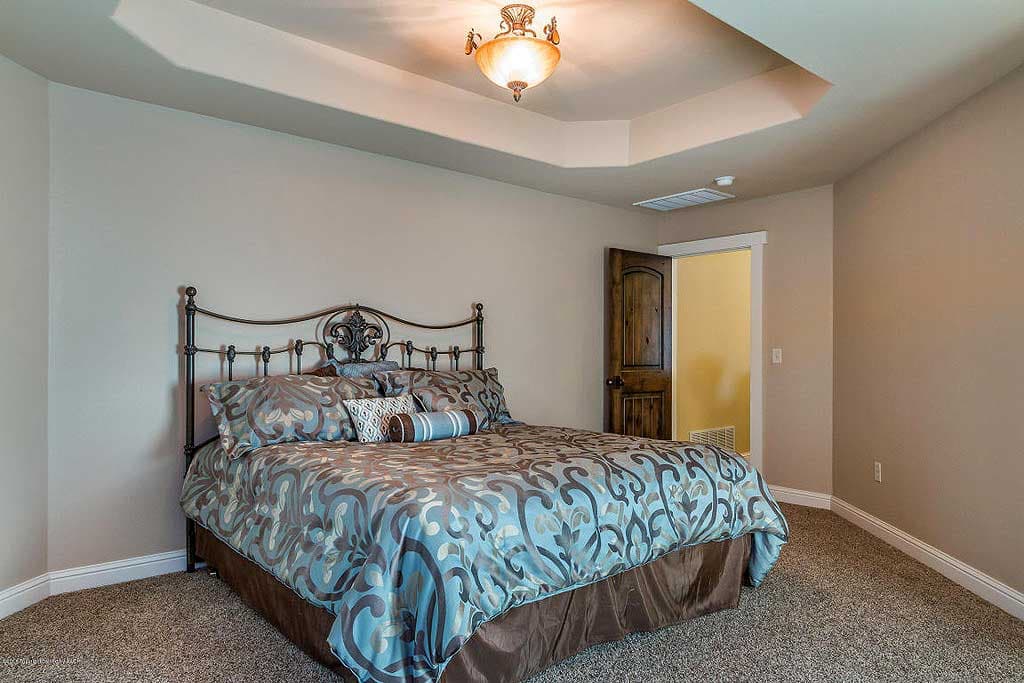

  • One half of the second level features the two bedrooms and loft area. The second half of this level features the game room, theatre, and cards room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Palatial Living

  • 7,924

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,740
  • 5 Sets $3,940
  • CAD $5,610
  • View all purchase option online

About This Plan

  • An oversized front entry beckons your attention to the wonderful amenities inside this home: A column framed foyer with a circular stair, a formal study and family room with views of the patio are a few of the many qualities this home has to offer.
  • The dining room is open to the kitchen and connected to the screened porch. The master bedroom is embellished with a master bath featuring an exclusive shower and fireplace.
  • This home plan's unique split second level is a sight to see. This design displays offers both privacy and an entertainment area.
  • One half of the second level features the two bedrooms and loft area. The second half of this level features the game room, theatre, and cards room.

Floor Plans

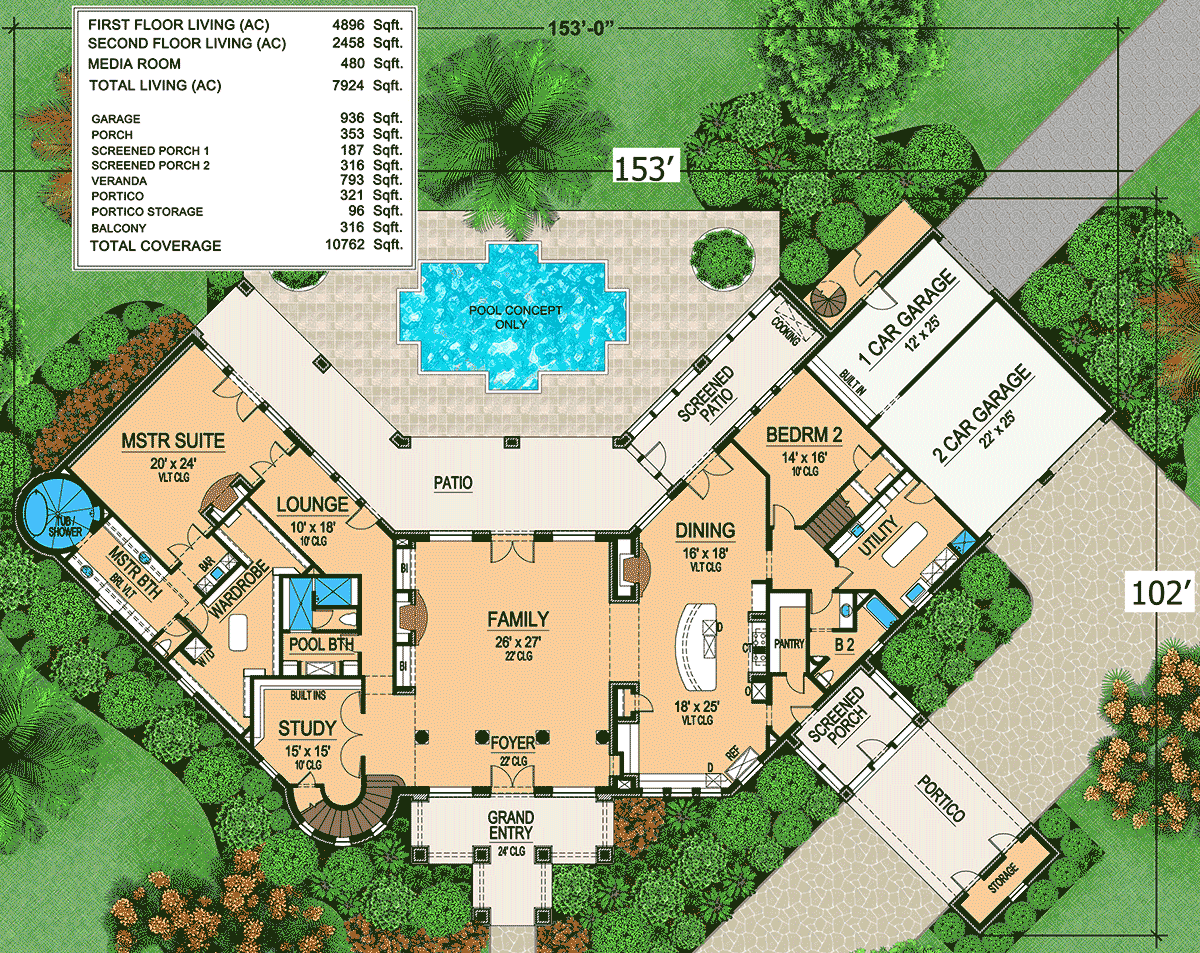

  • Main Level

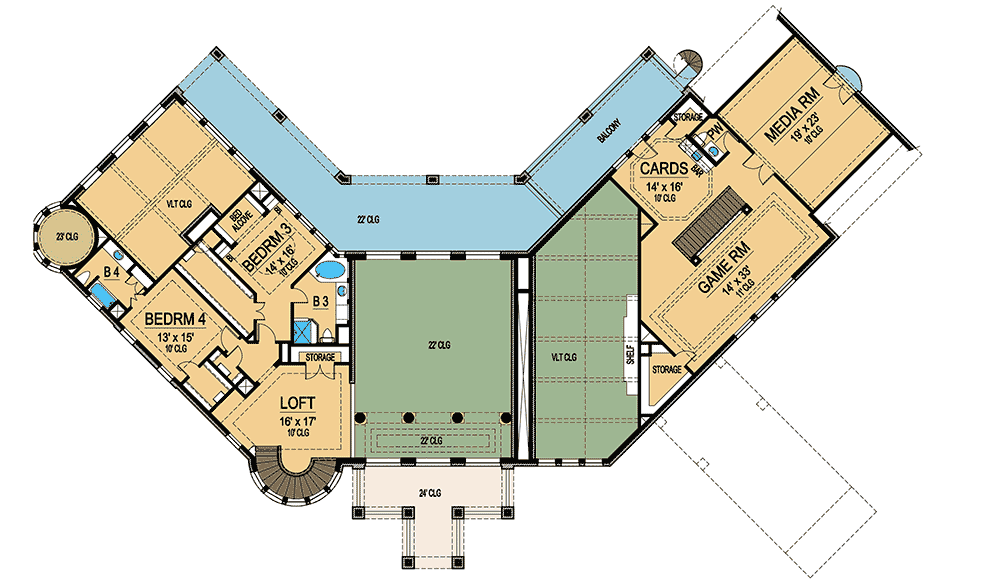

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,924 sq. ft.
  • 1st Floor: 4,986 sq. ft.
  • 2nd Floor: 2,938 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 153' 0"
  • Depth: 102' 0"
  • Max ridge height: 46' 0"

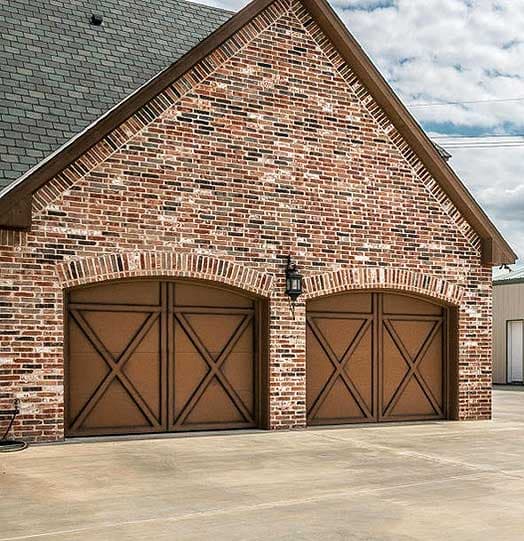

Garage

  • Type: Attached
  • Area: 936 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
