Plan 21746DR Panoramic Views

1,324 2 1 1
Print
Compare
...

Panoramic Views

Plan 21746DR

  • 1,324

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • You'll find panoramic views on the first level as well as in the lower level.
  • A large rear terrace has one protected side that can be screened-in.
  • A cathedral ceiling in the living/dining rooms allows false beams to show on the ceiling.
  • The kitchen with central island will be well used.
  • The fireplace and the chimney in the dining/living rooms includes the piping for a fireplace or a stove in the basement.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

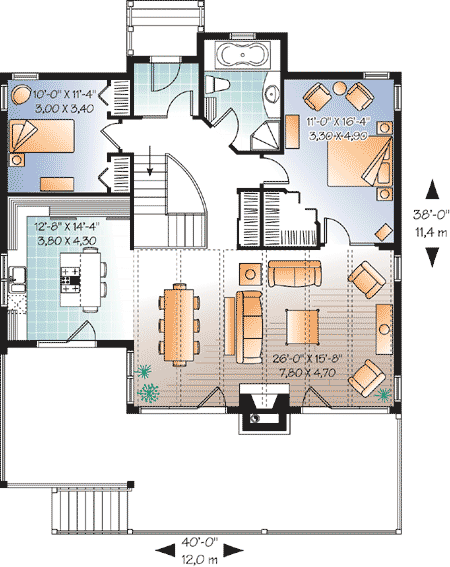

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Panoramic Views - 21746DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,324 sq. ft.
  • 1st Floor: 1,324 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 38' 0"
  • Max ridge height: 30' 9"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Panoramic Views

  • 1,324

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD - Single-Build $1,655
  • View all purchase option online

About This Plan

  • You'll find panoramic views on the first level as well as in the lower level.
  • A large rear terrace has one protected side that can be screened-in.
  • A cathedral ceiling in the living/dining rooms allows false beams to show on the ceiling.
  • The kitchen with central island will be well used.
  • The fireplace and the chimney in the dining/living rooms includes the piping for a fireplace or a stove in the basement.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,324 sq. ft.
  • 1st Floor: 1,324 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 38' 0"
  • Max ridge height: 30' 9"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss

Plan 21746DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21746DR
|
