Plan 72079DA

  • 2,191

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Windows fill most of the rear-facing walls in the expansive hexagonal great room that forms the core of this handsome midsize home. A wide-hearthed fireplace stands ready to provide warmth and color when darkness falls.
  • Shake siding and tapered stone veneer masonry help this home blend easily into a forested or other natural setting. At the same time, the plan is equally well-suited to a wide city lot with an attractive back yard.
  • Sweeping across the entire rear is a broad, partially covered deck
  • The kitchen is fully open to the great room, separated only by a peninsular counter.
  • This home plan's master suite is well-separated from the secondary bedrooms, and rich in amenities. It boasts a huge walk-in closet, twin vanities, oversized shower, soaking tub, and private water closet, plus direct access to the deck through a set of atrium doors.
  • The other bedrooms also have exterior doors that open onto the deck.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

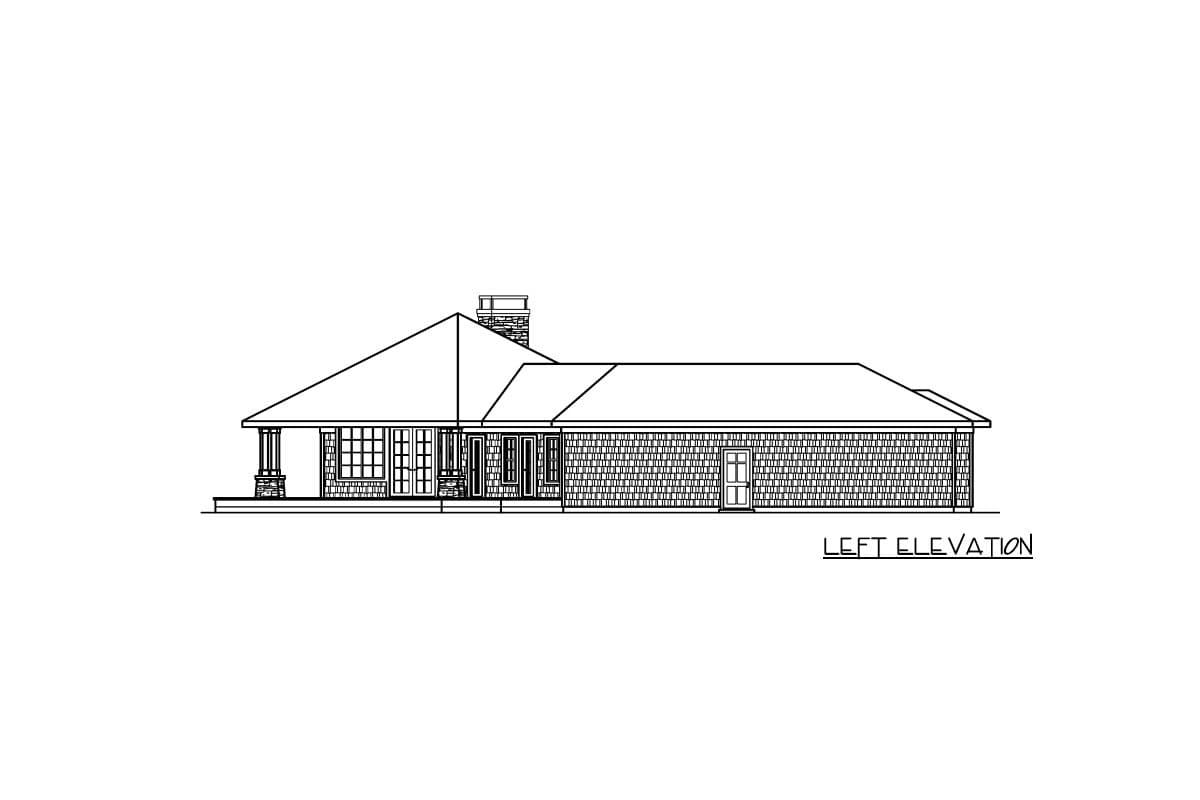

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Panoramic Views

  • 2,191

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $870
  • PDF Light $1,110
  • 5 Sets $1,110
  • 5 Sets PLUS $1,230
  • 8 Sets $1,290
  • PDF - single-use $2,165
  • CAD $2,345
  • CAD - multi-use $2,595
  • View all purchase option online

About This Plan

  • Windows fill most of the rear-facing walls in the expansive hexagonal great room that forms the core of this handsome midsize home. A wide-hearthed fireplace stands ready to provide warmth and color when darkness falls.
  • Shake siding and tapered stone veneer masonry help this home blend easily into a forested or other natural setting. At the same time, the plan is equally well-suited to a wide city lot with an attractive back yard.
  • Sweeping across the entire rear is a broad, partially covered deck
  • The kitchen is fully open to the great room, separated only by a peninsular counter.
  • This home plan's master suite is well-separated from the secondary bedrooms, and rich in amenities. It boasts a huge walk-in closet, twin vanities, oversized shower, soaking tub, and private water closet, plus direct access to the deck through a set of atrium doors.
  • The other bedrooms also have exterior doors that open onto the deck.

Floor Plans

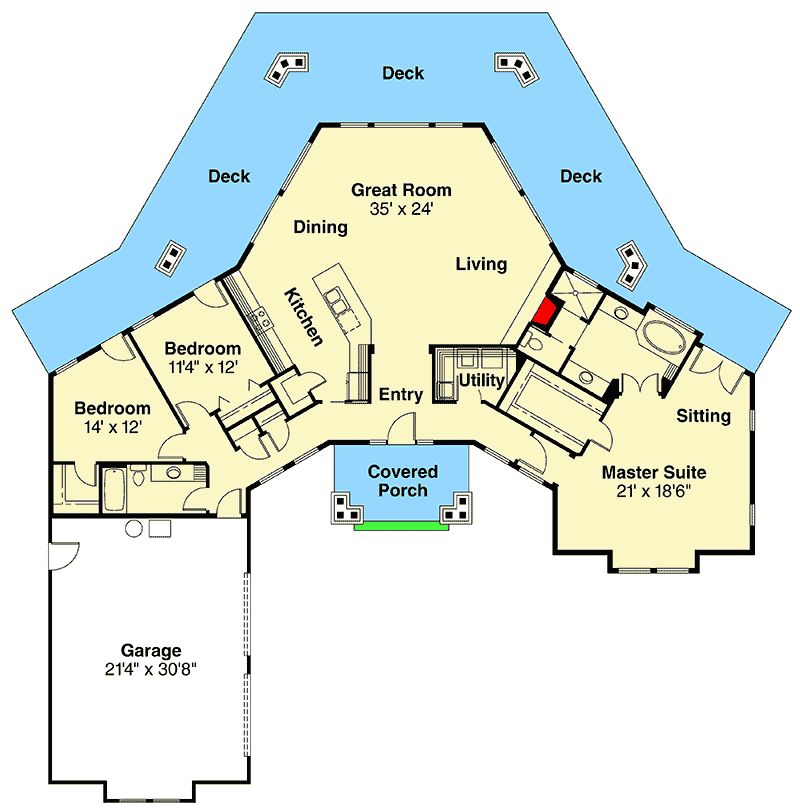

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,191 sq. ft.
  • 1st Floor: 2,191 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 81' 0"
  • Max ridge height: 22' 3"

Garage

  • Type: Attached
  • Area: 658 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
