Plan 57159HA
Perfect For A Cottage Retreat
Heated S.F.
641
Beds
1
Baths
1.5
Stories
2
Cars
1
What's Included
Plan Details
  • Charming exterior enjoys a wrap-around porch and a large feature window with arch and planter box.

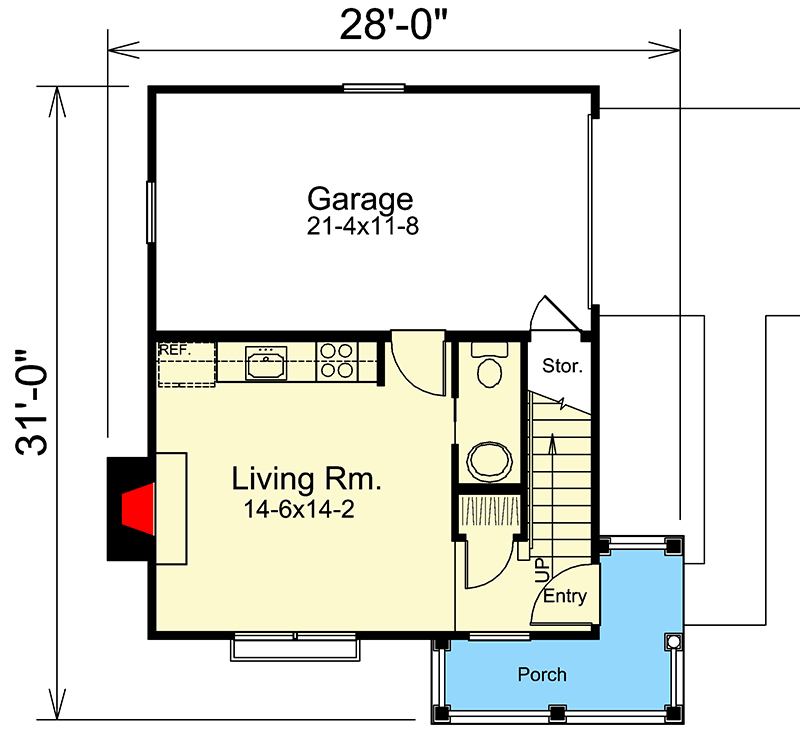

  • The living room features a kitchenette, fireplace, vaulted ceiling with plant shelf, separate entry with coat closet and access to adjacent powder room and garage.

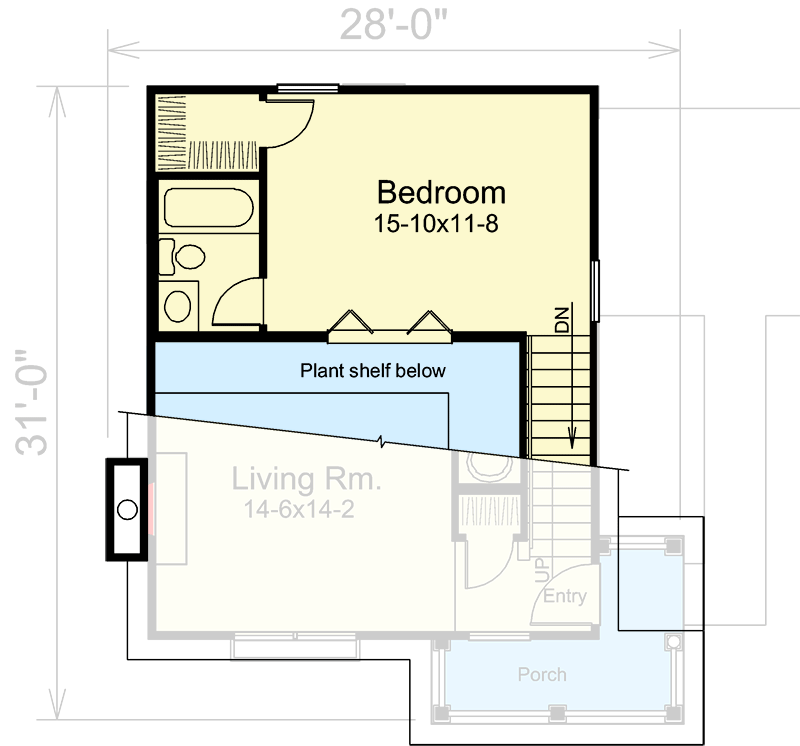

  • The stairs lead to a spacious second floor bedroom complete with bath, walk-in closet and a unique opening with louvered doors for an overview of the living room below.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Perfect For A Cottage Retreat

  • 641

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 641 sq. ft.
  • 1st Floor: 330 sq. ft.
  • 2nd Floor: 311 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 31' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Area: 249 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
