Plan 80371PM
Petite Retreat
Heated S.F.
1,602
Beds
3
Baths
1
Stories
1
What's Included
Plan Details
  • Compact, yet elegant best describes this European style cottage that can be used for empty nesters, the family just starting out or a vacation retreat.
  • A separate foyer with coat closet leads into the main living area with a sunken great room that enjoys a fireplace and bay window.
  • The dining area is open to both the kitchen with an island and the great room.
  • The master suite benefits from a large walk-in closet and shares a deluxe bath with both shower and jetted tub with the two additional bedrooms.
  • Ceilings: 8'2' standard; 9'4' great room.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Petite Retreat

  • 1,602

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

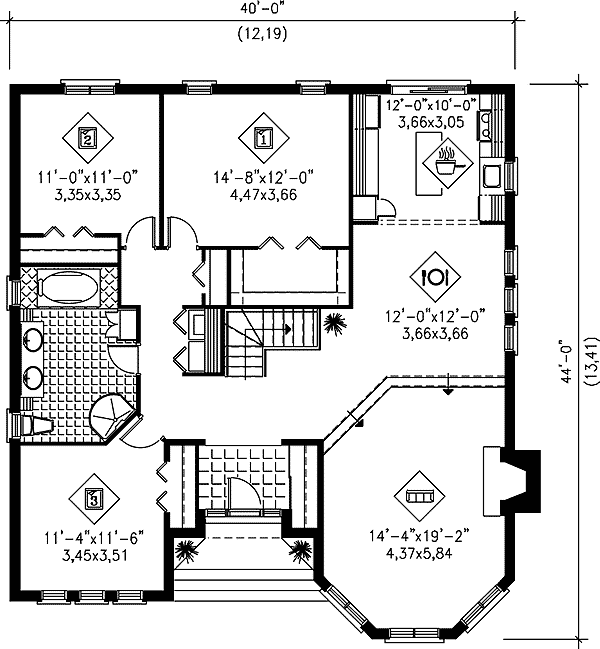

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,602 sq. ft.
  • 1st Floor: 1,602 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 44' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Ridge Height 27' 4"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Petite Retreat

  • 1,602

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Petite Retreat

  • 1,602

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,602 sq. ft.
  • 1st Floor: 1,602 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 44' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Ridge Height 27' 4"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

    Main Level
