Plan 22362DR
Picture Perfect Bungalow
Heated S.F.
1,709
Beds
3
Baths
2
Stories
2
Cars
2
What's Included
Plan Details
  • This pretty little bungalow would work equally well as a vacation home or a year-round residence. A trio of cheerful gables puts a charming face forward. The open foyer conveniently services front, back and garage access.
  • Inside, you'll find a pleasing open floorplan with subtle separations between spaces. A 2-sided fireplace provides warmth to the vaulted living room and social kitchen island, while the dining area nestles into a sunny alcove.
  • The master bedroom is situated privately behind the stairs and enjoys semi-private access to a 4-piece bathroom with integrated laundry.
  • Upstairs, family and friends will appreciate a private bedroom level with bathroom.
  • Above the 2-car garage, you'll find storage space in the bonus room above.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Picture Perfect Bungalow

  • 1,709

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

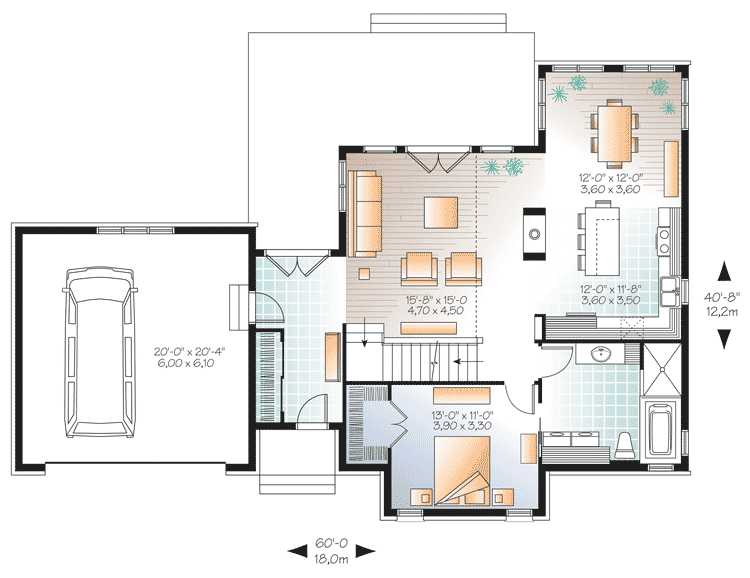

  • Main Level

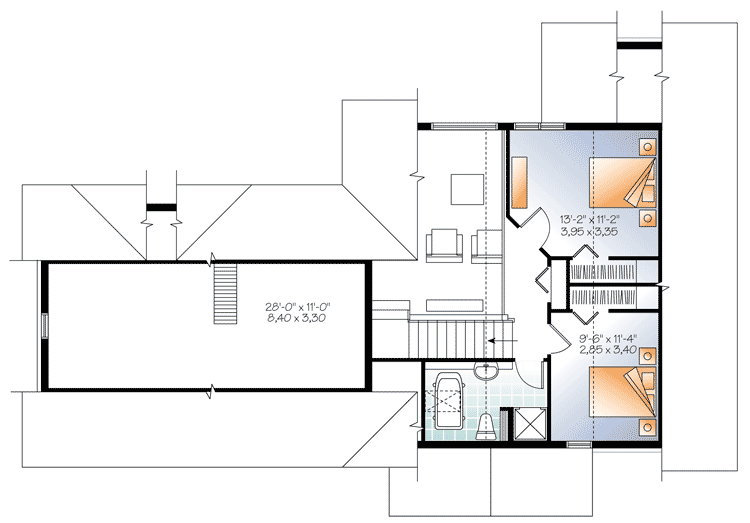

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,709 sq. ft.
  • 1st Floor: 1,196 sq. ft.
  • 2nd Floor: 513 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 40' 8"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site
