Plan 3981ST
Plenty to Enjoy
Heated S.F.
2,110
Beds
2 - 4
Baths
2 - 3
Stories
1
Cars
3
Floor Plan

Plan 3981ST

Main Level
slide image 0
Lower Level
slide image 1

Plan 3981ST

1-800-854-7852

1-262-521-4596

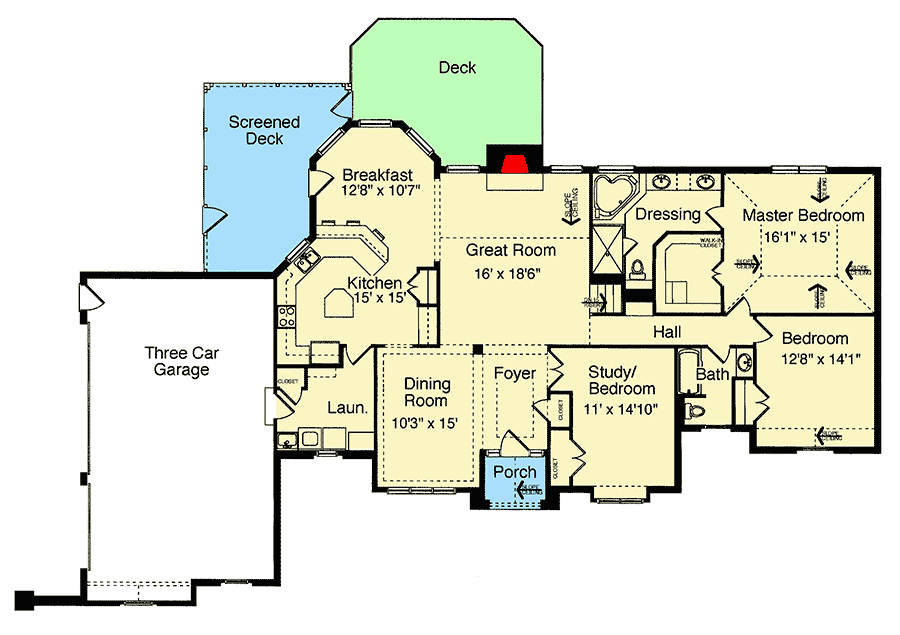

Main Level
floor plan image Main Level
Lower Level
floor plan image Lower Level
Plan Details
  • Brick and stone, multiple windows and a boxed window decorate the exterior of this one level home plan.
  • Various ceiling treatments, a wood burning fireplace, an angled kitchen counter with seating, angled walls at the breakfast area and a formal dining room decorate the interior living space.
  • A screened porch and deck invite you outdoors.
  • The optional finished lower level offers a fourth bedroom, media area, wet bar, and billiards for added enjoyment.
What's Included
  • General notes and specifications

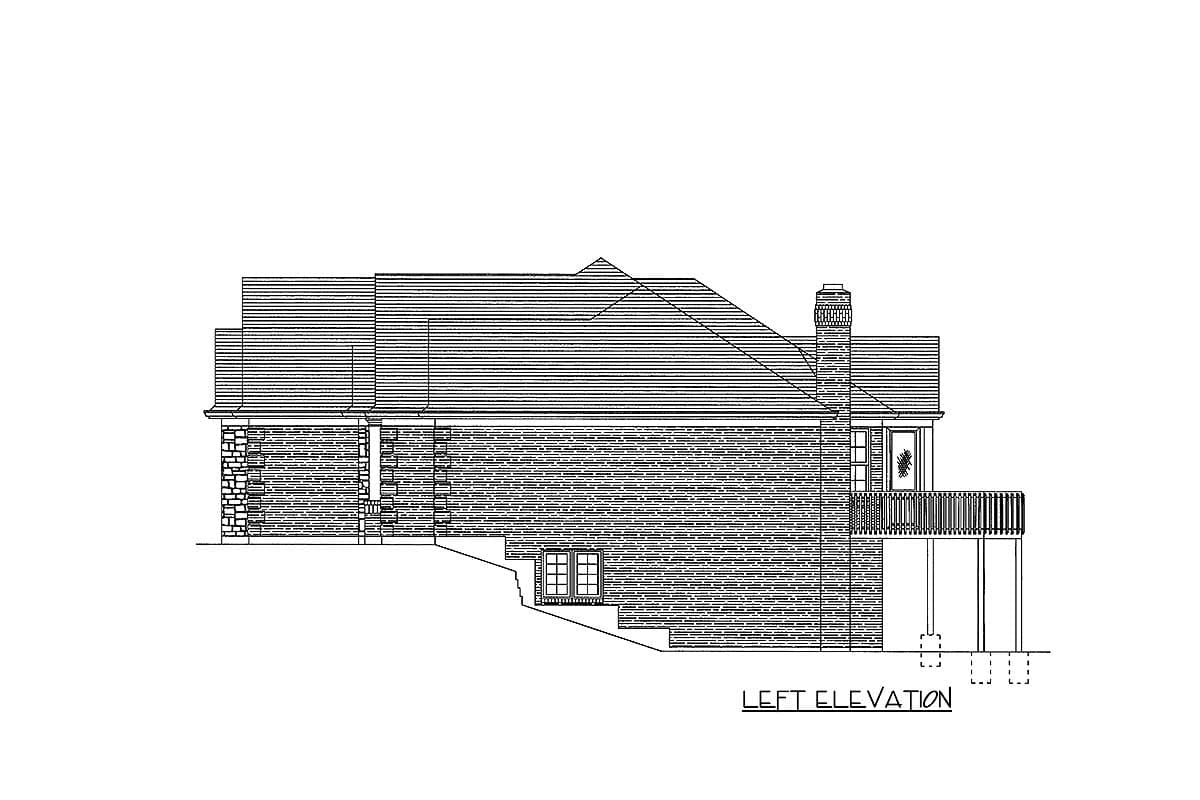

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,110 sq. ft.

1st Floor

2,110 sq. ft.

Optional Lower Level

1,017 sq. ft.

Porch, Front

37 sq. ft.

Screened Porch

249 sq. ft.

Deck

267 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

92' 6"

Depth

56' 8"

Max Ridge Height

22' 9"

Garage

Type

Attached

Area

673 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Formal Dining

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Wet Bar
