Plan 62968DJ

Poolhouse with Covered Patio, Kitchen, Bath and Pump House Storage Space

Heated S.F.
306
Beds
0
Baths
1
Stories
1

Floor Plan

Plan 62968DJ

Main Level
Main Level

Plan 62968DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

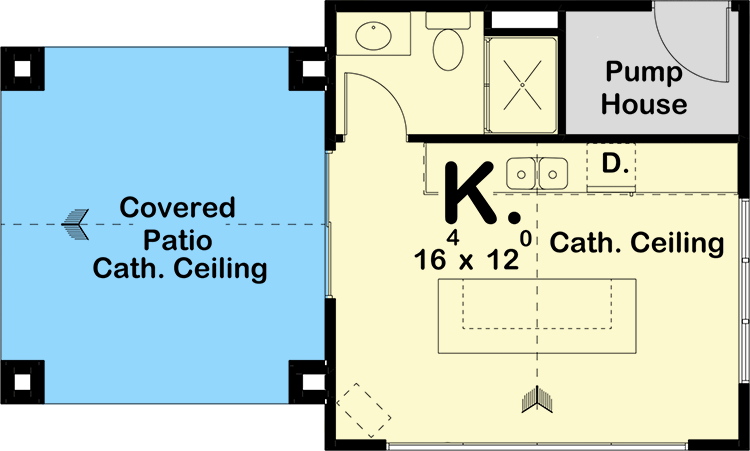

Plan 62968DJ: Poolhouse with Covered Patio, Kitchen, Bath and Pump House Storage Space - Floor Plan - Main Level

Plan Details

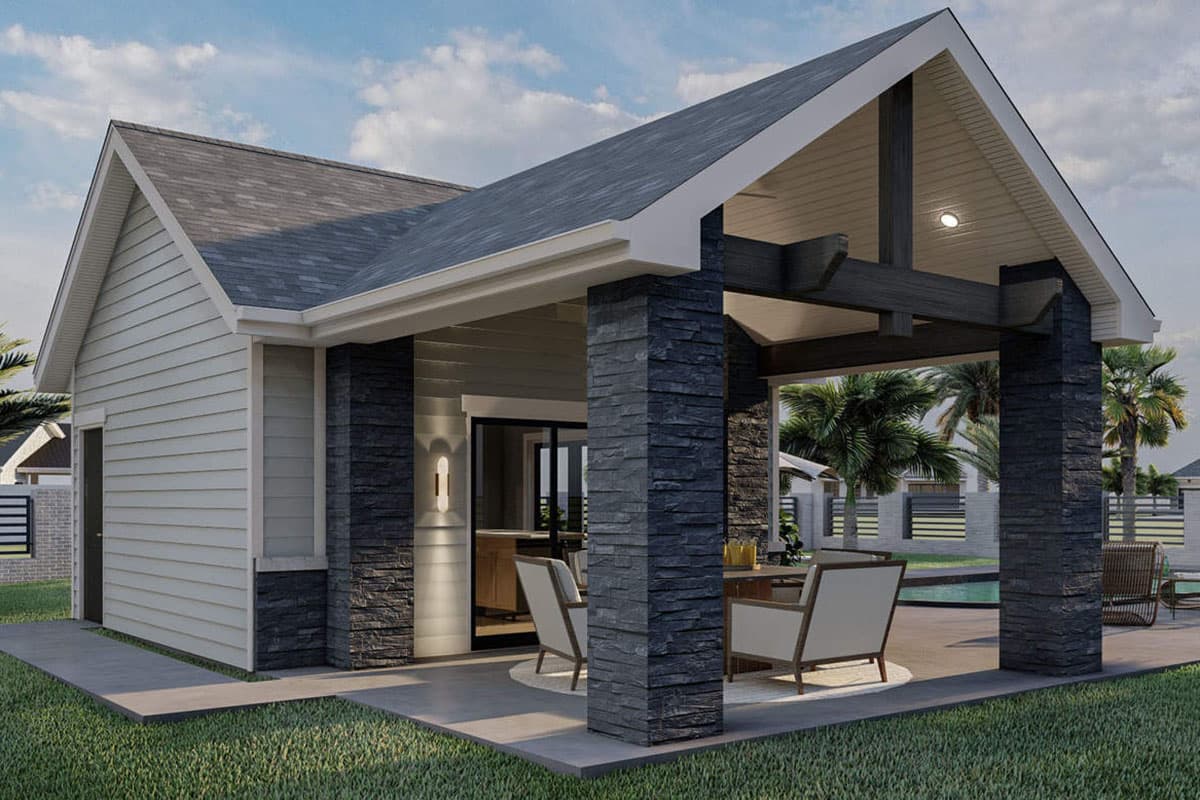

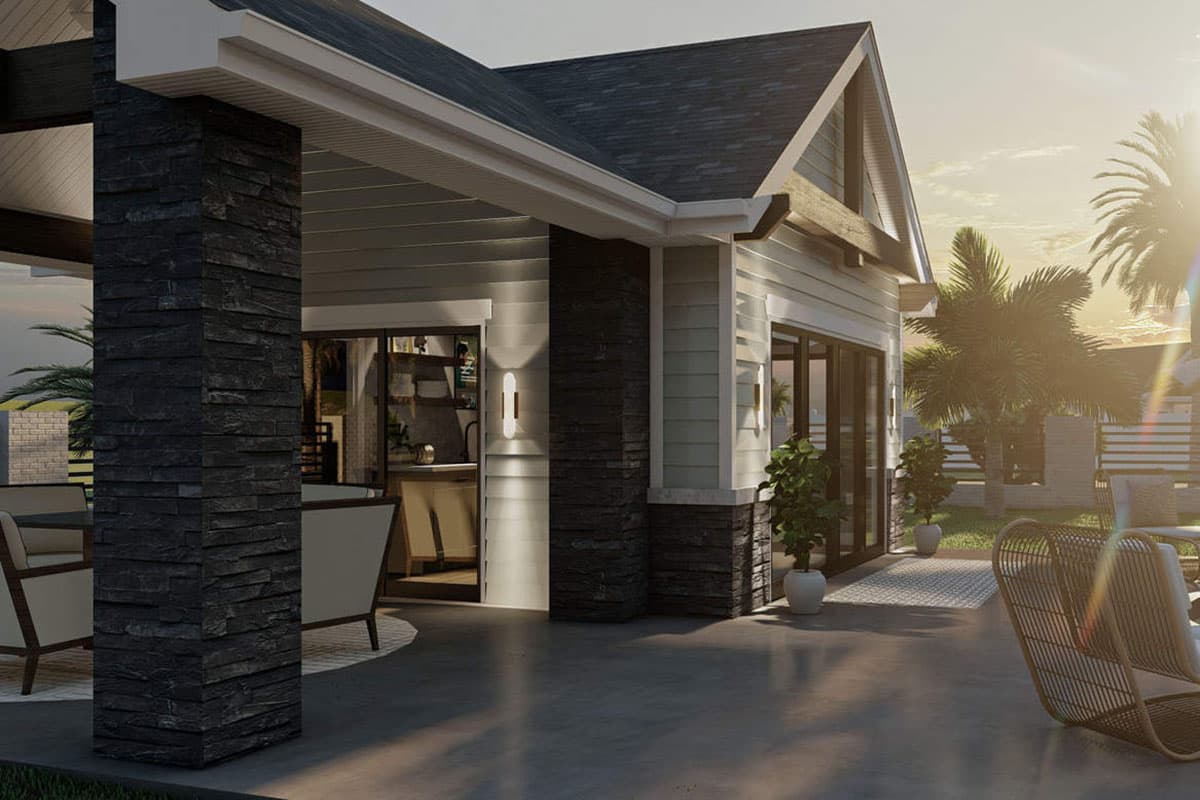

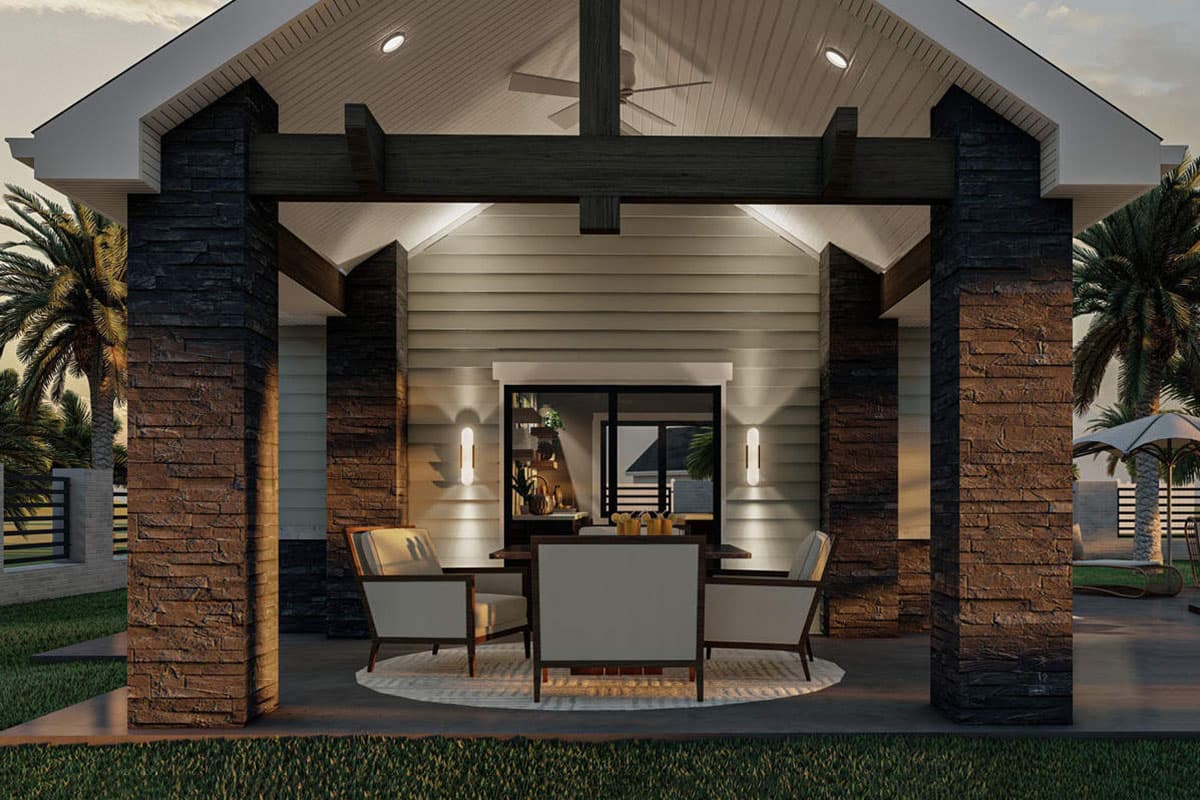

  • This poolhouse plan welcomes all with decorative wood trusses and bulky stone columns. Both gable ends make for a spacious feel with cathedral ceilings on the patio and in the kitchen. The covered patio is great for entertaining when the sun reaches its peak.

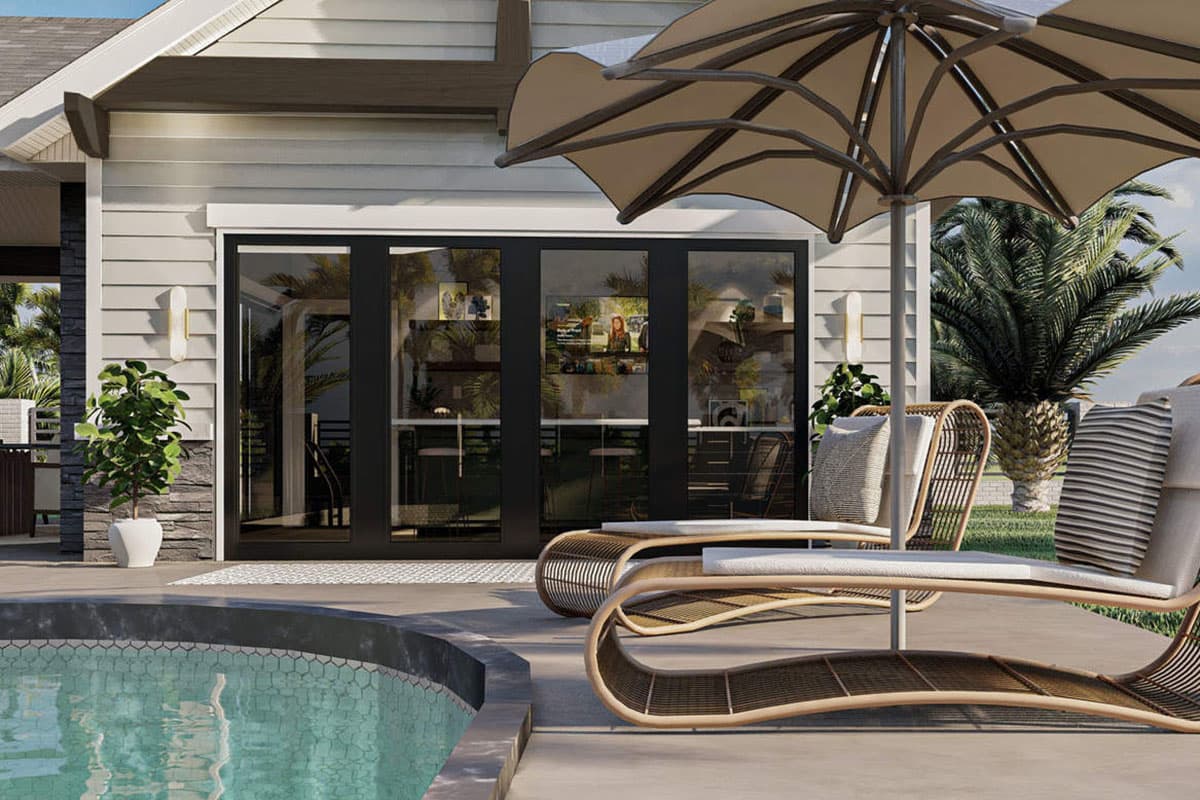

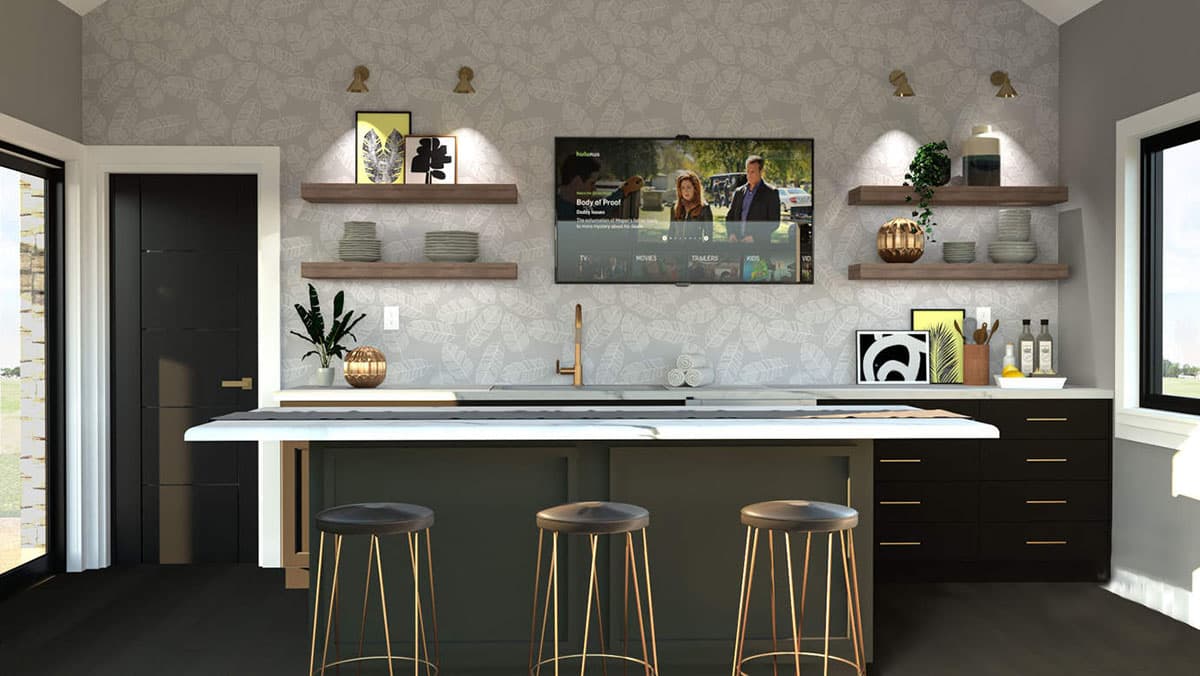

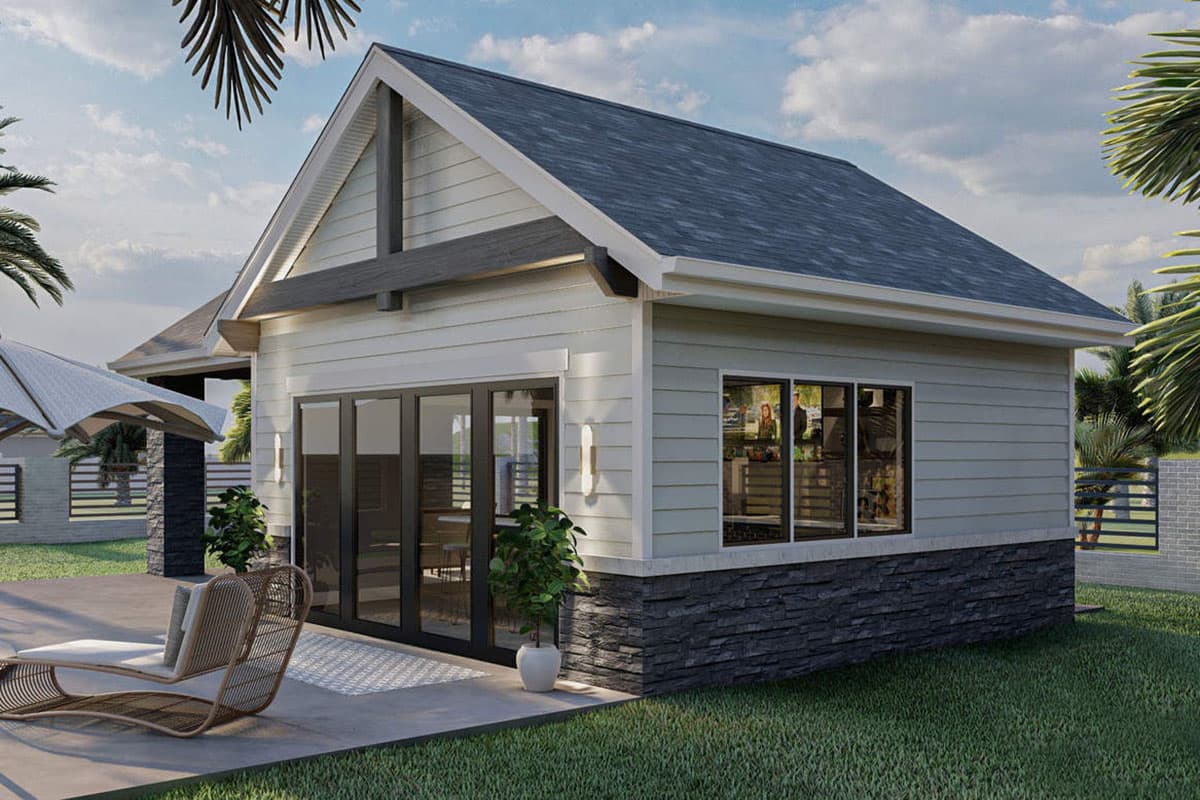

  • The patio door provides an easy access to the bath with shower inside. Also inside lies a kitchen equipped with a sink for all your prepping needs and a dishwasher to make cleanup a breeze. Across the snack bar island is a 4-wide patio door great for bringing the outdoors inside!
  • Hide your pump house equipment in the dedicated storage room in back.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

306 sq. ft.

1st Floor

306 sq. ft.

Covered Patio

182 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

18' 0"

Plan Collections

Pool House

Square Footage Breakdown

Total Heated Area

306 sq. ft.

1st Floor

306 sq. ft.

Covered Patio

182 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

18' 0"

Plan Collections

Pool House
