Plan 510174WDY Poolhouse with Fireplace with Storage and Bath

Poolhouse with Fireplace with Storage and Bath

Plan 510174WDY

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Stories

  • Enjoy the views of your pool from this poolhouse plan with a fireplace.
  • Storage and bath give this plan extra utility.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

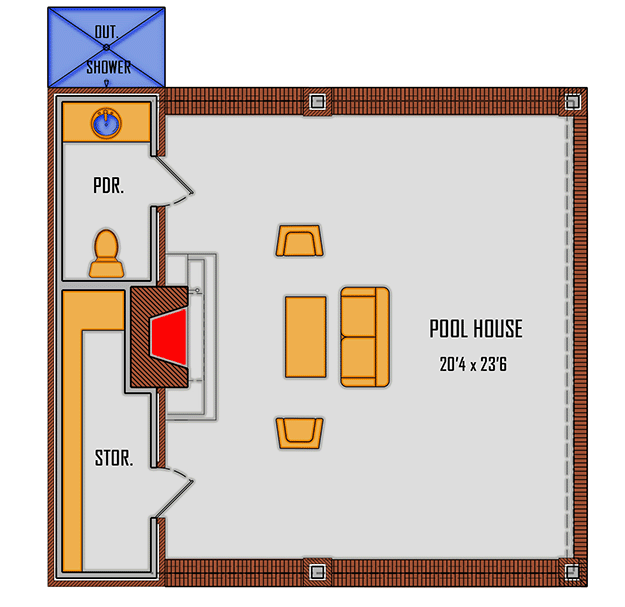

Poolhouse with Fireplace with Storage and Bath - 510174WDY floor plan - Main Level

Plan details

Plan Collections

Poolhouse with Fireplace with Storage and Bath

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $495
  • PDF - Unlimited Build $895
  • 5 Sets + PDF $995
  • CAD - Unlimited Build $1,095
  • View all purchase option online

About This Plan

  • Enjoy the views of your pool from this poolhouse plan with a fireplace.
  • Storage and bath give this plan extra utility.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 130 sq. ft.
  • Porch, Combined: 493 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 26' 10"
  • Depth: 24' 10"

Roof

  • Primary Pitch: 9 on 12
