Prairie Influences

Plan 69498AM

  • 3,916

    Heated s.f.

  • 4-5

    Beds

  • 3 +

    Baths

  • 2

    Stories

  • 3

    Cars

  • A low-slung roof and use of mixed stone and wood on the exterior give a Prairie look to this well-thought out home plan.
  • Decks on the main floor and lower level provide wonderful places for entertaining.
  • The two-story foyer sets the stage for dramatic impressions as you enter the home.
  • If the weather is bad, you can continue to entertain in the huge great room or lower level games room.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Prairie Influences

  • 3,916

    Heated s.f.

  • 4 - 5

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,245
  • PDF - single-use $1,595
  • 5 Sets $1,745
  • 5 Sets PLUS $1,795
  • CAD - multi-use $3,190
  • View all purchase option online

About This Plan

  • A low-slung roof and use of mixed stone and wood on the exterior give a Prairie look to this well-thought out home plan.
  • Decks on the main floor and lower level provide wonderful places for entertaining.
  • The two-story foyer sets the stage for dramatic impressions as you enter the home.
  • If the weather is bad, you can continue to entertain in the huge great room or lower level games room.

Floor Plans

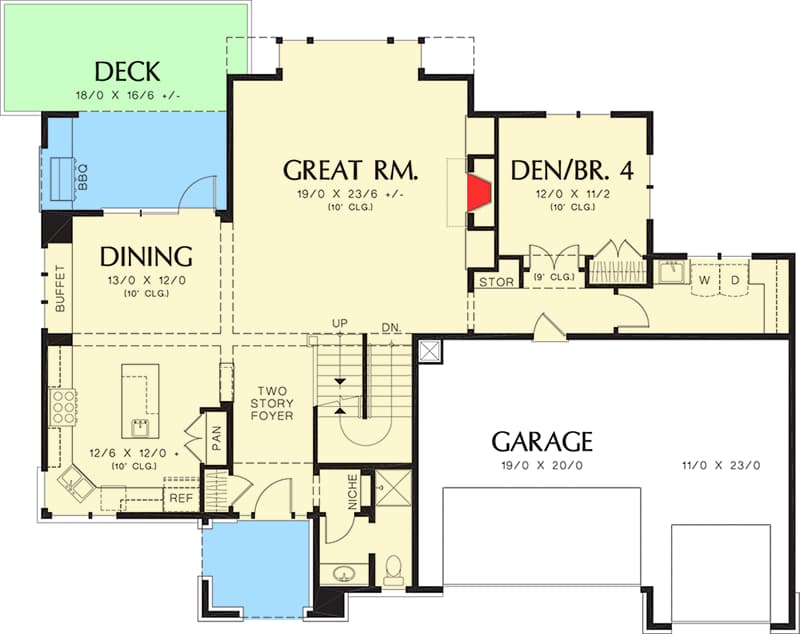

  • Main Level

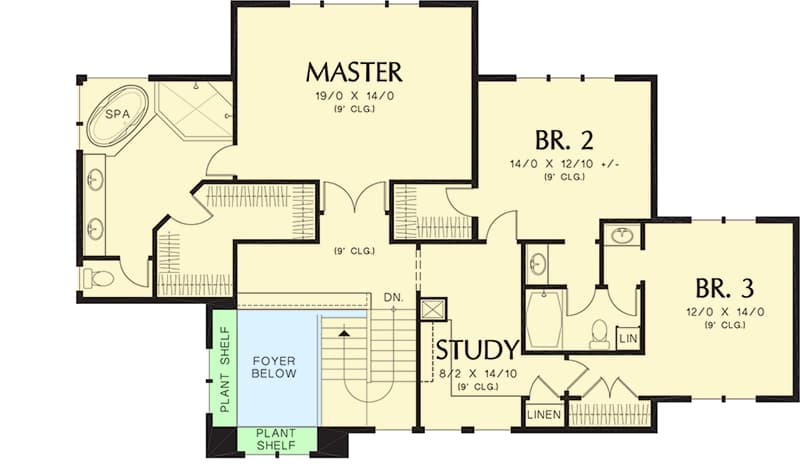

  • Second Level

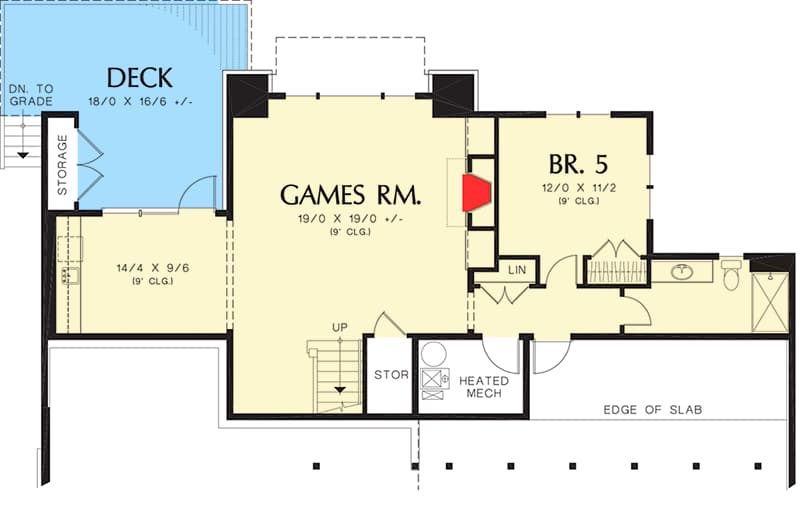

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,916 sq. ft.
  • Lower Level: 1,084 sq. ft.
  • 1st Floor: 1,465 sq. ft.
  • 2nd Floor: 1,367 sq. ft.
  • Deck: 118 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 48' 0"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 661 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest
  • Prairie

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Media-Game-Home Theater
  • PDF
