Plan 833004WAT

Exclusive

Prairie Ranch House Plan with Views to the Back - 3435 Sq Ft

Heated S.F.
3,435
Beds
4
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 833004WAT

Main Level
Main Level

Plan 833004WAT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

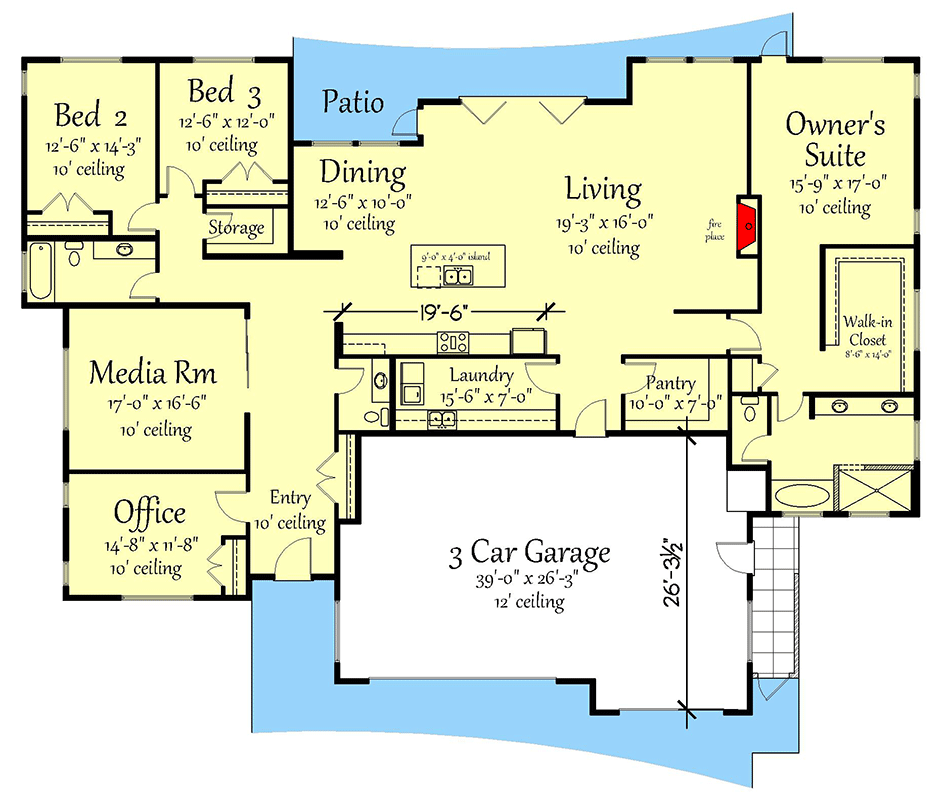

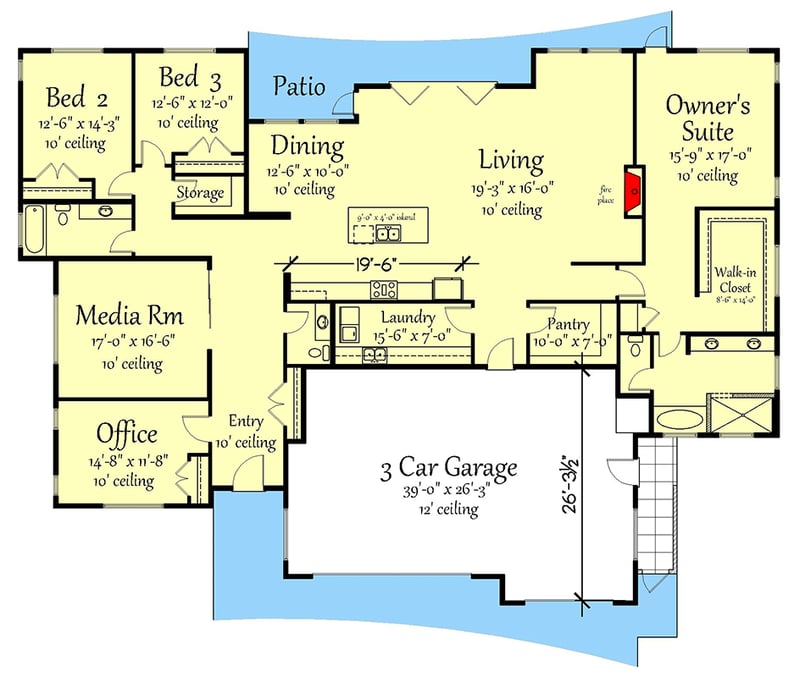

Plan 833004WAT: Prairie Ranch House Plan with Views to the Back - 3435 Sq Ft - Floor Plan - Main Level - Prairie, Ranch

Plan Details

  • This one-story Prairie-Ranch-Style house plan gives you 4 beds, 2.5 baths and 3,435 square feet of heated living and a 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Floor Plan

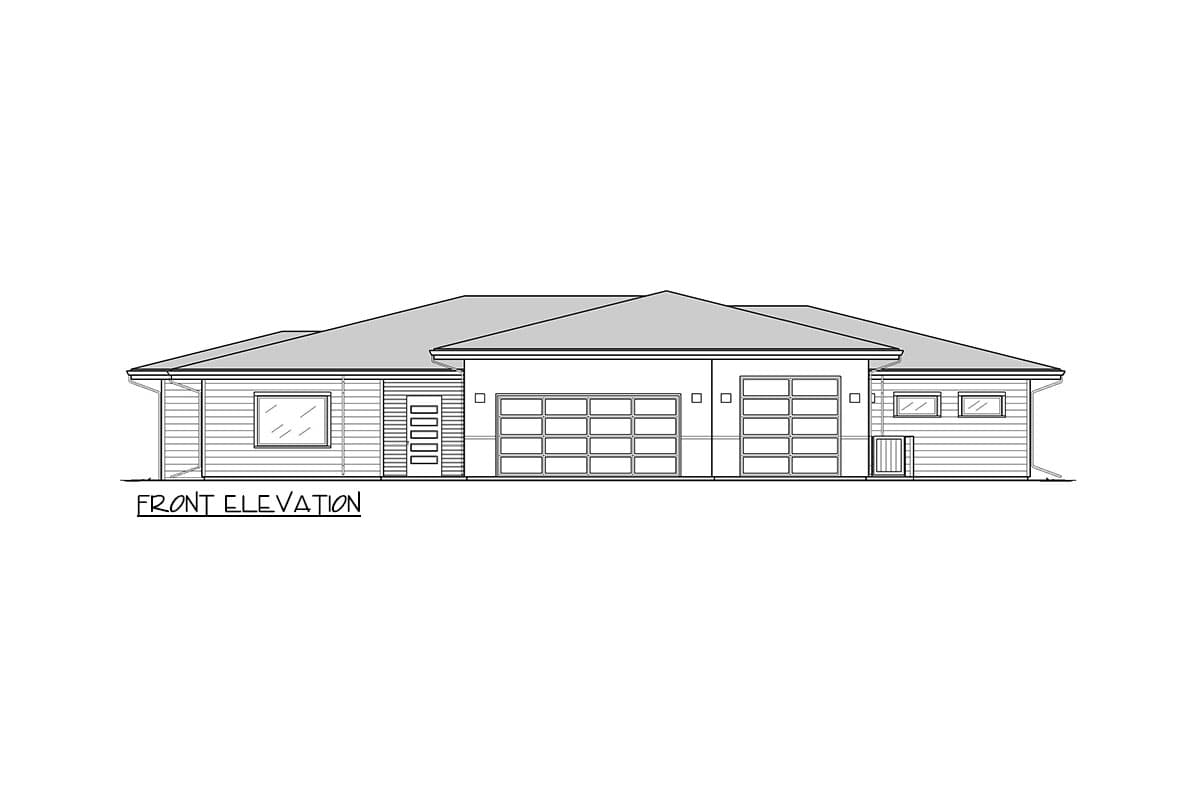

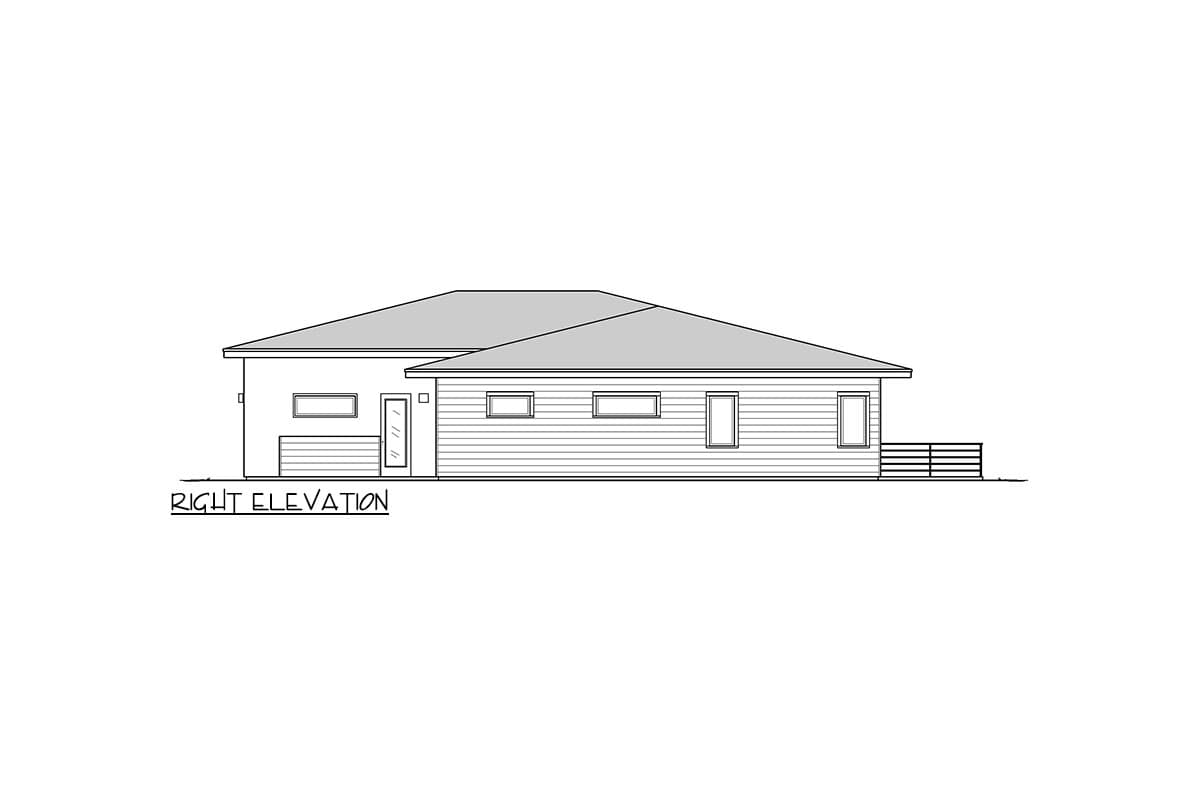

  • Elevations
  • Roof Plan
  • Thermal Envelope Plan (General Prescriptive Energy Compliance)
  • Detail Sheet
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,435 sq. ft.

1st Floor

3,435 sq. ft.

Porch, Front

160 sq. ft.

Porch, Rear

664 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 0"

Depth

63' 0"

Max Ridge Height

18' 3"

Garage

Type

Attached

Area

971 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Garage

12' 0''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick Or Truss

Architectural Style

Prairie

Ranch

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Plan Collections
