Plan 72728DA
Prairie Ranch With Lower Level
Heated S.F.
2,579
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details

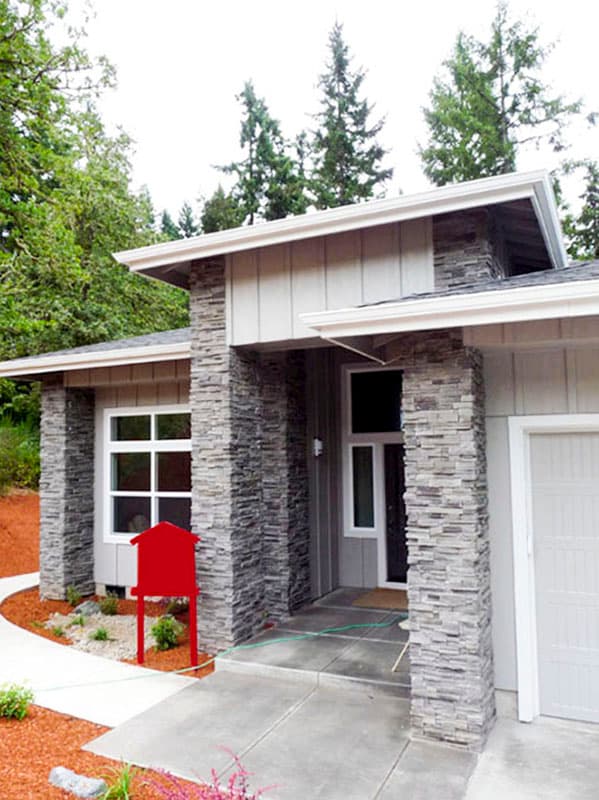

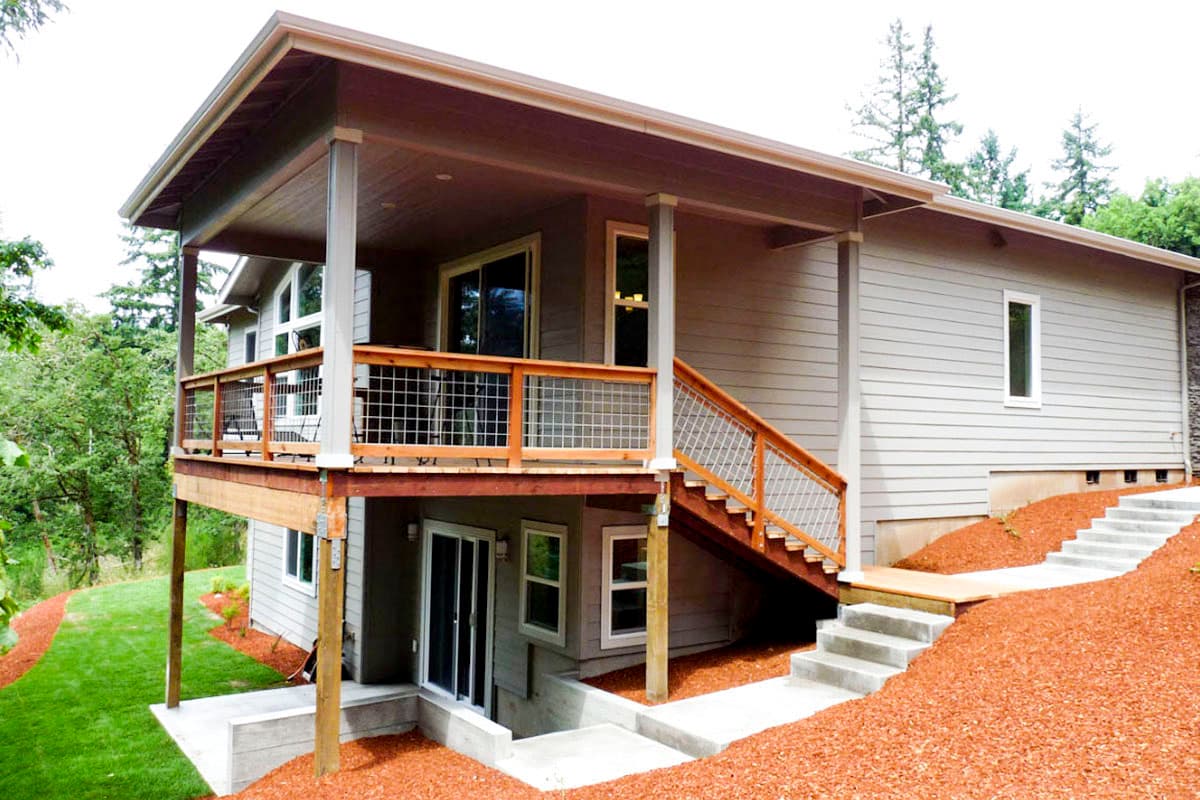

  • Bold stone-veneer columns draw eyes to the lofty entry. Built on a down slope to the rear, this home plan is really much larger than it looks thanks to the large walkout basement.

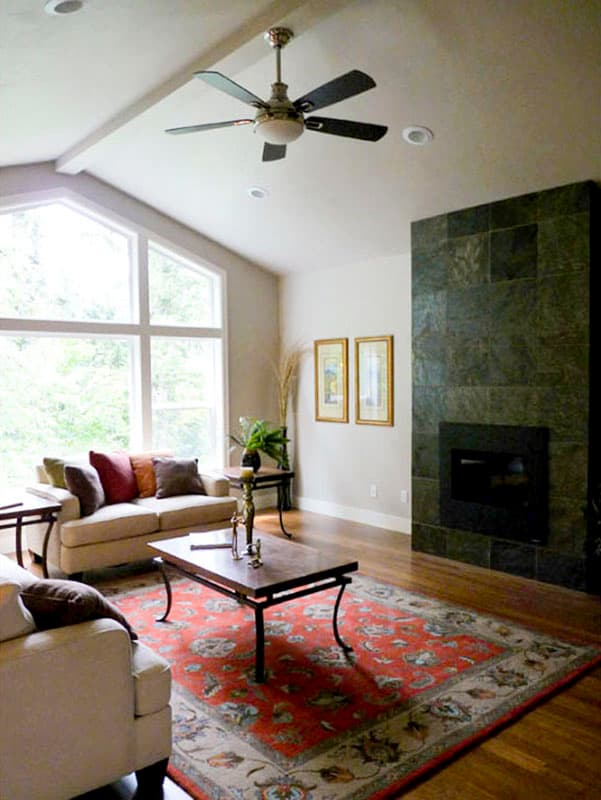

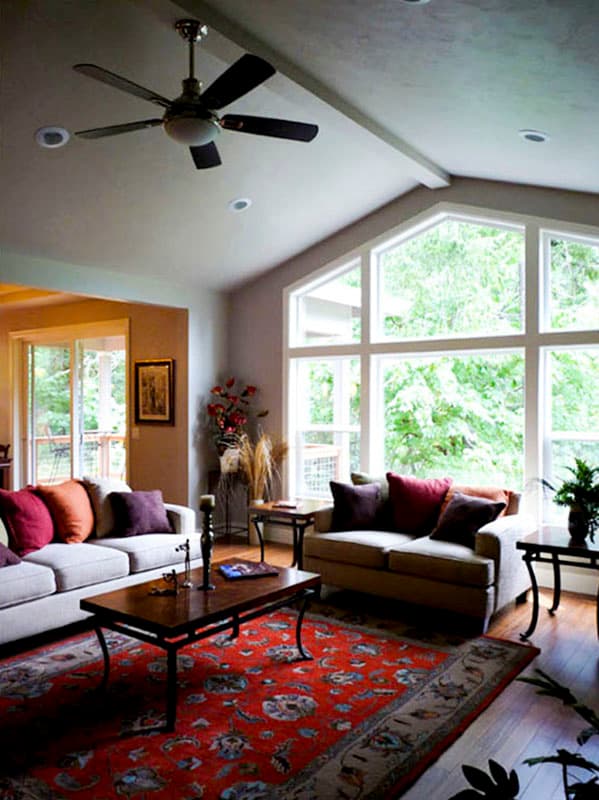

  • High ceilings overarch the living spaces, from the entry right through the center to the rear. Entry and foyer ceilings are 13 feet high, while the vaulted ceiling in the expansive great room soars to even greater heights. Stacked windows, angling up to a low-pitched central peak, fill most of the rear wall.

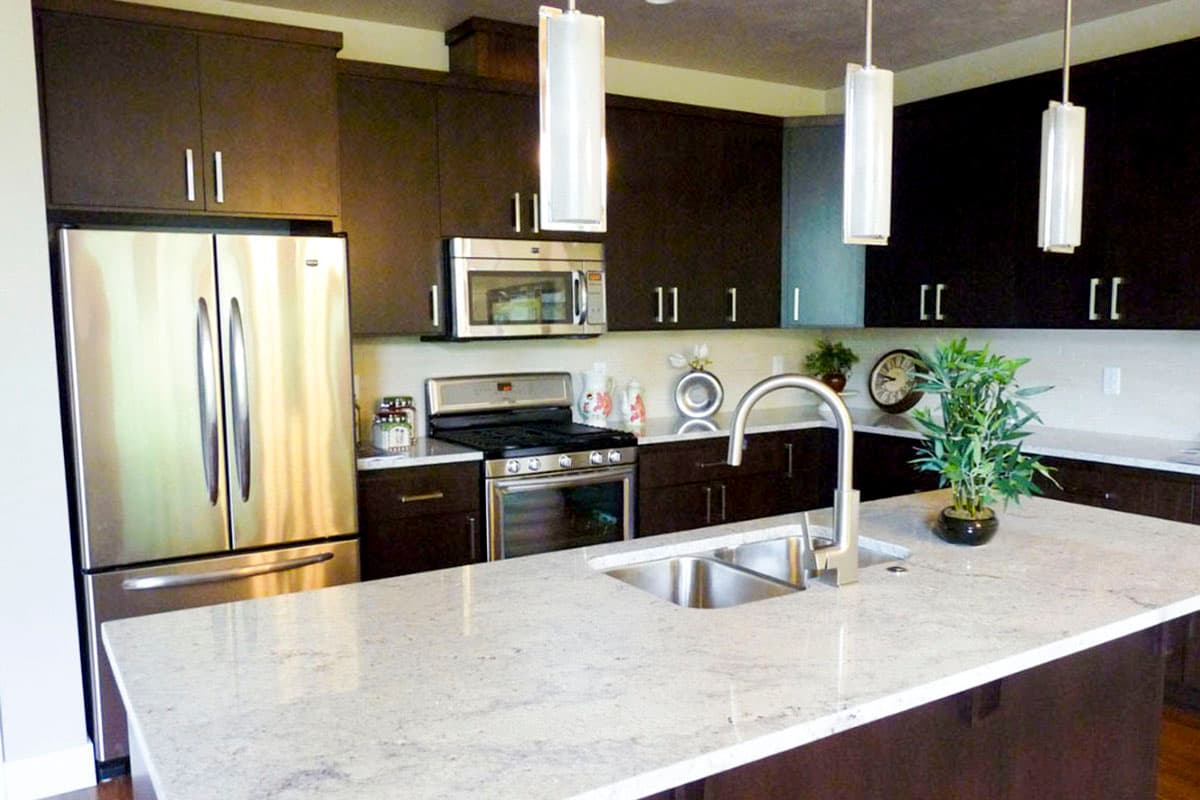

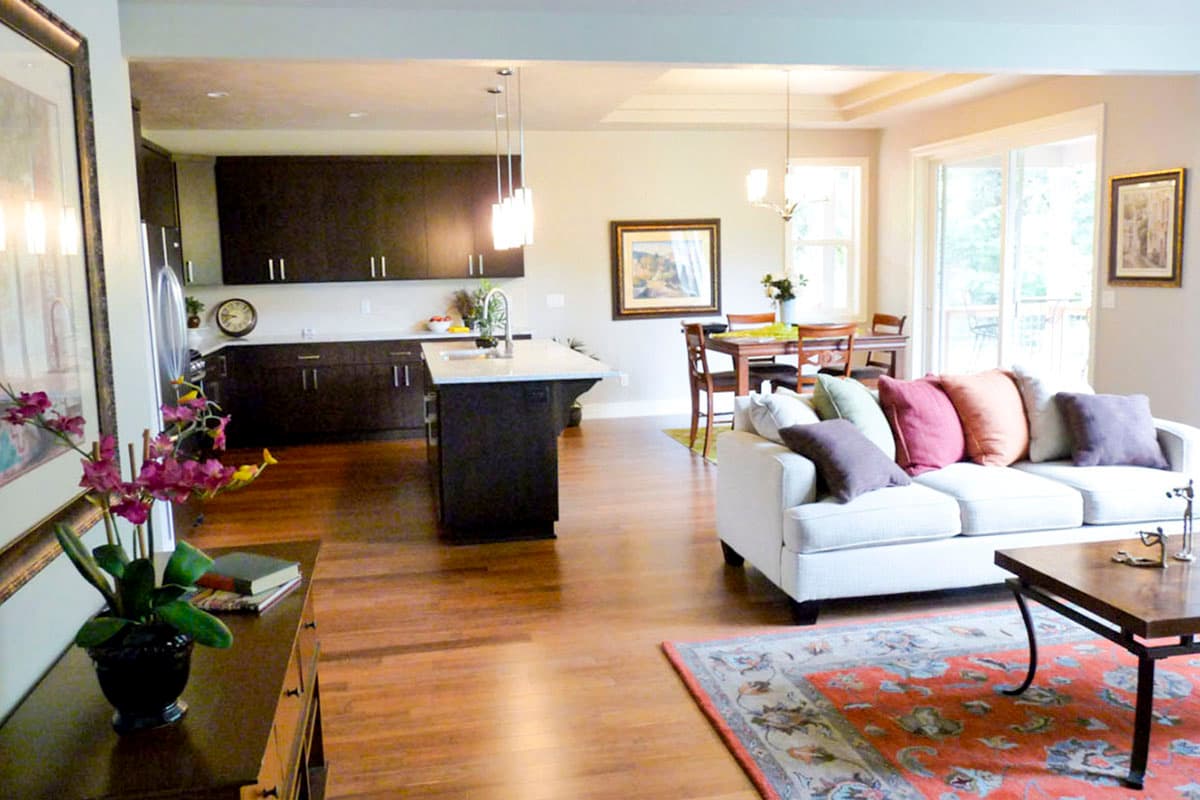

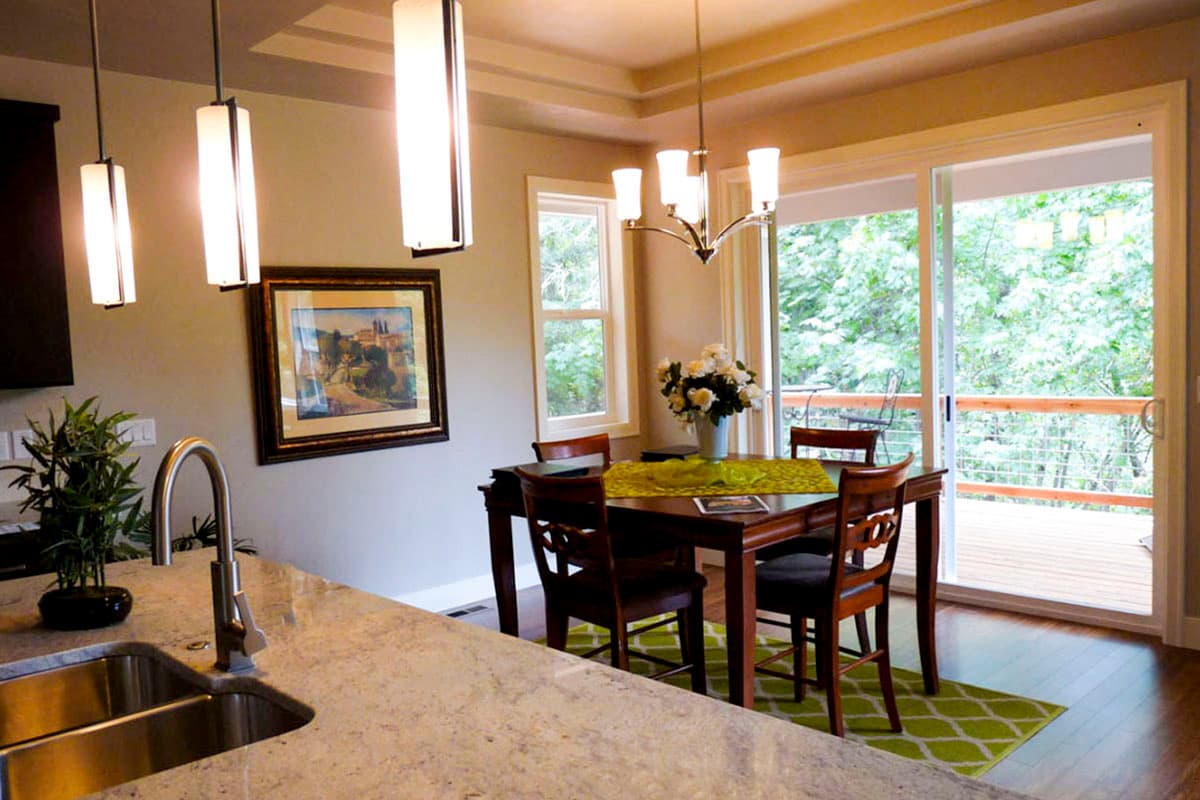

  • A drop in ceiling height indicates the transition between the great room and the kitchen and dining area. A curved work island/eating bar anchors the kitchen's center. Counters, cabinets and appliances span walls on two sides. Sliding glass doors open onto a covered deck.

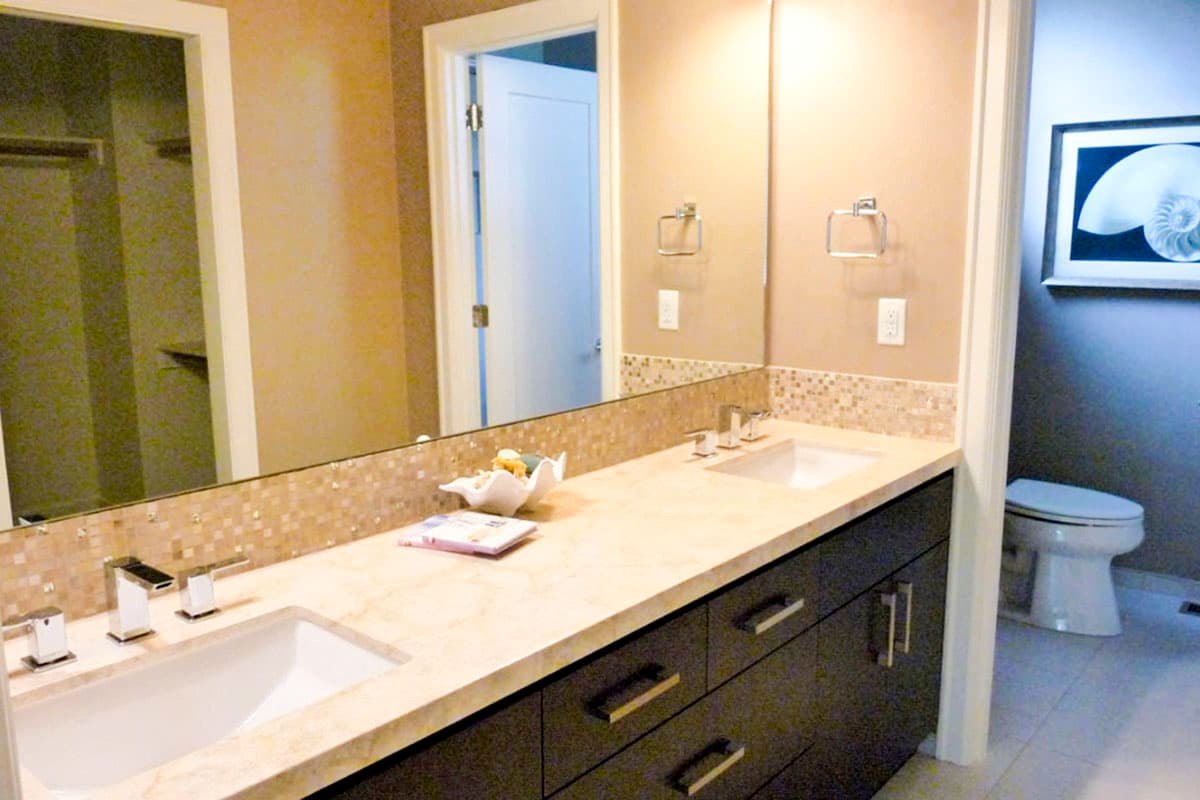

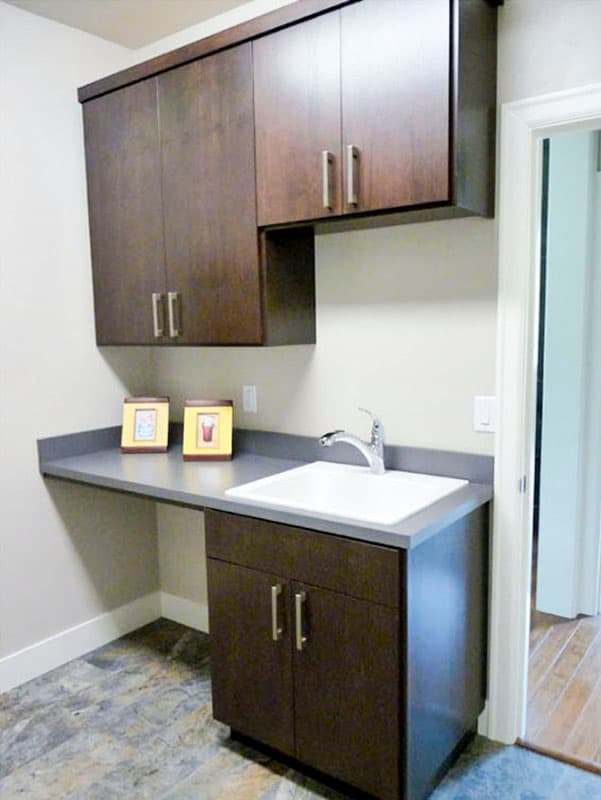

  • A passageway off of the great room leads into a short hallway. The owners' suite is at one end, storage and a utility room at the other. In the owners' suite, the roomy walk-in closet is reached via the two-section bathroom.

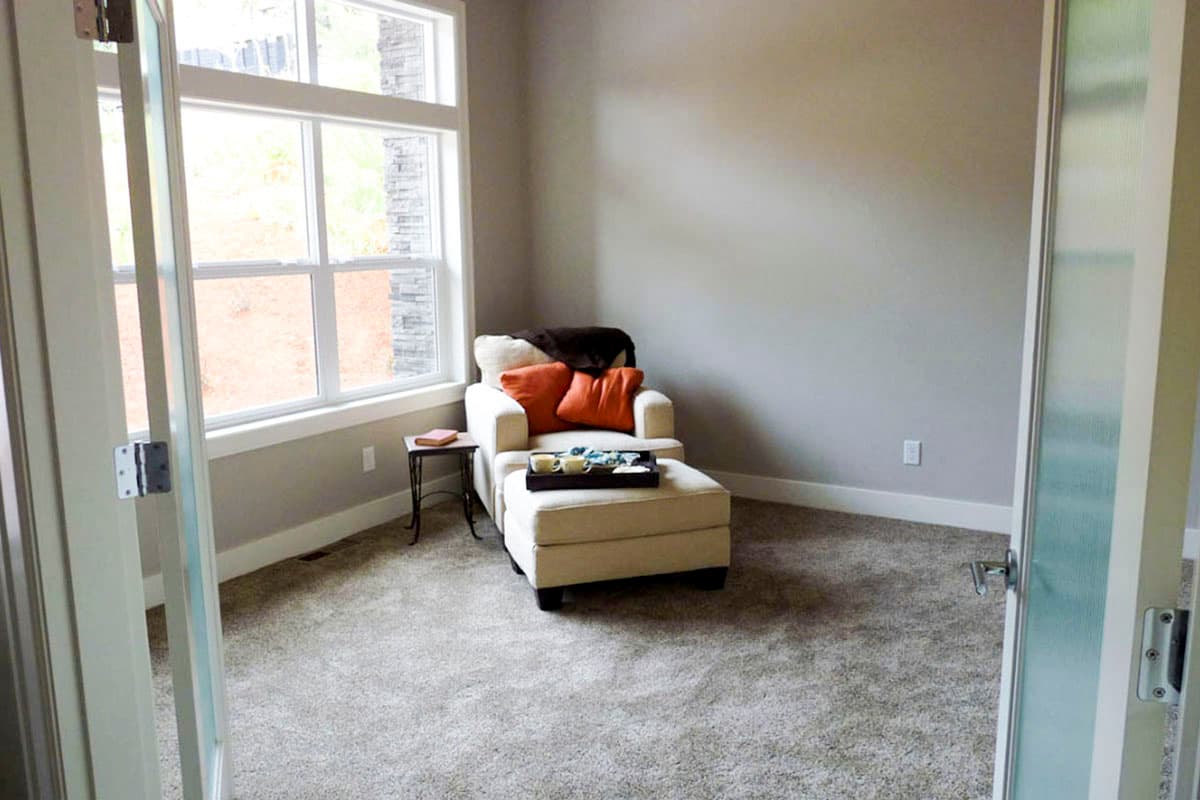

  • The den just inside thefront door is in an ideal location for a home office. A small bathroom is just a few steps further through the foyer, across from stairs down to the walkout basement.

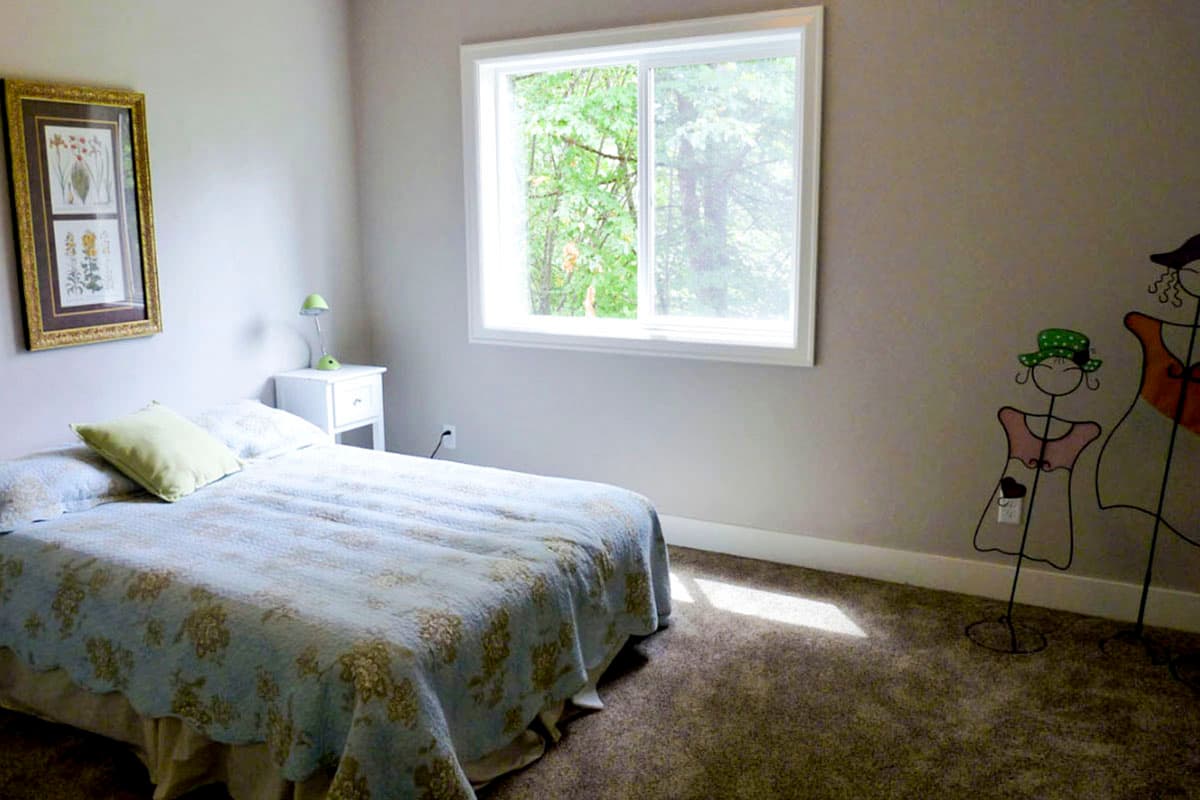

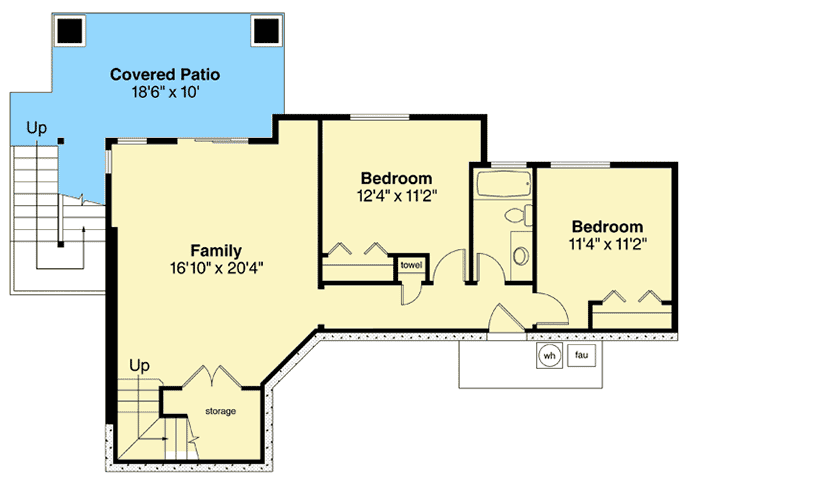

  • At the bottom of the stairs, you find yourself in a large family room, where natural light streams in through wide windows at the rear, and sliding glass doors open onto a covered patio. Two bedrooms and a bathroom are down the hall.
  • The roof has a 4:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

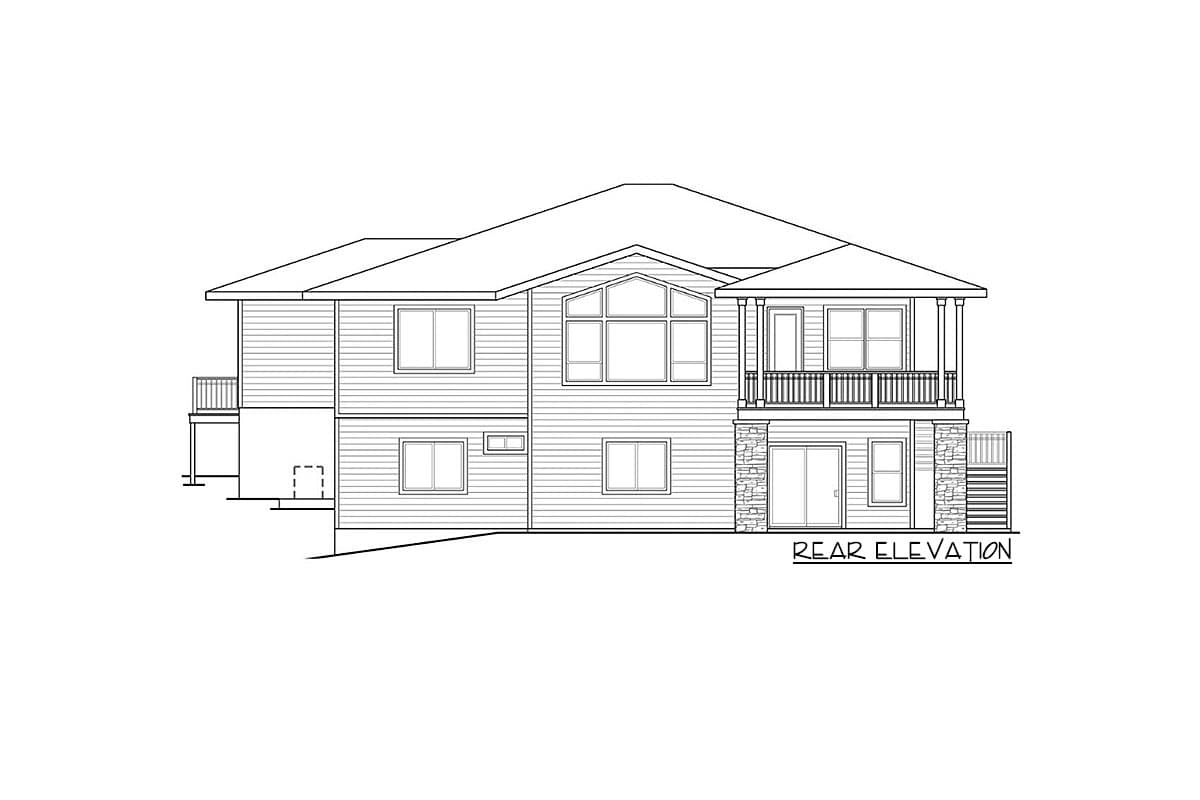

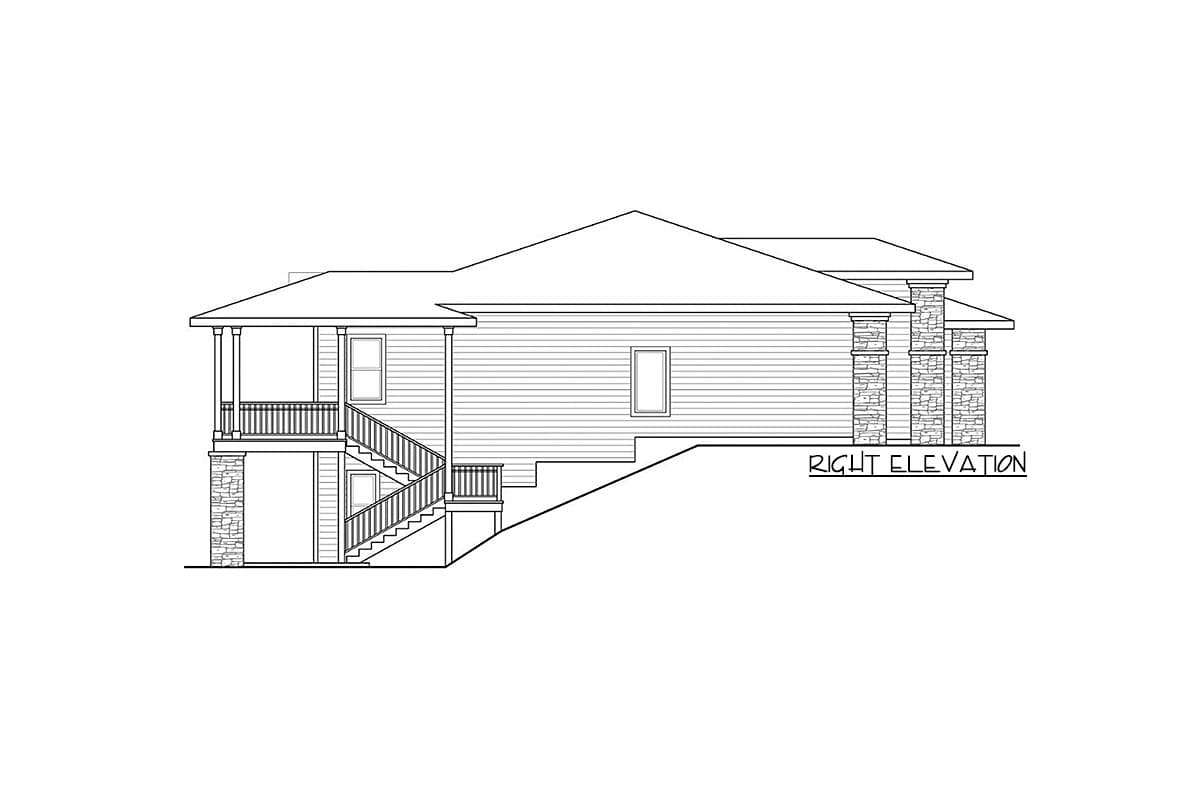

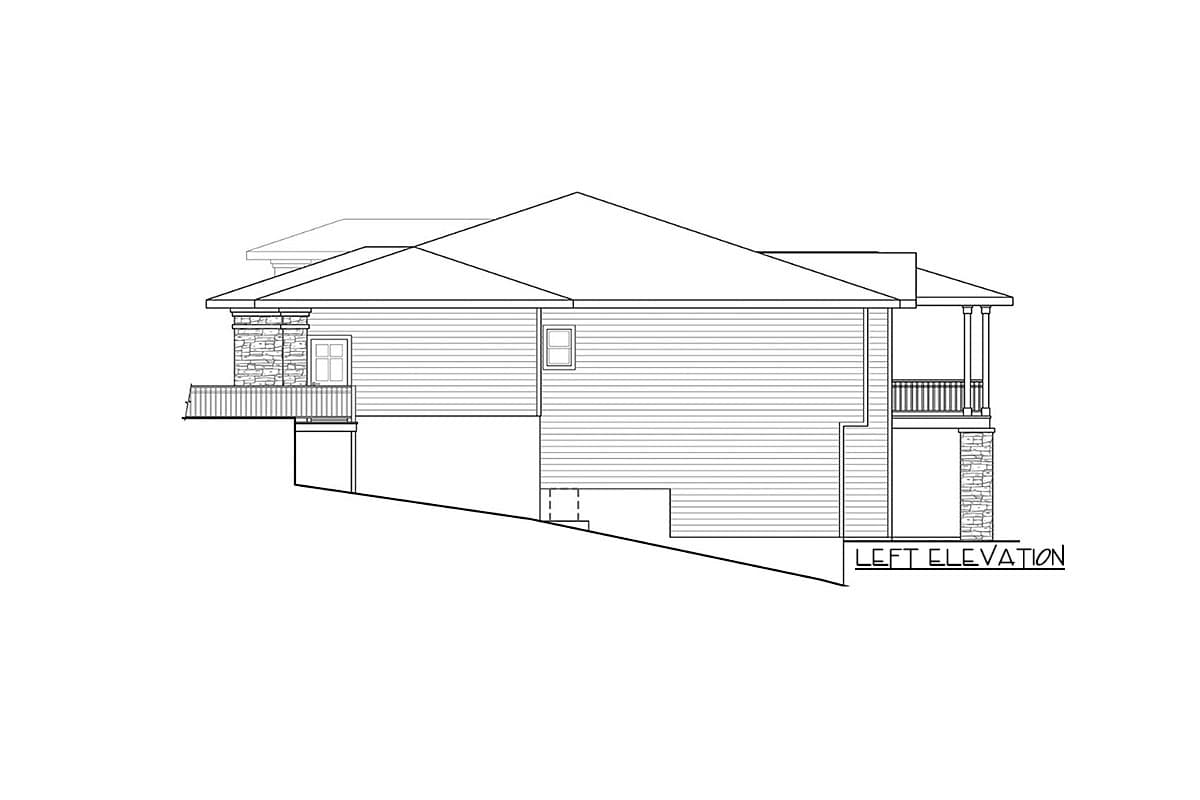

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

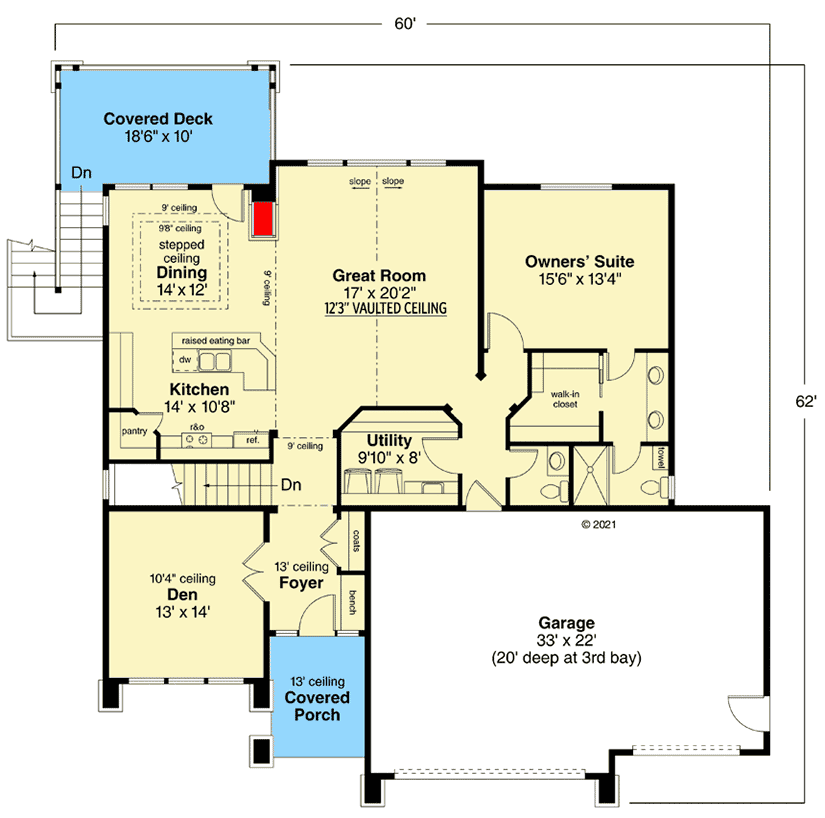

  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Prairie Ranch With Lower Level

  • 2,579

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,579 sq. ft.
  • Lower Level: 931 sq. ft.
  • 1st Floor: 1,648 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 62' 0"
  • Max ridge height: 19' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 738 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 4 on 12
