Prairie Style House Plan with Contemporary Looks

Plan 72874DA

  • 3,491

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Walking in the front door you can choose to walk through the set of French doors to the den or proceed straight to the grand vaulted great room.
  • The four panel sliding glass door at the rear of the great room extends the living area to the covered patio on sunny summer days.
  • The left side of the main floor also contains the owners' suite - which features a luxurious bathroom with walk-in shower large walk-in closet and soaking tub - and secondary suite with its own walk-in closet and shower.
  • Upstairs are two additional bedrooms with a jack-n-jill style bathroom.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

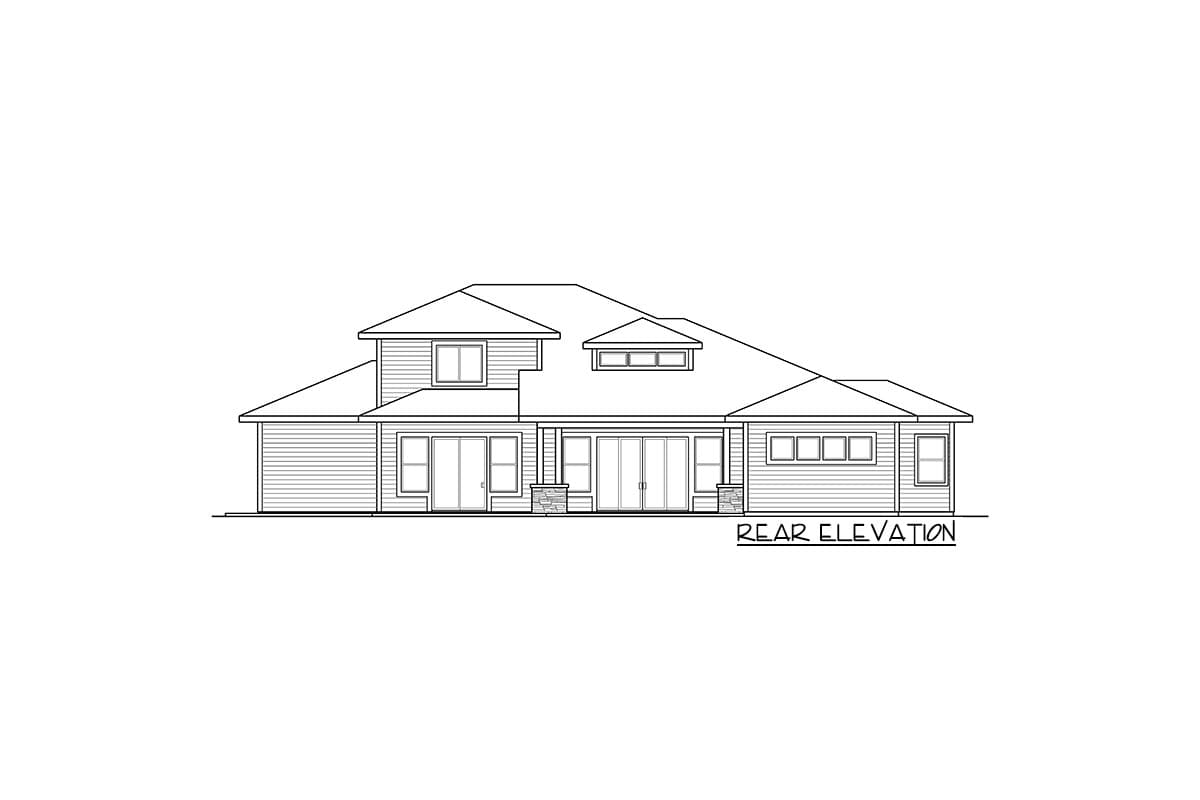

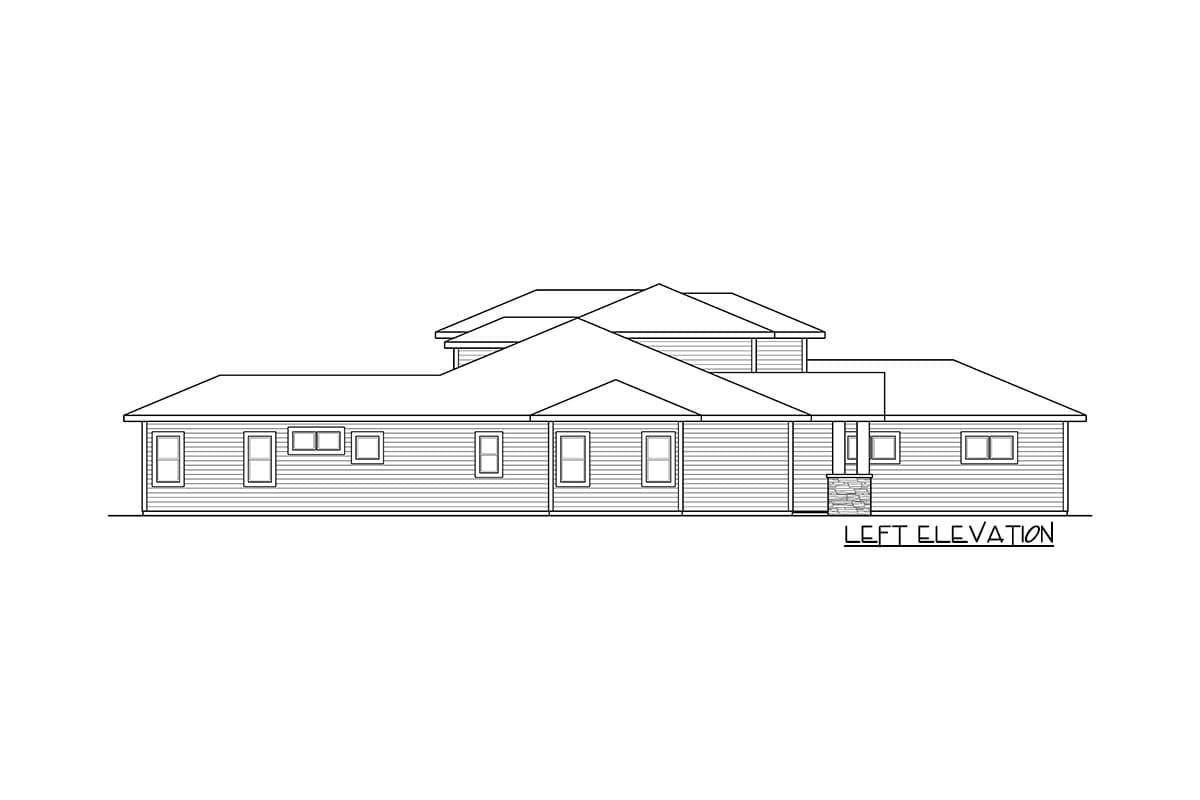

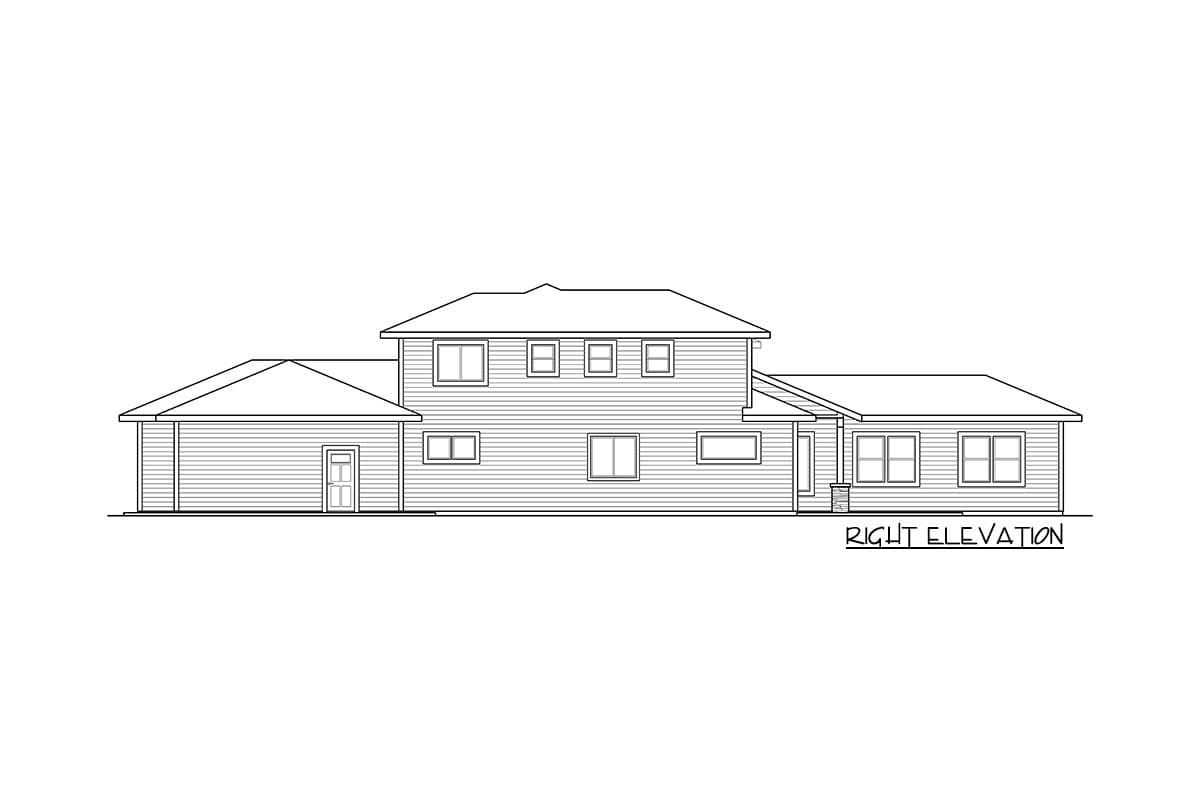

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

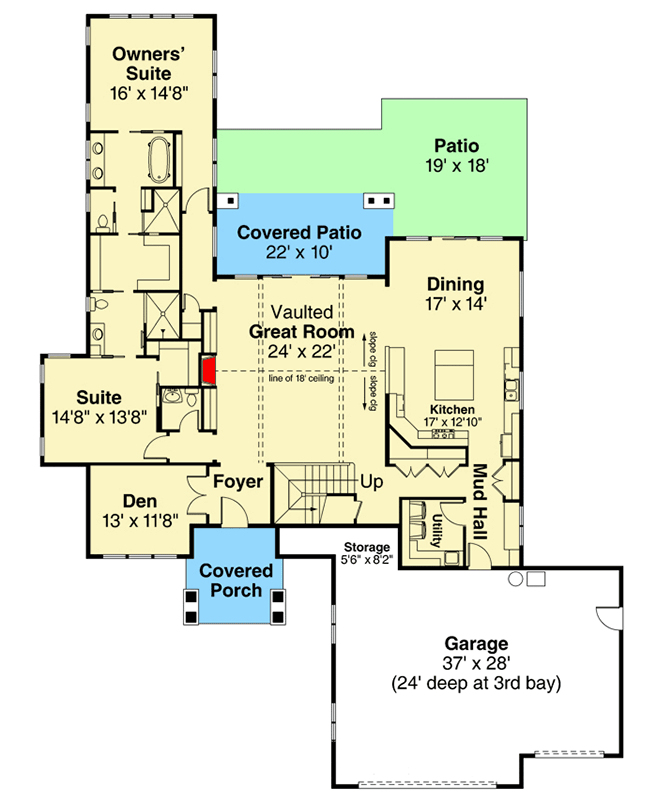

Prairie Style House Plan with Contemporary Looks - 72874DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

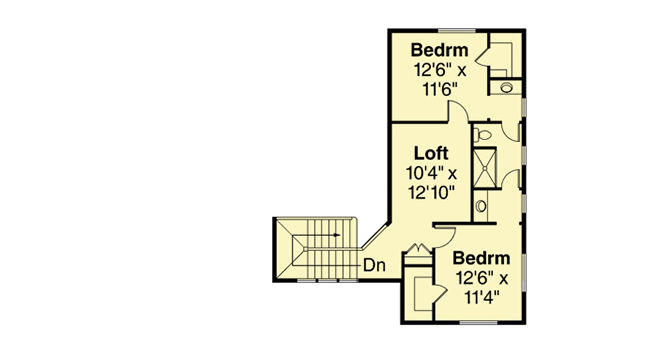

Prairie Style House Plan with Contemporary Looks - 72874DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,491 sq. ft.
  • 1st Floor: 2,783 sq. ft.
  • 2nd Floor: 708 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 101' 0"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 1114 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Prairie Style House Plan with Contemporary Looks

  • 3,491

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $995
  • PDF Light $1,245
  • 5 Sets + PDF $1,375
  • PDF - Single-Build $2,375
  • CAD - Single-Build $2,595
  • CAD - Unlimited Build $2,855
  • View all purchase option online

About This Plan

  • Walking in the front door you can choose to walk through the set of French doors to the den or proceed straight to the grand vaulted great room.
  • The four panel sliding glass door at the rear of the great room extends the living area to the covered patio on sunny summer days.
  • The left side of the main floor also contains the owners' suite - which features a luxurious bathroom with walk-in shower large walk-in closet and soaking tub - and secondary suite with its own walk-in closet and shower.
  • Upstairs are two additional bedrooms with a jack-n-jill style bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,491 sq. ft.
  • 1st Floor: 2,783 sq. ft.
  • 2nd Floor: 708 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 101' 0"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 1114 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick And Truss
