Private Library Retreat

Plan 39007ST

2,535
Heated s.f.
3
Beds
2
Baths
1
Stories
3
Cars

Multiple gables and a stone and brick facade create a stunning exterior to this one level home plan. The spacious great room with fireplace has generous openings to the formal dining room and breakfast area.
A tray ceiling in the great room breaches a 12' height and windows across the rear wall decorate the interior.
An oversized breakfast area allows room for family dining and a cozy sitting area.
Luxurious surroundings are offered in the master bedroom suite with large deluxe bath, 10' trayed ceiling height and outdoor access to the covered patio.
With access from the foyer a library creates a private retreat.
Two additional bedrooms, located for privacy, make this the perfect home plan.

General notes and specifications
Front, rear and side elevations at (1/4" scale)
Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction

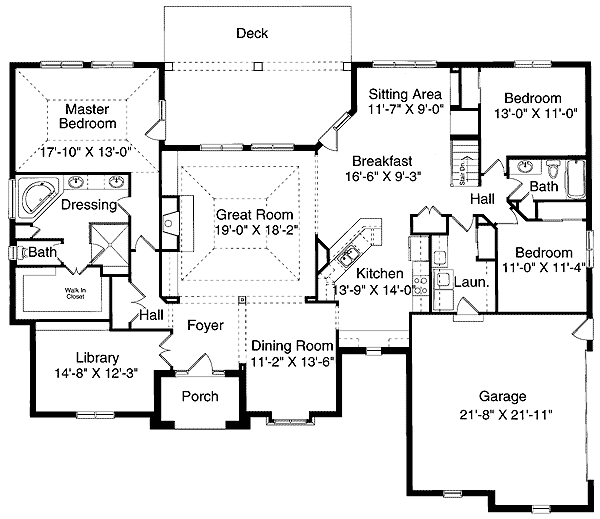

Floor Plan
