Plan 5902ND
Private Master Suite
Heated S.F.
1,990
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Cascading gables and a large arched window add interest to this European traditional design. Ceilings throughout most of the home rise to nine feet, with 10-foot ceilings in the foyer and the formal dining room.
  • Columns announce the dining room, across the foyer from the breakfast room. An eating bar and a walk-in pantry are features of the kitchen. In the great room, note the side-by-side media center and fireplace.
  • The private master suite includes a luxurious bath with a walk-in closet and a whirlpool with glass-block.

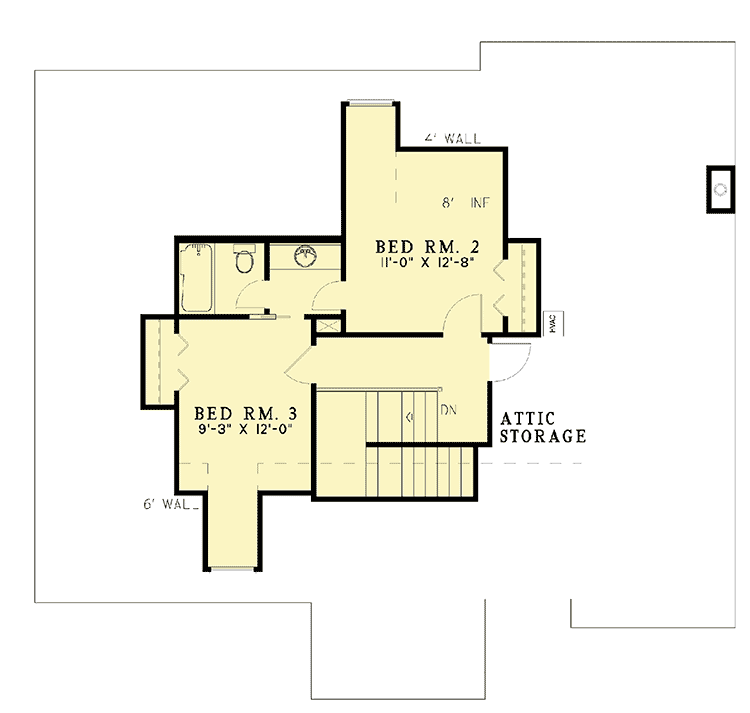

  • Upstairs, two dormered bedrooms each have direct access to the second full bath. Attic storage space is entered from the upstairs hall.
  • Foundation options: slab or crawl space. Specify when ordering.
  • Related Plans: Need a smaller home plan? See these related designs - 59102ND (brick) and 59448nd (siding).
  • For smaller versions showing the basement stair location, see 59713ND (brick) and 59714ND (siding).
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

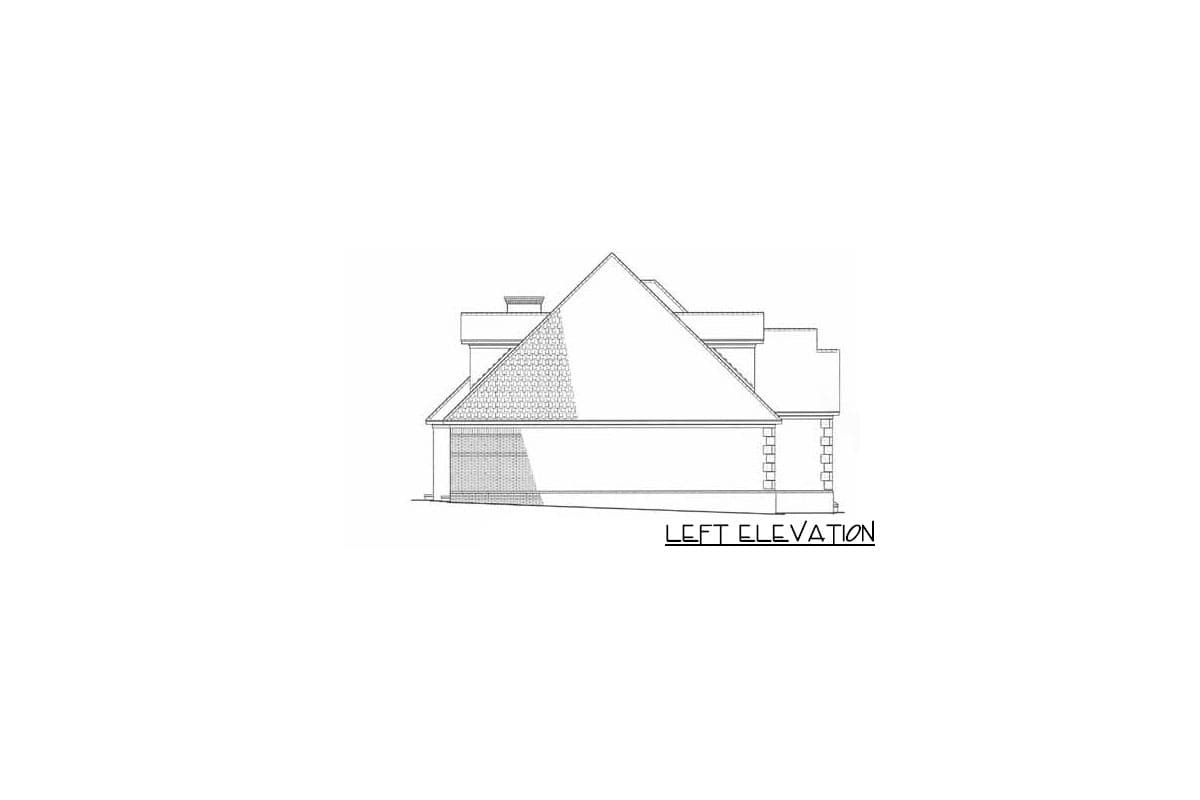

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Private Master Suite

  • 1,990

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,990 sq. ft.
  • 1st Floor: 1,515 sq. ft.
  • 2nd Floor: 475 sq. ft.

Dimensions

  • Width: 49' 0"
  • Depth: 46' 0"
  • Max ridge height: 28' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 810 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
