Plan 5949ND

Private Master Suite

Heated S.F.
2,244
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 5949ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 5949ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

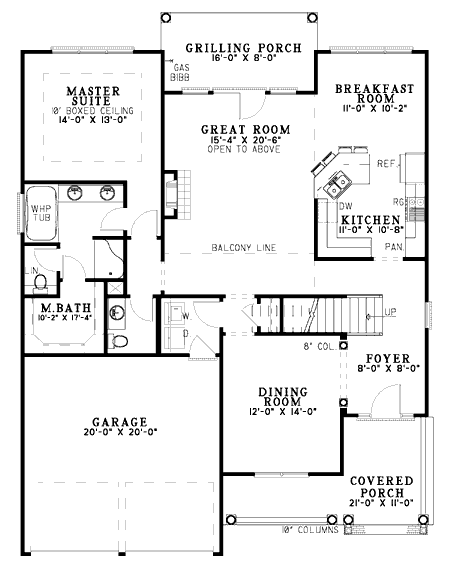

Plan 5949ND: Private Master Suite - Floor Plan - Main Level - Traditional

2nd Floor

Plan 5949ND: Private Master Suite - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This inviting traditional home provides privacy to the master suite by placing three family bedrooms, a full bath and an optional loft/game room with a computer center on the upper floor.
  • In the living area, the two-story great room is topped by a sloped ceiling and is overlooked from the balcony above. The great room accesses the rear grilling porch.
  • The efficiently designed kitchen easily serves both the breakfast room and the dining room.
  • Isolated from the rest of the main floor, the master suite includes a lavish bath with a walk-in closet, a whirlpool tub and other amenities.
  • Ceilings: 9' standard main floor; 8' standard upper floor.
  • Foundation options: slab or crawl space.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,244 sq. ft.

1st Floor

1,449 sq. ft.

2nd Floor

795 sq. ft.

Bonus

181 sq. ft.

Porch, Front

159 sq. ft.

Porch, Rear

128 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 8"

Depth

55' 6"

Max Ridge Height

29' 8"

Garage

Type

Attached

Area

416 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Game/Rec Room

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room
