Plan 3986ST

Private Spaces for All

Heated S.F.
1,483
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
2

Floor Plan

Plan 3986ST

Basement
Basement
Main Level
Main Level

Plan 3986ST

M-F 9am-5pm EST |

1-203-761-8500

Basement

Plan 3986ST: Private Spaces for All - Floor Plan - Basement - Ranch, Traditional

Main Level

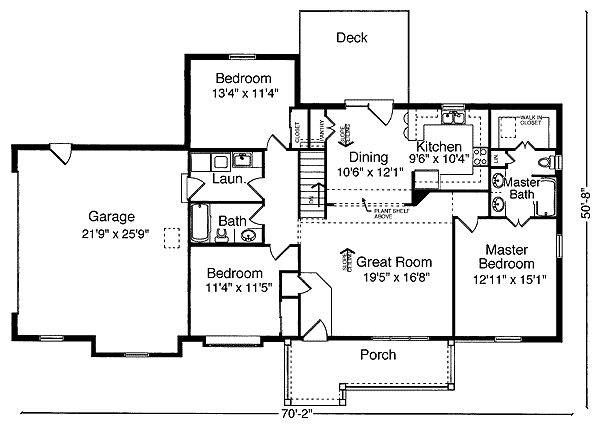

Plan 3986ST: Private Spaces for All - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • Designed to provide private spaces for each household member this three bedroom ranch home plan offers a stylish exterior with brick, stone, cedar shakes, and an inviting covered porch.
  • The interior features a spacious great rRoom, U shaped kitchen with counter seating and adjacent dining area. The ceiling throughout this space slopes to 13' adding a dramatic effect.
  • The master bedroom suite enjoys a private bath with double bowl vanity; and the walk-out basement shows a rec-room with wet bar and a fourth bedroom and bath.

What's Included

  • General notes and specifications

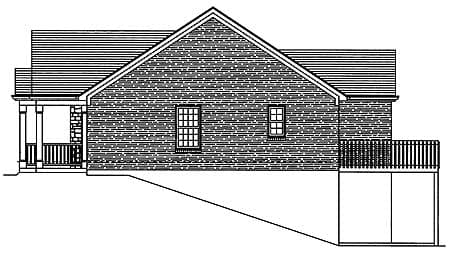

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,483 sq. ft.

1st Floor

1,483 sq. ft.

Basement Unfinished

671 sq. ft.

Porch, Front

156 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 2"

Depth

50' 8"

Max Ridge Height

20' 3"

Garage

Type

Attached

Area

535 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Game/Rec Room

Master Suite - 1st Floor

Wet Bar

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,483 sq. ft.

1st Floor

1,483 sq. ft.

Basement Unfinished

671 sq. ft.

Porch, Front

156 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 2"

Depth

50' 8"

Max Ridge Height

20' 3"

Garage

Type

Attached

Area

535 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Game/Rec Room

Master Suite - 1st Floor

Wet Bar

Plan Collections

Sloping Lot
