Private Two-Story House Plan with Large Back Terrace
Heated S.F.
3,928
Beds
3
Baths
4.5
Stories
2
Cars
4
What's Included
Plan Details

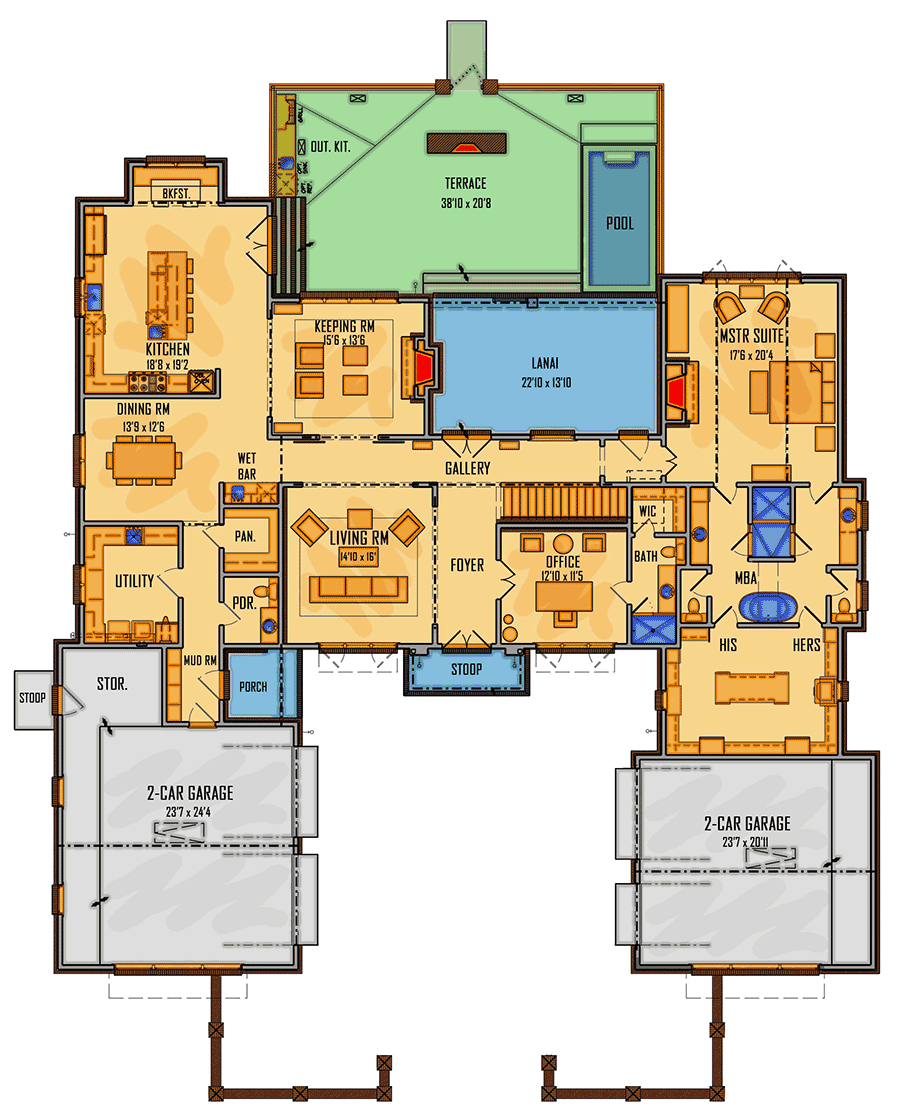

  • A 2-car garage protrudes from either side of this two-story house plan, creating a parking courtyard, which is enclosed by a front gate for added privacy.
  • Once inside, a living room and nearby keeping room provide comfortable spaces for family and friends to relax, while a sizable outdoor terrace invites you to enjoy the outdoors and includes a kitchen, fireplace, and pool.
  • The kitchen, formal dining room, and spacious mud / laundry room are located on the left side of the home. An oversized island in the kitchen and a breakfast nook offer seating for casual meals.
  • The master suite occupies the right wing of the home, and features a spa-like en suite with a freestanding tub, dual toilet rooms, and a massive walk-in closet with a dresser island.
  • A quaint den resides at the top of the stairs, along with two bedrooms; one with a full bath, and one across the hall from a full bath.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
