Plan 2049GA

Quaint Country Home Plan

2,972 4 3.5 2 3
Pageloader

Quaint Country Home Plan

Plan 2049GA

  • 2,972

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This luxurious, yet quaint and inviting country porch home plan offers sumptuous accommodations. From its two-story entry with angled staircase to the relaxing screened porch, this home is a masterful blend of elegance and livability.
  • The lower level is an open design with very little wasted space. Flanking the two-story entry are the living and dining rooms, each measuring nearly 15'x 12'.
  • Beyond the "bridge" above the entry is a 19'x17' two story family room with a fireplace.
  • The spacious kitchen is open to the family room and features a breakfast bar and a built-in table in the cook top island. The laundry room includes a laundry tub.
  • The master suite includes a "bayed" 14'-9" x 18'-5" bedroom and a beautiful corner his & hers bath/closet arrangement. Except for the two-story foyer and family room, ceiling heights on the main level are 9'.
  • The upper level features three spacious bedrooms. Bedroom 2 has a private bath, while bedrooms 3 & 4 each have direct access to a shared bath. Ceiling heights upstairs are 8'.
  • This design includes a full basement foundation with rear daylight.
  • Related Plan: Need more space? See house plan 2056GA in a reversed layout (3,493 sq. ft.).

Each plan set includes the following:

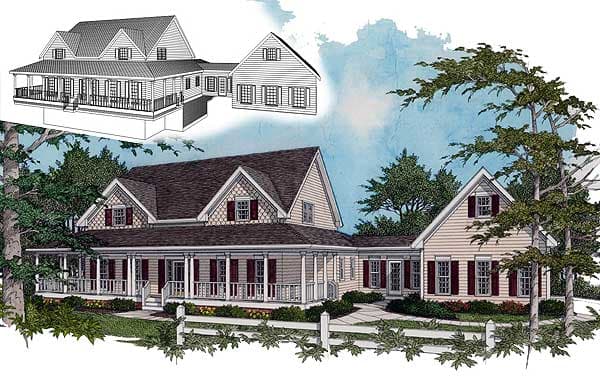

  •  Digital exterior rendering cover page

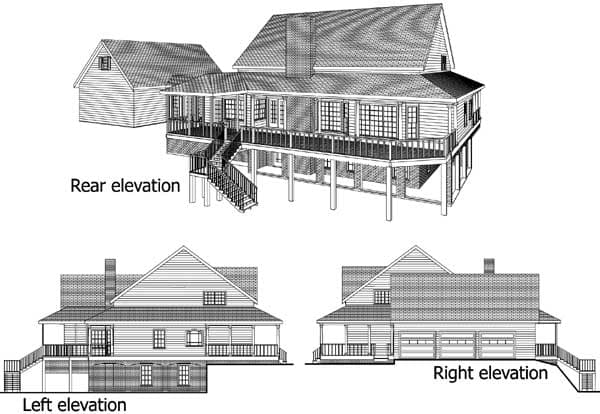

  •  Exterior elevation page
  •  Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  •  Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  •  Cross sections and interior elevation page
  •  Roof framing plan with 3-D roof framing schematic
  •  IRC code specifications and methodologies
  •  General construction details

Floor Plan

Plan details



Quaint Country Home Plan

  • 2,972

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,195
  • 5 Sets $1,245
  • 8 Sets $1,295
  • Reproducible Set $1,445
  • CAD $1,695
  • PDF - multi-use $1,695
  • CAD - multi-use $2,195
  • View all purchase option online

About This Plan

  • This luxurious, yet quaint and inviting country porch home plan offers sumptuous accommodations. From its two-story entry with angled staircase to the relaxing screened porch, this home is a masterful blend of elegance and livability.
  • The lower level is an open design with very little wasted space. Flanking the two-story entry are the living and dining rooms, each measuring nearly 15'x 12'.
  • Beyond the "bridge" above the entry is a 19'x17' two story family room with a fireplace.
  • The spacious kitchen is open to the family room and features a breakfast bar and a built-in table in the cook top island. The laundry room includes a laundry tub.
  • The master suite includes a "bayed" 14'-9" x 18'-5" bedroom and a beautiful corner his & hers bath/closet arrangement. Except for the two-story foyer and family room, ceiling heights on the main level are 9'.
  • The upper level features three spacious bedrooms. Bedroom 2 has a private bath, while bedrooms 3 & 4 each have direct access to a shared bath. Ceiling heights upstairs are 8'.
  • This design includes a full basement foundation with rear daylight.
  • Related Plan: Need more space? See house plan 2056GA in a reversed layout (3,493 sq. ft.).

Floor Plans

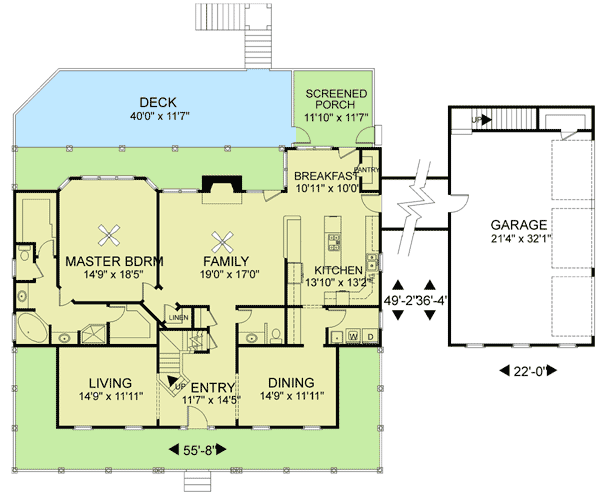

  • Main Level

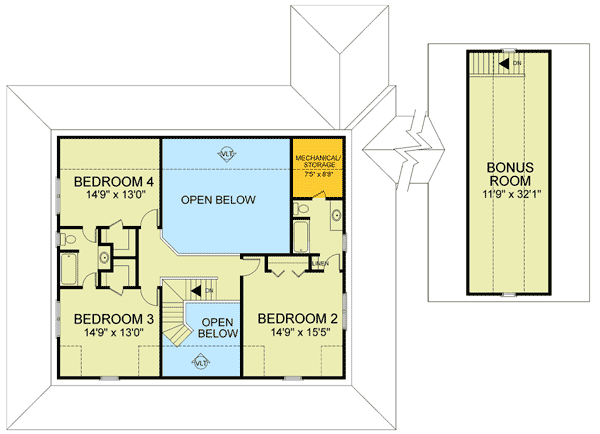

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,972 sq. ft.
  • 1st Floor: 1,986 sq. ft.
  • 2nd Floor: 986 sq. ft.
  • Basement Unfinished: 1,986 sq. ft.
  • Bonus: 396 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 8"
  • Depth: 49' 2"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 684 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
