Railroad 3 Bed Modern Cottage

Plan 68406VR

This plan plants 3 trees

1,843
Heated s.f.
3
Beds
2
Baths
2
Stories
2
Cars

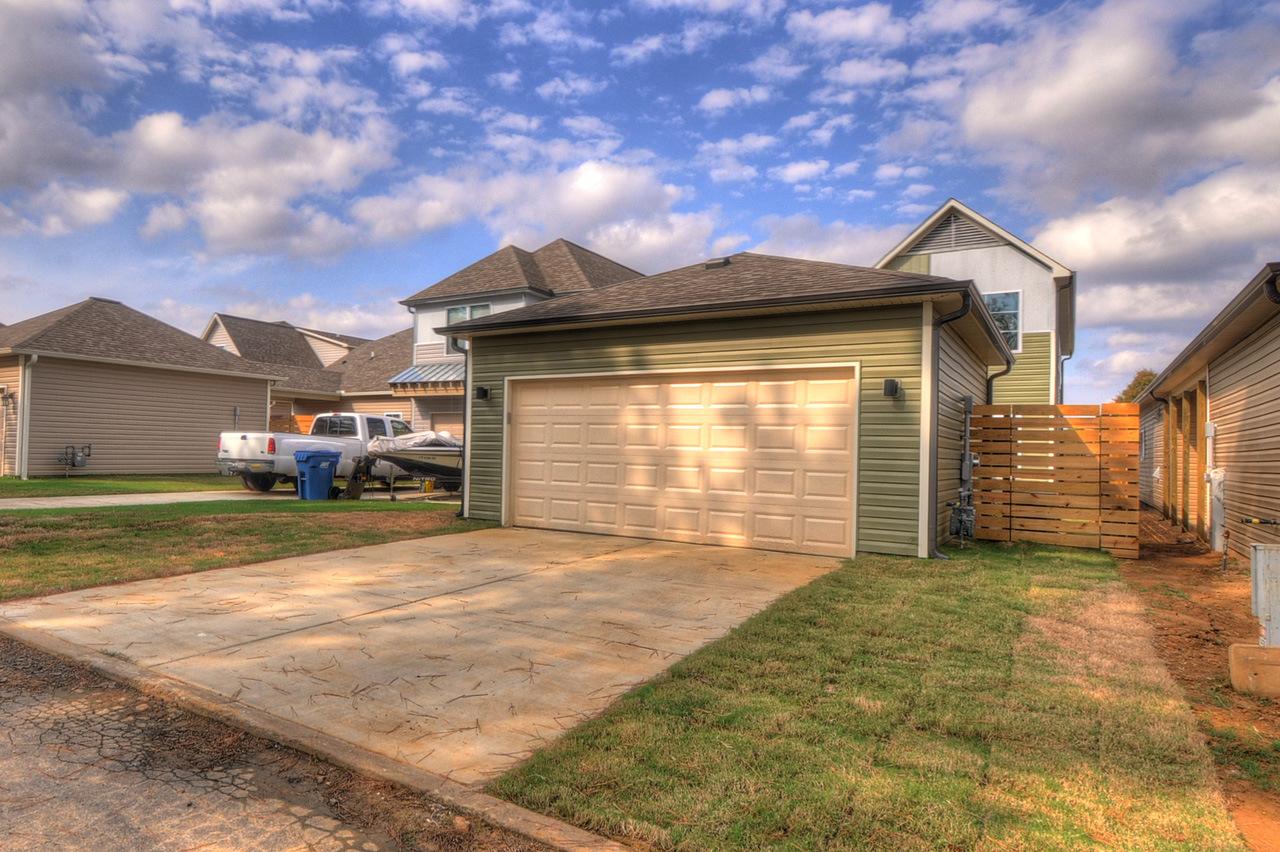

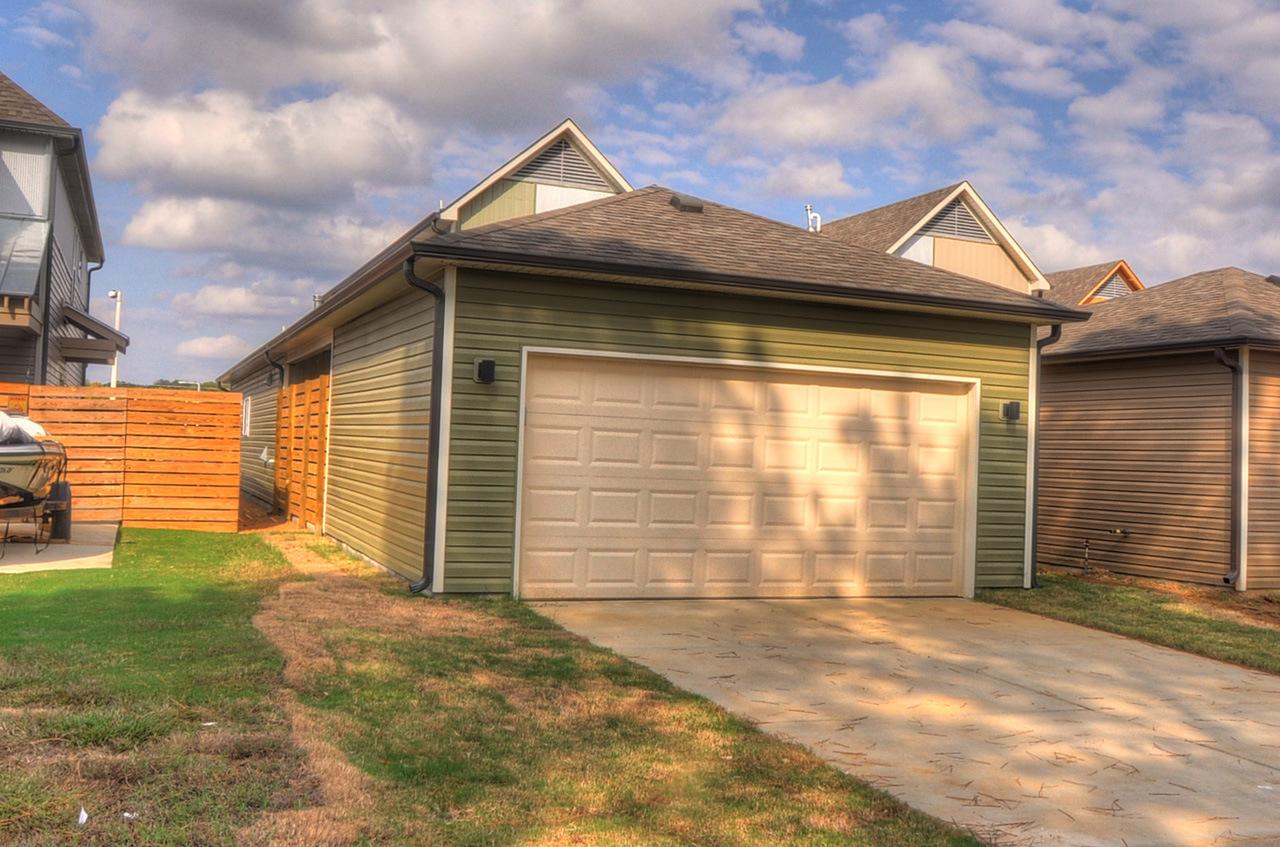

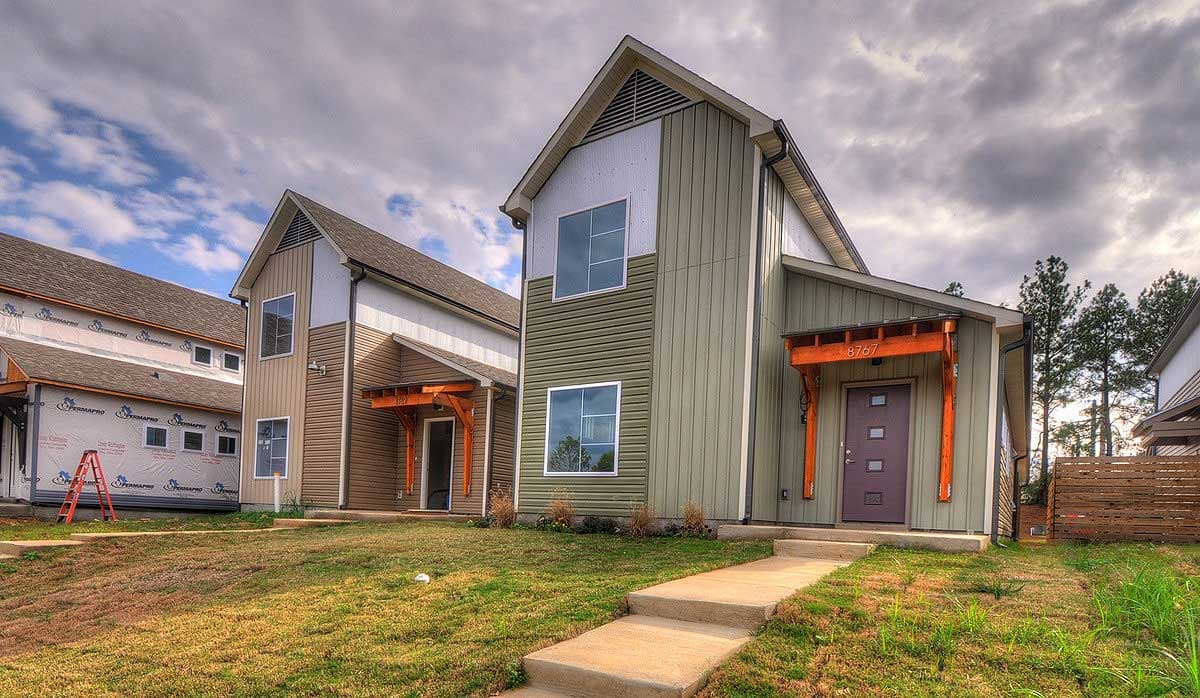

This 3 bed railroad style cottage is great for a narrow or in-fill lot at only 23'9" wide. It has a breezeway that can be any length you need attached to a 2 car alley-access garage making this work for lots of all depths.

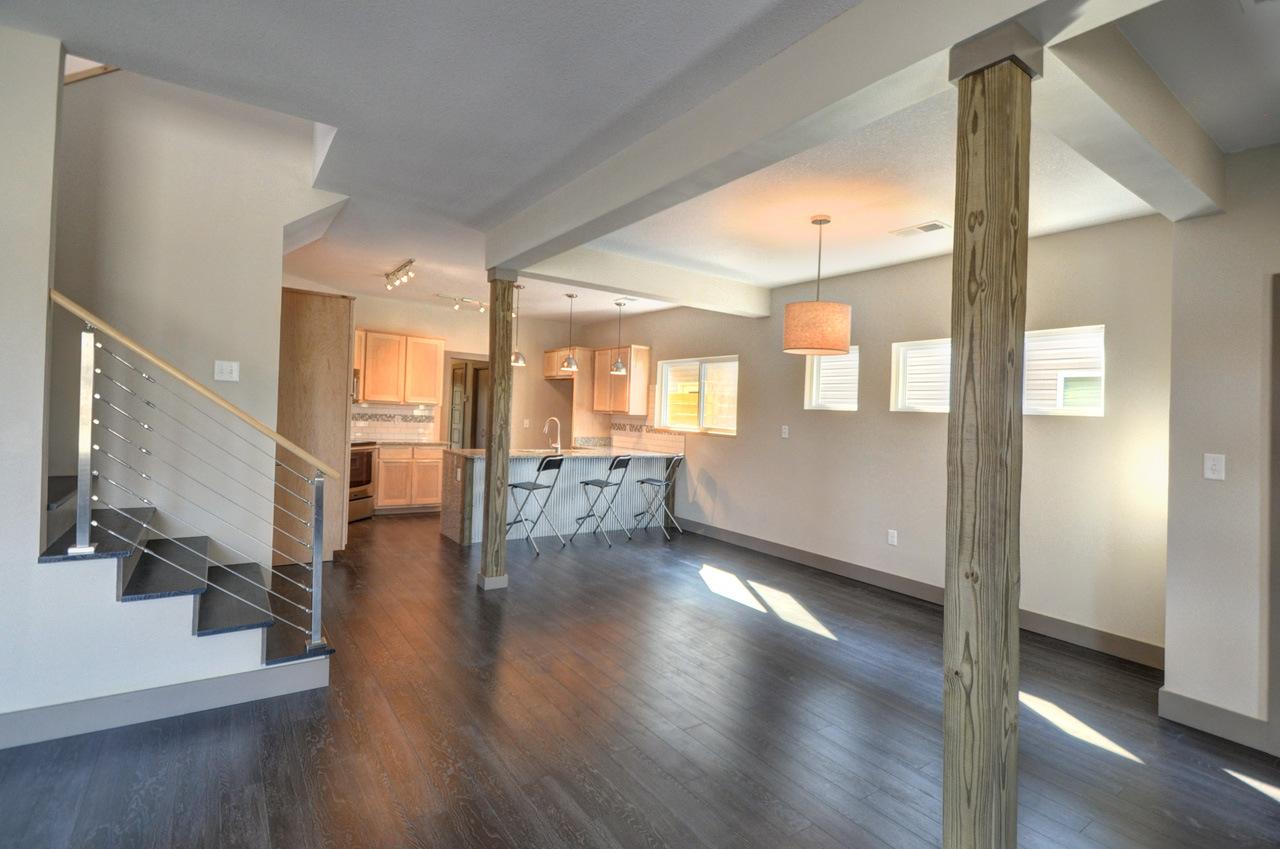

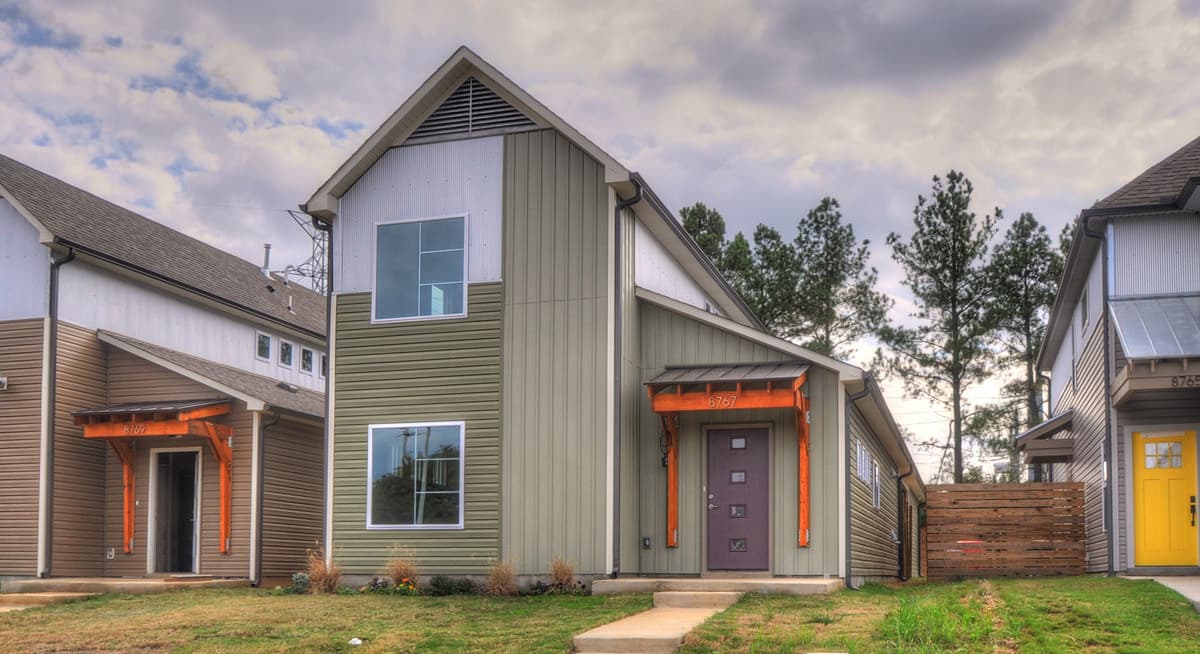

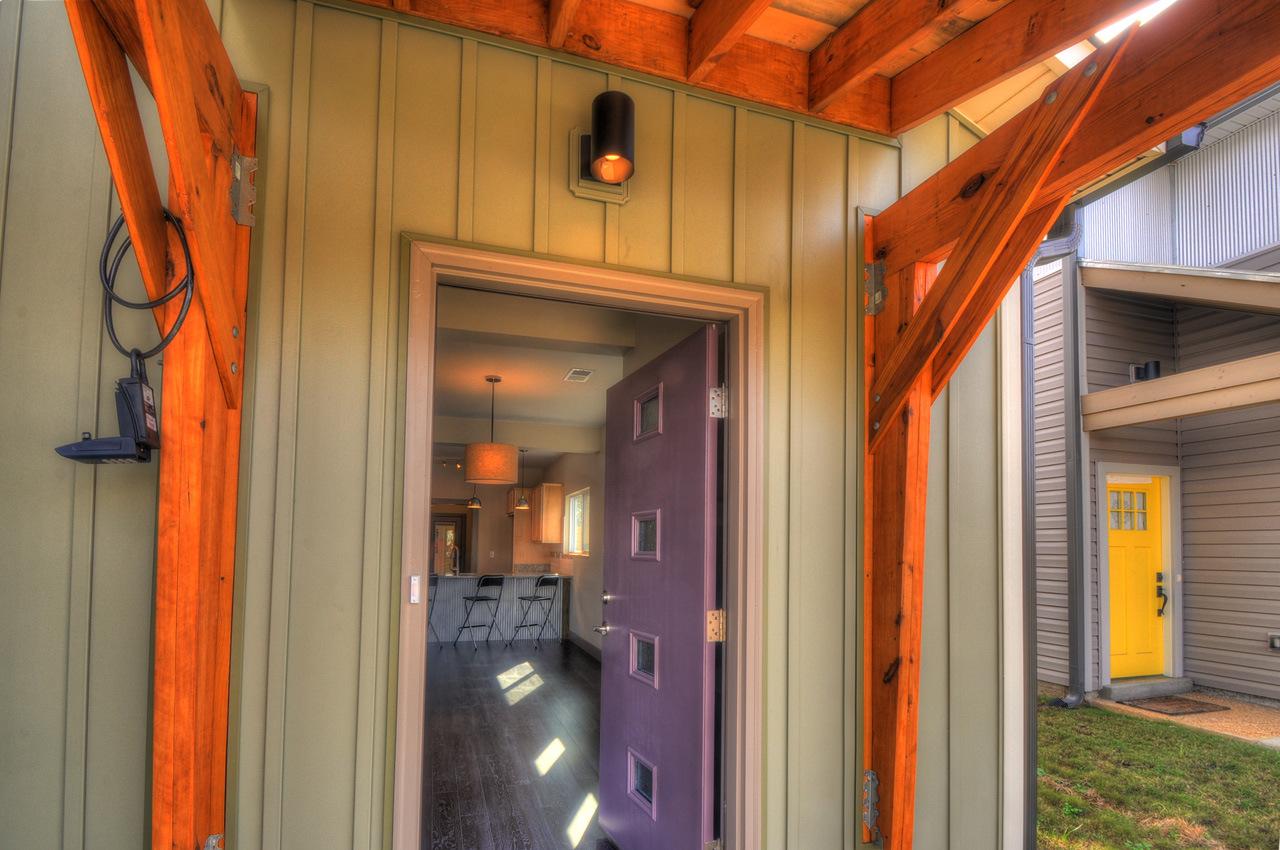

A shed roof shelters the front door and adds some pop to the otherwise clean exterior. Step inside and you'll enjoy the open concept floor plan.

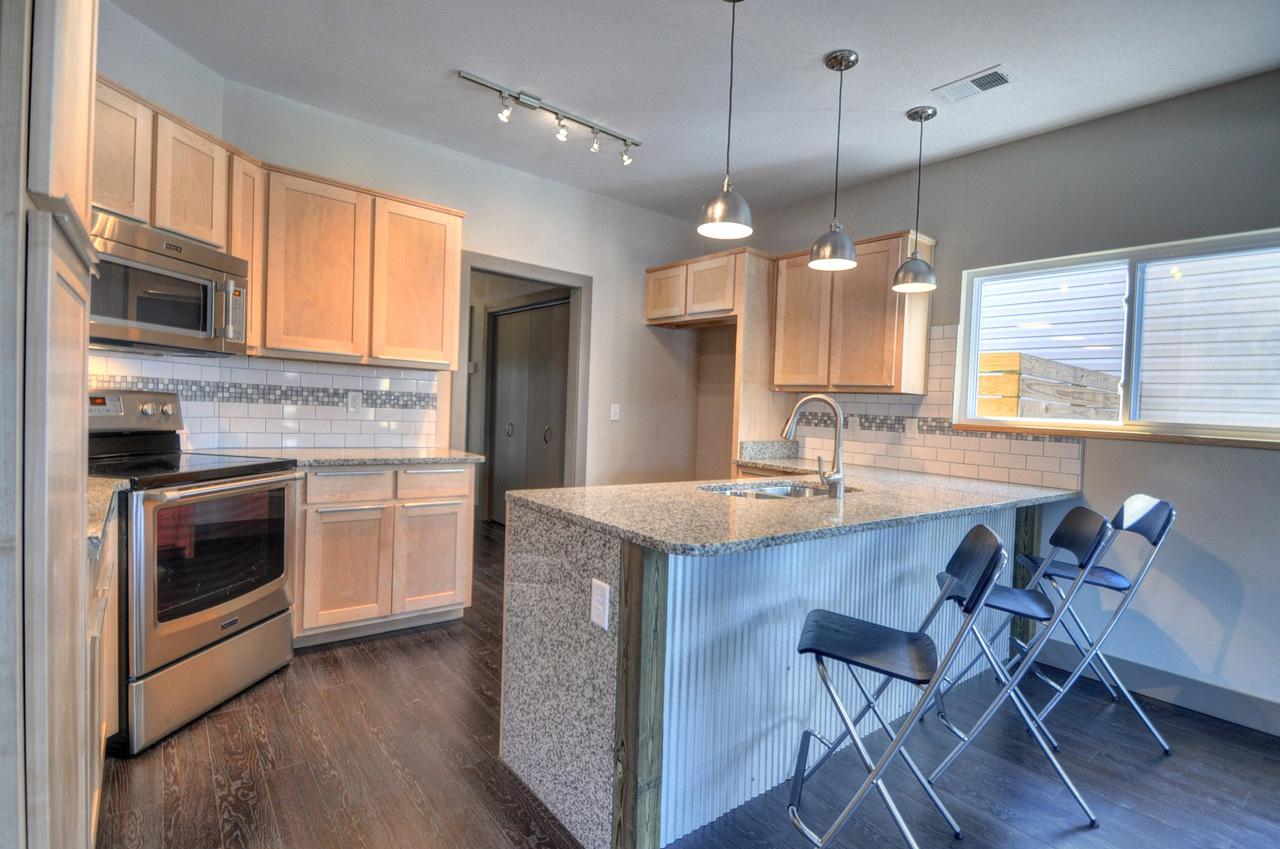

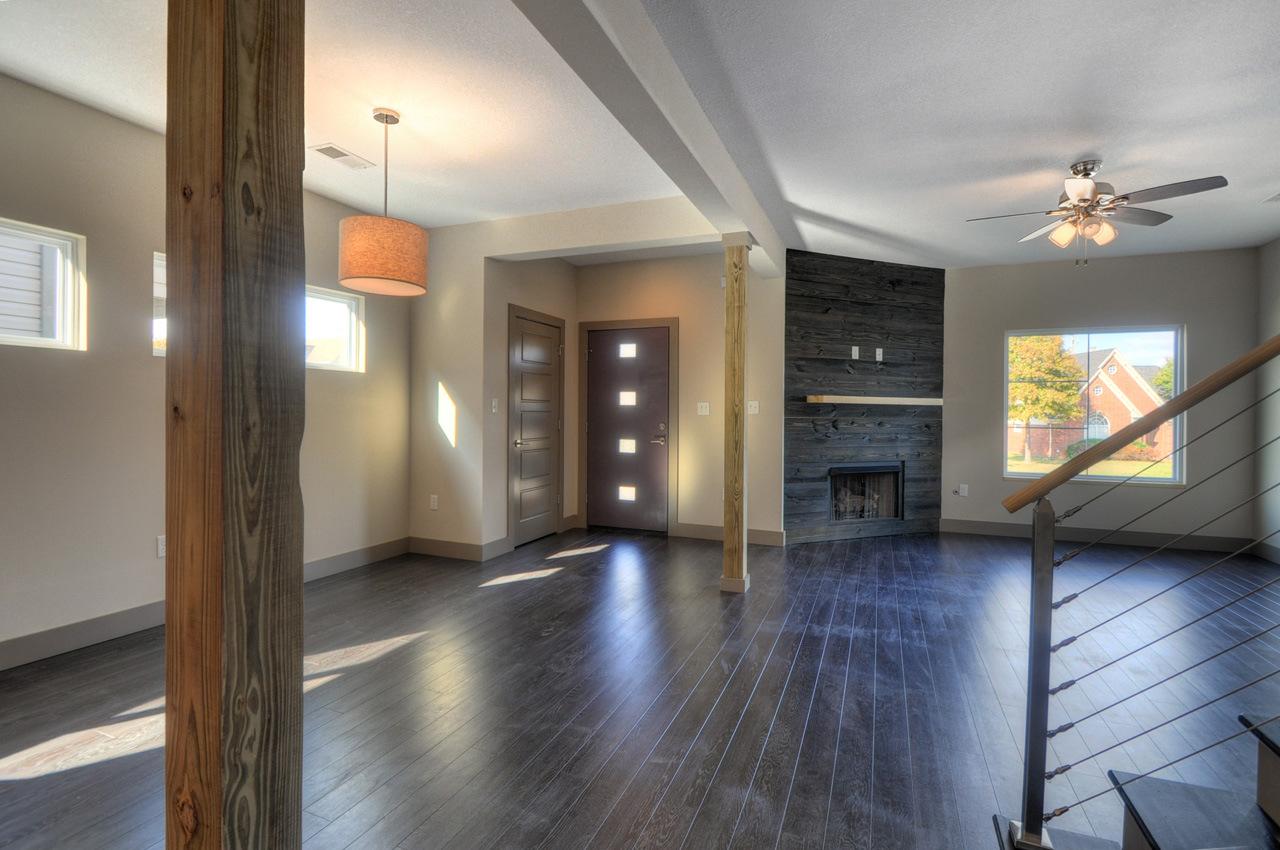

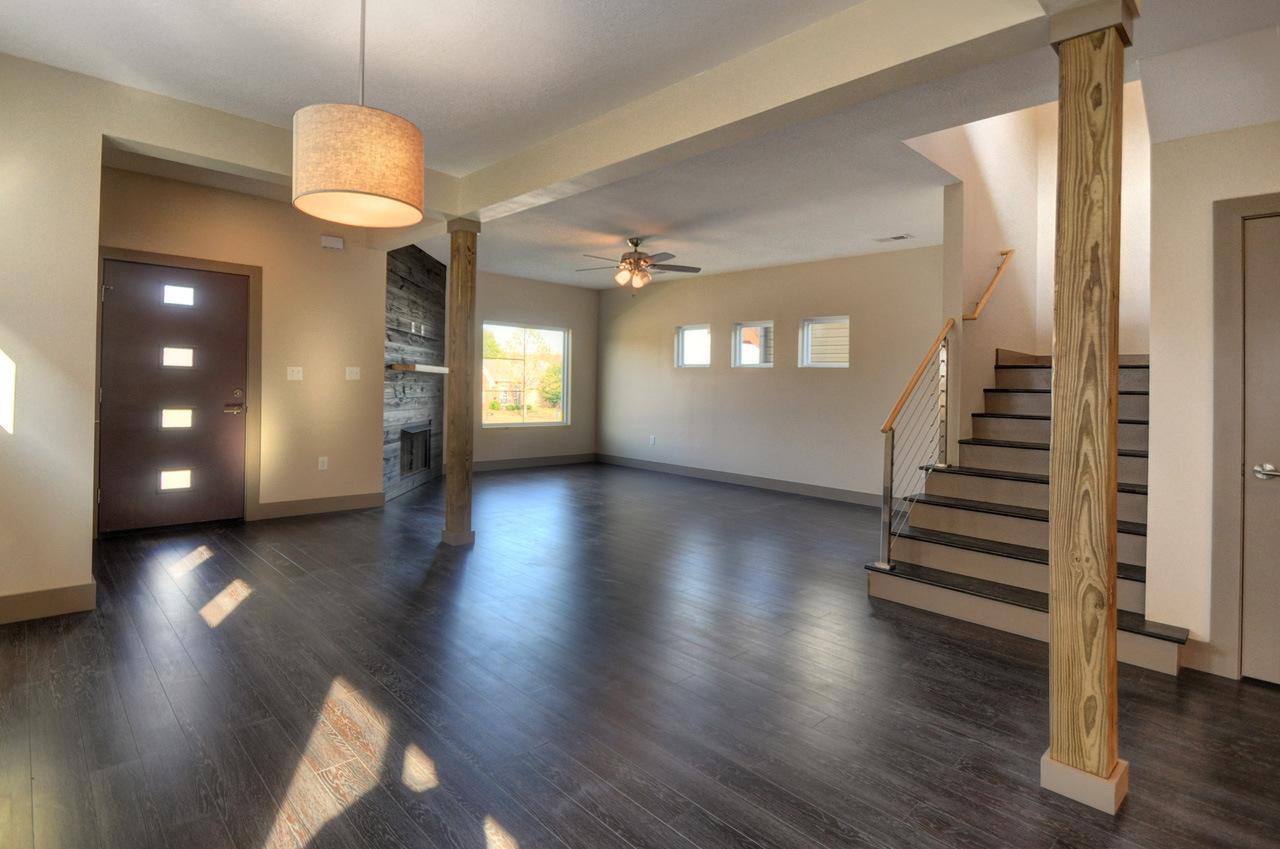

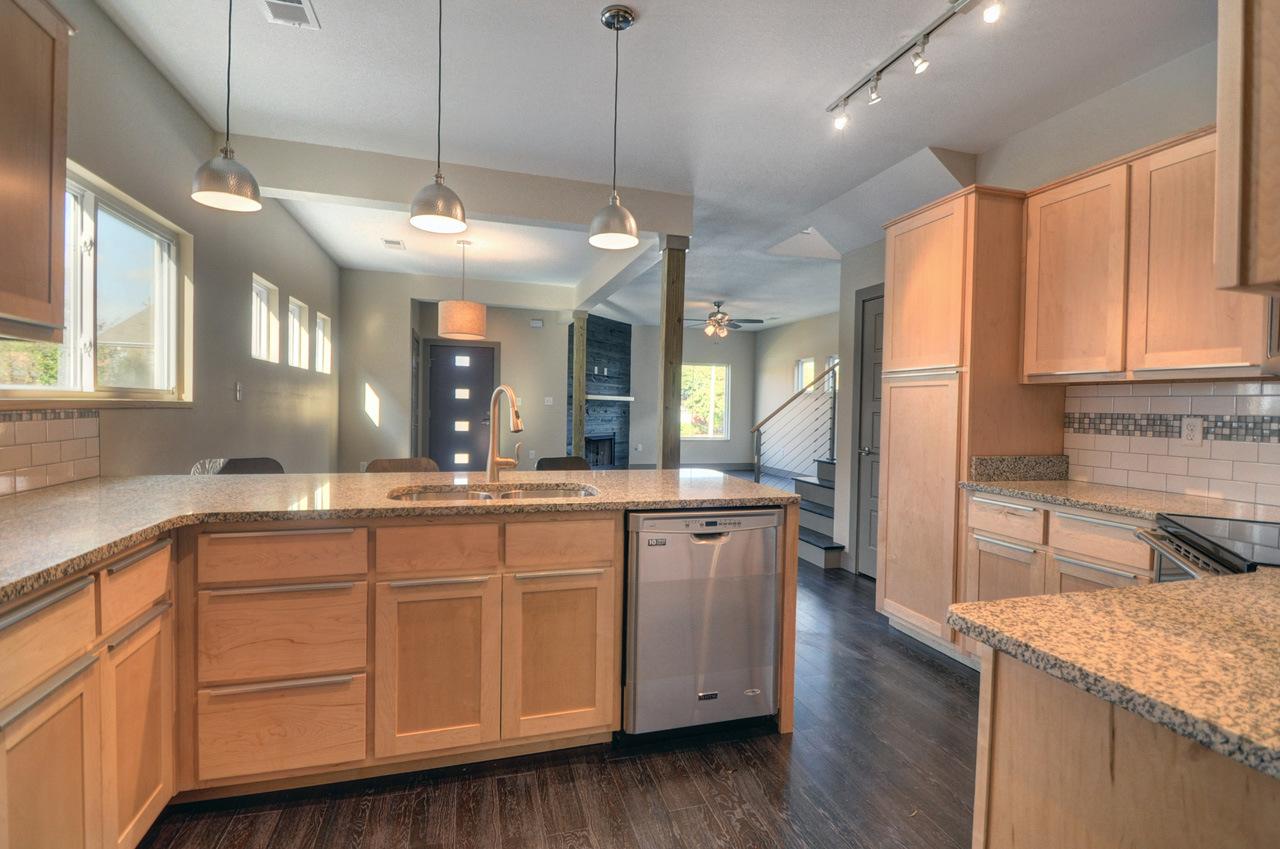

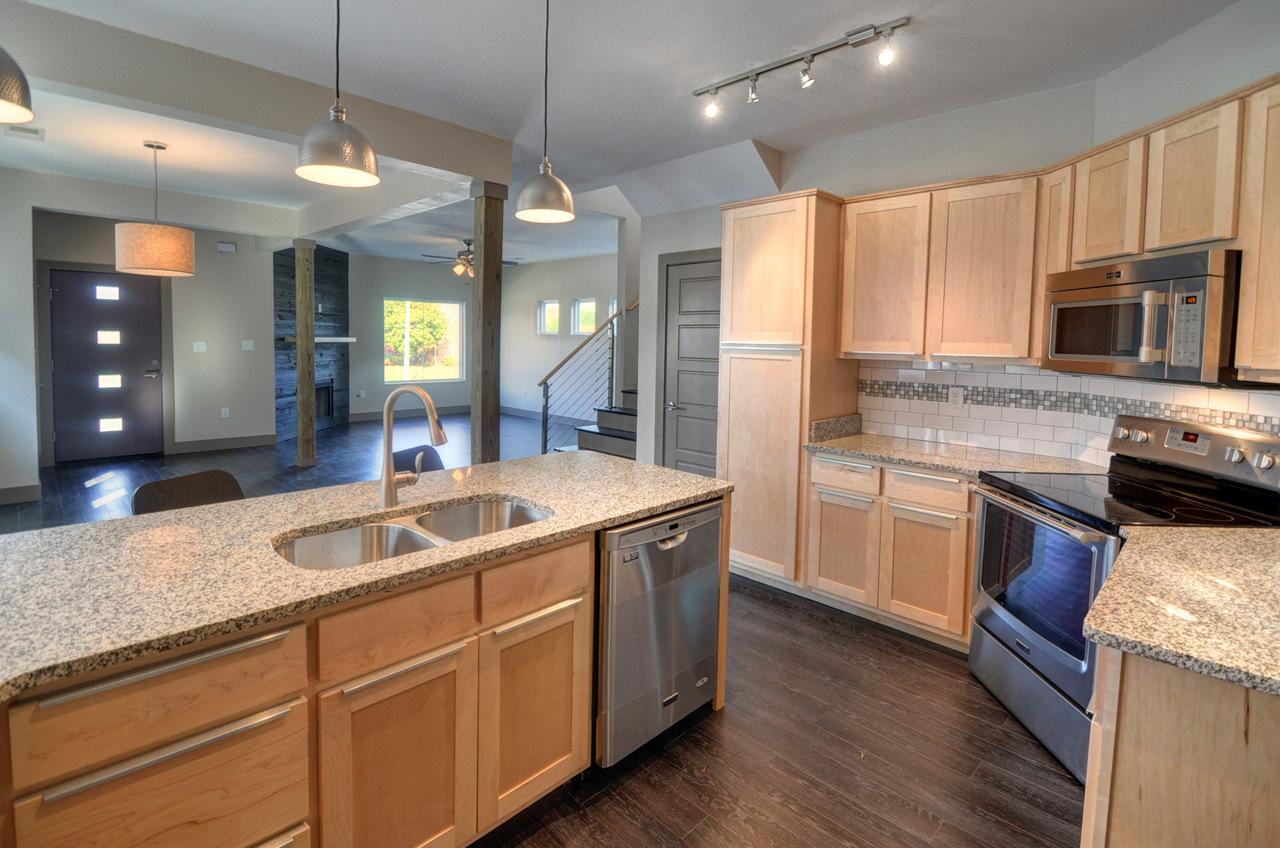

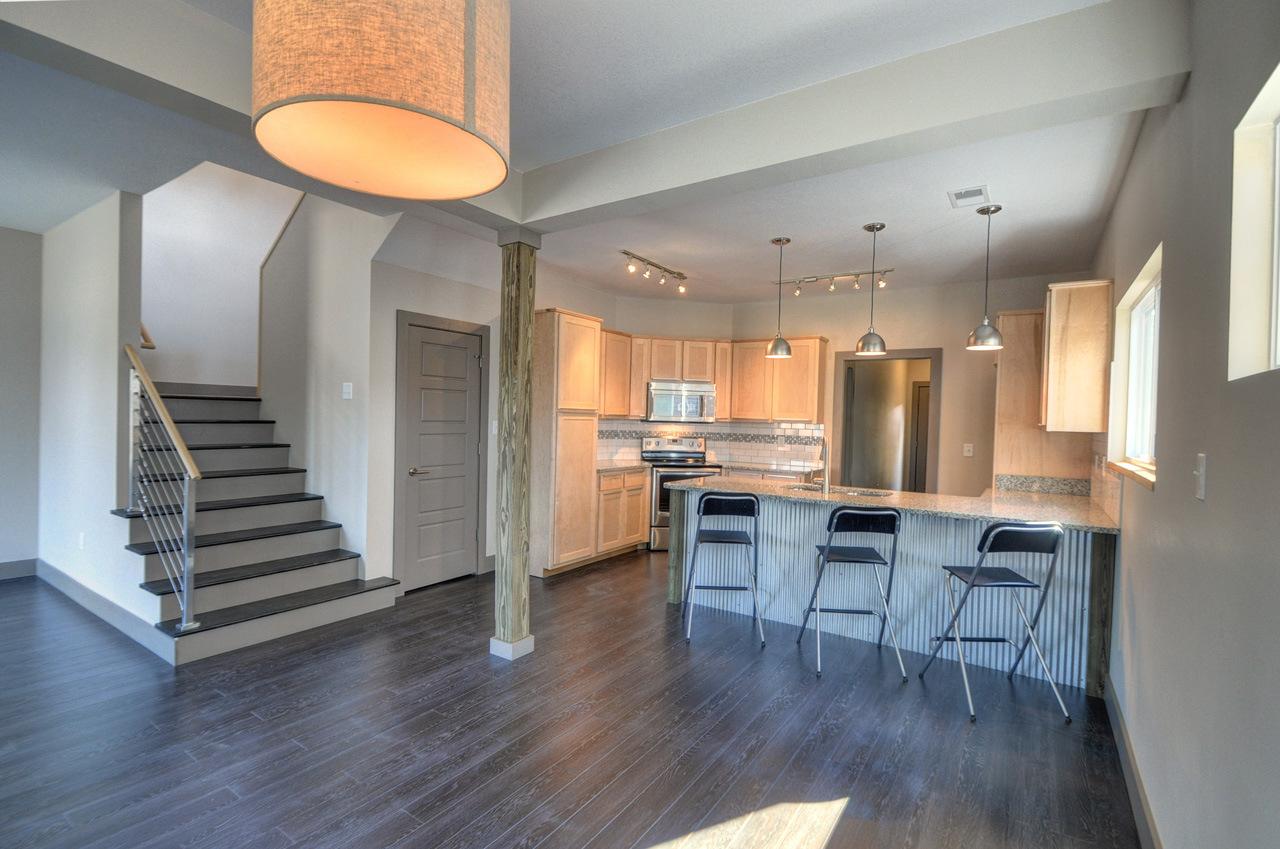

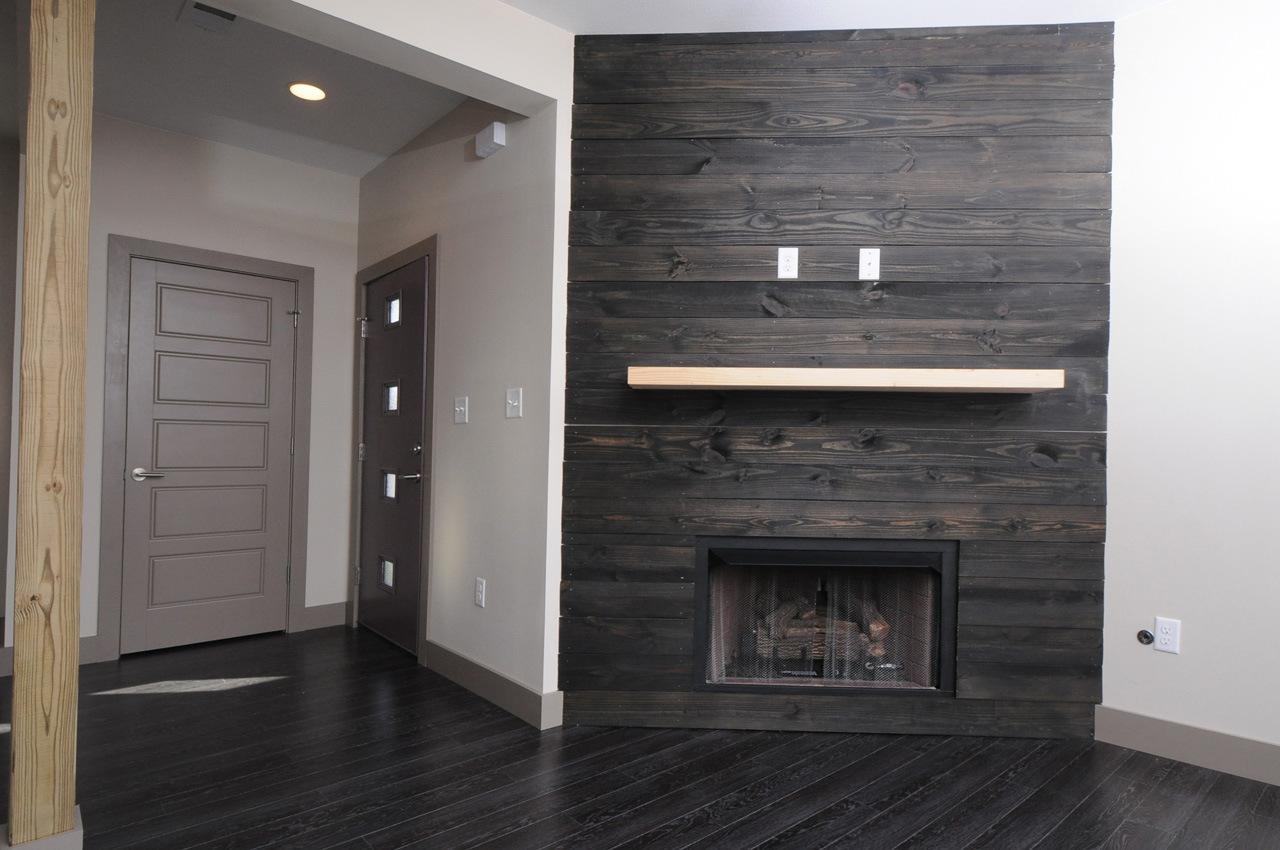

There is an angled fireplace in the family room that you can see while working in the kitchen. There is seating for four at the peninsula and room for a dining room table for larger crowds.

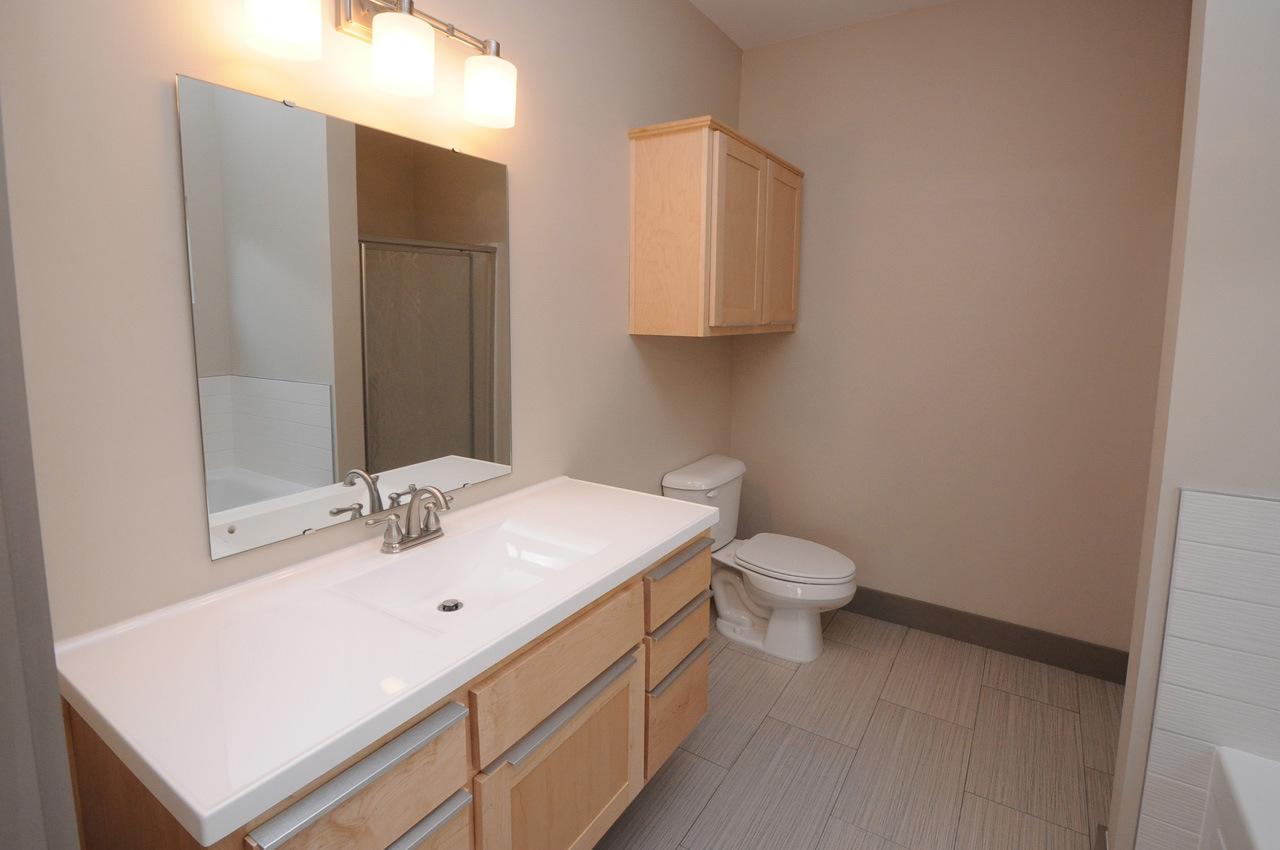

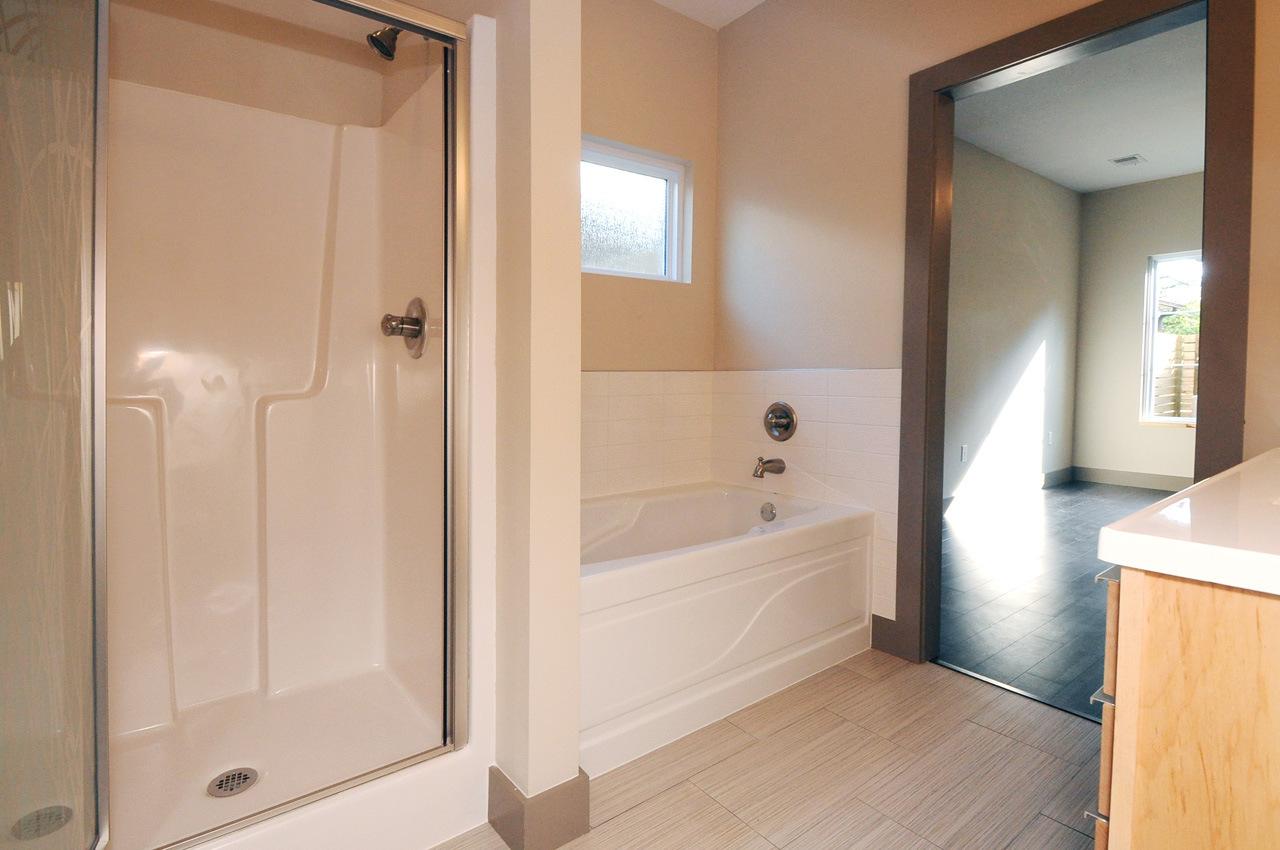

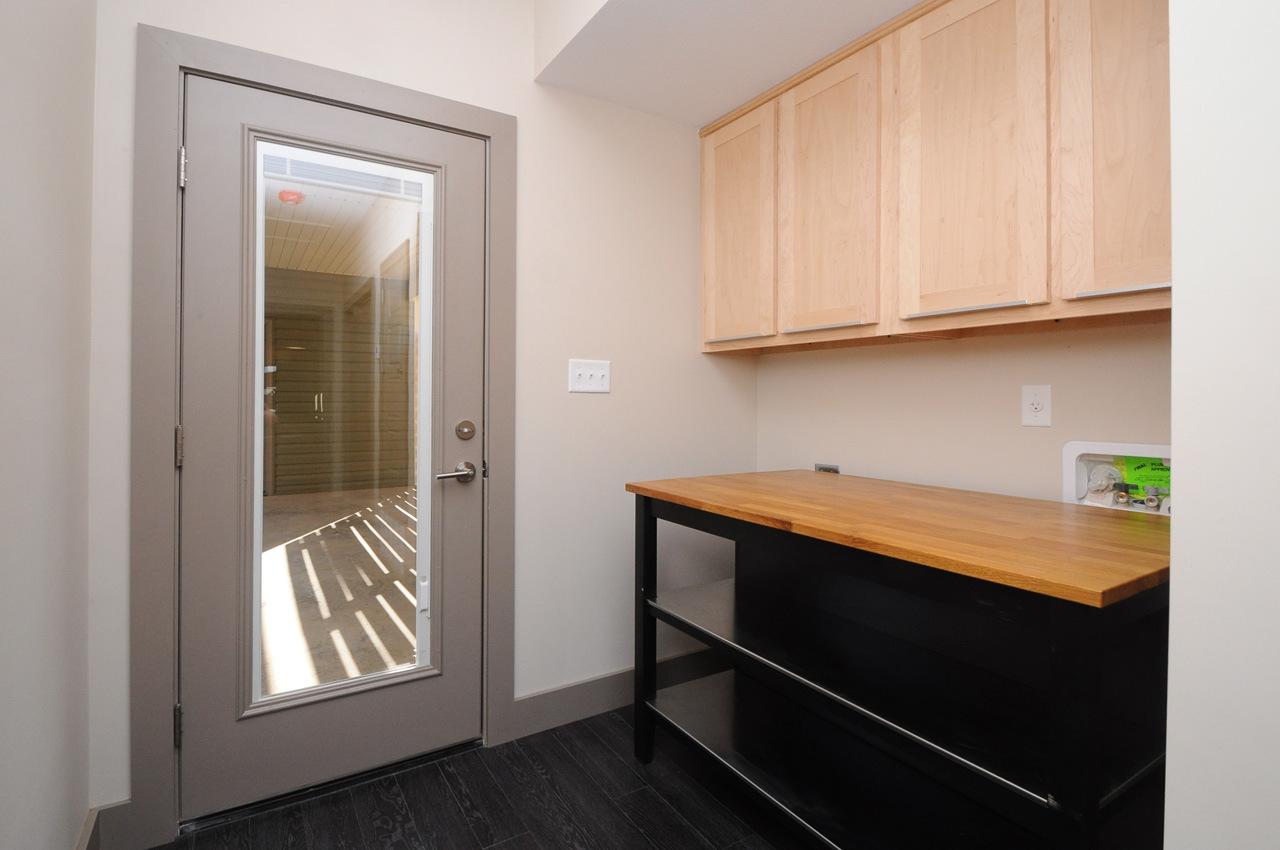

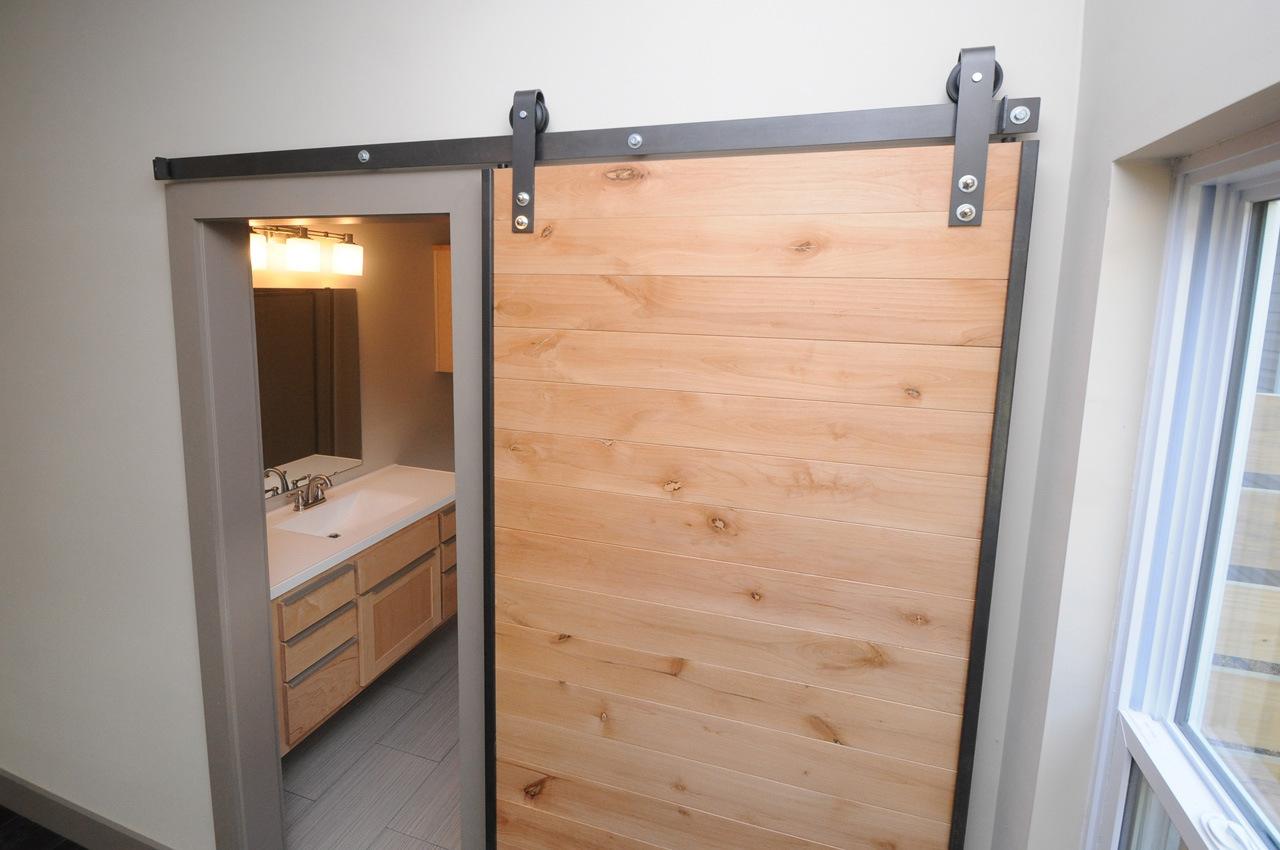

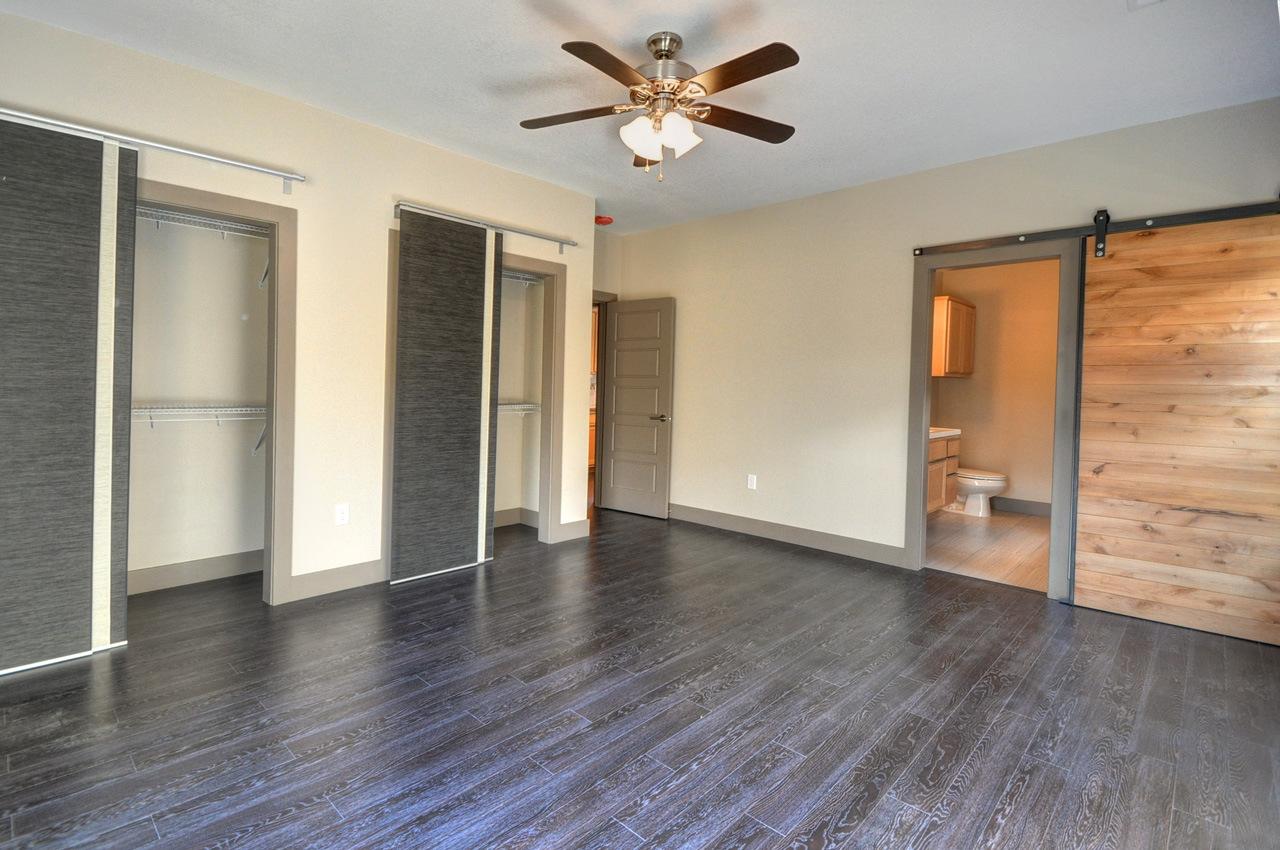

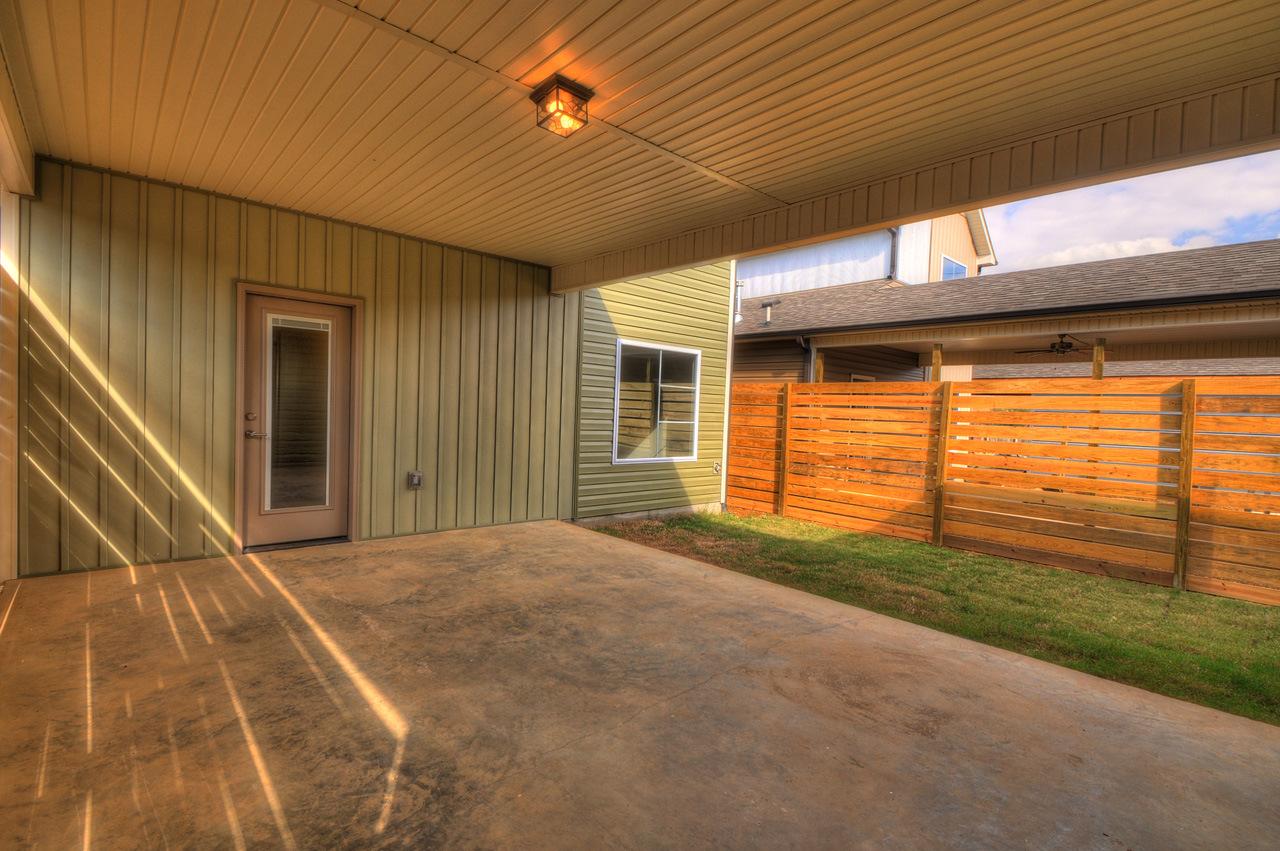

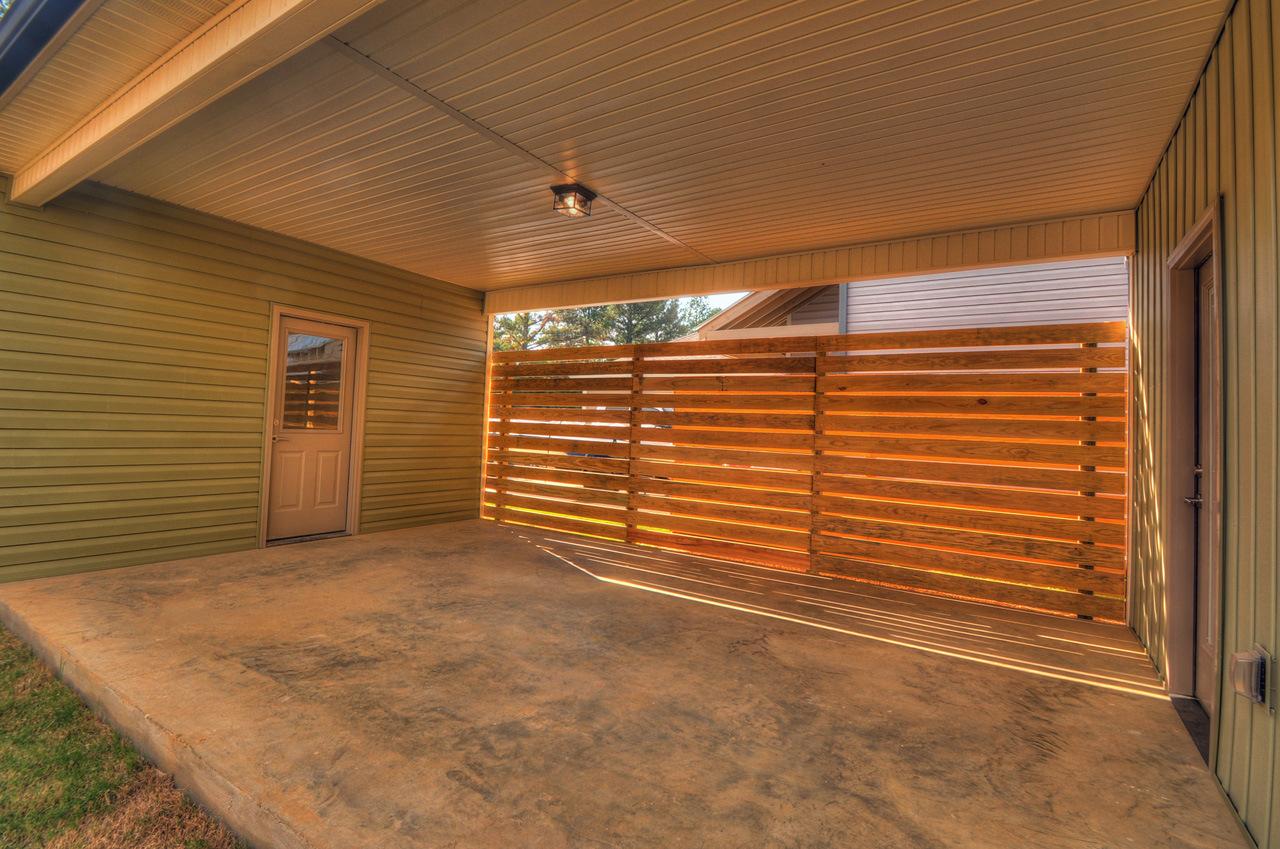

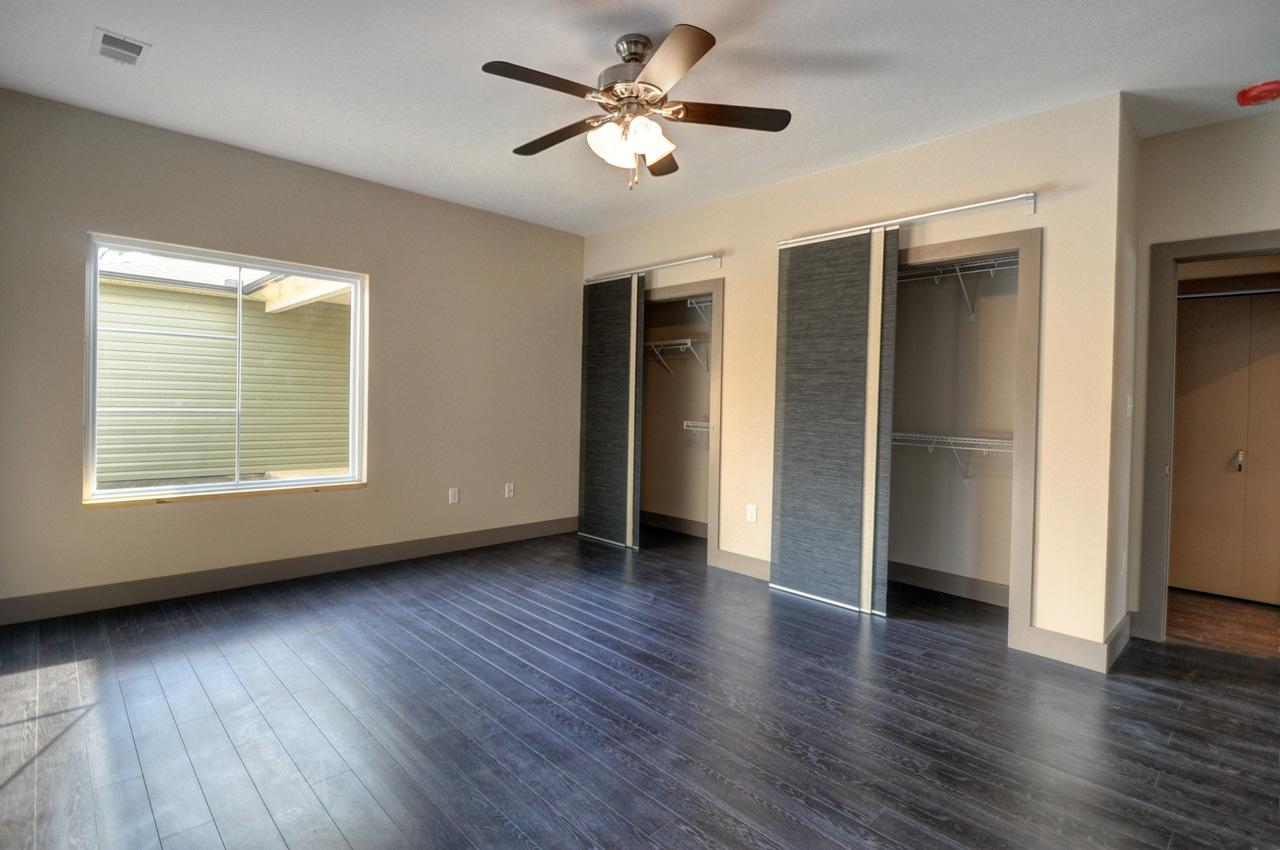

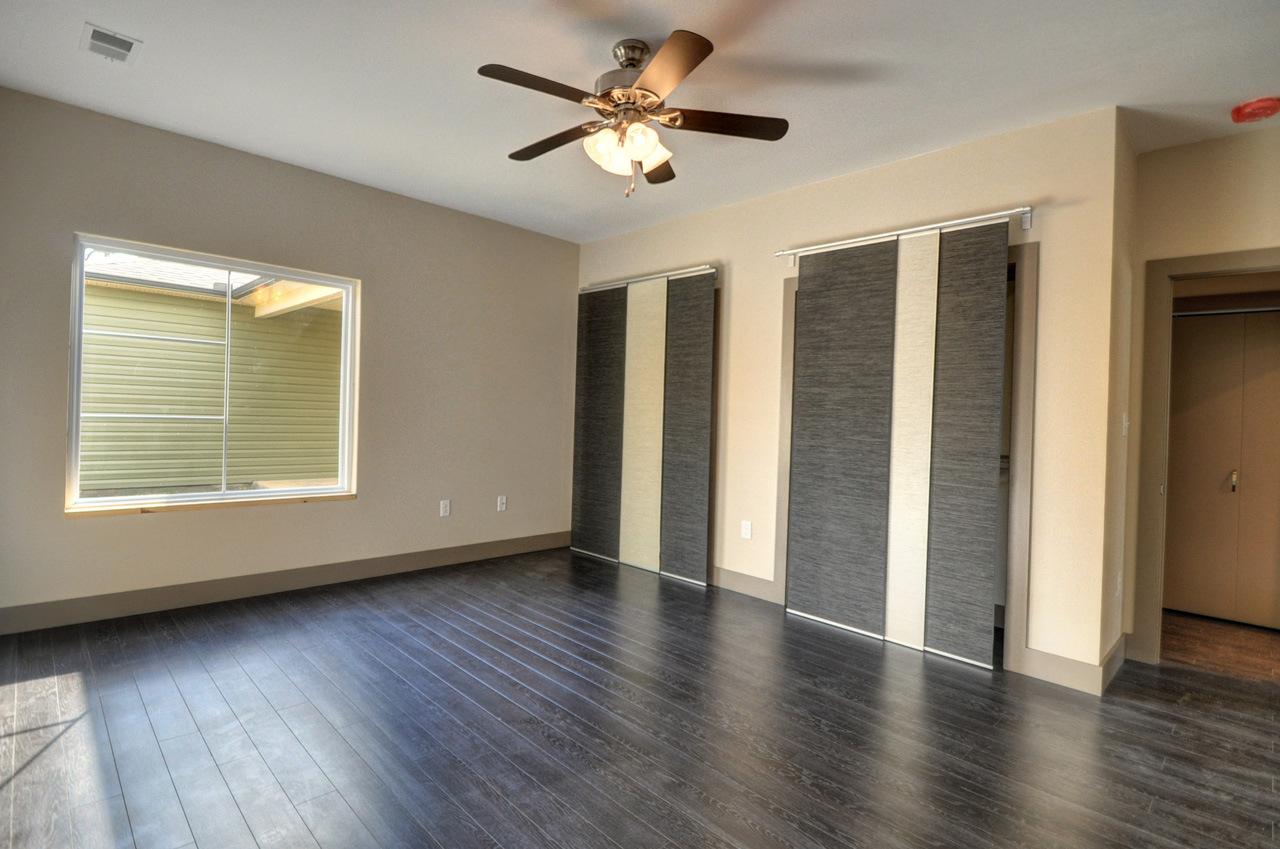

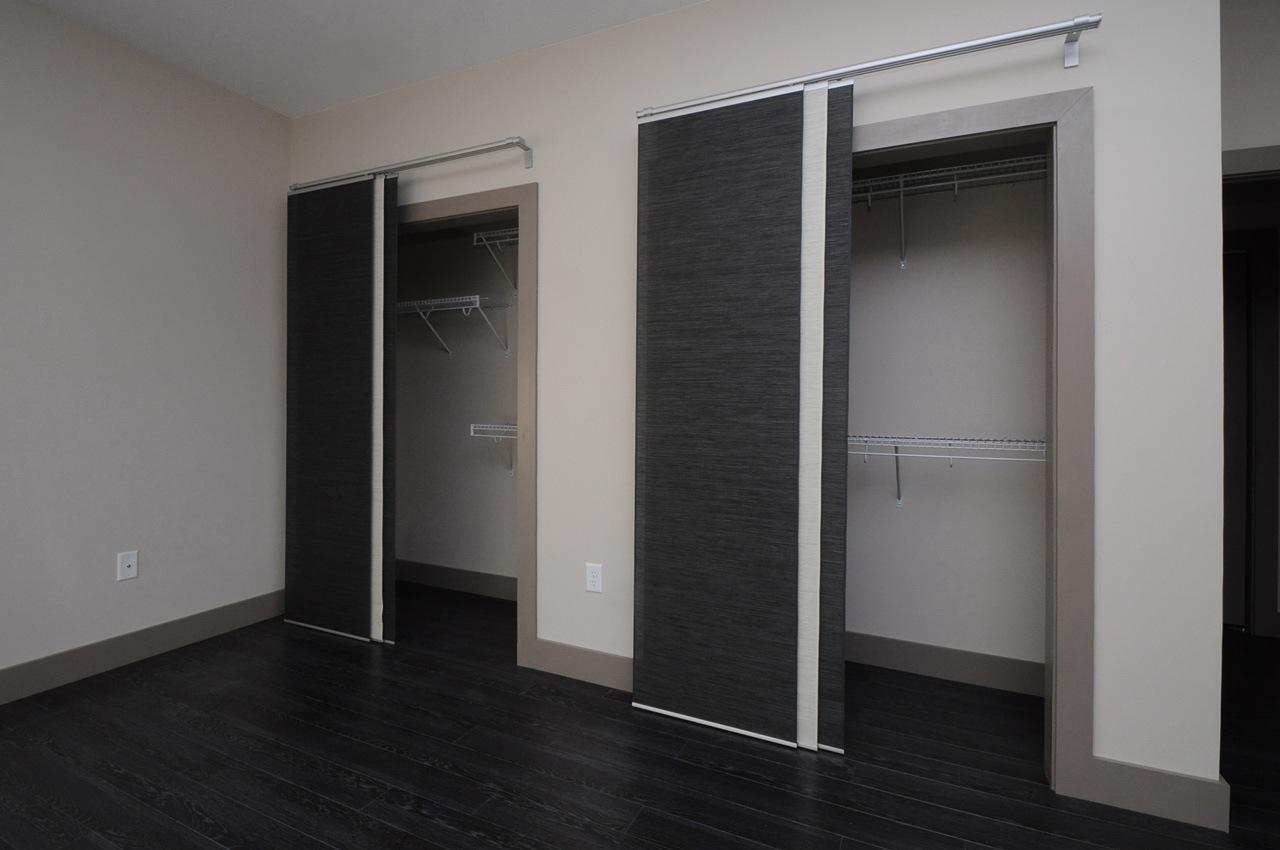

The master suite occupies the back of the home and has two linear closets. A barn-style door opens to the bath which has a shower and a bath. Laundry is conveniently located off the utility room which is accessible from the breezeway. The breezeway makes a great spot for a patio for outdoor enjoyment.

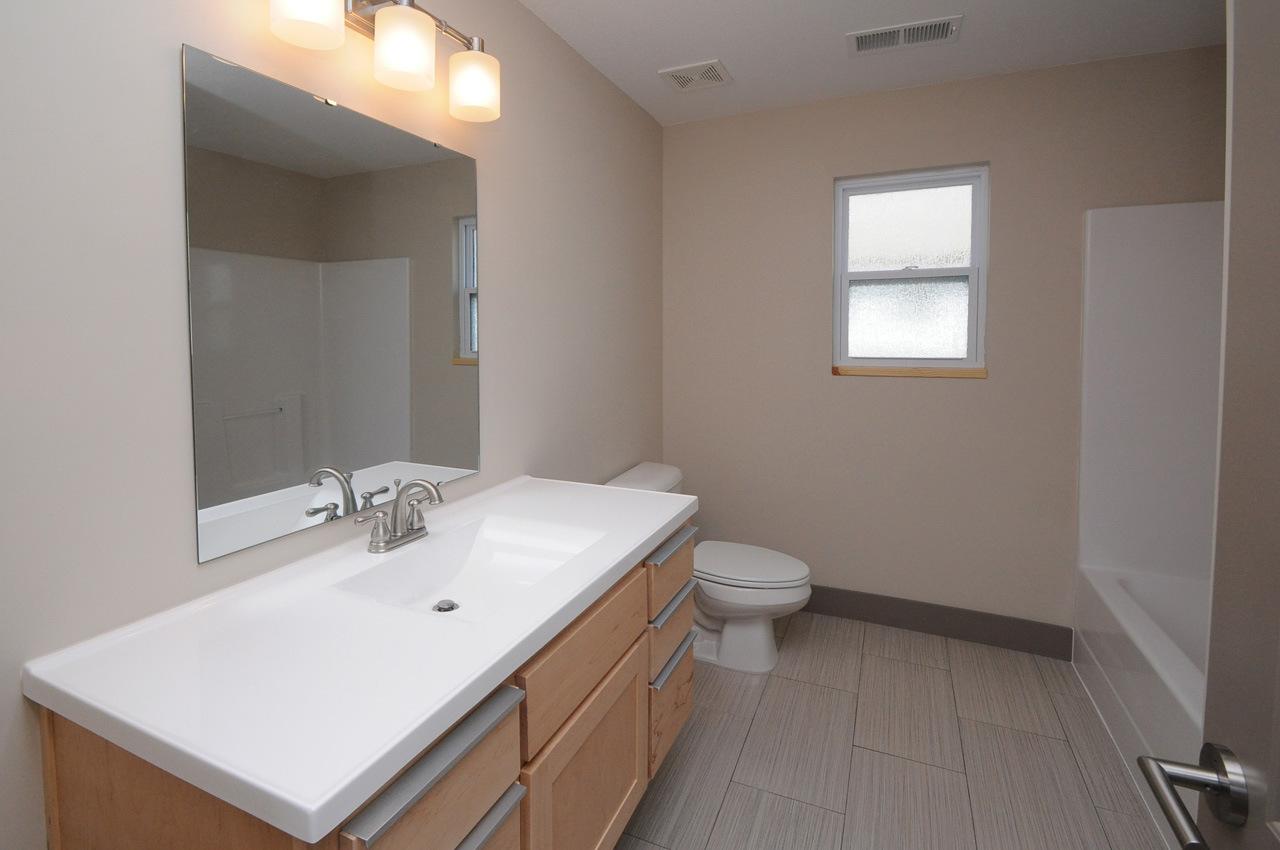

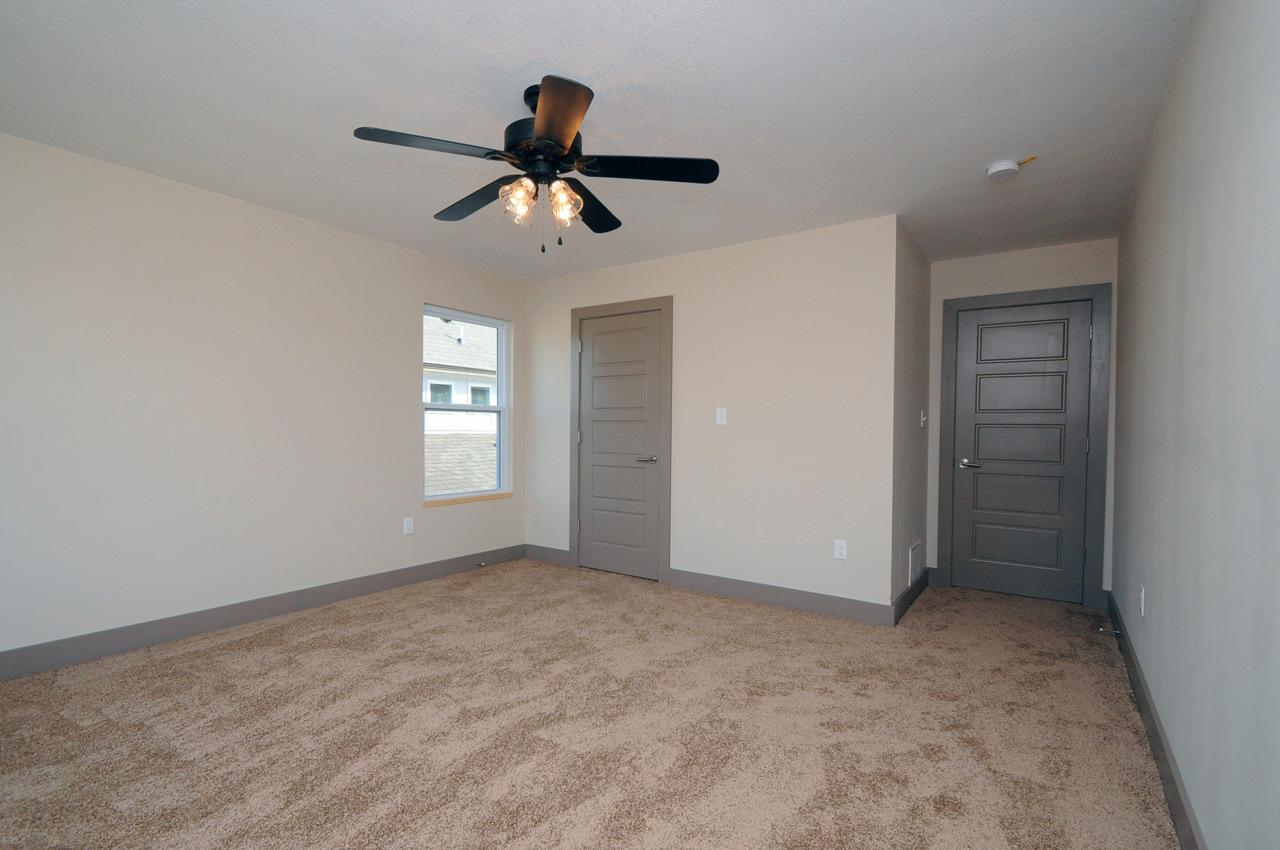

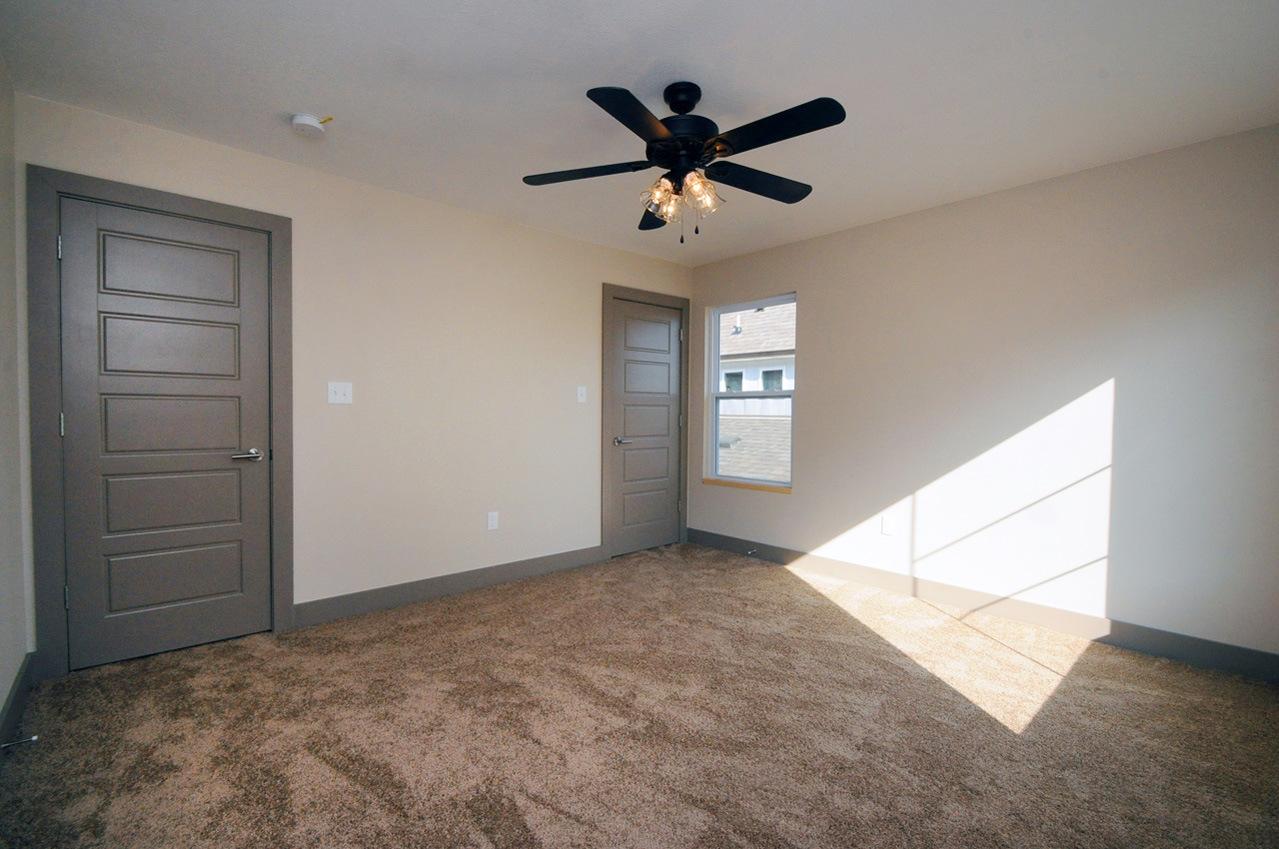

There are two beds upstairs and they share a bath. There is an open desk area as well.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

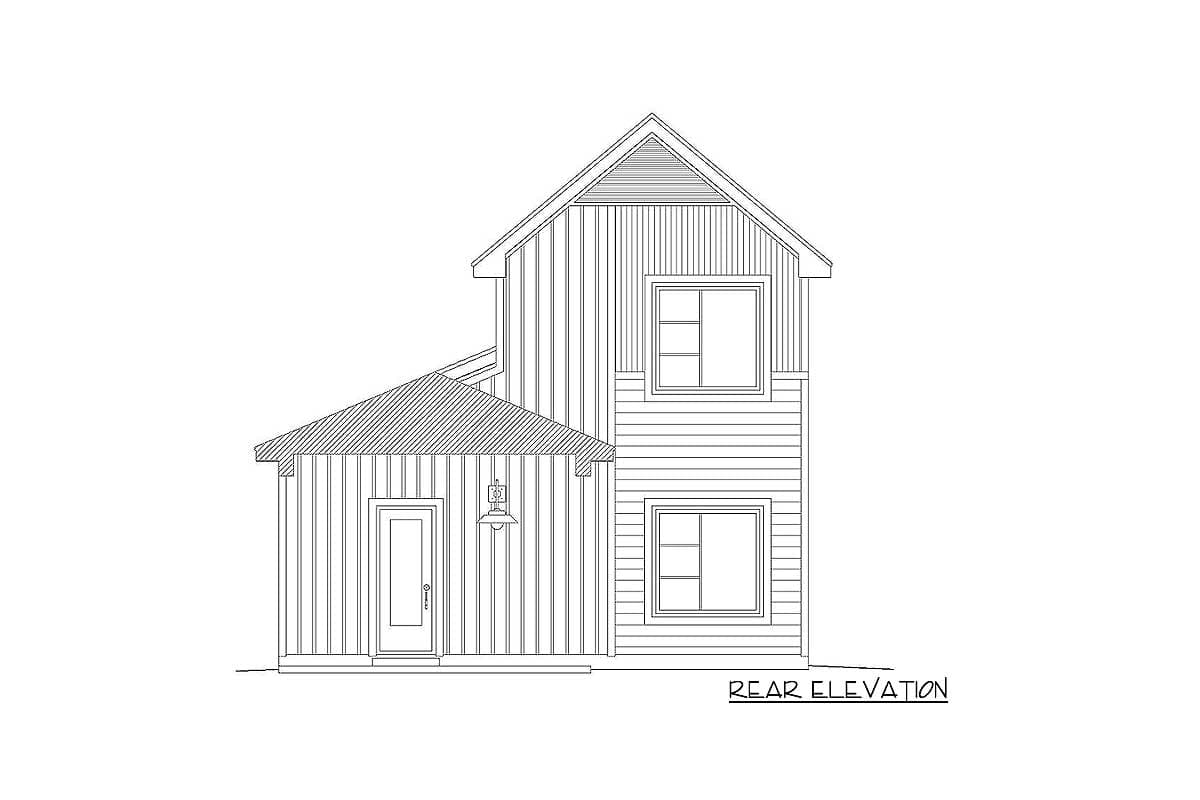

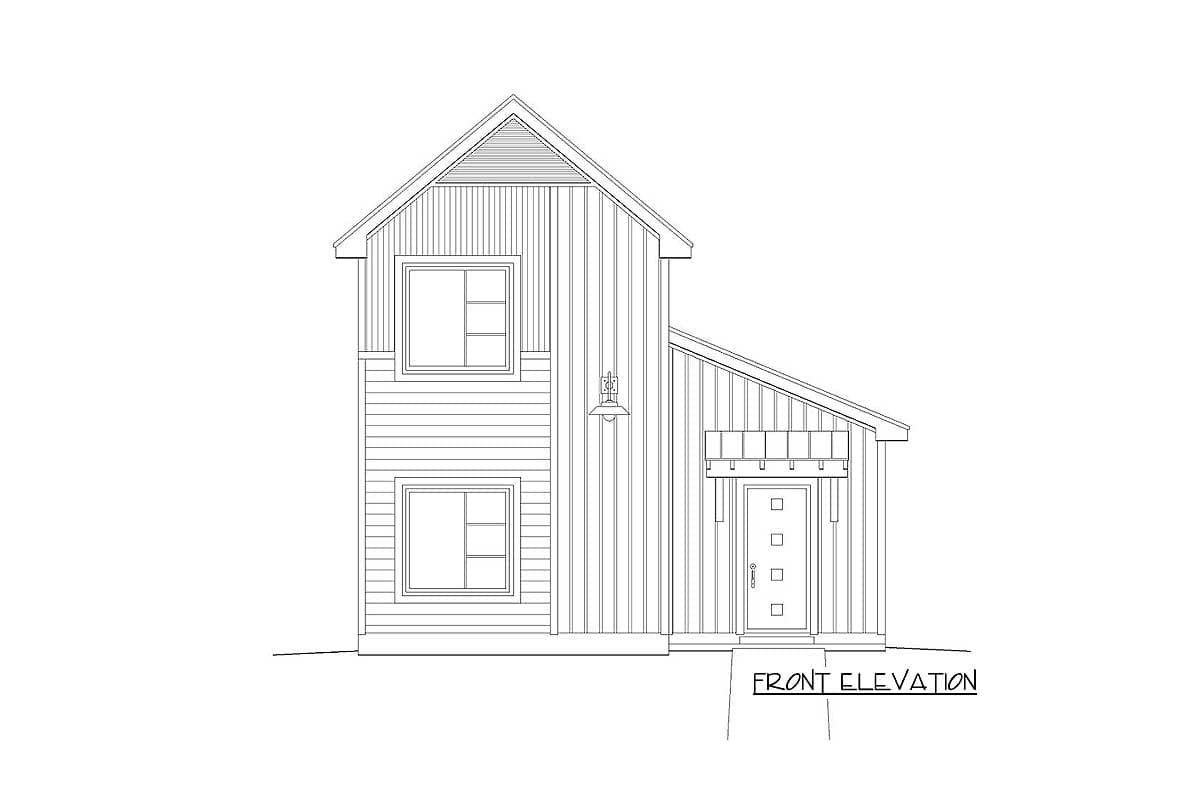

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

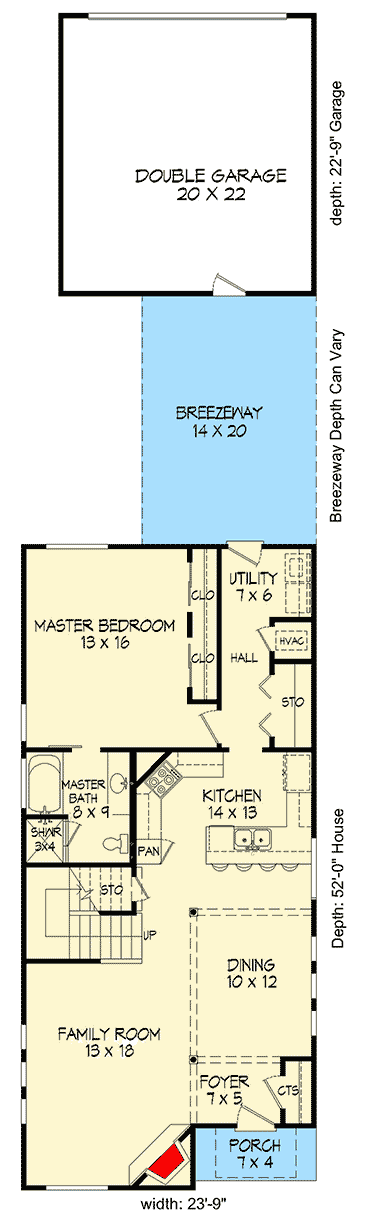

Railroad 3 Bed Modern Cottage - 68406VR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

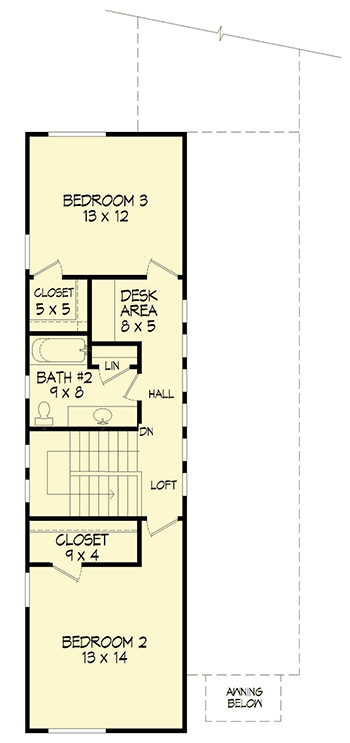

Railroad 3 Bed Modern Cottage - 68406VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,843 sq. ft.
1st Floor: 1,186 sq. ft.
2nd Floor: 657 sq. ft.

Porch, Rear: 280 sq. ft.
Porch, Front: 26 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab

Optional Foundations: Basement, Walkout, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 23' 9"
Depth: 52' 0"

Garage

Type: Detached
Area: 472 sq. ft.
Count: 2 Cars
Entry Location: Rear

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Framing Type: Stick

Architectural Style

Special features
