Plan 59916ND

Raised Covered Porch Cottage

Heated S.F.
1,397
Beds
3
Baths
2
Stories
2

Floor Plan

Plan 59916ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59916ND

M-F 9am-5pm EST |

1-203-761-8500

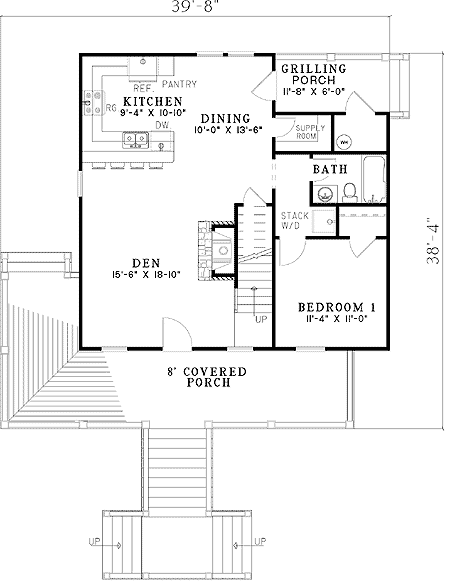

Main Level

Plan 59916ND: Raised Covered Porch Cottage - Floor Plan - Main Level - Cottage, Vacation

2nd Floor

Plan 59916ND: Raised Covered Porch Cottage - Floor Plan - 2nd Floor - Cottage, Vacation

Plan Details

  • Enjoy the views while relaxing on the wrap-around 8' porch.
  • Enter this cottage home plan into the den with a stone hearth fireplace.
  • The open floor plan puts the kitchen in full view.
  • The stacked washer/dryer save space and leave you room relaxing and enjoying friends.
  • The supply room can be used for tackle or food items.
  • The rear grilling porch is perfect for grilling the day's catch.
  • Upstairs, the bedrooms feature unique ceilings.
  • Related Plan: Need a non-elevated version? See house plan 59153ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,397 sq. ft.

1st Floor

890 sq. ft.

2nd Floor

507 sq. ft.

Porch, Front

374 sq. ft.

Porch, Rear

70 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 8"

Depth

38' 4"

Max Ridge Height

21' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cottage

Vacation

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,397 sq. ft.

1st Floor

890 sq. ft.

2nd Floor

507 sq. ft.

Porch, Front

374 sq. ft.

Porch, Rear

70 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 8"

Depth

38' 4"

Max Ridge Height

21' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cottage

Vacation

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Upstairs

Walk-in Pantry
