Plan 42528DB

Ranch Craftsman with Options

Pageloader

Ranch Craftsman with Options

Plan 42528DB

  • 2,071

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Just 44' wide, this Craftsman Ranch home offers walk-in closets for every bedroom, an open floor plan and special ceiling treatments in the gallery hallway.
  • The compact kitchen puts everything right at your fingertips, with a walk-in pantry close by for extra storage.
  • Add a pocket office that closes with sliding barn doors or chose the smaller signature space backed by a big walk-in closet off the hall.
  • The owner's suite is separated from the family bedrooms that lie close to the front of the house.
  • Homeowner's get an extra perk with a door from the master walk-in closet leading directly into the laundry room.
  • Extend the rear porch by adding an optional uncovered deck.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

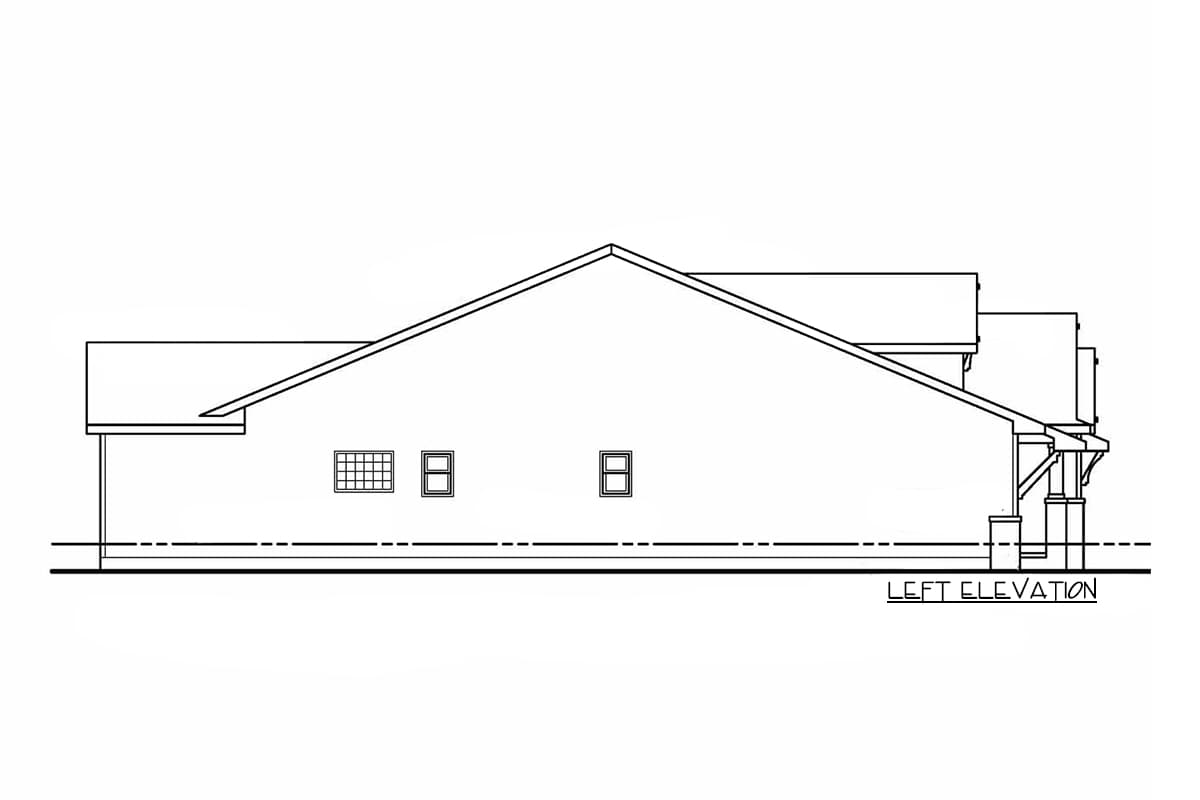

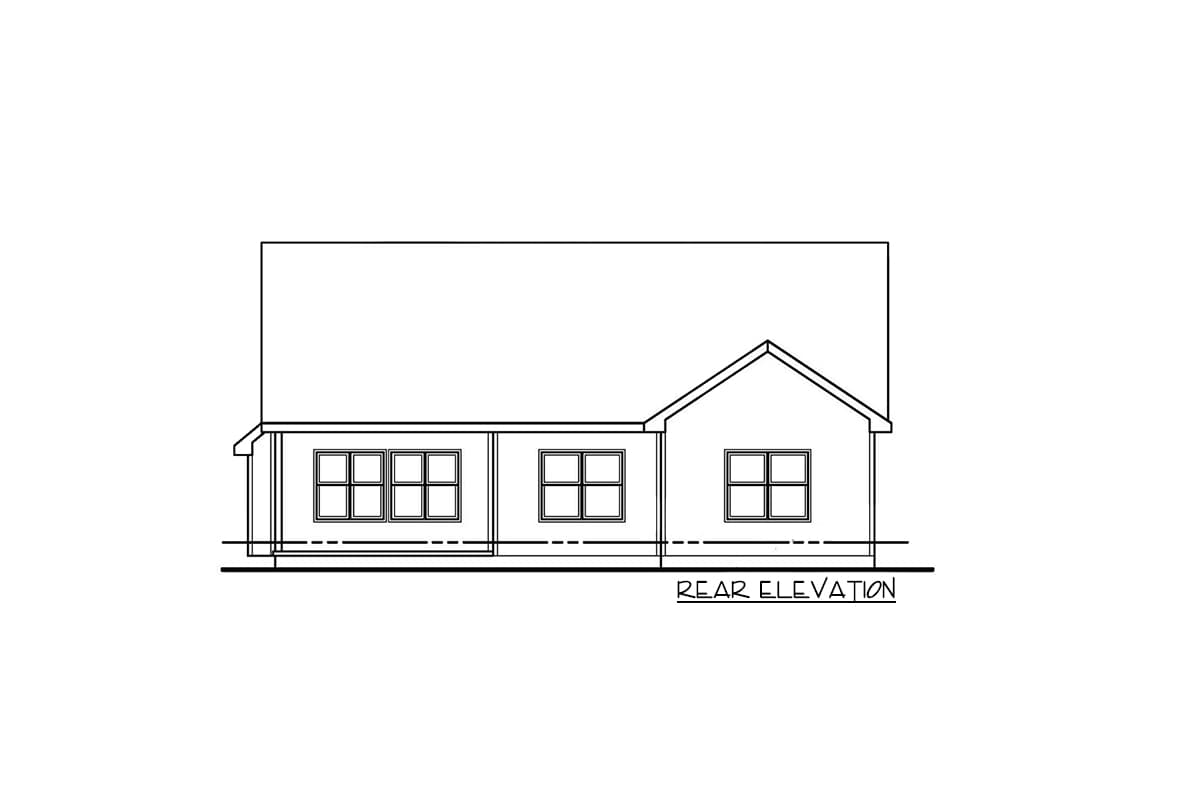

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

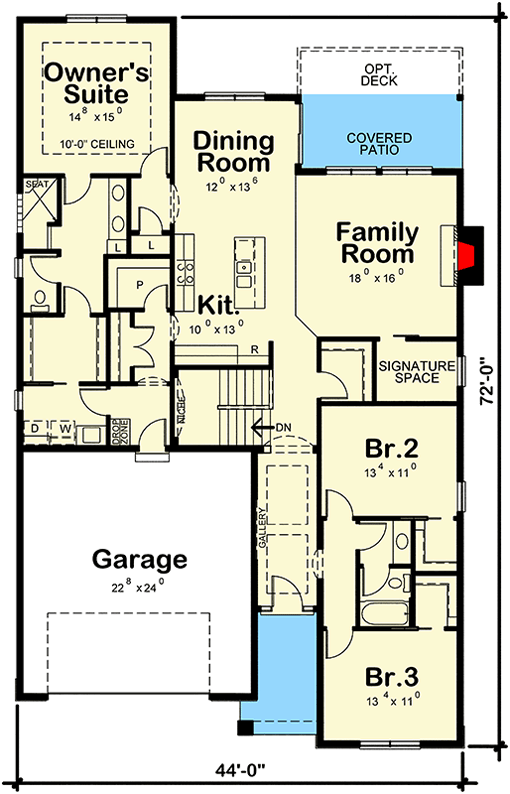

Floor Plan

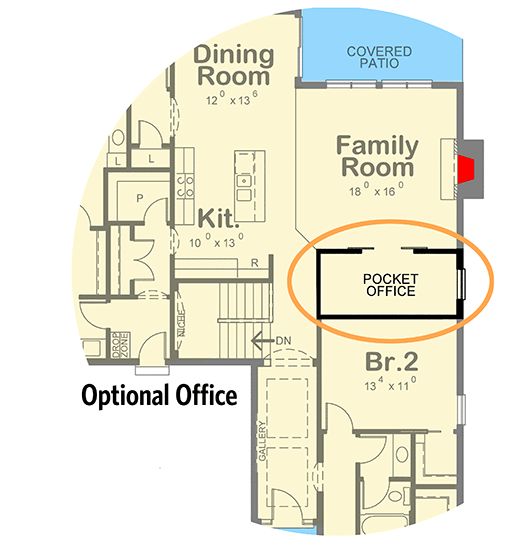

Included Opt. Office Location

Pinit white
Ranch Craftsman with Options - 42528DB floor plan - Included Opt. Office Location

Plan details



Ranch Craftsman with Options

  • 2,071

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $650
  • PDF - single-use $985
  • 4 Sets $1,060
  • 5 Sets $1,110
  • 5 Sets PLUS $1,155
  • 8 Sets $1,180
  • PDF - multi-use $1,485
  • CAD $1,724
  • CAD - multi-use $2,224
  • View all purchase option online

About This Plan

  • Just 44' wide, this Craftsman Ranch home offers walk-in closets for every bedroom, an open floor plan and special ceiling treatments in the gallery hallway.
  • The compact kitchen puts everything right at your fingertips, with a walk-in pantry close by for extra storage.
  • Add a pocket office that closes with sliding barn doors or chose the smaller signature space backed by a big walk-in closet off the hall.
  • The owner's suite is separated from the family bedrooms that lie close to the front of the house.
  • Homeowner's get an extra perk with a door from the master walk-in closet leading directly into the laundry room.
  • Extend the rear porch by adding an optional uncovered deck.

Floor Plans

  • Main Level

  • Included Opt. Office Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,071 sq. ft.
  • 1st Floor: 2,071 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 72' 0"
  • Max ridge height: 23' 8"

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
