Plan 62134V

Ranch Home Plan with Poolhouse

Heated S.F.
3,665
Beds
3
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 62134V

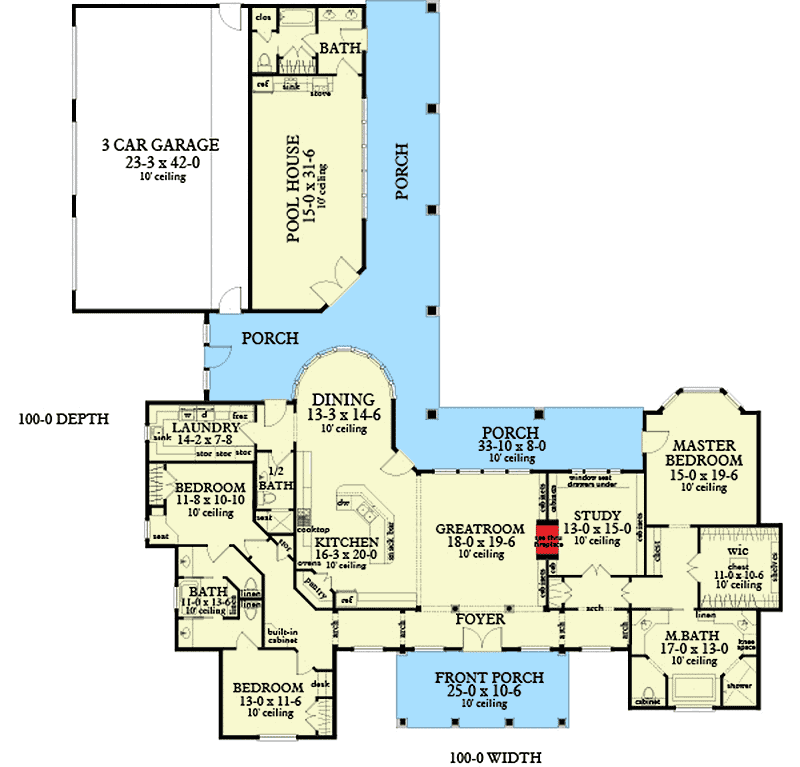

Main Level
Main Level

Plan 62134V

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 62134V: Ranch Home Plan with Poolhouse - Floor Plan - Main Level - French Country, Ranch

Plan Details

  • This beautiful Ranch home plan spreads out across 100' of living space giving you lots of room for your family.
  • An arched entry hall opens to the spacious great room with its wall of windows that overlook the enormous porch area in the rear.
  • Dine in the large bayed dining area with its views of the spectacular poolhouse with a mini-kitchen.
  • A wall of windows in the pool house brings in extra light and is a great entertaining space.
  • This area could easily be converted to an in-law suite with minor modifications from your builder.
  • Split bedrooms separate the family bedrooms from the deluxe master suite with a bayed sitting area.
  • Related Plan: Get an alternate exterior in reverse layout with house plan 62142V.

What's Included

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,665 sq. ft.

1st Floor

3,665 sq. ft.

Porch, Front

263 sq. ft.

Porch, Rear

1,010 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

100' 0"

Depth

100' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1008 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

French Country

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,665 sq. ft.

1st Floor

3,665 sq. ft.

Porch, Front

263 sq. ft.

Porch, Rear

1,010 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

100' 0"

Depth

100' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1008 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

French Country

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
