Plan 89873AH
Ranch Home Plan With Shingle and Stone
Heated S.F.
2,614
Beds
4
Baths
2.5
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • VIDEO: See this house plan from every angle in our YouTube video.
  • Just because it's traditional in design doesn't mean that the exterior of this ranch has to be boring. Shingle siding, a side/frontload garage, stone and double trim give this faзade an edge that won't be ignored.
  • The open plan includes a large living area that includes a kitchen with breakfast bar and additional island, a great room with step ceiling and fireplace, a dining area and hearth room both of which also have step ceilings for added detail.
  • The master suite is tucked behind the garage and pampers with a large walk-in closet, dual sinks and direct access to the laundry room.
  • Three additional bedrooms with access to a full bath are found on the opposite side of the home for maximum privacy for mom and dad.
  • Related Plan: Get an alternate layout and exterior with house plan 89486AH.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch Home Plan With Shingle and Stone

  • 2,614

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

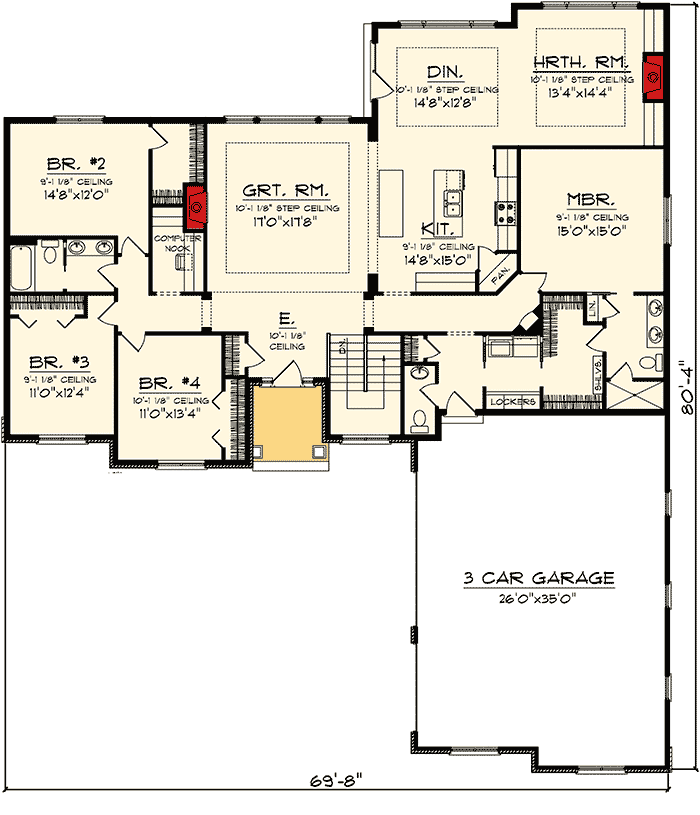

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,614 sq. ft.
  • 1st Floor: 2,614 sq. ft.

Dimensions

  • Width: 69' 8"
  • Depth: 80' 4"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 963 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
