Plan 57229HA
Ranch Home Plan with Sunroom and Separate Lower Level Apartment
Heated S.F.
2,800
Beds
3
Baths
3
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

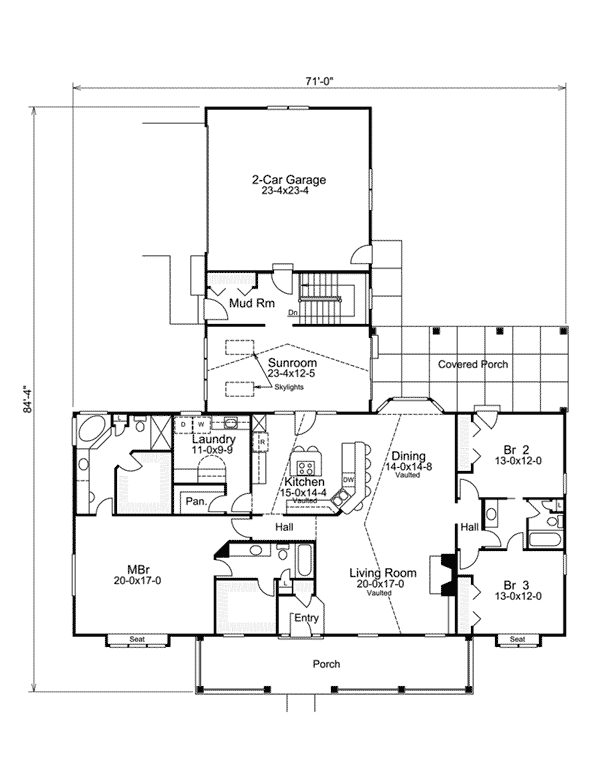

Main Level
Reverse Floor Plan
Ranch Home Plan with Sunroom and Separate Lower Level Apartment - 57229HA floor plan - Main Level

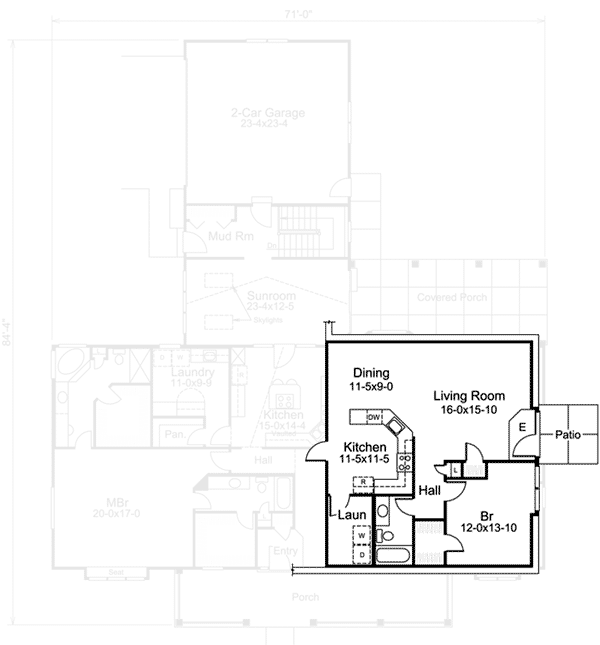

Optional Lower Level
Reverse Floor Plan
Ranch Home Plan with Sunroom and Separate Lower Level Apartment - 57229HA floor plan - Optional Lower Level
Plan Details
  • This distinctive Ranch home plan has a delightful sunroom with two skylights and walls of windows on each side.
  • Vaulted ceilings unite the kitchen, dining and living rooms, ao all can enjoy the fireplace.
  • The master suite has a window seat and his and her baths plus two big walk-in closets.
  • Two family bedrooms with a Jack'N Jill bath lie on the opposite side of the house, ensuring privacy.
  • Also included is a layout for an optional basement apartment with 932 square feet of living area
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch Home Plan with Sunroom and Separate Lower Level Apartment

  • 2,800

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,800 sq. ft.
  • 1st Floor: 2,800 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 84' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 574 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
