Plan 89856AH
Ranch Home Plan with Walkout Basement
Heated S.F.
4,125
Beds
4
Baths
4.5
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • VIDEO BONUS: see this house plan from every angle in our YouTube video.
  • This walkout ranch home plan features a traditional exterior with a modern floor plan.
  • A spiral staircase just off the entry creates a grand entrance that continues on to the great room directly ahead.
  • The kitchen lies to the right of the great room and has a direct line of sight to the fireplace flanked by bookshelves.
  • An adjacent hearth room expands the space to create a large living area.
  • The master suite is located on the main floor and features a tray ceiling, spacious walk-in closet with center island and dual sinks in the bathroom.
  • Downstairs, you'll love the large family room with fireplace, wet bar, game room and three additional bedrooms; each with a separate private bath and walk-in closet.
  • A three-stall, angled garage gives this home a dramatic exterior that is sure to command attention.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch Home Plan with Walkout Basement

  • 4,125

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Basement

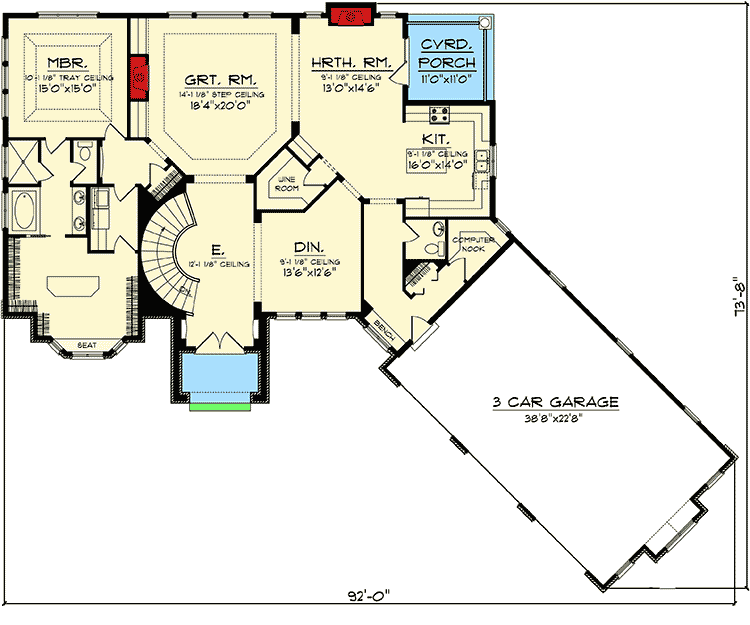

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,125 sq. ft.
  • Lower Level: 1,778 sq. ft.
  • 1st Floor: 2,347 sq. ft.

Dimensions

  • Width: 92' 0"
  • Depth: 73' 8"
  • Max ridge height: 23' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 927 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 9" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
