Plan 623587DJ

Ranch House Plan with 1 Bedroom, Mudroom, and Open Layout

Heated S.F.
1,230
Beds
1
Baths
1.5
Stories
1
Cars
2
Tour

Floor Plan

Plan 623587DJ

Main Level
Main Level

Plan 623587DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

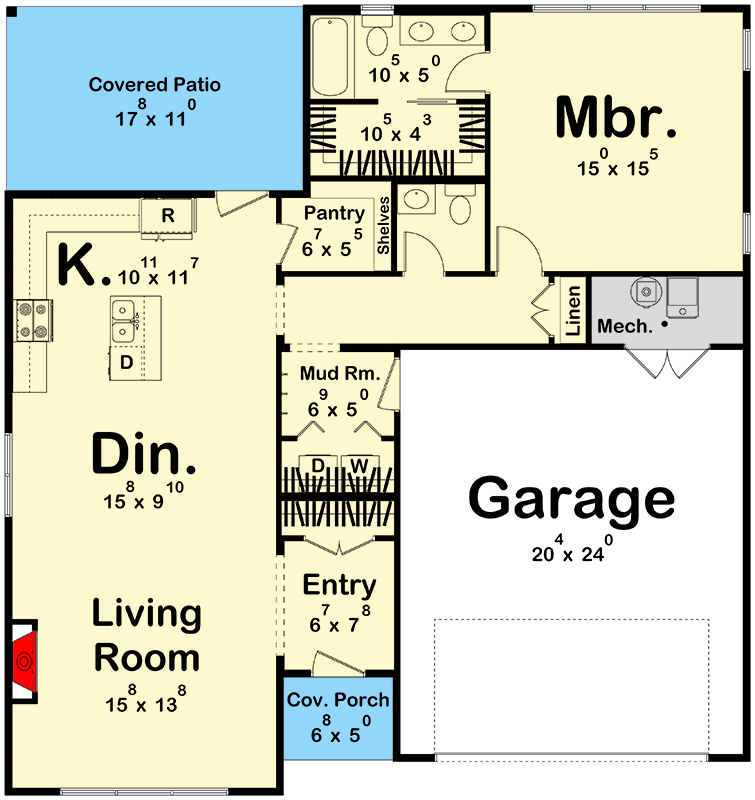

Plan 623587DJ: Ranch House Plan with 1 Bedroom, Mudroom, and Open Layout - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This inviting 1,230 sq. ft. Traditional Ranch house plan offers 1 bedroom, 1 full bath, 1 half bath, and a generous 505 sq. ft. 2-car front-entry garage.
  • Step from the covered front porch into a welcoming entry foyer that opens directly into the expansive, open-concept living area, seamlessly connecting the living room, dining room, and kitchen.
  • The central living room provides a comfortable gathering space, flowing into the dining area and an efficient kitchen featuring an island, ample counter space, and a walk-in butler's pantry for effortless organization and entertaining.
  • Tucked away for privacy, the serene master suite boasts a spacious bedroom, a full private bathroom, and direct access to a covered patio, creating a tranquil retreat for morning coffee or evening relaxation.
  • A thoughtfully designed mudroom, complete with a laundry area and abundant shelving, offers a practical transition space from the garage, keeping daily essentials organized and out of sight. The walk-in butler's pantry enhances kitchen functionality.
  • Enjoy outdoor living with a charming covered front porch and a private, expansive covered patio accessible directly from the master bedroom, perfect for unwinding in the fresh air.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,230 sq. ft.

1st Floor

1,230 sq. ft.

Porch, Combined

227 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

46' 8"

Max Ridge Height

8' 0"

Garage

Type

Standard, Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,230 sq. ft.

1st Floor

1,230 sq. ft.

Porch, Combined

227 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

46' 8"

Max Ridge Height

8' 0"

Garage

Type

Standard, Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
