Plan 970054VC

  • 3,395

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2-3

    Stories

  • 3

    Cars

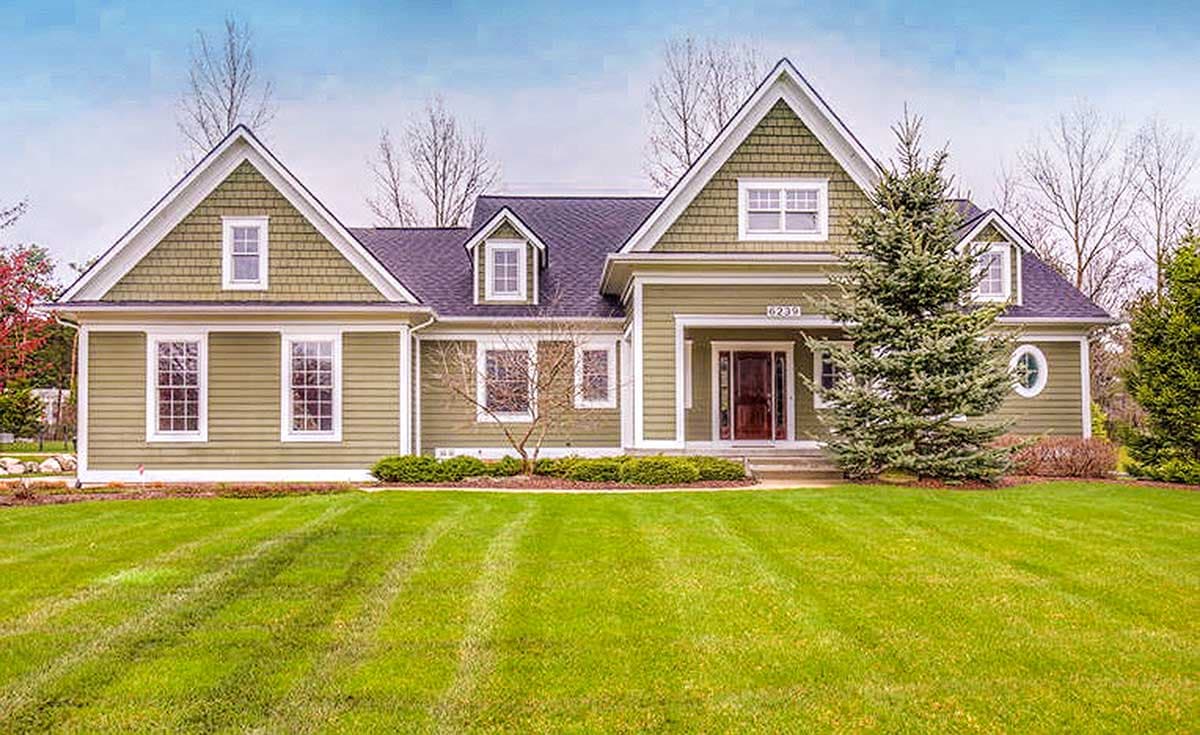

  • Get a big, open floor plan with this three bedroom Ranch house plan.
  • A den off the foyer has two columns on top of half walls to define the space.
  • This home has an informal layout with no formal dining room.

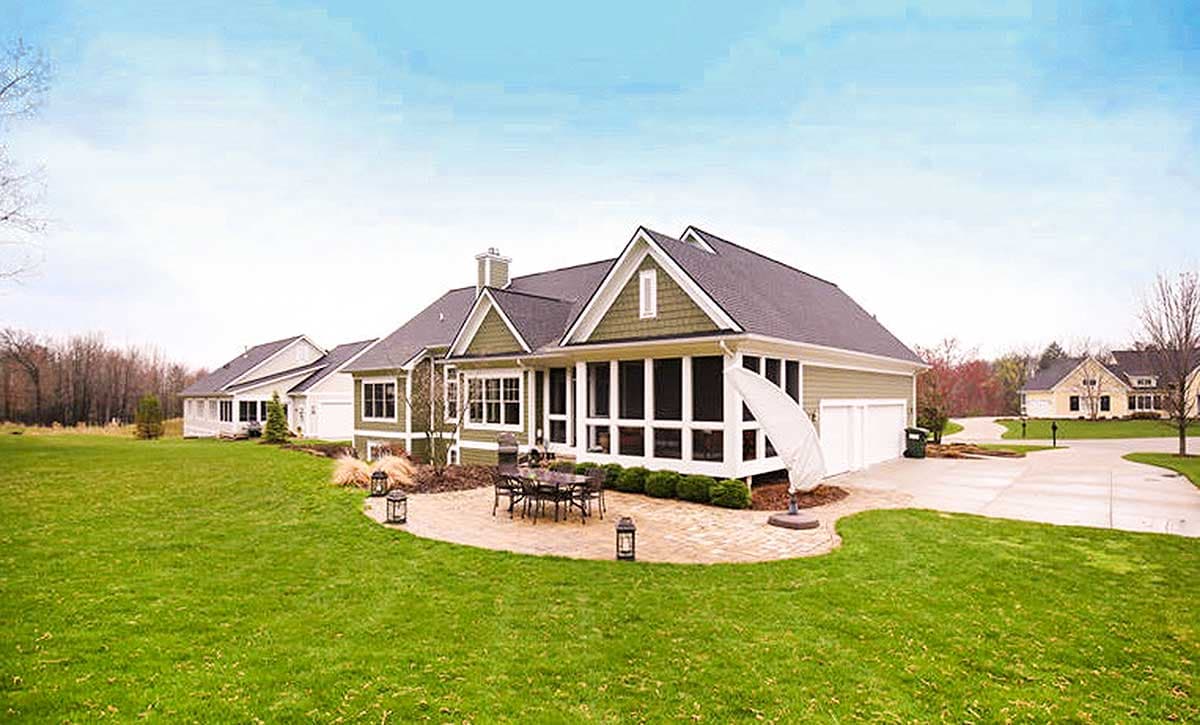

  • The big screen porch in back is vaulted giving you lots of space to dine outdoors.
  • The comfortable master suite is located on the main floor with a large walk-in closet for clothes storage.
  • On the lower level, there are two more bedrooms and a huge family room with future expansion space nearby.

  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

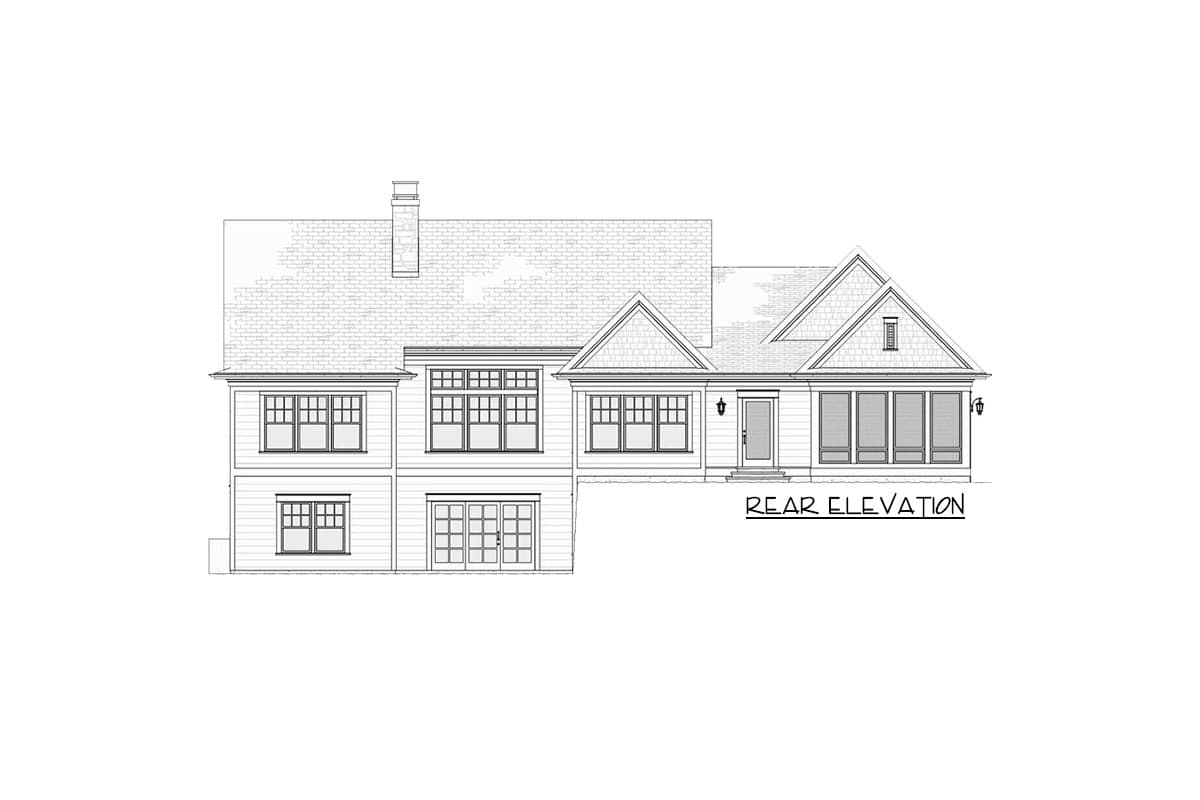

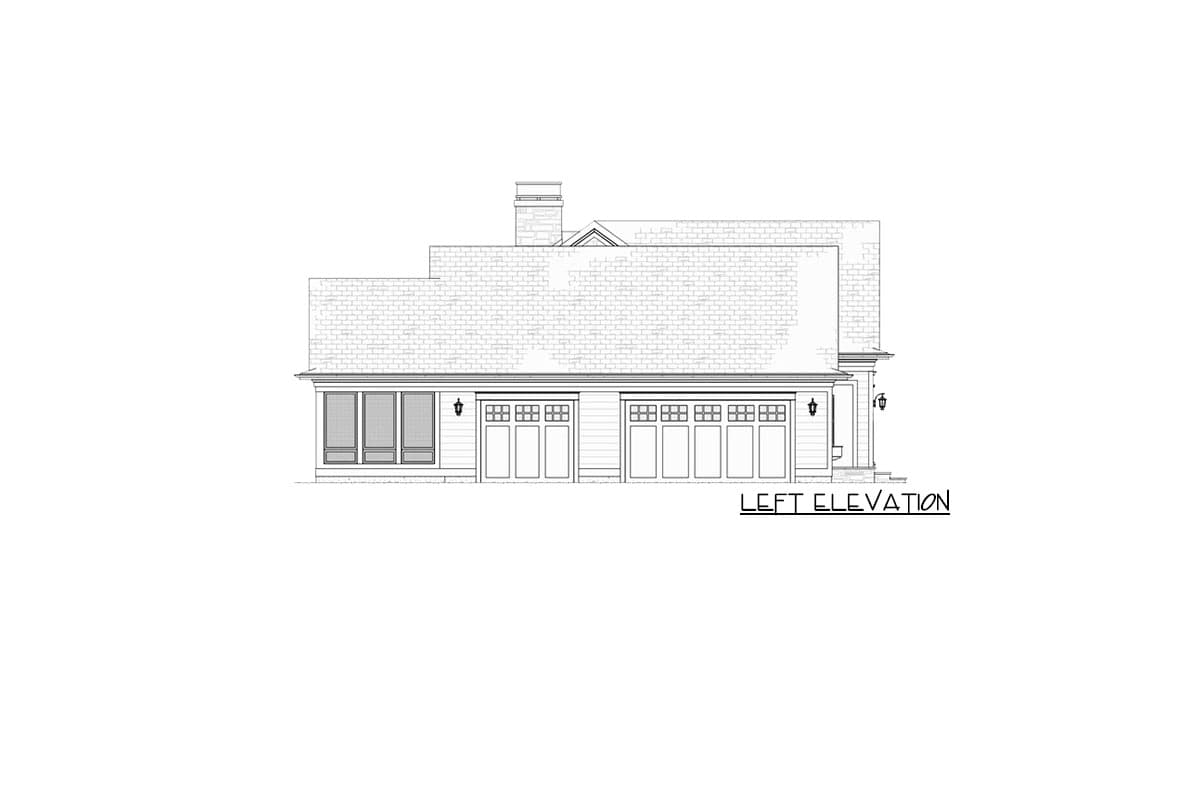

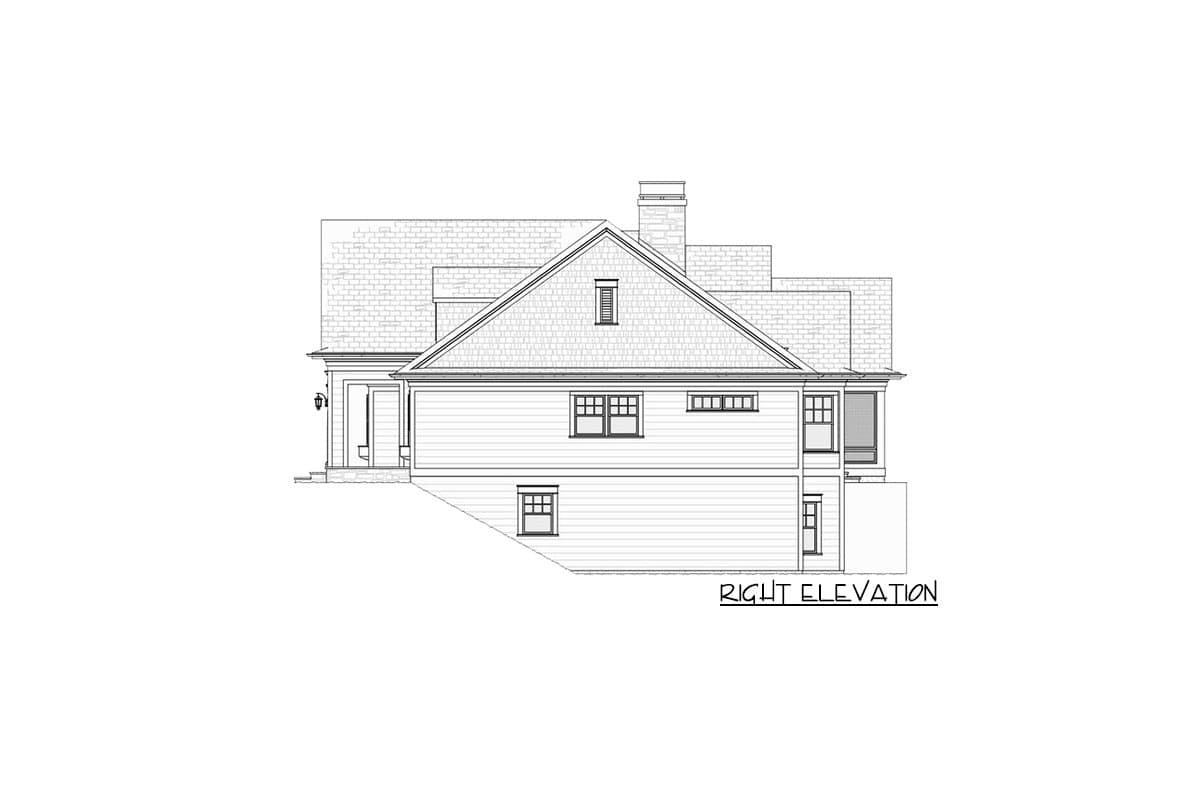

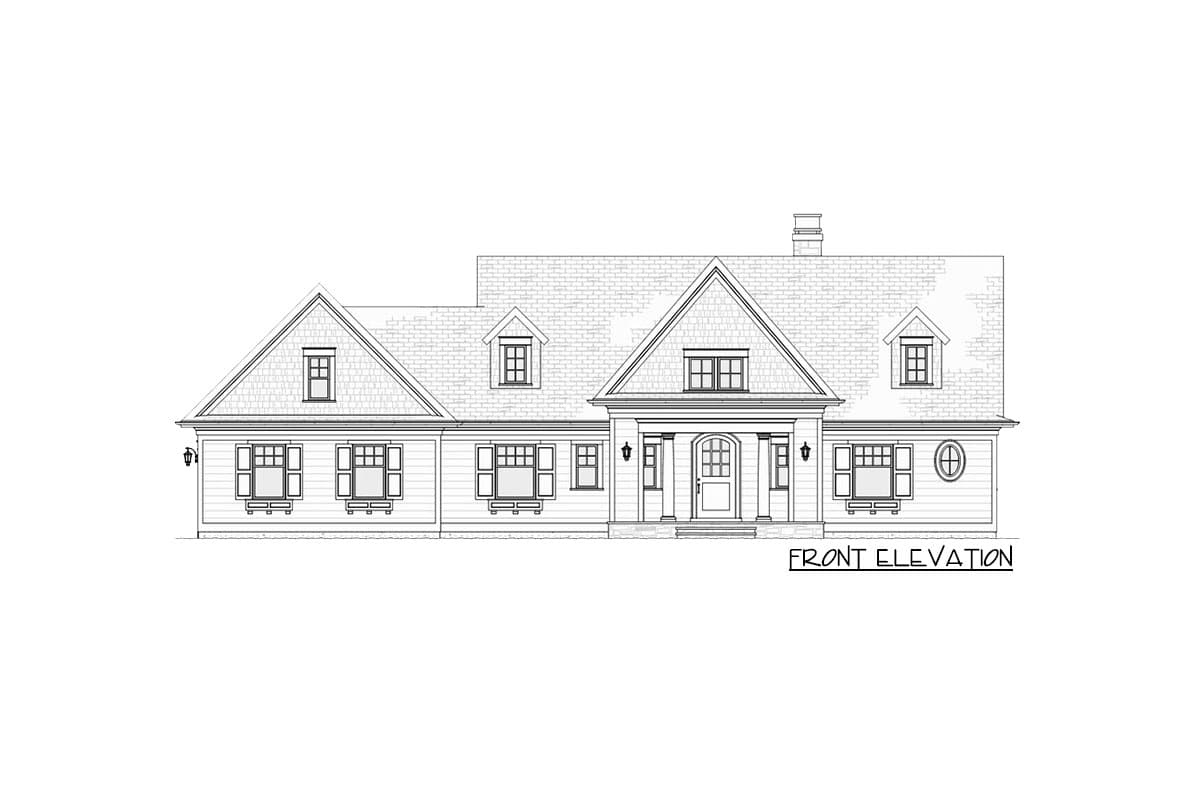

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

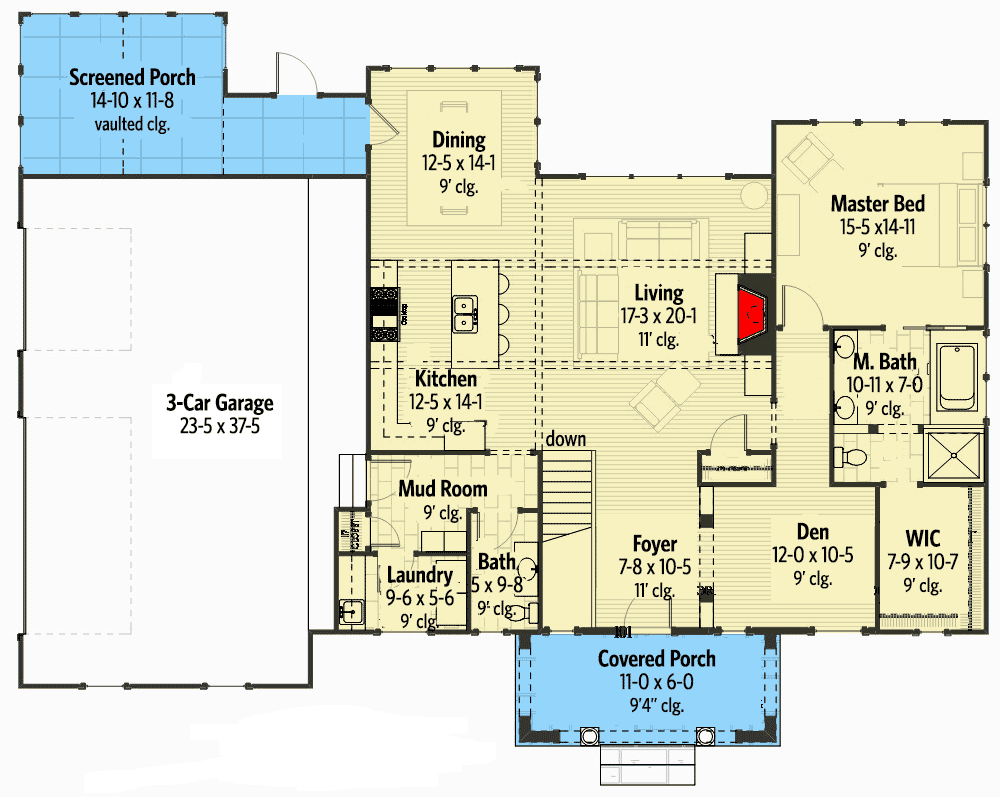

Ranch House Plan with Expansion Possibilities - 970054VC floor plan - Main Level

Lower Level

Pinit white
Reverse Floor Plan

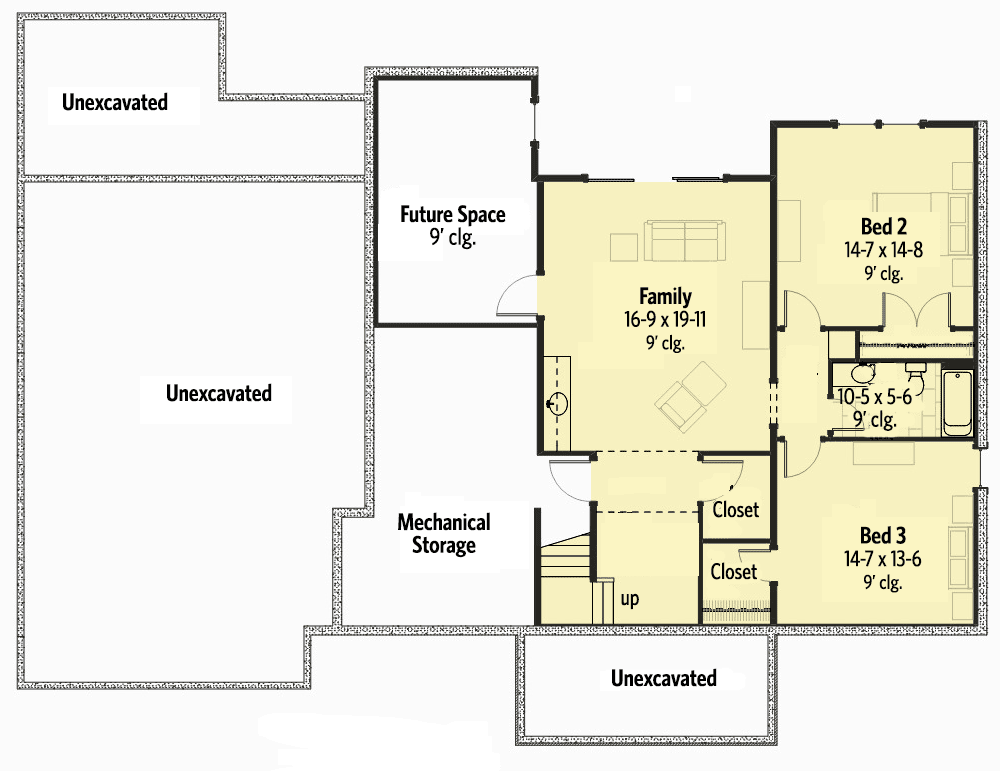

Ranch House Plan with Expansion Possibilities - 970054VC floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,395 sq. ft.
  • Lower Level: 1,388 sq. ft.
  • 1st Floor: 2,007 sq. ft.
  • Screened Porch: 174 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 9"
  • Depth: 50' 0"
  • Max ridge height: 25' 5"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Room Type Height
Foyer Flat 11' 0"
Living Room Flat 11' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Ranch House Plan with Expansion Possibilities

  • 3,395

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2-3

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $2,500
  • PDF - single-use $2,500
  • 8 Sets $2,600
  • CAD $3,375
  • View all purchase option online

About This Plan

  • Get a big, open floor plan with this three bedroom Ranch house plan.
  • A den off the foyer has two columns on top of half walls to define the space.
  • This home has an informal layout with no formal dining room.
  • The big screen porch in back is vaulted giving you lots of space to dine outdoors.
  • The comfortable master suite is located on the main floor with a large walk-in closet for clothes storage.
  • On the lower level, there are two more bedrooms and a huge family room with future expansion space nearby.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,395 sq. ft.
  • Lower Level: 1,388 sq. ft.
  • 1st Floor: 2,007 sq. ft.
  • Screened Porch: 174 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 9"
  • Depth: 50' 0"
  • Max ridge height: 25' 5"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

  • Ranch
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Photo Gallery
