Plan 290079IY
Ranch House Plan with Four to Seven Bedrooms
Heated S.F.
3,040
Beds
4-7
Baths
4 - 5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

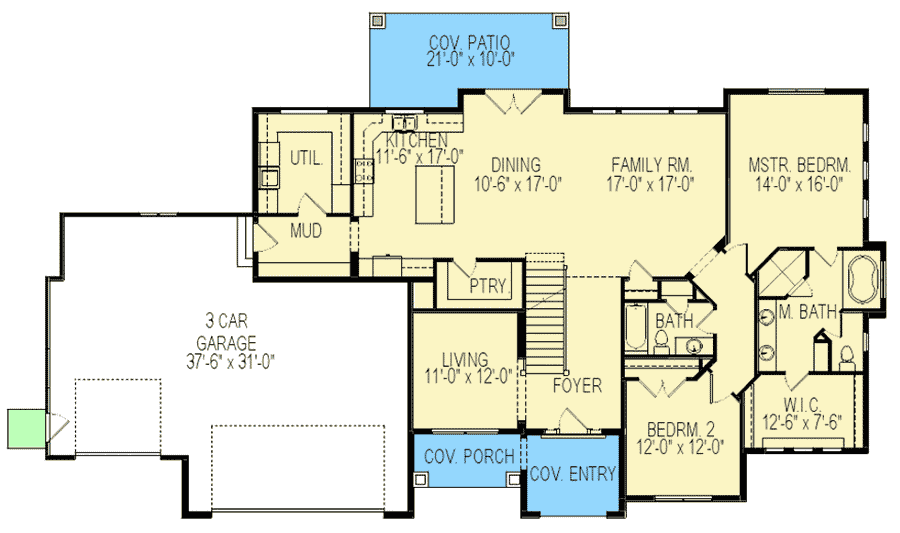

Ranch House Plan with Four to Seven Bedrooms - 290079IY floor plan - Main Level
2nd Floor
Reverse Floor Plan
Ranch House Plan with Four to Seven Bedrooms - 290079IY floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

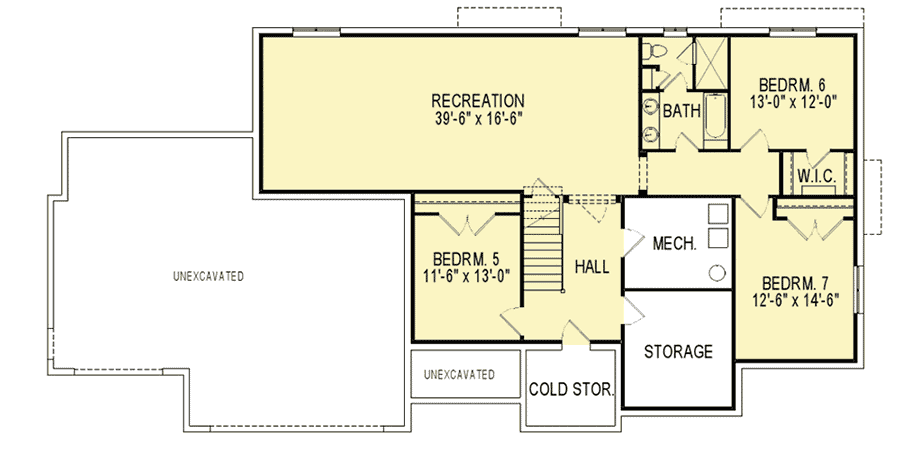

Ranch House Plan with Four to Seven Bedrooms - 290079IY floor plan - Optional Lower Level
Plan Details
  • The four bedrooms in this European house plan are separated with two on the main floor and two upstairs and the option for three more if you finish the lower level.
  • You can relax in the formal living room off the foyer or in the giant family room in back.
  • There is no formal dining room, just a large informal eating area with double doors to the rear covered patio.
  • On the second floor there is a loft area and playroom to store all the kids toys.
  • Finish the optional lower level to gain three more bedrooms and a massive rec room.
What's Included
This plan has 24 pages as follows:
  1. Cover sheet and index
  2. Project notes
  3. Complete schedules
  4. Terrace level floor plan
  5. Terrace level dimension plan
  6. Main level floor plan
  7. Main level dimension plan
  8. Upper level floor plan
  9. Upper level dimension plan
  10. Terrace level refl. floor plan
  11. Main level refl. floor plan
  12. Second level refl. floor plan

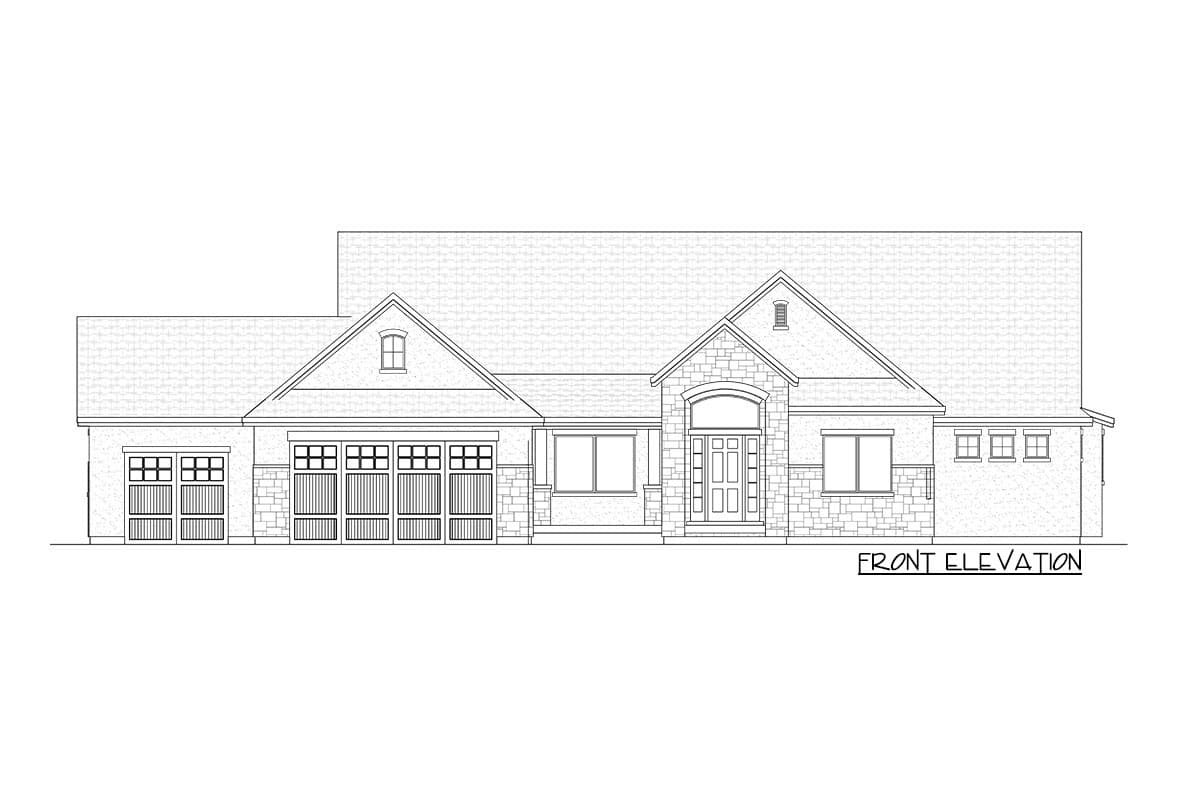

  13. Front and rear elevations

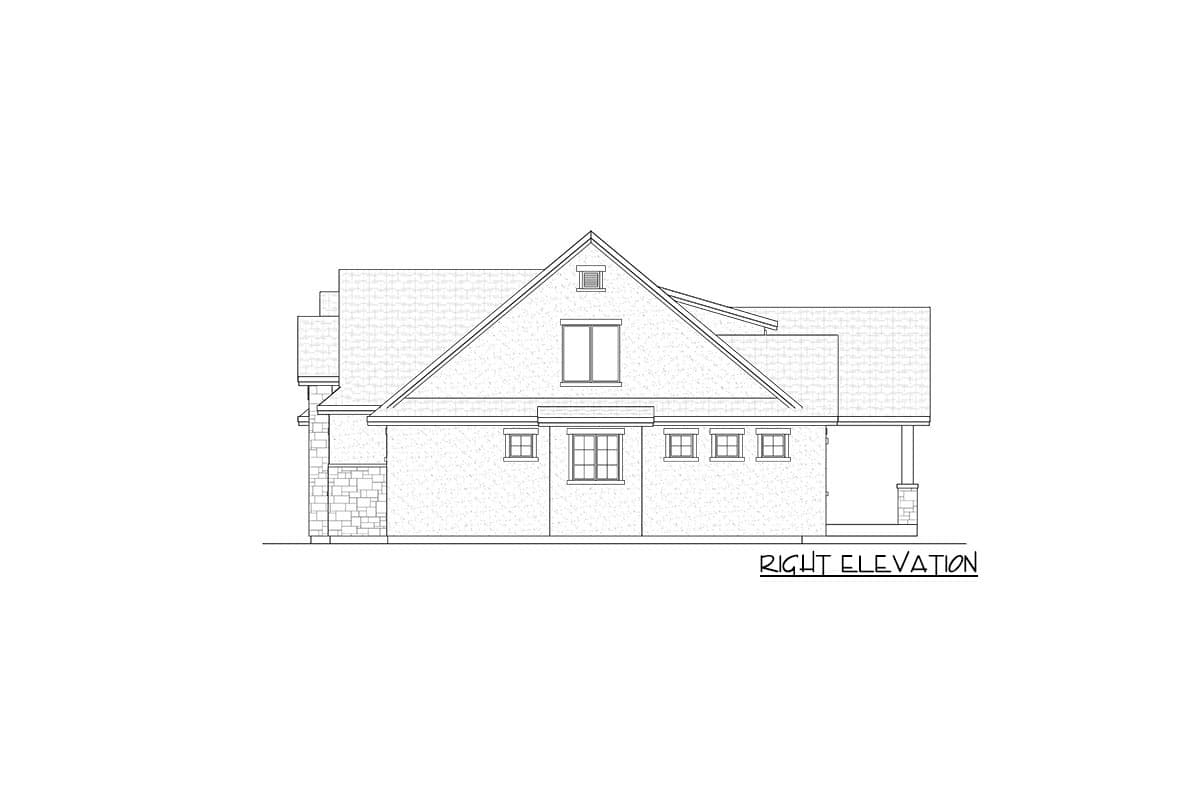

  14. Left and right elevations
  15. Building Section A and B
  16. Architectural Details
  17. Architectural details
  18. Roof plan
  19. Terrace level power plan
  20. Terrace level lighting plan
  21. Main level power plan
  22. Main level lighting plna
  23. Upper level power plan
  24. Upper level lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
