Ranch Plan With Large Great Room

Plan 89918AH

  • 2,495

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • At just under 2,500 square feet, this ranch home has a metal roof, shuttered windows, massive front columns and a side entry defined by a small porch.
  • Inside, an open concept floor plan is defined by a spacious kitchen that features curved island that overlooks the great room and adjacent dinette.
  • A formal dining room lies to the front of the home just to the left of the entry while the master suite lies to the right.
  • It includes a tray ceiling, spacious walk-in closet, dual sinks and Jacuzzi tub.
  • Two additional bedrooms are found on the opposite side of the home for maximum privacy.
  • A three-stall side-load garage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Plan details



Ranch Plan With Large Great Room

  • 2,495

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,015
  • 8 Sets $1,061
  • Reproducible Set $1,275
  • PDF - Single-Build $1,275
  • CAD - Single-Build $2,020
  • View all purchase option online

About This Plan

  • At just under 2,500 square feet, this ranch home has a metal roof, shuttered windows, massive front columns and a side entry defined by a small porch.
  • Inside, an open concept floor plan is defined by a spacious kitchen that features curved island that overlooks the great room and adjacent dinette.
  • A formal dining room lies to the front of the home just to the left of the entry while the master suite lies to the right.
  • It includes a tray ceiling, spacious walk-in closet, dual sinks and Jacuzzi tub.
  • Two additional bedrooms are found on the opposite side of the home for maximum privacy.
  • A three-stall side-load garage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

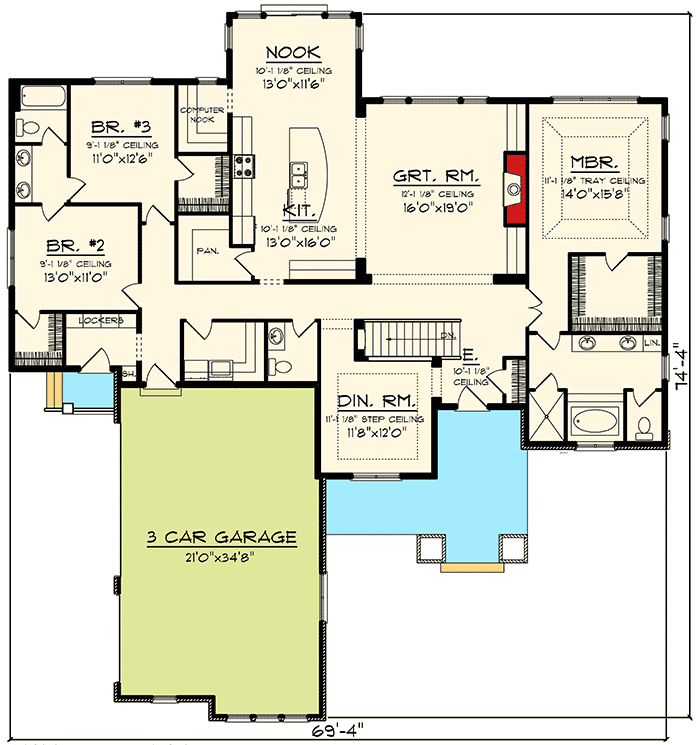

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,495 sq. ft.
  • 1st Floor: 2,495 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 69' 4"
  • Depth: 74' 4"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 731 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
