Plan 57024HA

Ranch with Country Elegance

Heated S.F.
1,787
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 57024HA

Main Level
Main Level
Main Level
Main Level

Plan 57024HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

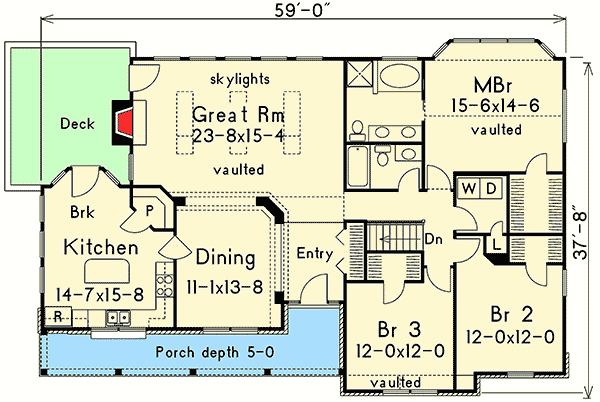

Plan 57024HA: Ranch with Country Elegance - Floor Plan - Main Level - Country, Ranch

Main Level

Plan 57024HA: Ranch with Country Elegance - Floor Plan - Main Level - Country, Ranch

Plan Details

  • Large great room with fireplace and vaulted ceilings features three large skylights and windows galore.
  • Cooking is sure to be a pleasure in this L-shaped well-appointed kitchen which includes a bayed breakfast area with access to the rear deck.
  • Every bedroom offers a spacious walk-in closet with convenient laundry room just steps away.
  • Master suite has a vaulted ceiling, bay window and own five-fixture bathroom.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

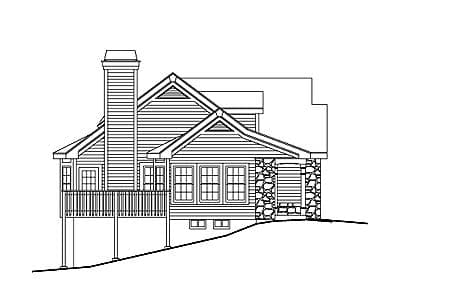

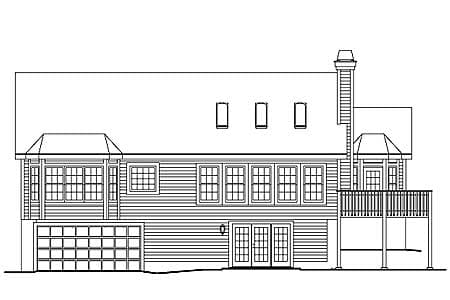

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,787 sq. ft.

1st Floor

1,787 sq. ft.

Optional Lower Level

415 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 0"

Depth

37' 8"

Garage

Type

Drive Under

Area

486 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,787 sq. ft.

1st Floor

1,787 sq. ft.

Optional Lower Level

415 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 0"

Depth

37' 8"

Garage

Type

Drive Under

Area

486 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Sloping Lot
