Plan 39040ST
Ranch with Southern Styling
Heated S.F.
2,199
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • Multiple gables, stone and siding exterior and a covered entry create a beautiful facade on this one level home plan. The great room, dining area and spacious kitchen combine to offer a large family gathering place. The placement of the entertainment alcove and fireplace provide a view from all three locations.
  • The three sets of French doors across the rear provide an abundance of light. Additional windows in the dining area are set high to provide space for a sideboard on the outside wall. An eleven foot ceiling height tops the great room and dining area.
  • Generous counter space, cabinetry, an island, and pantry in the kitchen, in addition to the adjacent laundry room and a small home office form an efficient work area.
  • The master bedroom suite is separated from the secondary bedrooms and enjoys a 10' ceiling and deluxe dressing room with whirlpool tub, dual sink vanity, shower and large walk-in closet.
  • A spectacular covered rear porch with fireplace extends the outdoor enjoyment to cooler weather. Split stairs lead to a full basement for storage or additional square footage.
What's Included
  • General notes and specifications

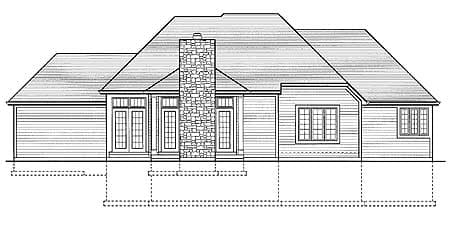

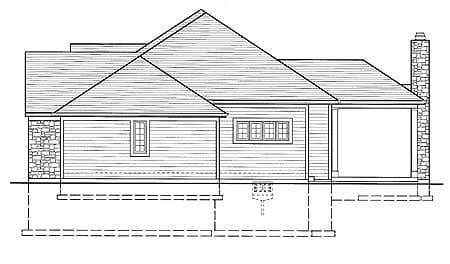

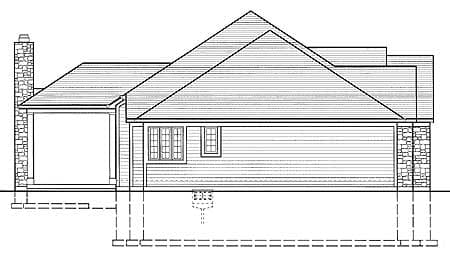

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details

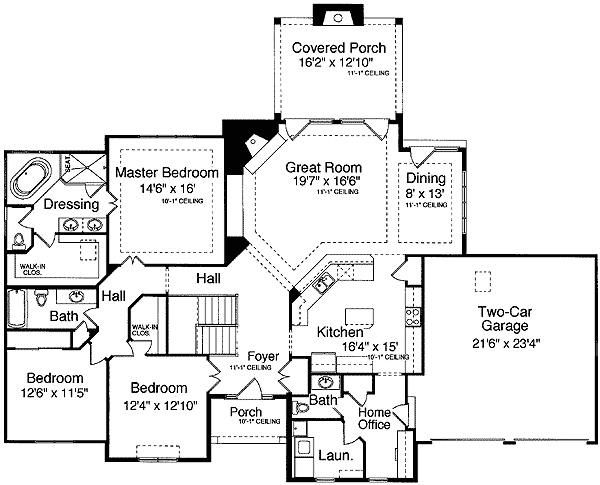

  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch with Southern Styling

  • 2,199

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,199 sq. ft.
  • 1st Floor: 2,199 sq. ft.

Dimensions

  • Width: 74' 8"
  • Depth: 60' 7"
  • Max ridge height: 26' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 511 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
