Plan 89888AH
Ranch With Swooping Roof and Shed Dormer
Heated S.F.
2,345
Beds
3
Baths
2
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • Craftsman detailing give this one story house plan great curb appeal. Notice the subtle sweep of the gable over the entry and the shed dormer: two nice touches.
  • As you enter, you'll be drawn into the home by the spacious great room that lies directly ahead. Here you'll find an open concept floor plan where the kitchen with island and the dining work with it to make a large living area for everyday.
  • The bedrooms all lie to the right of the entry and include a master suite with step ceiling, walk-in closet and direct access to the laundry area. Two additional bedrooms lie to the front and share a full bath off the hallway.
  • A 3-car, side-load garage completes the home.
  • VIDEO TOUR: See the home from the inside and out in our YouTube video tour.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch With Swooping Roof and Shed Dormer

  • 2,345

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

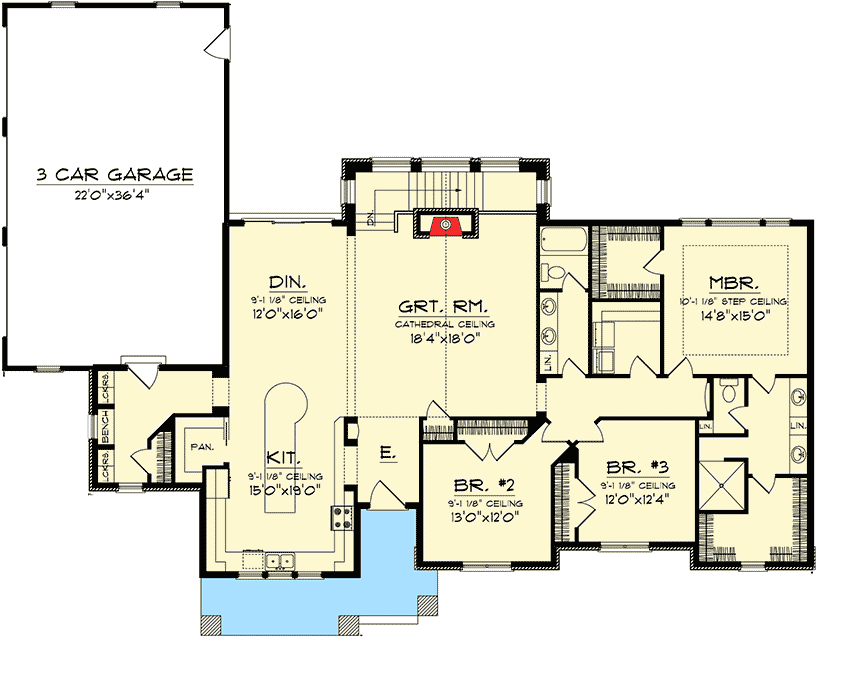

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,345 sq. ft.
  • 1st Floor: 2,345 sq. ft.

Dimensions

  • Width: 82' 0"
  • Depth: 64' 0"
  • Max ridge height: 20' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 824 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
