Plan 36121TX Rear-Facing Oasis with Master Retreat

5,108 3 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Rear-Facing Oasis with Master Retreat

Plan 36121TX

  • 5,108

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

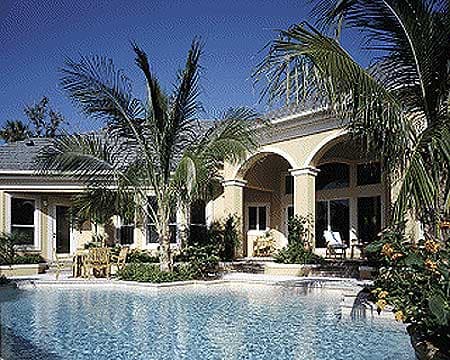

  • This luxury home plan is designed to take advantage of a rear-facing lot. Create your own oasis with the help of his one-of-a-kind design.

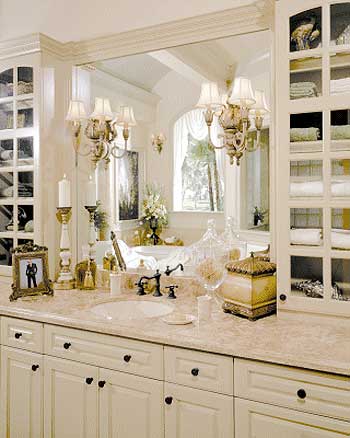

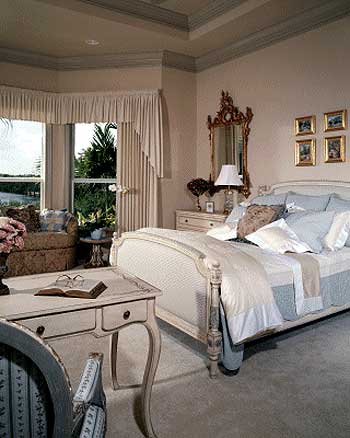

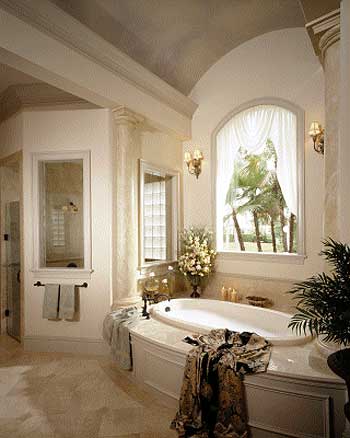

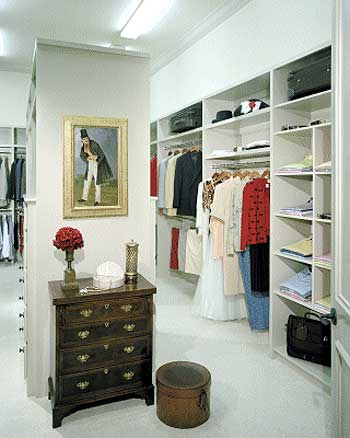

  • First note the master quarters. A large light-filled master bedroom has an intricate tray ceiling and a spa-like barrel-vaulted bath with his-and-her commodes. The wardrobe is a room unto itself and features ample built-ins plus windows giving you natural light. There's more - a master retreat complete with its own bar and terrace give you reasons to stay secluded as long as you can.

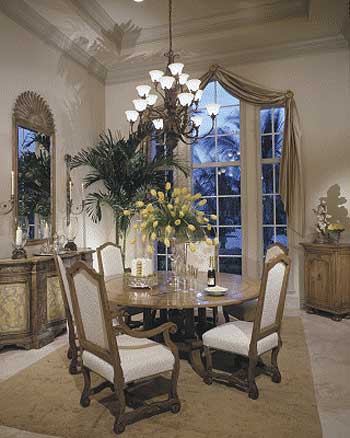

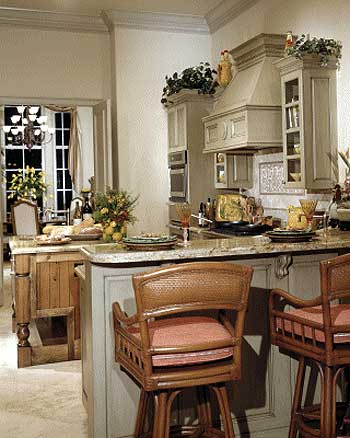

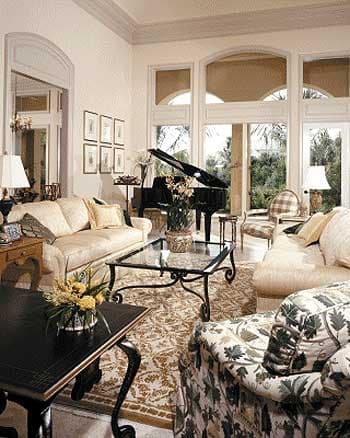

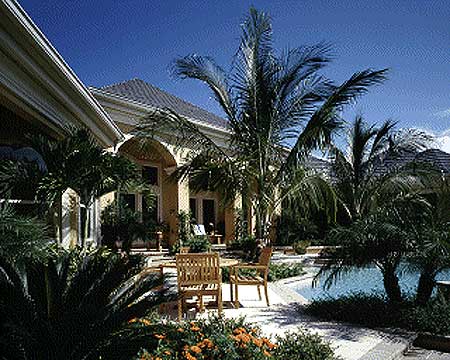

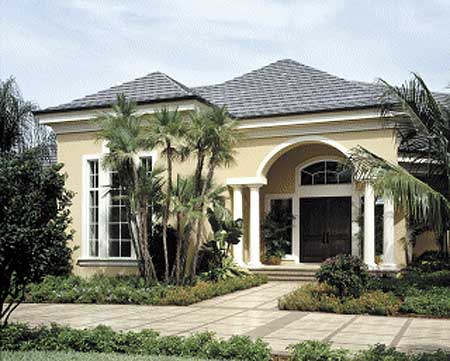

  • The dramatic living room has a 20'-vaulted ceiling and views across the broad terrace. A bar makes entertaining more fun. These views are shared by the Kitchen and breakfast room. The dining room faces the front. Two built-ins house your china nearby.

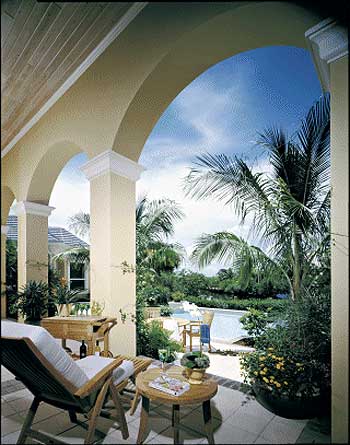

  • The family room has a grand fireplace flanked by built-ins and accesses the back lanai.

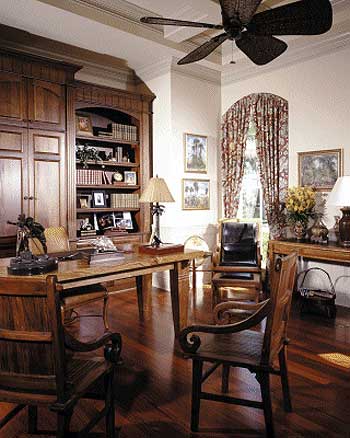

  • Two private bedroom suites - one with lanai access - and a study with coffered ceiling and built-ins complete the main floor.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

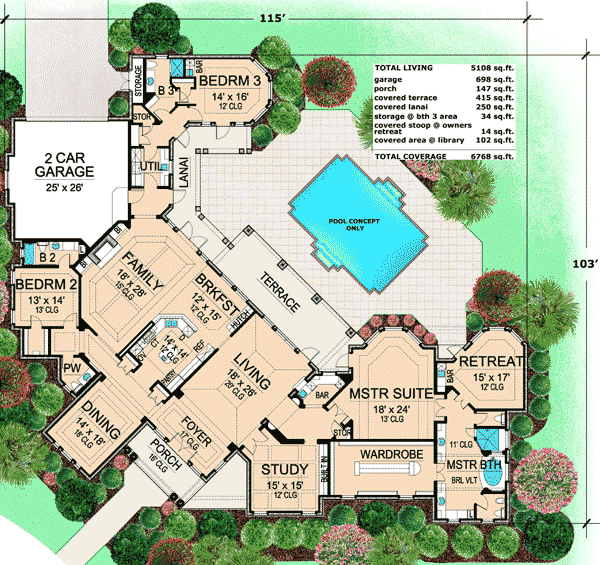

Rear-Facing Oasis with Master Retreat - 36121TX floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,108 sq. ft.
  • 1st Floor: 5,108 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 115' 0"
  • Depth: 103' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 698 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Architectural Style

Special features

Plan Collections

Rear-Facing Oasis with Master Retreat

  • 5,108

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,420
  • 5 Sets $2,620
  • CAD - Single-Build $3,630
  • View all purchase option online

About This Plan

  • This luxury home plan is designed to take advantage of a rear-facing lot. Create your own oasis with the help of his one-of-a-kind design.
  • First note the master quarters. A large light-filled master bedroom has an intricate tray ceiling and a spa-like barrel-vaulted bath with his-and-her commodes. The wardrobe is a room unto itself and features ample built-ins plus windows giving you natural light. There's more - a master retreat complete with its own bar and terrace give you reasons to stay secluded as long as you can.
  • The dramatic living room has a 20'-vaulted ceiling and views across the broad terrace. A bar makes entertaining more fun. These views are shared by the Kitchen and breakfast room. The dining room faces the front. Two built-ins house your china nearby.
  • The family room has a grand fireplace flanked by built-ins and accesses the back lanai.
  • Two private bedroom suites - one with lanai access - and a study with coffered ceiling and built-ins complete the main floor.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,108 sq. ft.
  • 1st Floor: 5,108 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 115' 0"
  • Depth: 103' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 698 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"
Plan 36121TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36121TX
|
