Rear-Oriented House Plan with Grilling Porch

Plan 59671ND

  • 2,864

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • The planters on either side of the entry porch on this traditional house plan are a nice touch to the outside of this design.
  • Inside, the openness of the great room and dining room facilitate entertaining guests. The extended ceiling heights as well as the column-lined rooms bring classic style to these rear-oriented rooms that can overlook the golf course or lake view.
  • The openness of this design extends into the unique kitchen and breakfast areas as well that access the rear grilling porch for convenience.
  • The luxurious master bath offers a relaxing whirlpool bath with an enormous walk-in closet.
  • The secondary bedrooms have access to an accommodating bathroom.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

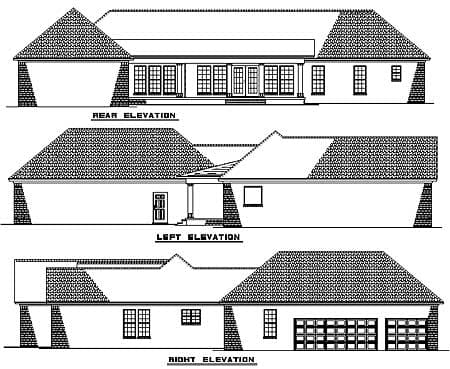

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

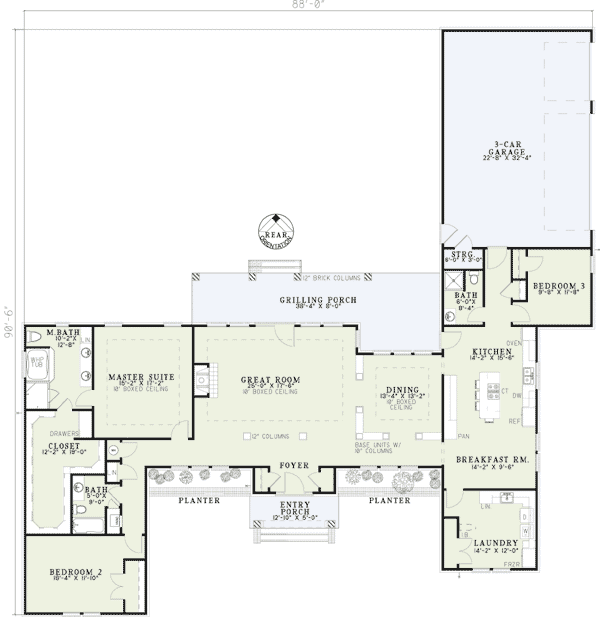

Rear-Oriented House Plan with Grilling Porch - 59671ND floor plan - Main Level

Architectural Style

Plan Collections

Rear-Oriented House Plan with Grilling Porch

  • 2,864

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,864 sq. ft.
  • 1st Floor: 2,864 sq. ft.

Dimensions

  • Width: 88' 0"
  • Depth: 90' 6"
  • Max ridge height: 19' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 806 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
