Plan 623544DJ

Refined 3-Bed European House Plan with Split Bedrooms and Grand Patio

Name: Plan 623544DJ: Refined 3-Bed European House Plan with Split Bedrooms and Grand Patio
Brand: Architectural Designs
SKU: 623544DJ
Price: 1599.0 USD
Availability: InStock

Heated S.F.

2,238

Beds

Baths

2.5

Stories

Cars

Tour

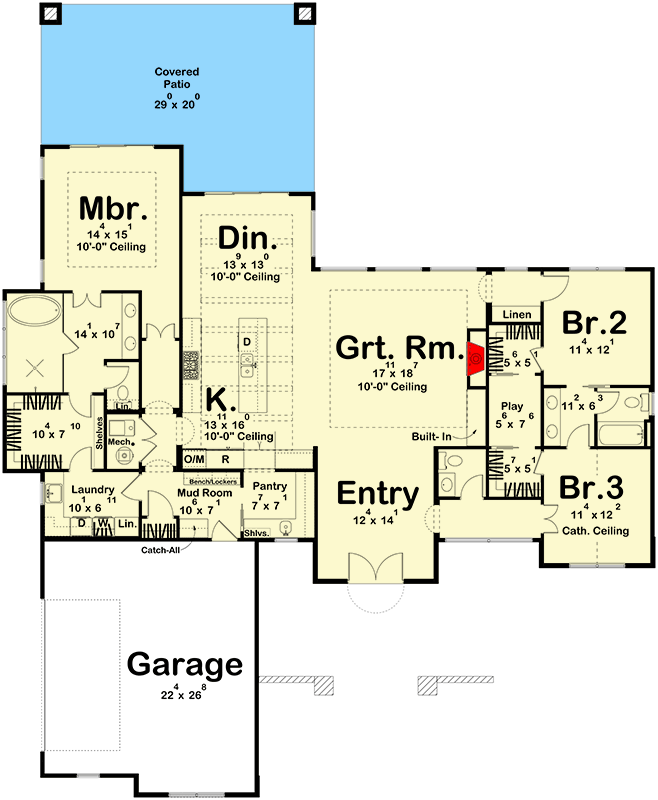

Floor Plan

Main Level

Plan Details

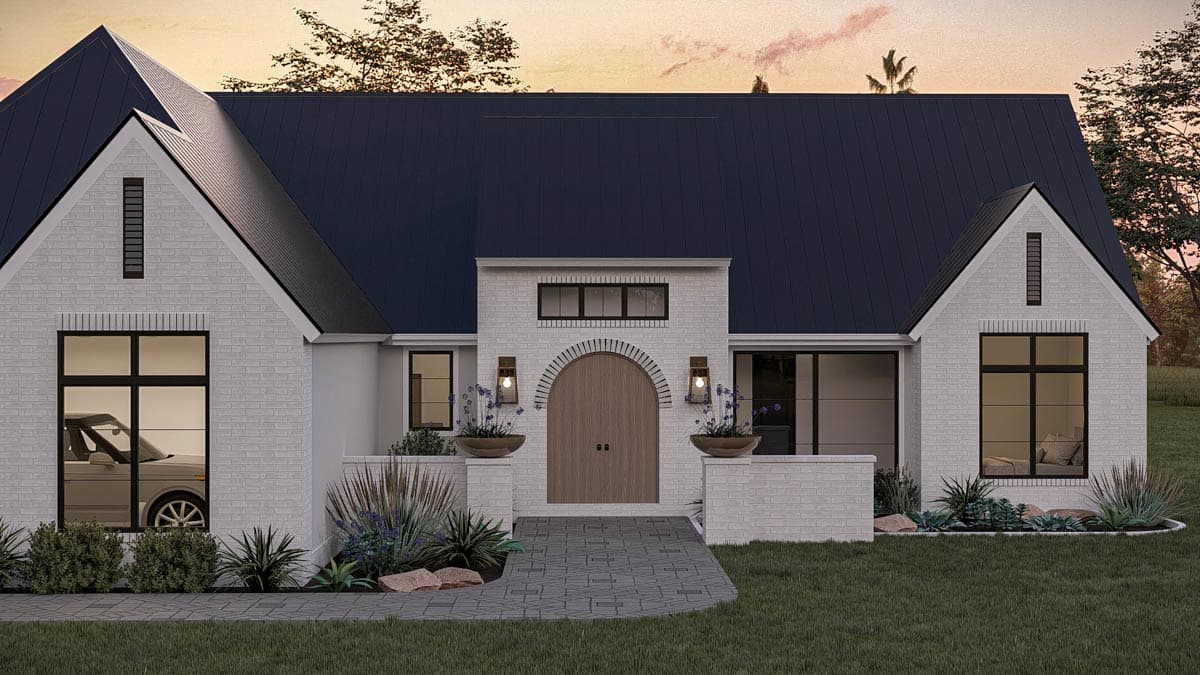

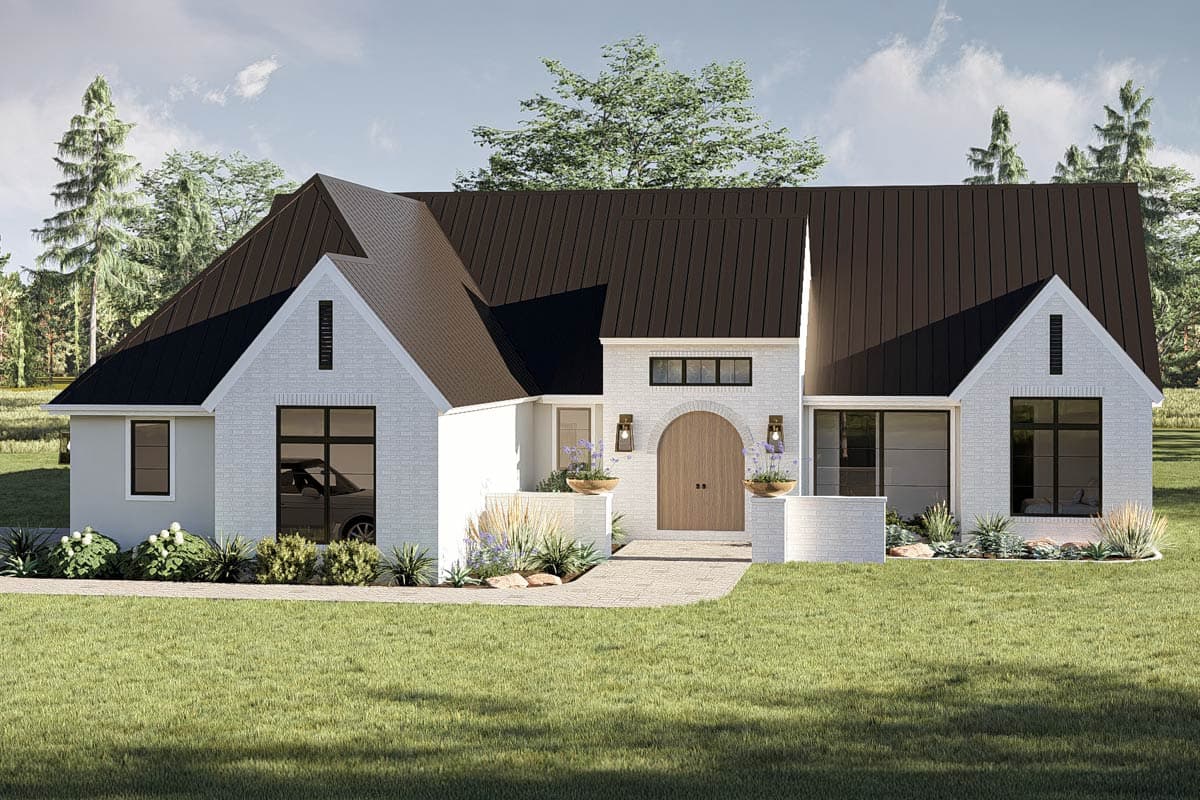

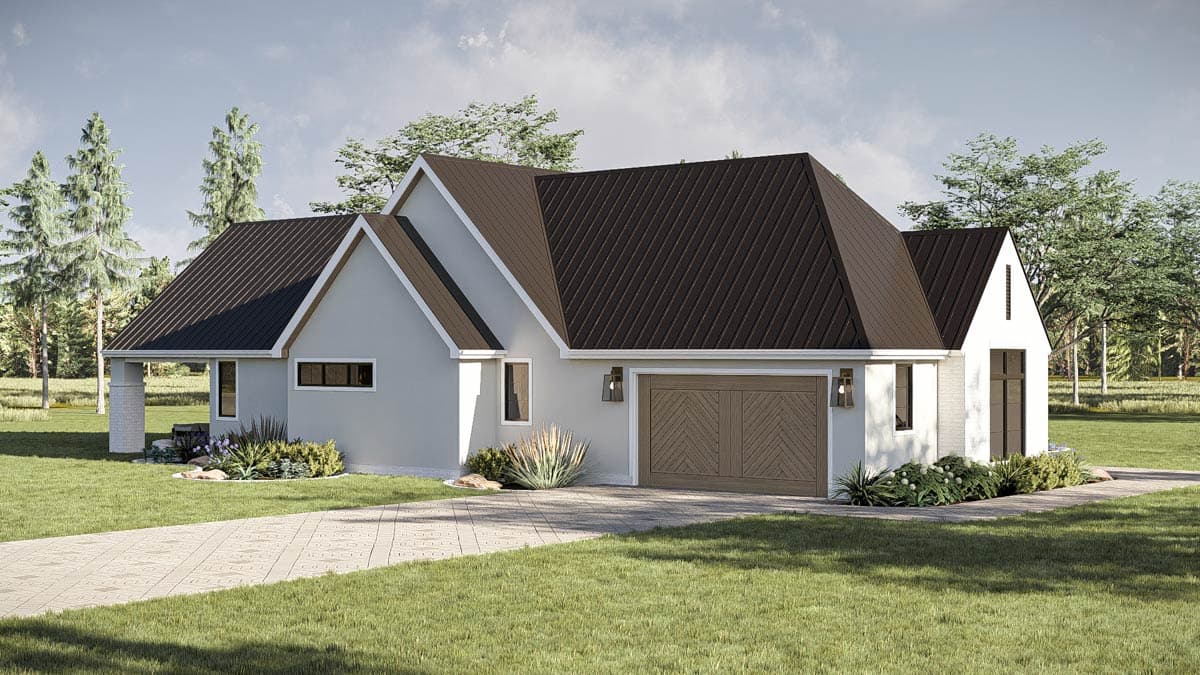

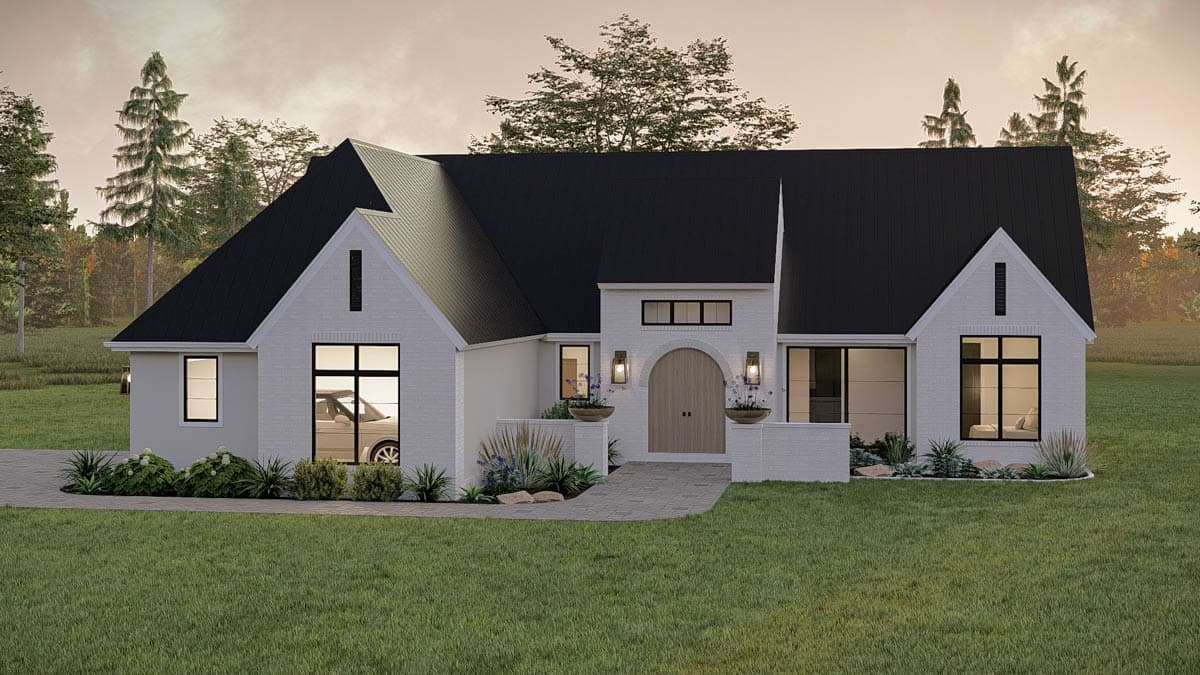

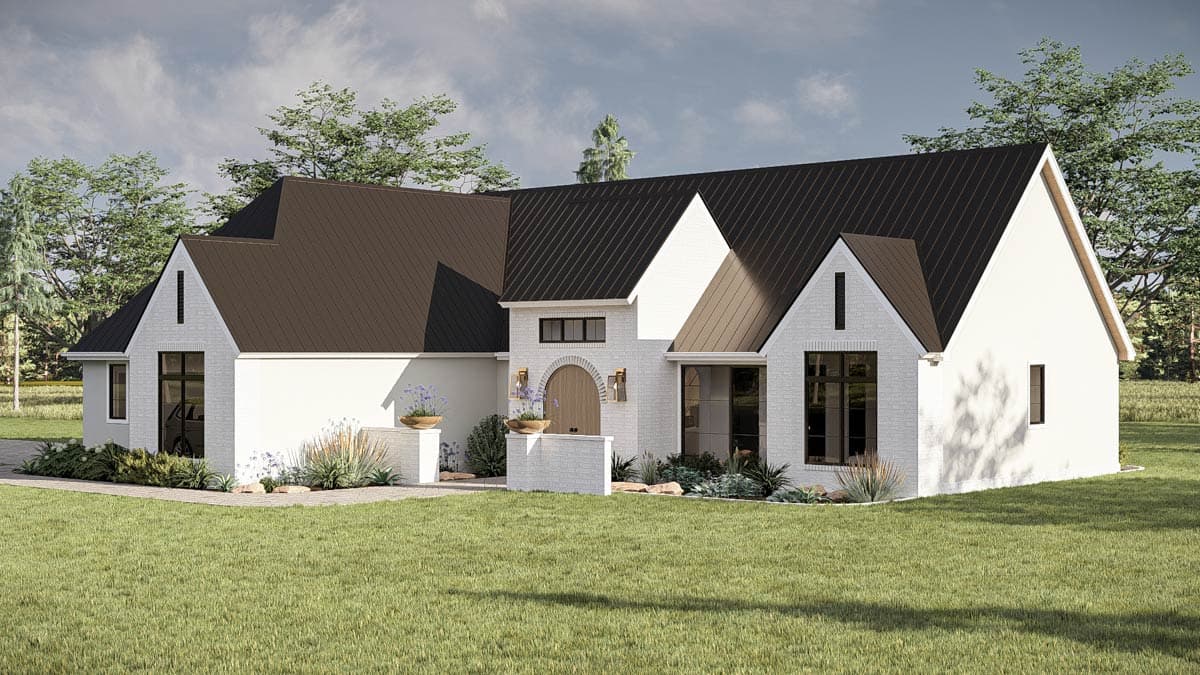

This sophisticated 2,238 sq. ft. European Transitional house plan offers three bedrooms, two full and one half bathrooms, and a spacious 601 sq. ft. side-entry two-car garage, all wrapped in a timeless aesthetic.

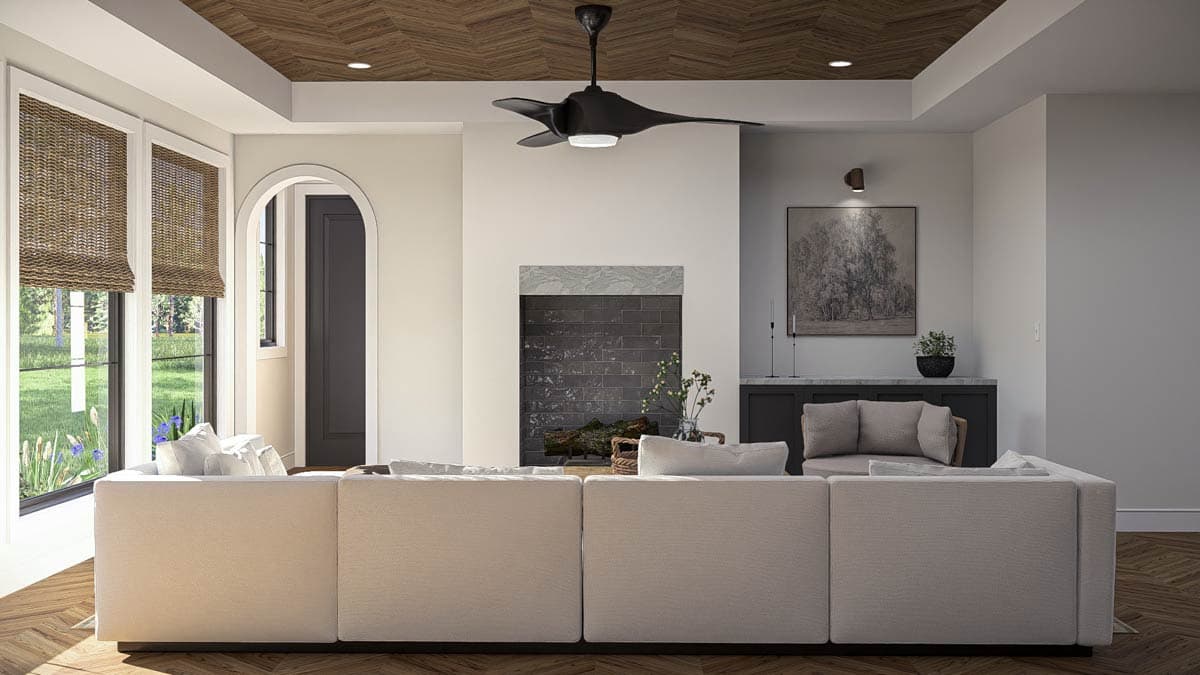

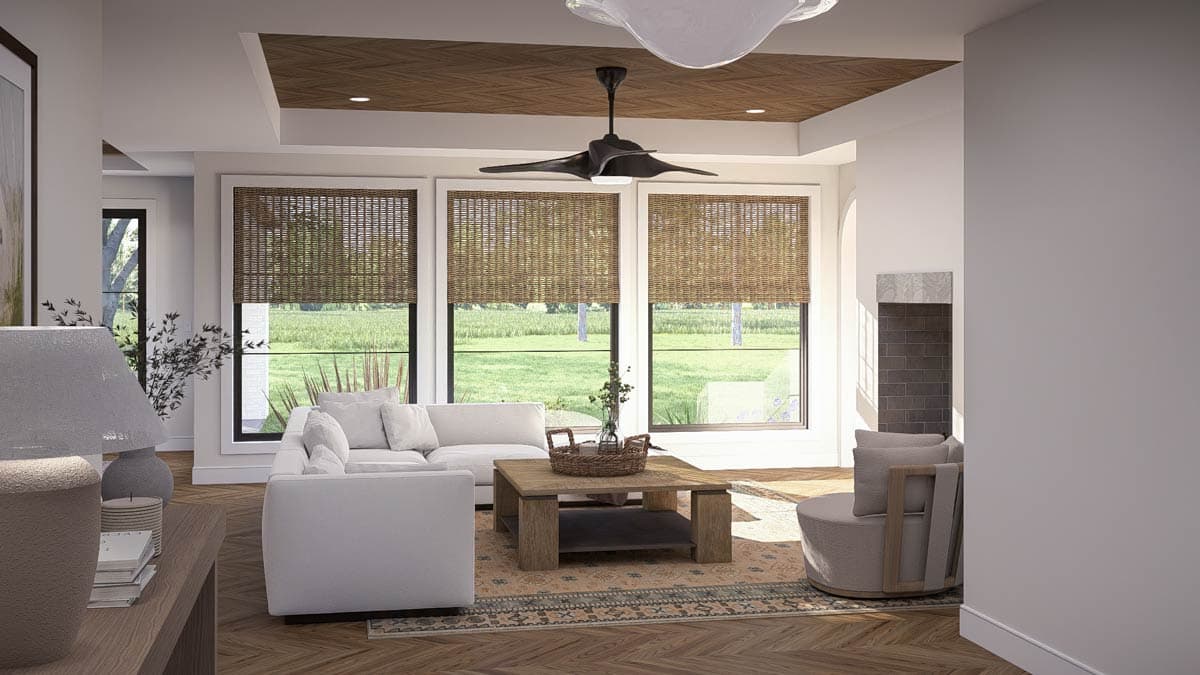

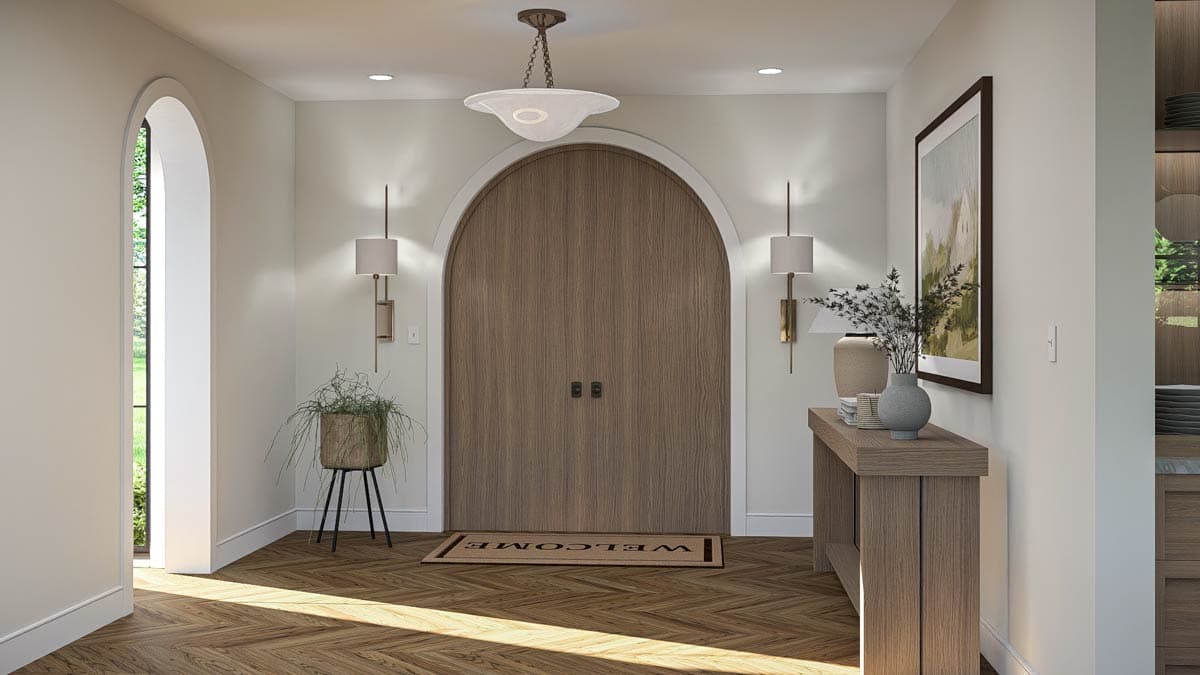

Step inside the inviting 12' x 14' entry, where the open-concept layout immediately draws you into the expansive great room, featuring a cozy built-in and 10-foot ceilings that enhance the feeling of grandeur.

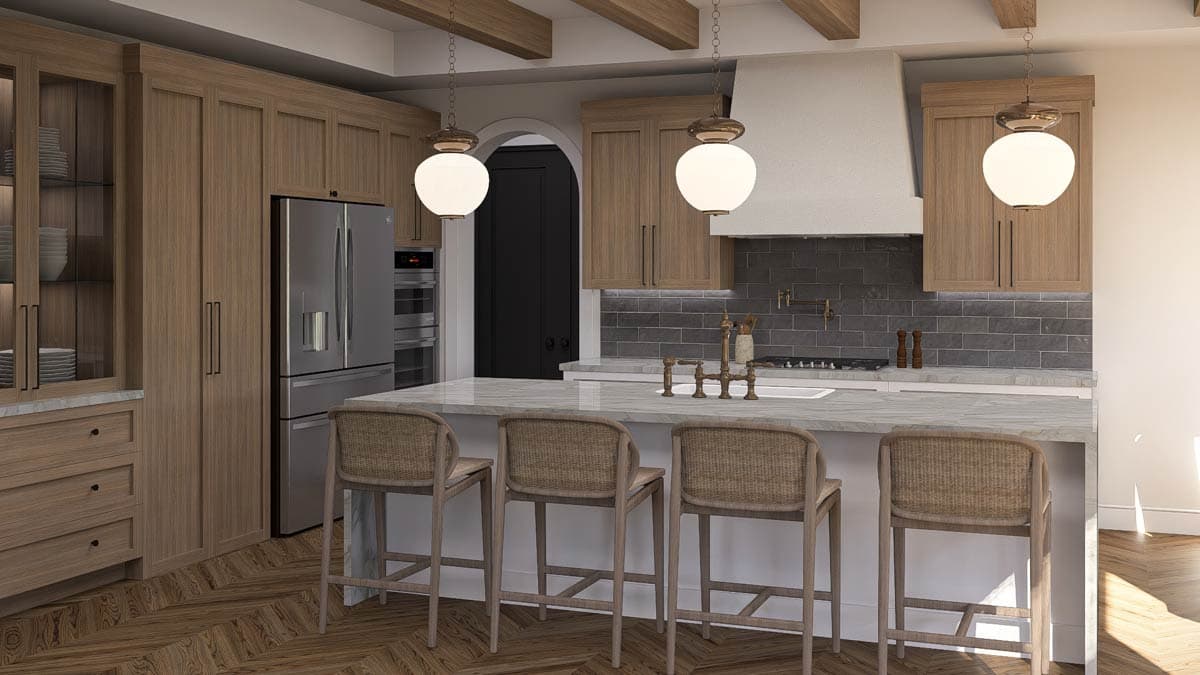

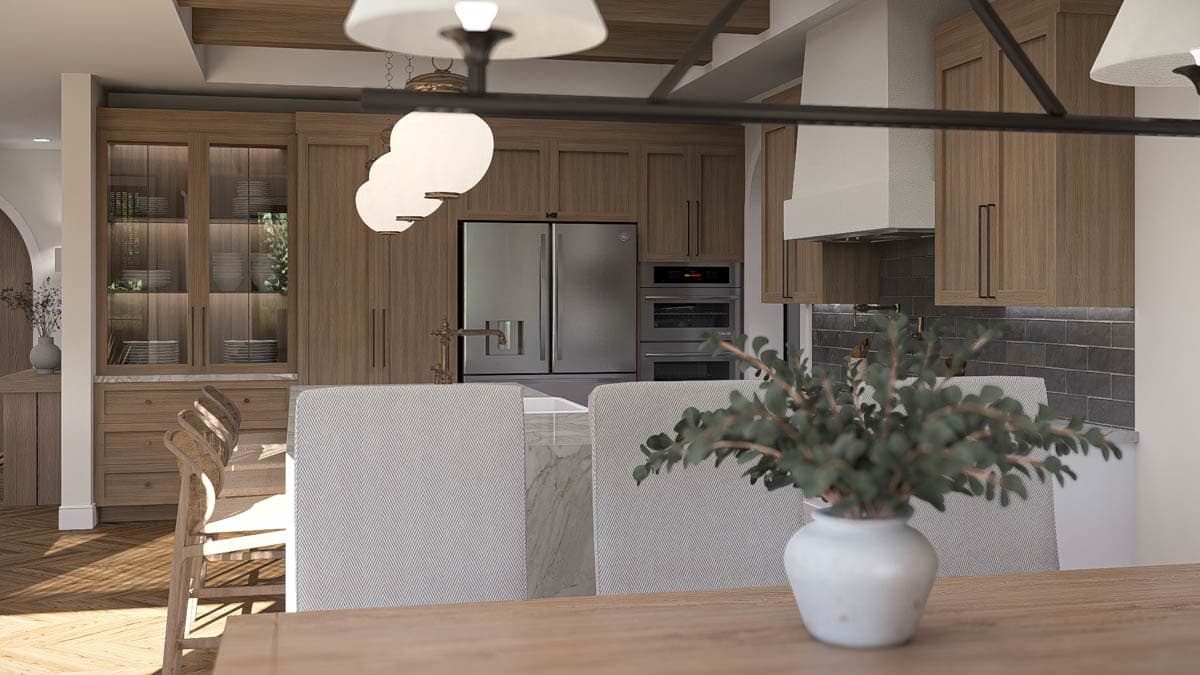

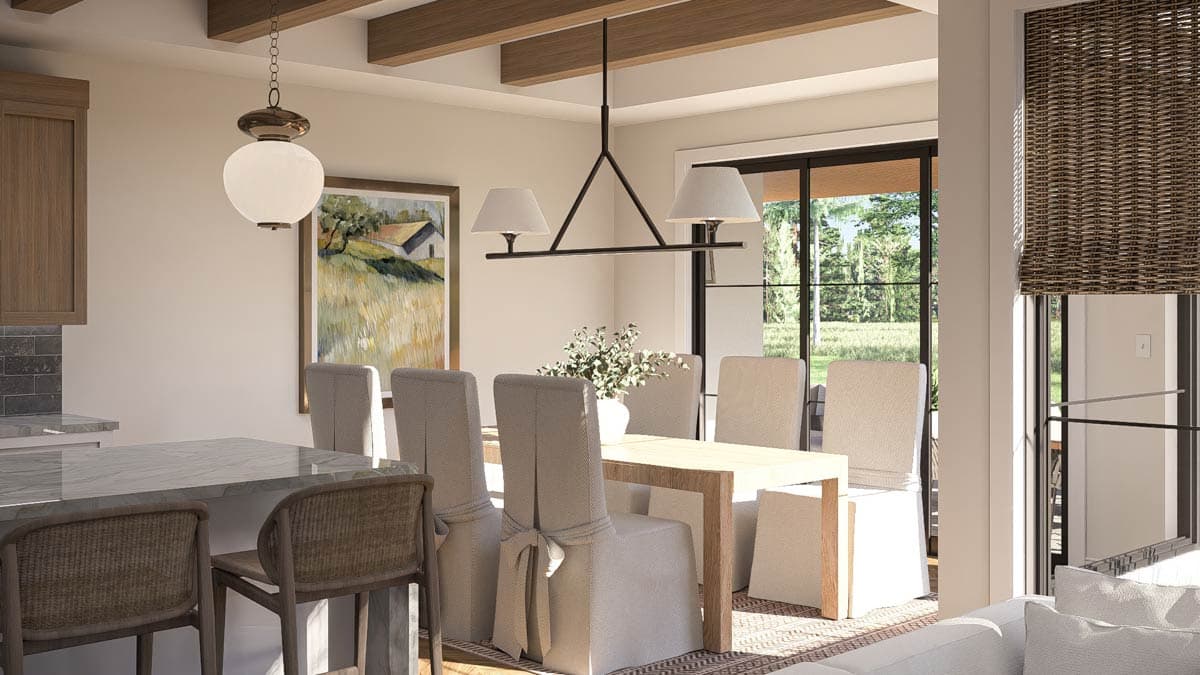

The heart of the home unfolds effortlessly, with the 13' x 16' kitchen boasting a large island and a 7' x 7' walk-in butler's pantry, flowing seamlessly into the formal 13' x 13' dining area and the great room, perfect for both intimate family moments and larger gatherings.

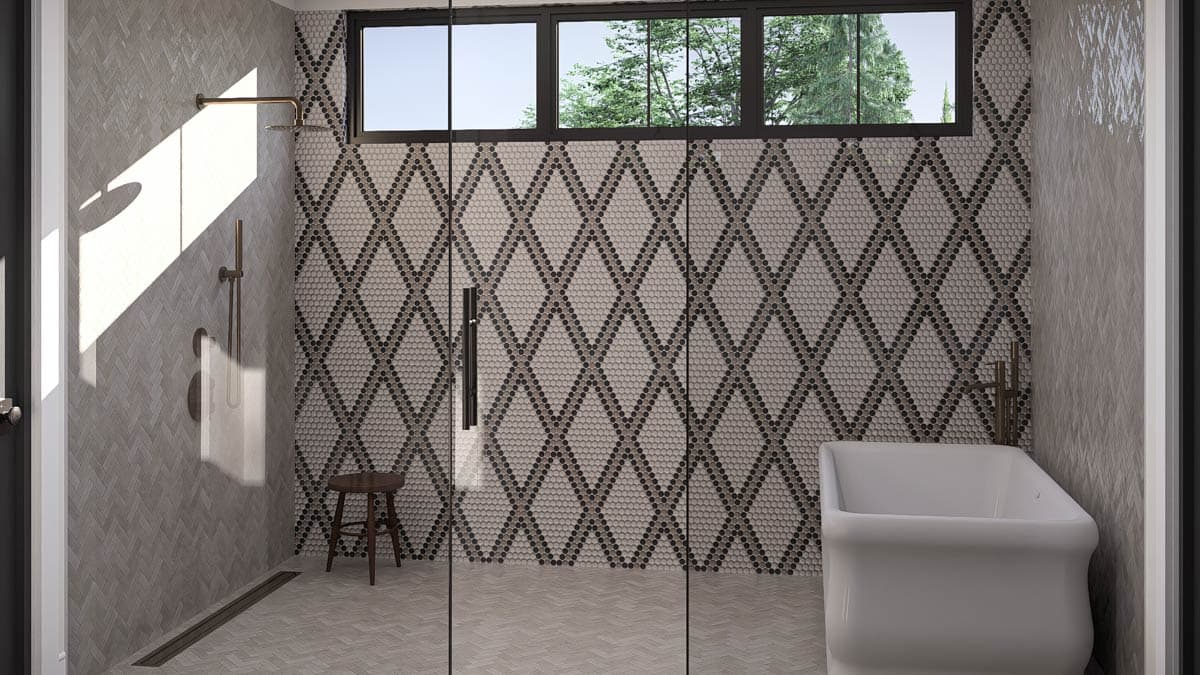

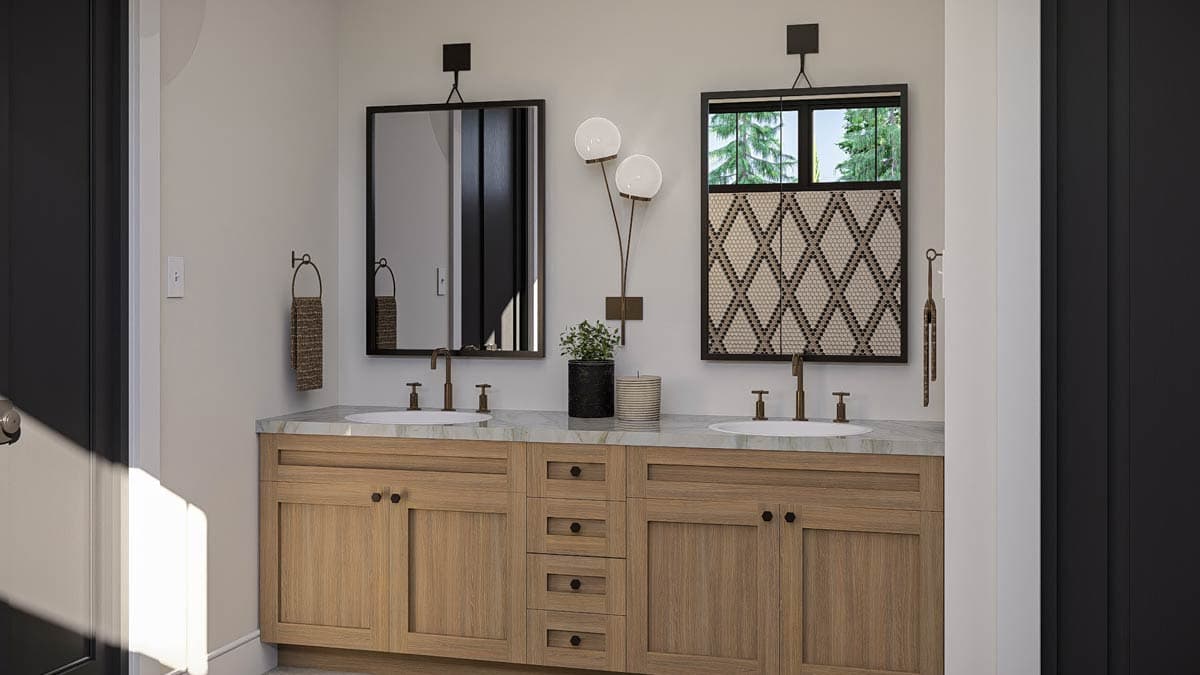

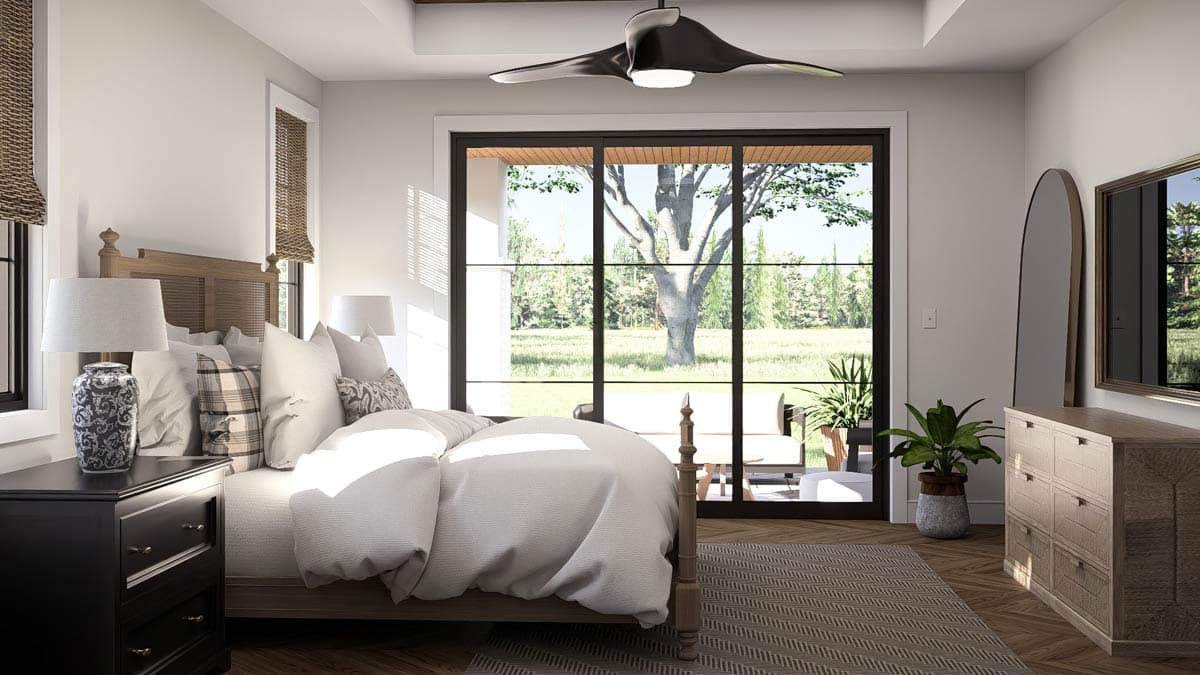

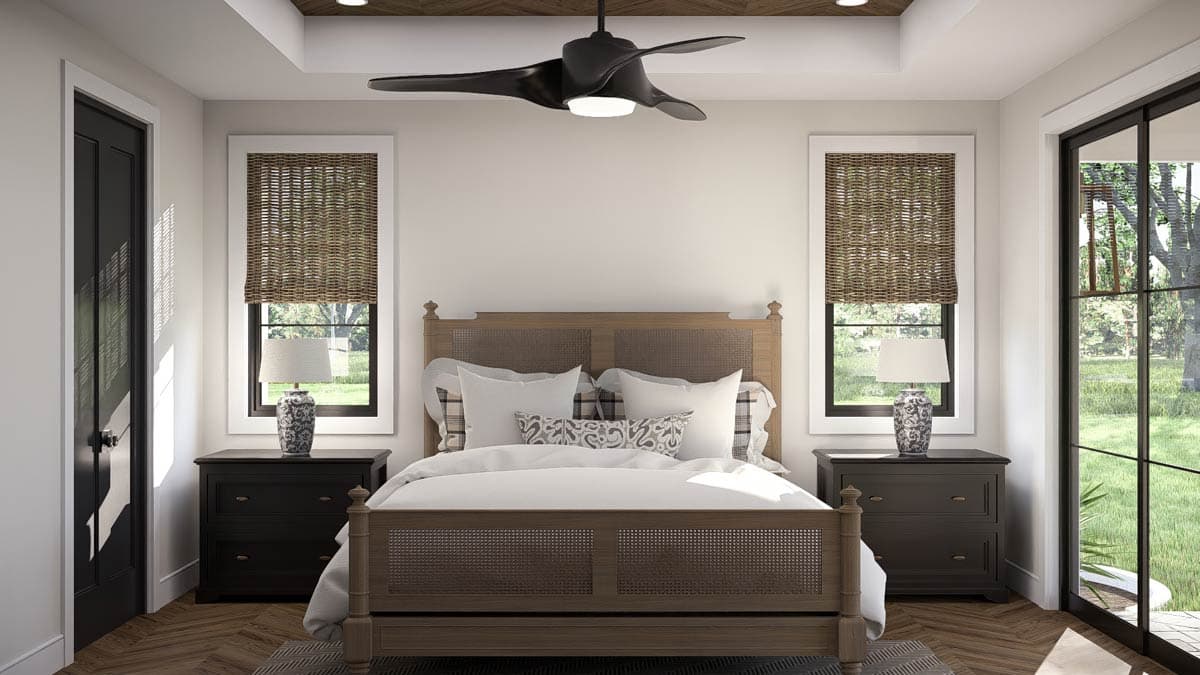

The luxurious 14' x 15' master suite, located on the main level, offers a private retreat with its 10-foot ceiling, a spa-like master bath featuring a soaking tub, separate shower, and dual vanities, plus convenient direct access to the laundry room; secondary bedrooms are thoughtfully split, each measuring 11' x 12', sharing a well-appointed full bath and a versatile 5' x 7' play or study nook.
A practical mudroom, measuring 10' x 7', provides a functional transition from the garage, keeping daily essentials organized and maintaining the home's pristine appeal.

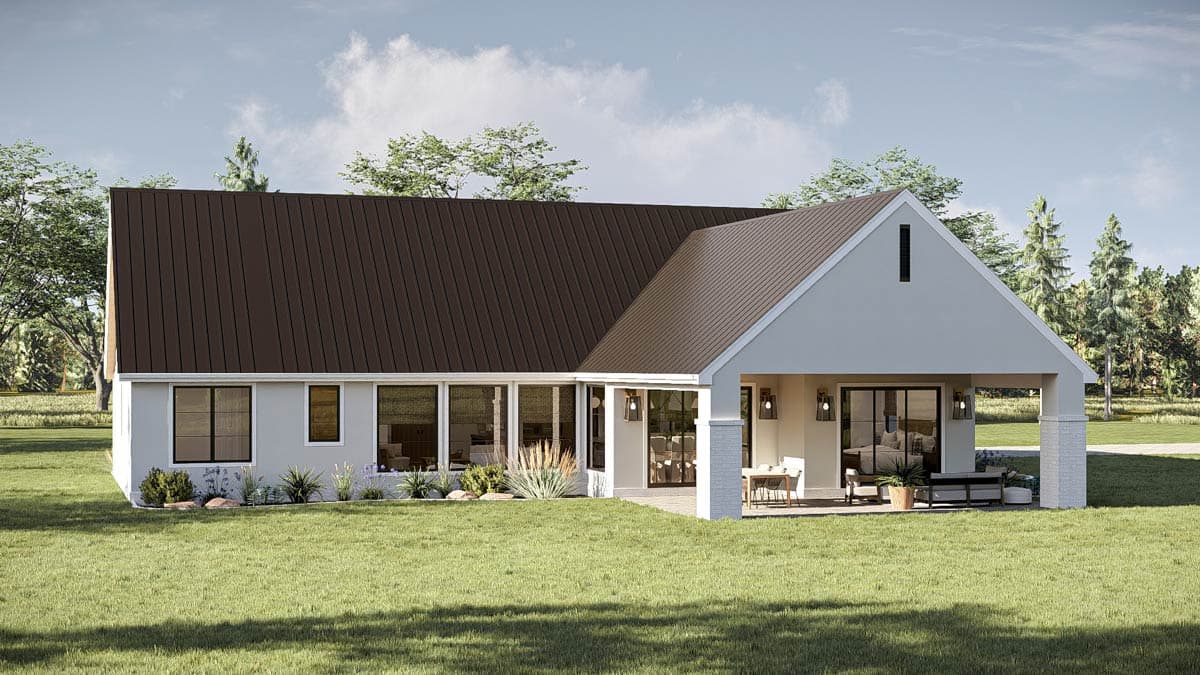

Experience true indoor-outdoor living on the generous 29' x 20' covered patio, an ideal setting for morning coffee, al fresco dining, or simply enjoying the fresh air in a sheltered environment.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
